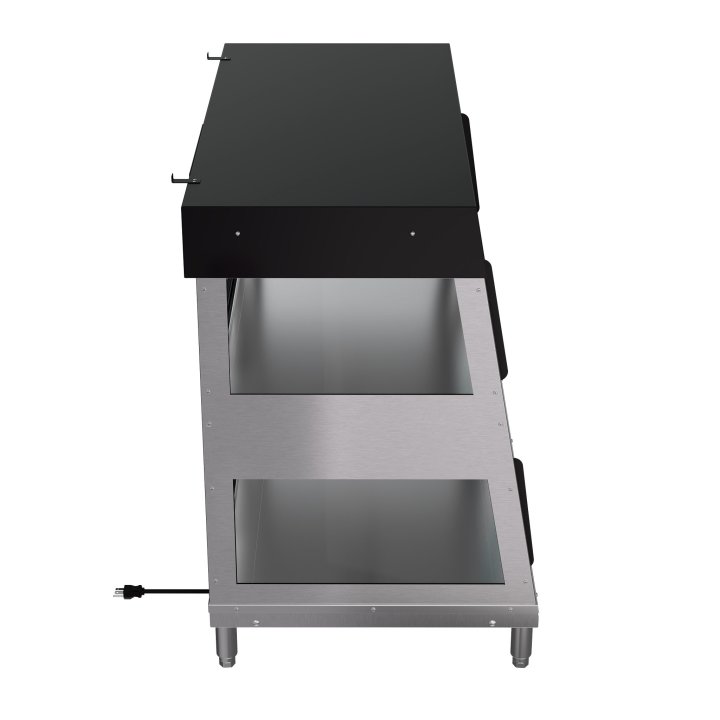

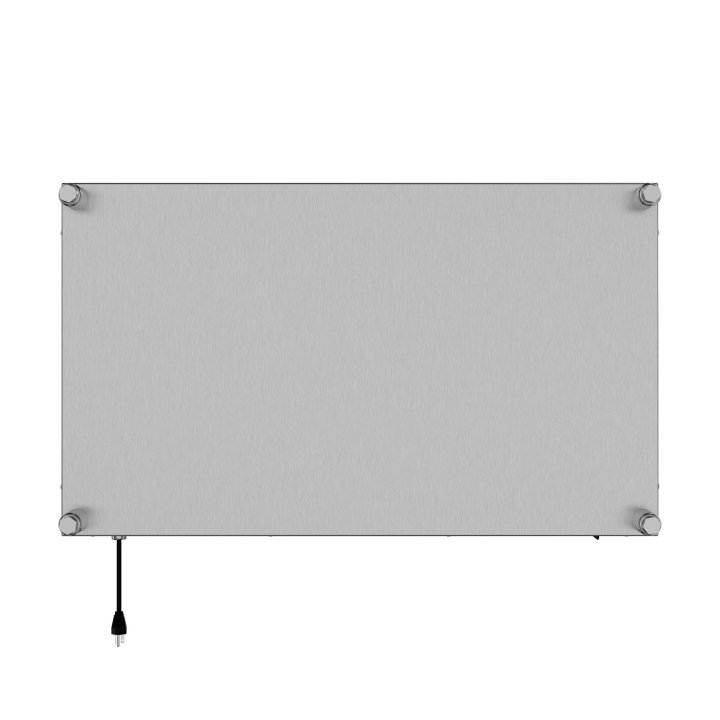

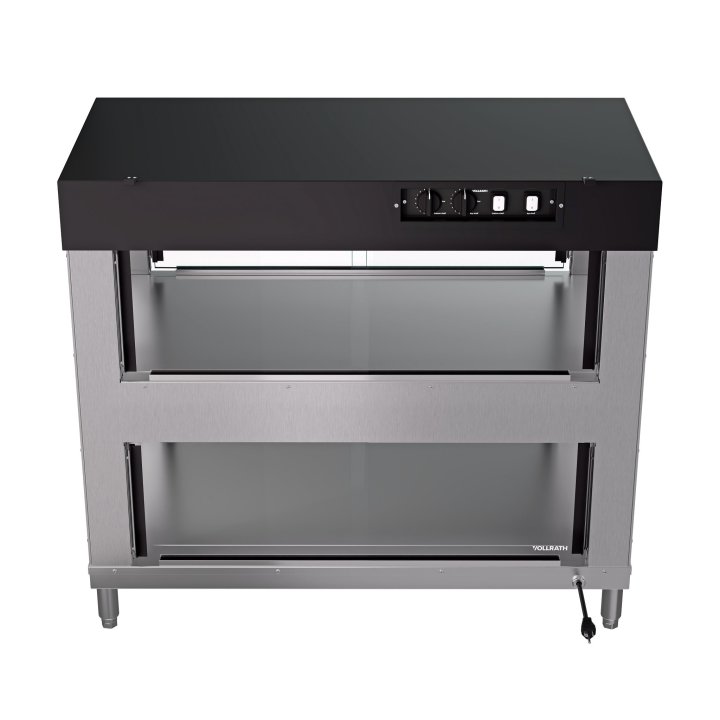

HHM-3P

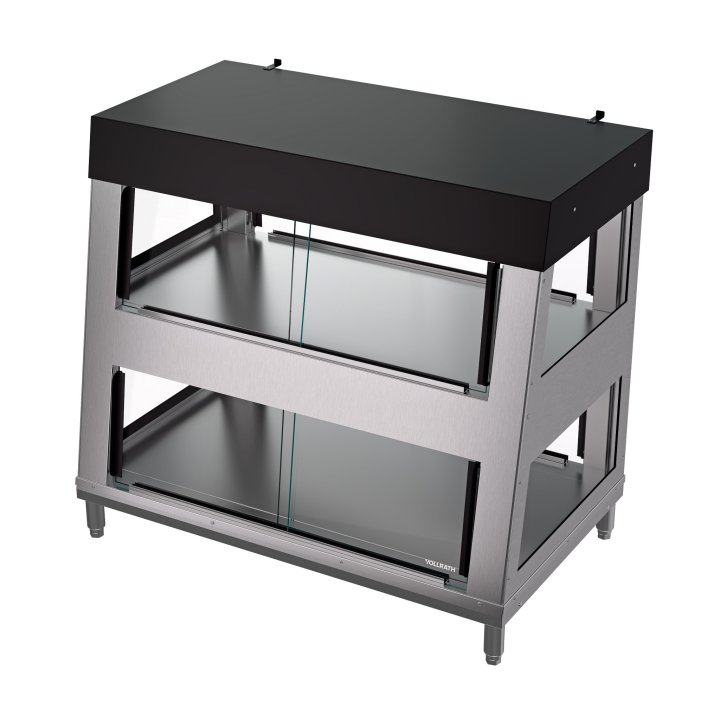

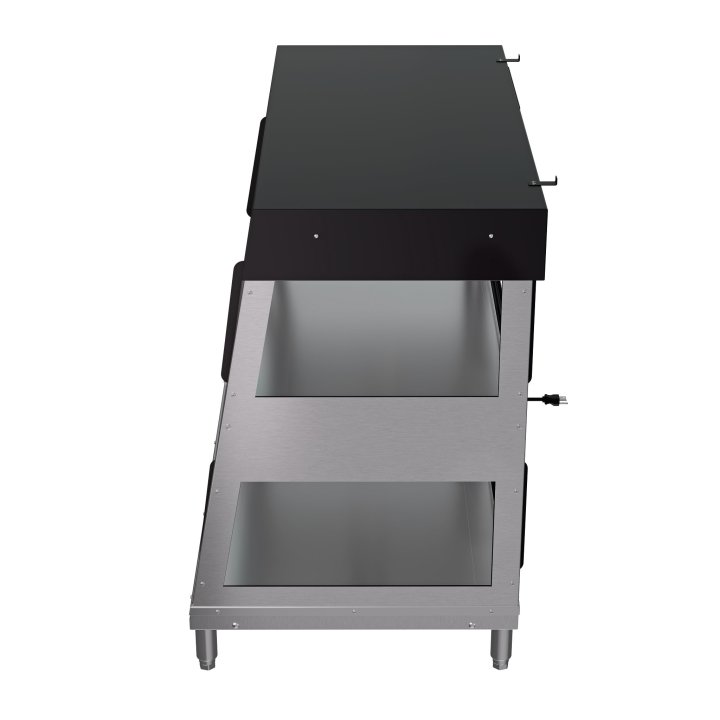

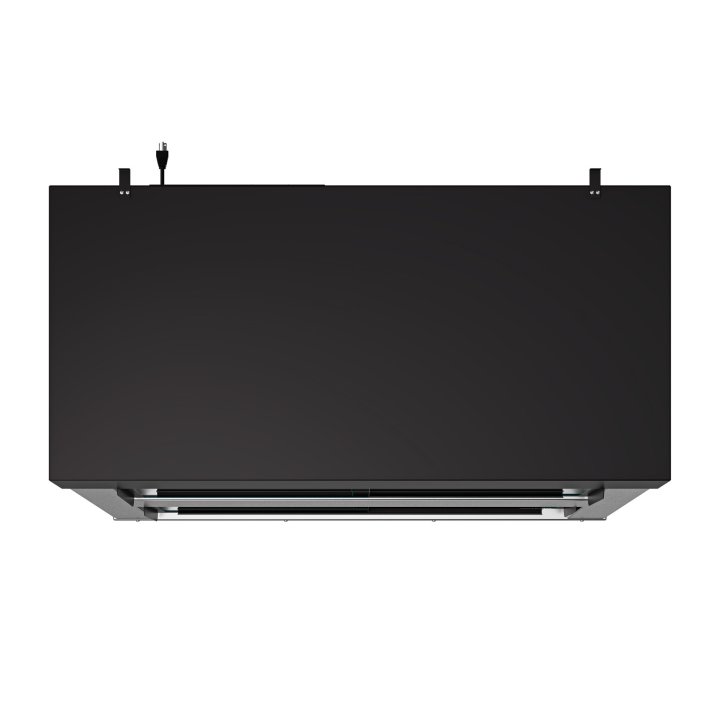

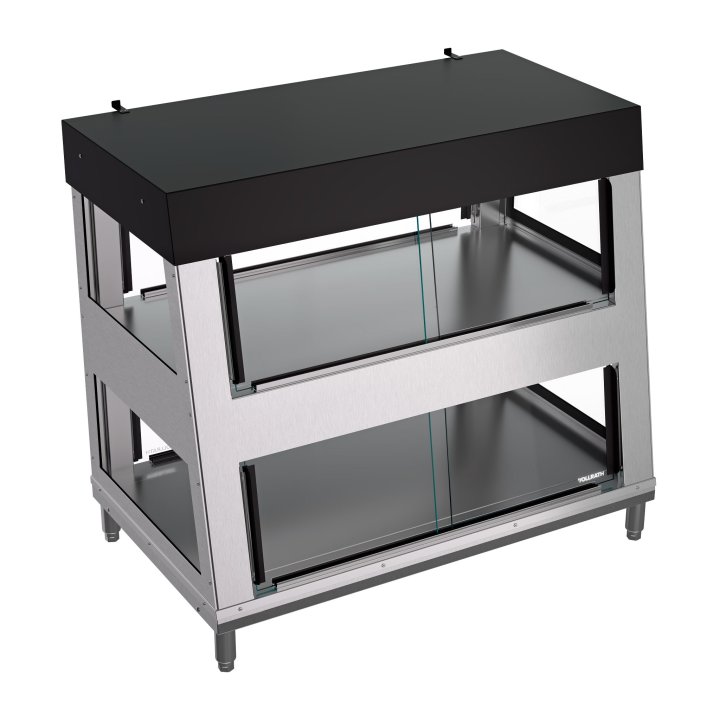

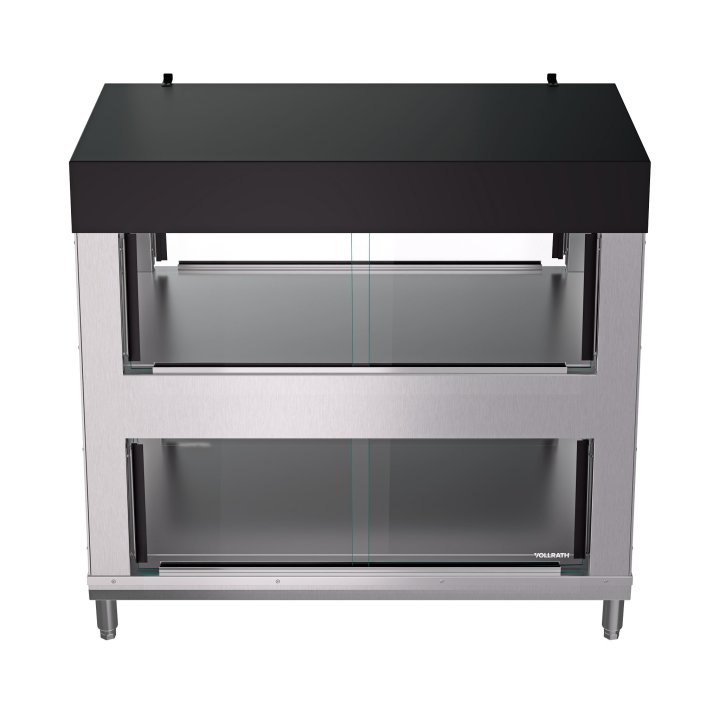

42-inch-wide 208-240-volt 3-pan humidity-controlled hot food display case
Classified by UL to NSF/ANSI 4
This symbol represents products that are certified to meet specific environmental and public health standards. The UL EPH Mark is recognized and accepted as a trusted source for assessing the sanitary design, construction and performance of commercial food equipment. If it shows the word “Classified” above the UL mark, then the product also complies with ANSI/NSF regulations.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
For fried foods that stay crispy and crunchy longer, set your sights on the Vollrath humidity-controlled hot food display case, with the capacity to hold up to three full-size steam table pans per shelf. Thanks to a discreet integrated fan system that extracts humid air, it holds chicken, sides, sandwiches, and other fried foods at proper serving temperatures above 140 degrees Fahrenheit while keeping items crispy, crunchy, and tastefully merchandised. Dual heating zones allow you to set the top and bottom zones independently, each with overhead radiant heat that’s user-adjustable via intuitive dials, and preset shelf heat operated by each zone’s power switch. With doors on both sides for easy access and flexible display options, you can count on visually appealing, crispy food that keeps customers coming back for more.
- Holds up to 3 full-size steam table pans per shelf
- Holds fried foods longer than other cases
- Hidden fans extract humid air to keep food crispy longer
- Independent dual heating zones
- LED lighting highlights foods on display
- Sliding glass doors with handles open on both sides of case
- Doors lift and remove for easy cleaning
- Glass panels on sides allow clear product visibility
- Includes wire racks for shelf display
- Includes 4-inch adjustable legs or can be sealed to countertop
- Classified by UL to the NSF 4 standard for hot food holding
- Perfect for chicken, sandwiches, potatoes and other sides
- Durable stainless steel and glass
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | HCM-3 |
| UPC | 198594144306 |

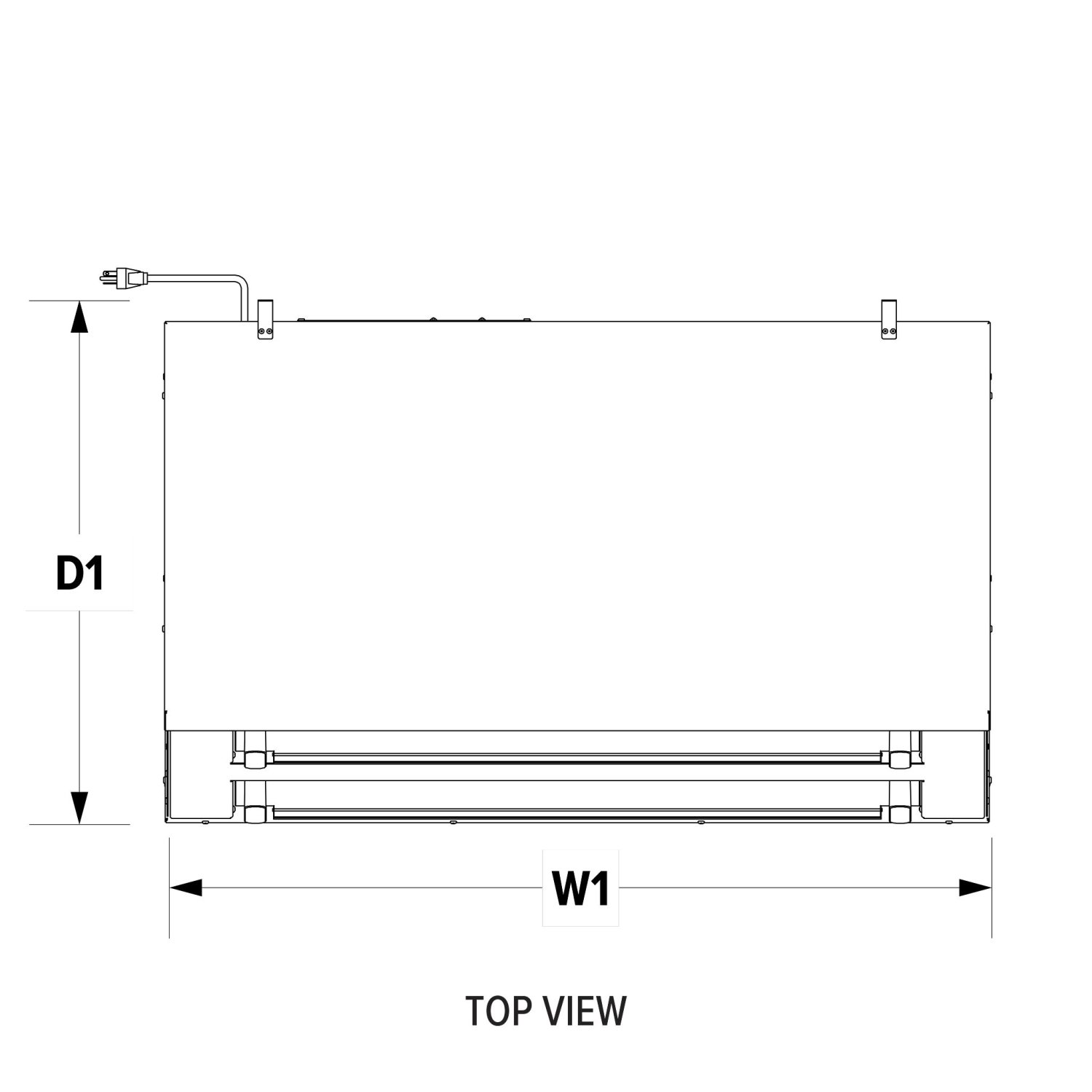

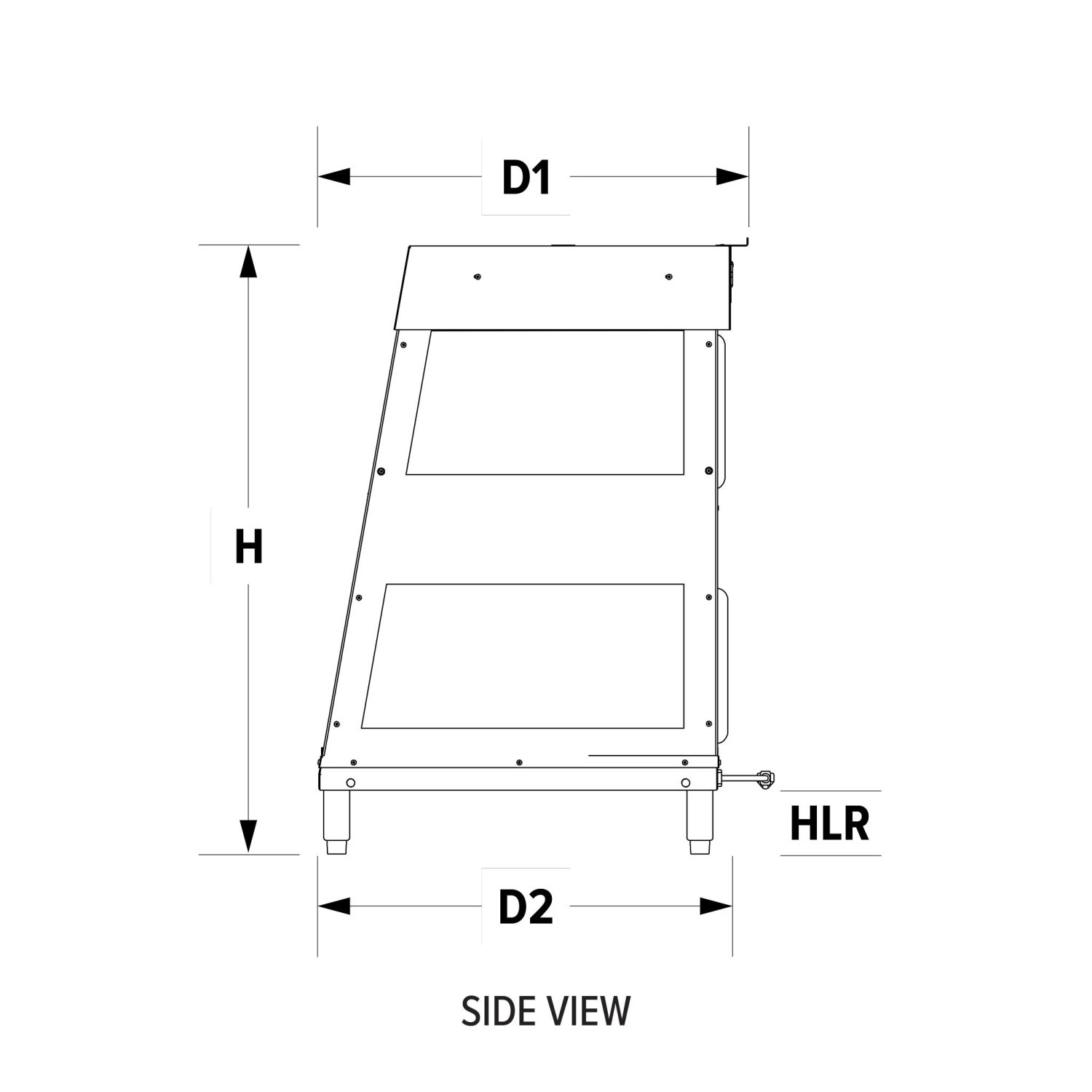

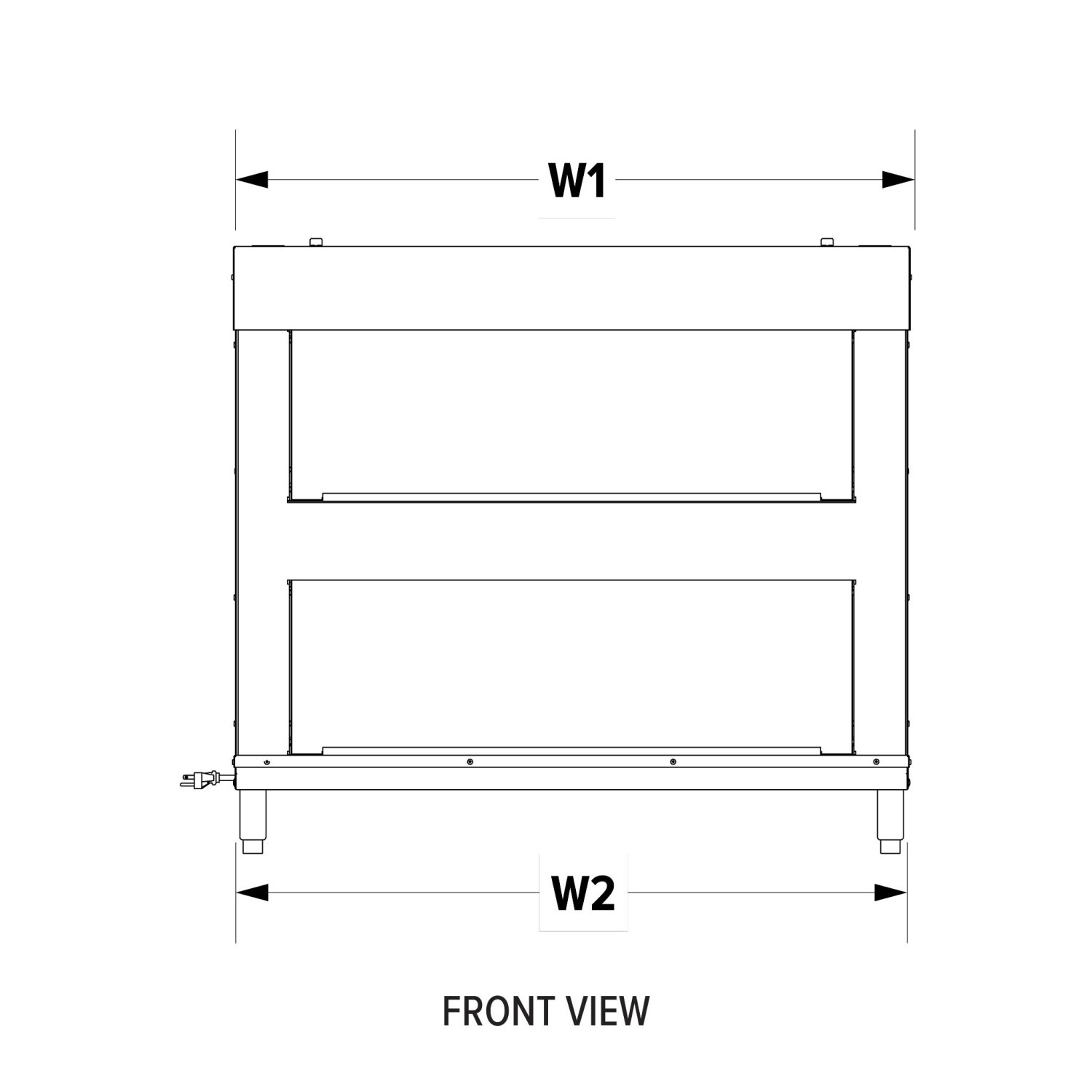

Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 42.5 |
| (D) Depth (IN) | 26.89 |
| (H) Height (IN) | 34.61 |
Electrical
| Name | Value |
|---|---|
| Amps | 9.3-10.7 |
| Plug | NEMA 6-20P |
| Voltage | 208-240 |
| Watts | 1924-2562 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 250 |
Construction
| Name | Value |
|---|---|
| Construction Feature 1 | Angled-Front |
| Construction Feature 3 | Humidity-Controlled |
| Construction Feature 2 | Hot Holding |
| Product Function | Heated food display cases |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 48 |
| Case Height | 45.25 |
| Case Length | 40 |
| Case Lot Cube (ft.) | 50.28 |
| Case Lot Weight (lbs.) | 250 |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| 14 Ga Straight Strain Relief | B400320 | $8.00 |
| NUT W/WASHER #10-24 ZINC PLT | 21574-3 | $0.70 |
| CONNECTOR 3 WIRE WAGO 221-413 | 4350811-1 | $8.80 |
| Rect Power Switch 240V Dpst | 352774-1 | $50.60 |
| CONNECTOR 5 WIRE WAGO 221-415 | 4350812-1 | $5.30 |
| CONNECTOR 2 WIRE WAGO 221-412 | 4350810-1 | $1.40 |
| Control Knob | 351788-06-1 | $7.60 |
| Heavy Duty 4" Leg | 2351601-1 | $31.80 |
| ELEMENT SUPPORT BRACKET | 352607-2 | $8.70 |
| HEATING ELEMENT SIZE 36 RED | 1791528-1 | $51.70 |
| RELAY | 351310-1 | $57.90 |
| LEFT PANEL SPARE - HCM | 356379-2 | $782.70 |
| DOOR TRIM SEAL - HCM | 355620-1 | $6.40 |
| SHELF HEATER VHB TAPE SPARE | 356239-1 | $129.30 |
| CHANNEL CVR UPPER RIGHT - HCM | 355623-2 | $17.60 |
| LED - HCM-3 | 355625-1 | $80.40 |
| CHANNEL CVR LOWER RIGHT - HCM | 355562-2 | $16.50 |
| GLASS REAR HANDLE - HCM | 355619-1 | $21.40 |
| REAR GLASS SPARE - HCM-3 | 356380-2 | $258.10 |
| CHANNEL COVER UPPER LEFT - HCM | 355549-2 | $17.60 |
| SHELF HEATER SPARE - HCM-3 | 356383-2 | $397.60 |
| RIGHT PANEL SPARE - HCM | 356378-2 | $782.70 |
| CHANNEL COVER LOWER LEFT - HCM | 355550-2 | $16.50 |
| 5/8 SNAP BUSHING | B400332 | $0.10 |
| POWER FOR LED | RDC0145 | $91.70 |
| LED METAL STRIP | 353209-1 | $12.00 |
| HOT HOLDING THERMOMETER | 353200-1 | $87.20 |
| FMA DOOR TRACK, BK HFM-36 | 353119-1 | $39.50 |
| CORD POWER 14/3 60" 6-20 PLUG | B401050 | $68.60 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
