HHM-SS
Hot-Food Display Case
Vollrath makes the case for mouthwatering fried foods with self-serve convenience.
Classified by UL to NSF/ANSI 4
This symbol represents products that are certified to meet specific environmental and public health standards. The UL EPH Mark is recognized and accepted as a trusted source for assessing the sanitary design, construction and performance of commercial food equipment. If it shows the word “Classified” above the UL mark, then the product also complies with ANSI/NSF regulations.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

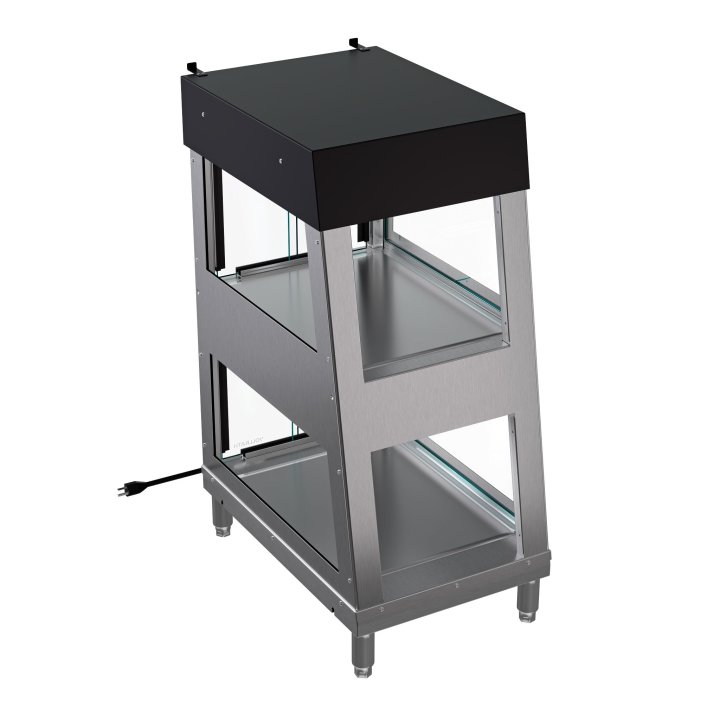

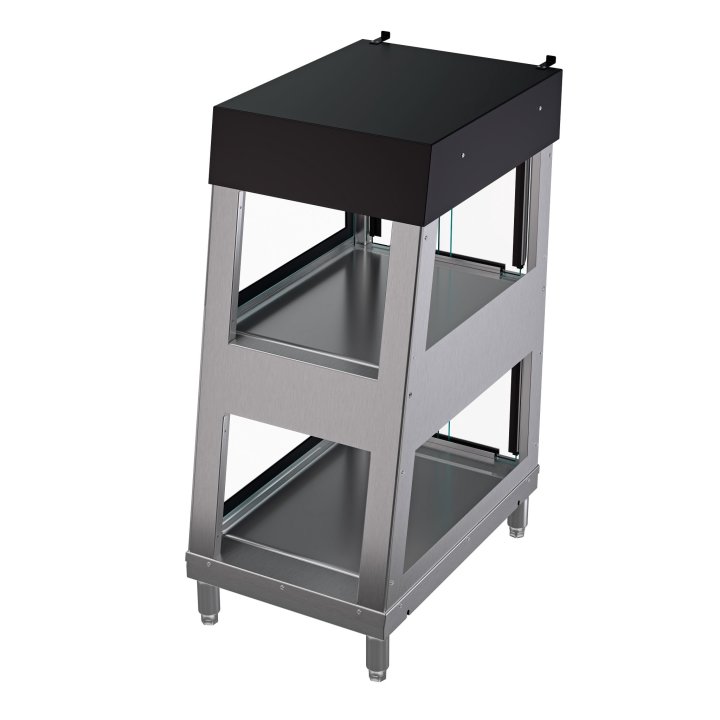

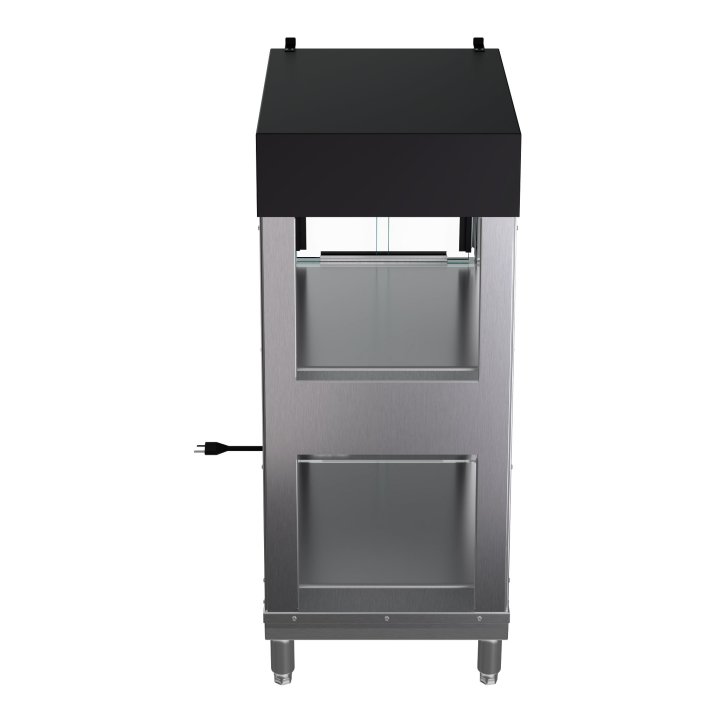

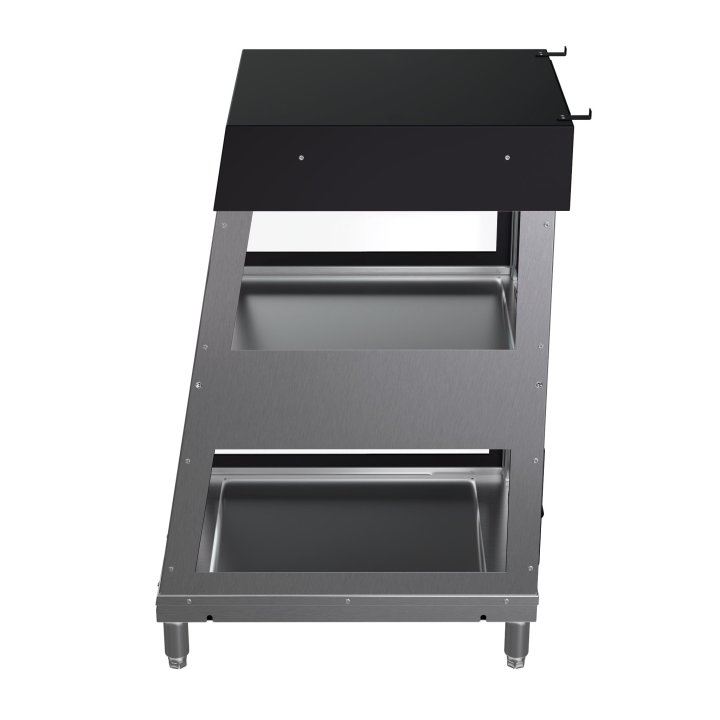

16-inch-wide 120-volt self-serve hot food display case

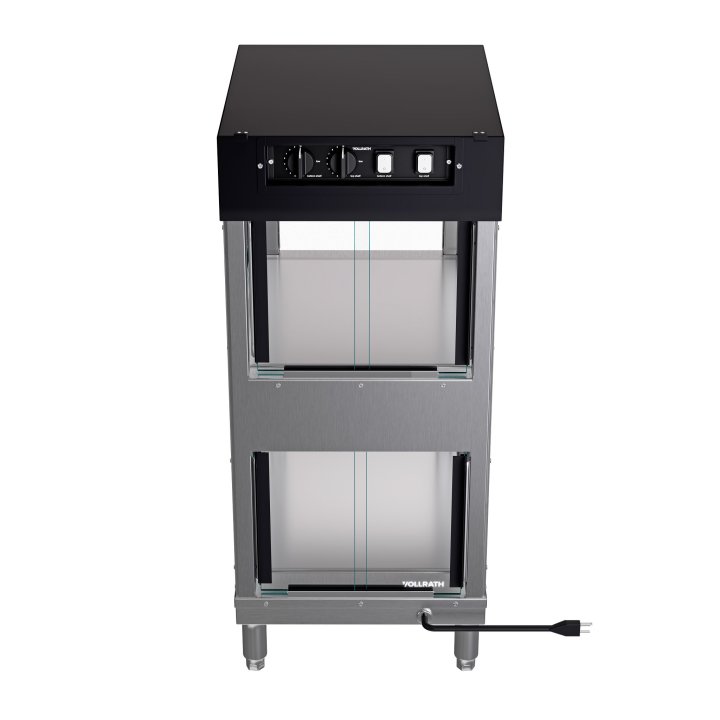

Vollrath makes the case for mouthwatering fried foods with self-serve convenience. Our self-serve display case's open-front design allows customers to grab their favorite foods and go. Dual heating zones allow you to set the top and bottom independently, each with overhead radiant heat that’s user-adjustable via intuitive dials, and preset shelf heat operated by each zone’s power switch. With eye-catching lighting and an included wire rack for flexible display options, you can count on visually appealing food that keeps customers coming back for more.

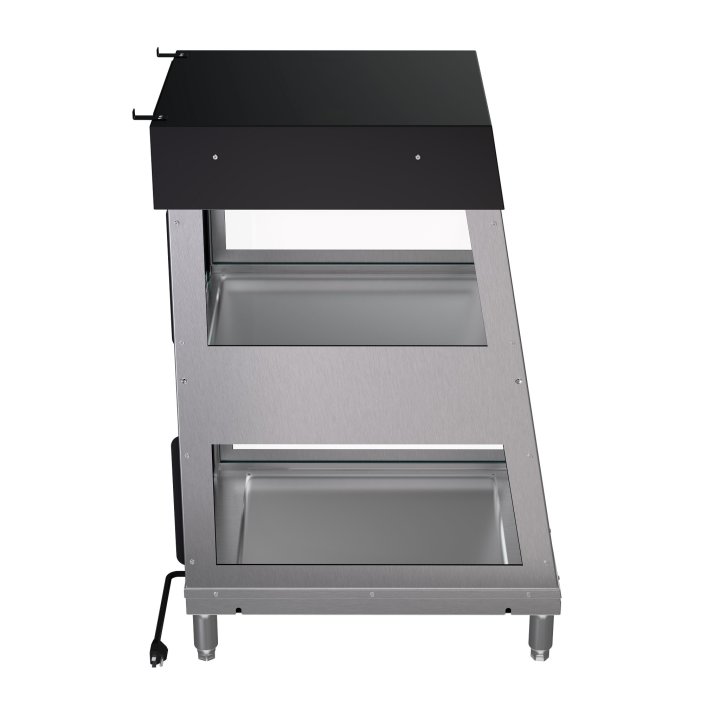

Open front allows customers easy access
Independent dual heating zones
LED lighting highlights foods on display
Sliding glass doors with handles on the back side
Doors lift and remove for easy cleaning
Glass panels on sides allow clear product visibility
Includes wire rack for shelf display

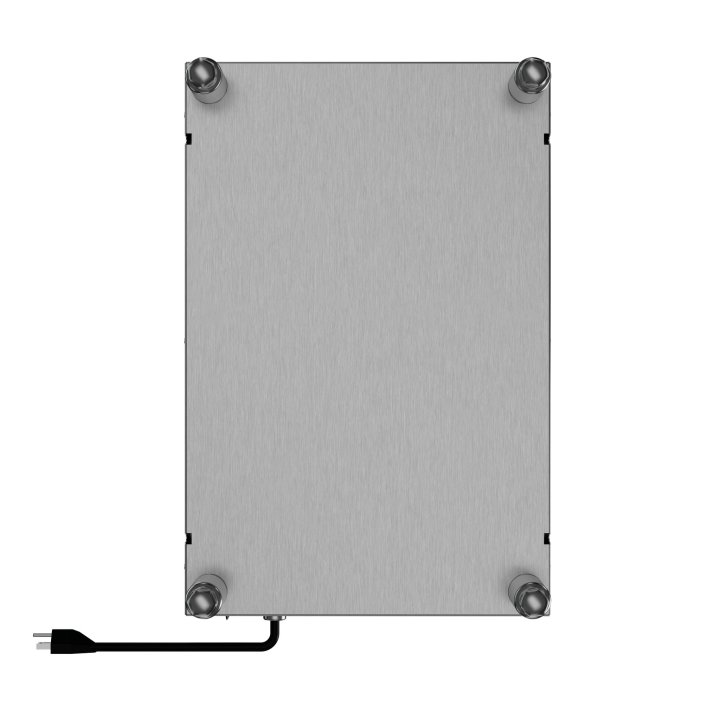

Includes 4-inch adjustable legs or can be sealed to countertop
Classified by UL to NSF 4
Perfect for chicken, sandwiches, potatoes and other sides
Durable stainless steel and glass
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | HCM-SS |
| UPC | 198594144290 |

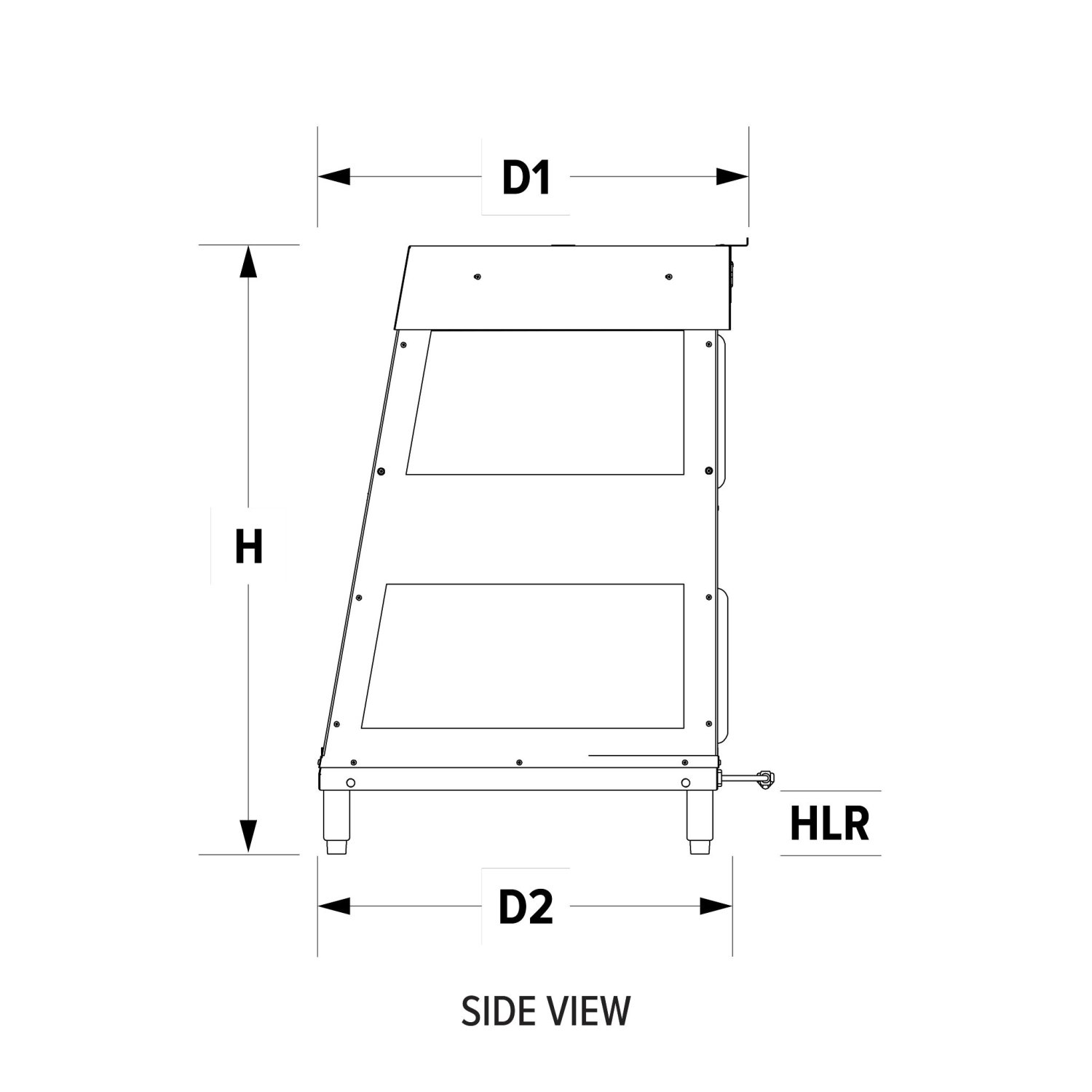

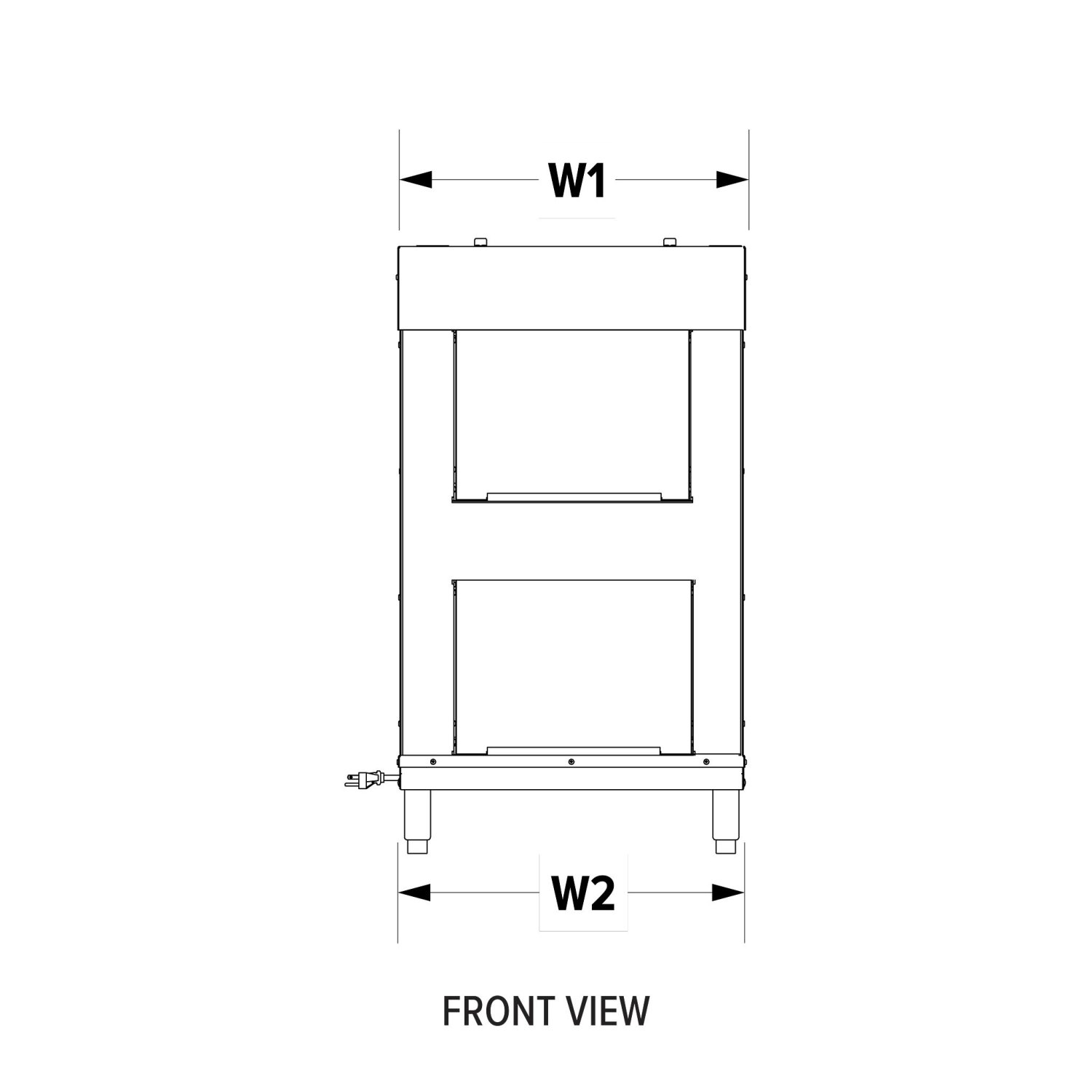

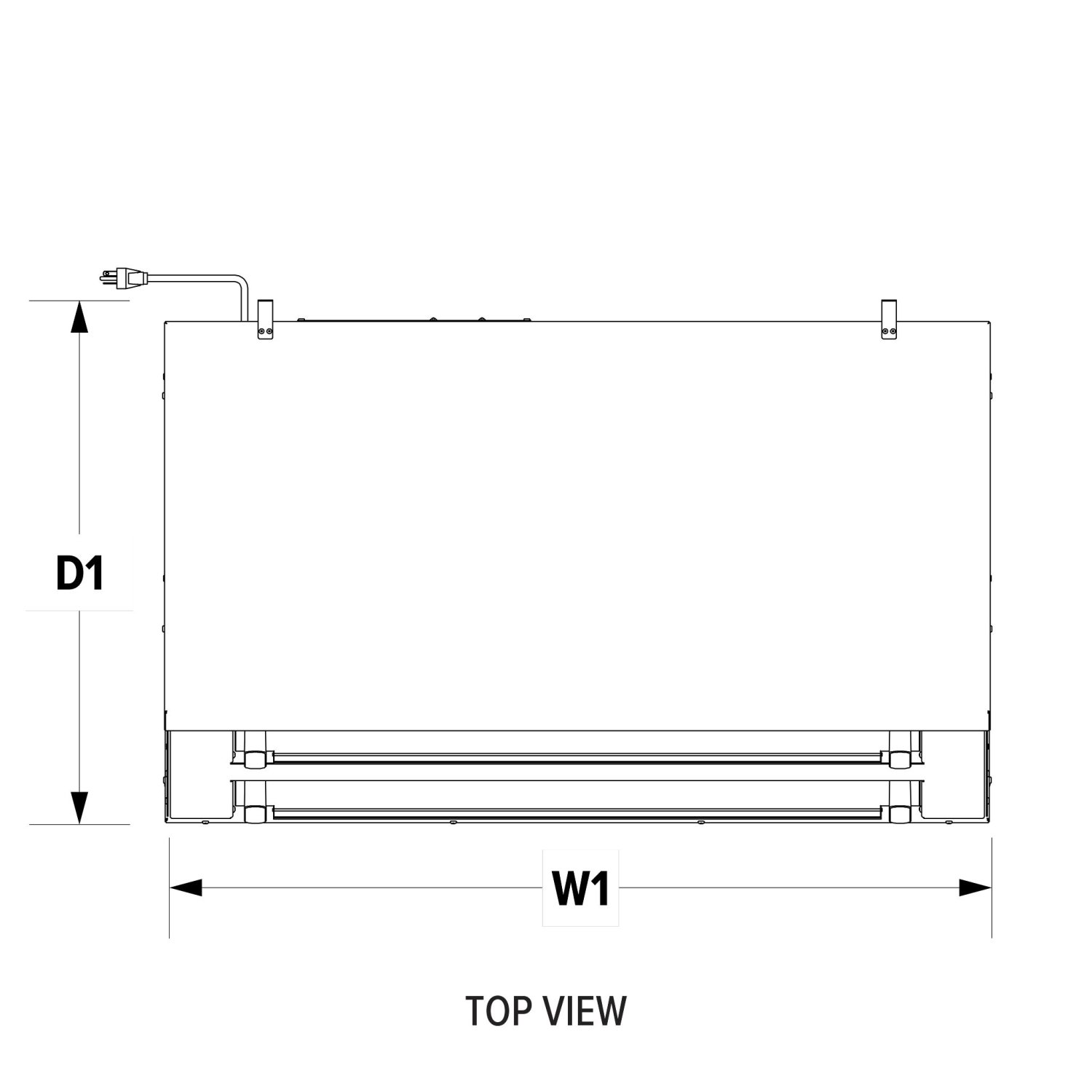

Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 16.73 |
| (D) Depth (IN) | 26.89 |
| (H) Height (IN) | 34.61 |
Electrical
| Name | Value |
|---|---|
| Amps | 7.2 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 860 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 100 |
Construction
| Name | Value |
|---|---|
| Construction Feature 1 | Angled-Front |
| Construction Feature 3 | Humidity-Controlled |
| Construction Feature 2 | Hot Holding |
| Product Function | Heated food display cases |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 48 |
| Case Height | 45.25 |
| Case Length | 40 |
| Case Lot Cube (ft.) | 50.28 |
| Case Lot Weight (lbs.) | 150 |
Product Accessories
| Name | Item # |
|---|---|
| Replacement wire rack for humidity-controlled hot food display case | 60200 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| 14 Ga Straight Strain Relief | B400320 | $8.00 |
| NUT W/WASHER #10-24 ZINC PLT | 21574-3 | $0.70 |
| CORDSET 14AWG SJTOW | 17847-1 | $42.10 |
| Heavy Duty 4" Leg | 2351601-1 | $31.80 |
| RELAY POWER | 25357-1 | $21.20 |
| Control Knob | 351788-06-1 | $7.60 |
| CONNECTOR 3 WIRE WAGO 221-413 | 4350811-1 | $8.80 |
| RECT. POWER SWITCH - 120V | 352773-1 | $13.50 |
| LED METAL STRIP | 353209-1 | $12.00 |
| ELEMENT SUPPORT BRACKET | 352607-2 | $8.70 |
| LEFT PANEL SPARE - HCM | 356379-2 | $782.70 |
| DOOR TRIM SEAL - HCM | 355620-1 | $6.40 |
| SHELF HEATER VHB TAPE SPARE | 356239-1 | $129.30 |
| CALROD HEATER - HCM-SS | 355377-1 | $29.50 |
| LED - HCM-SS | 355616-1 | $52.30 |
| SELF-SERVE TRACK INSERT | 355618-1 | $7.70 |
| GLASS REAR HANDLE - HCM | 355619-1 | $21.40 |
| RIGHT PANEL SPARE - HCM | 356378-2 | $782.70 |
| CONNECTOR 5 WIRE WAGO 221-415 | 4350812-1 | $5.30 |
| CONNECTOR 2 WIRE WAGO 221-412 | 4350810-1 | $1.40 |
| POWER FOR LED | RDC0145 | $91.70 |
| SHELF HEATER SPARE - HCM-SS | 356385-2 | $218.40 |
| REAR GLASS SPARE - HCM-SS | 356382-2 | $186.90 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
Customer Questions
Be the first to ask a question
