HHM-4P
Humidity Controlled Hot-Food Display Case
For fried foods that stay crispy and crunchy longer, set your sights on the Vollrath humidity-controlled hot food display case, with the capacity to hold up to four full-size steam table pans per shelf. Thanks to a discreet integrated fan system that extracts humid air, it holds chicken, sides, sandwiches, and other fried foods at proper serving temperatures above 140 degrees Fahrenheit while keeping items crispy, crunchy, and tastefully merchandised. Dual heating zones allow you to set the top and bottom zones independently, each with overhead radiant heat that’s user-adjustable via intuitive dials, and preset shelf heat operated by each zone’s power switch. With doors on both sides for easy access and flexible display options, you can count on visually appealing, crispy food that keeps customers coming back for more..
Classified by UL to NSF/ANSI 4
This symbol represents products that are certified to meet specific environmental and public health standards. The UL EPH Mark is recognized and accepted as a trusted source for assessing the sanitary design, construction and performance of commercial food equipment. If it shows the word “Classified” above the UL mark, then the product also complies with ANSI/NSF regulations.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
It works exactly like promised. We tested and found that it kept the fried food fresher longer than the standard heat lamp we were using. … It truly is a great product and a true money saver at our snack bar.
Ron Letwinski Executive Chef - Red Run Golf Club, Royal Oak, Michigan

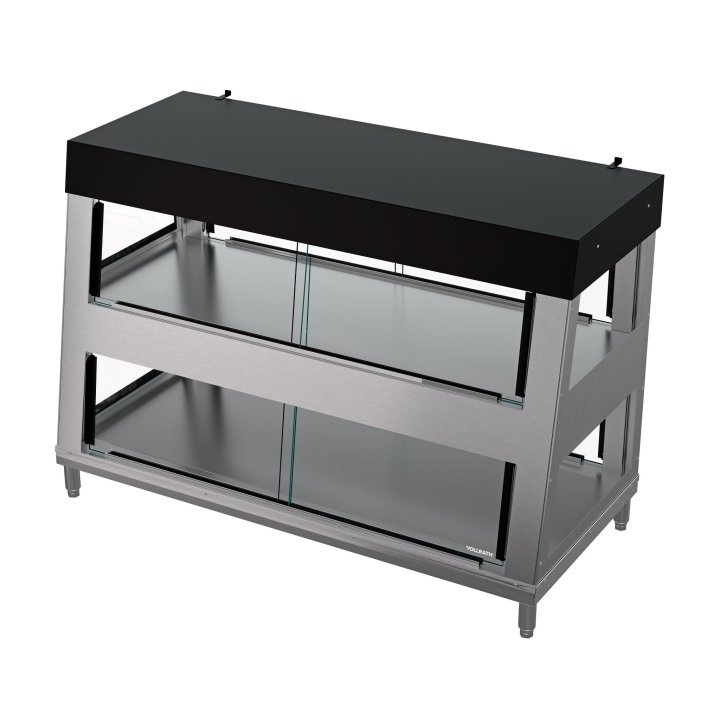

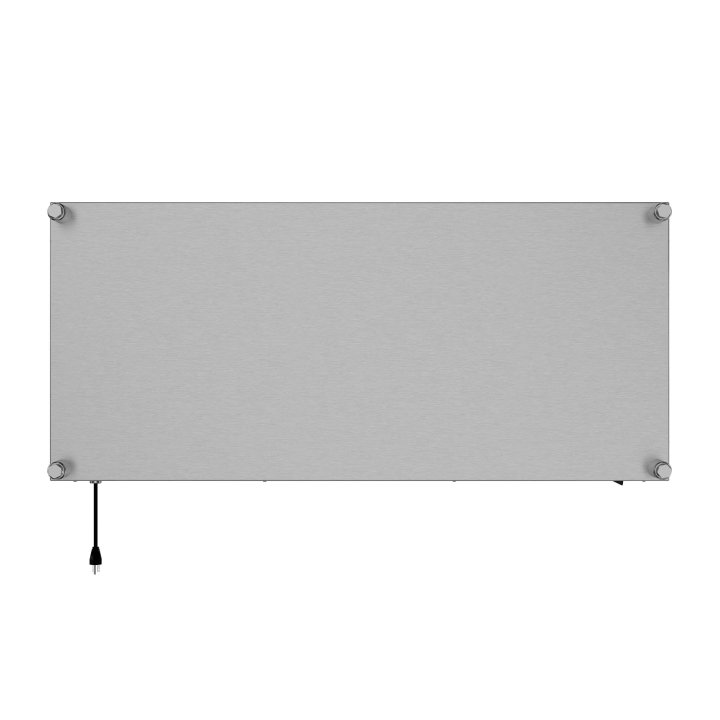

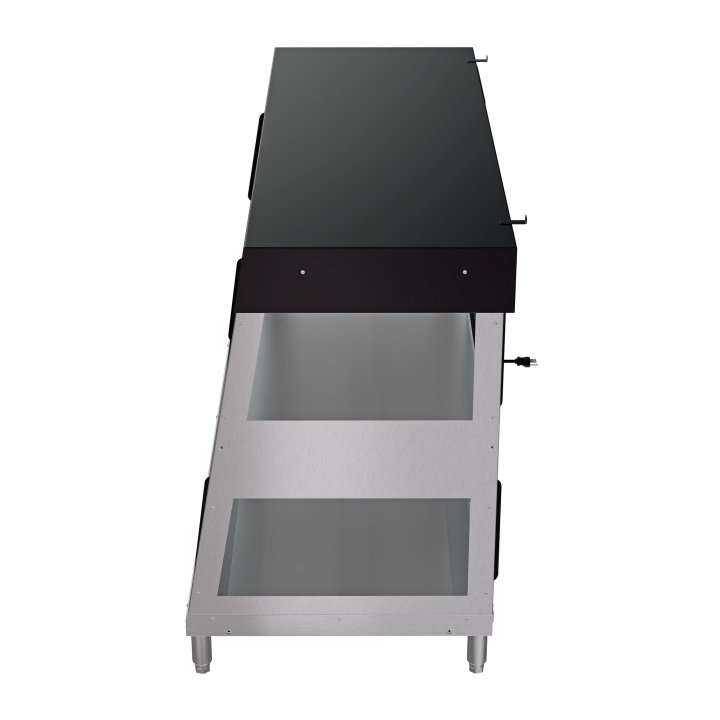

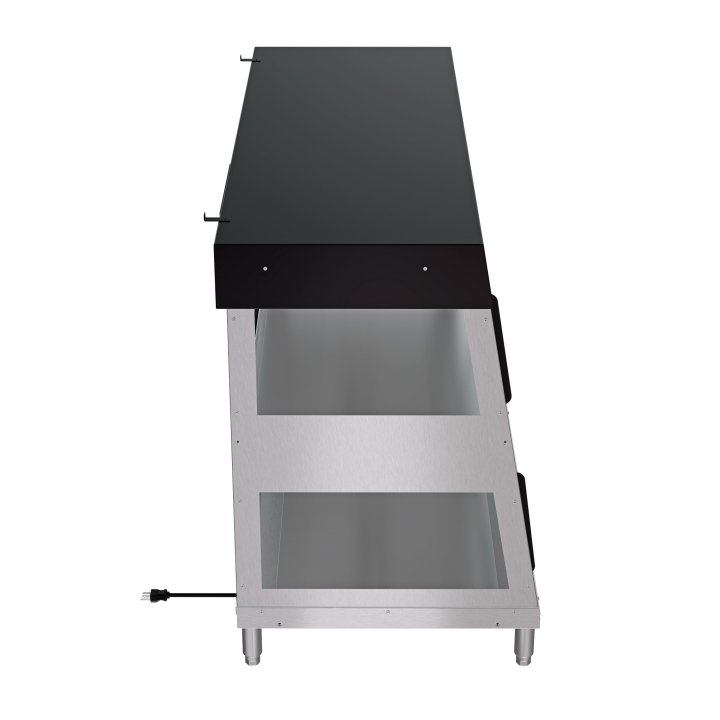

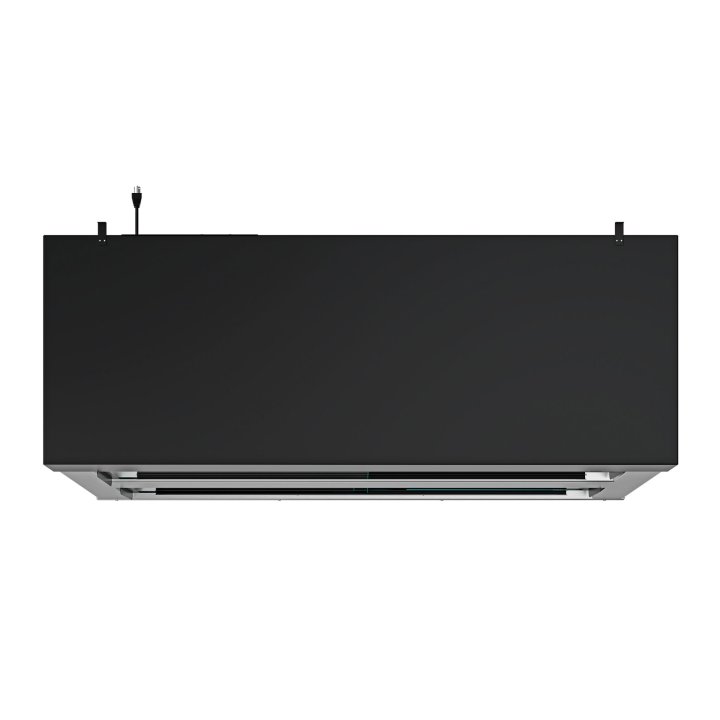

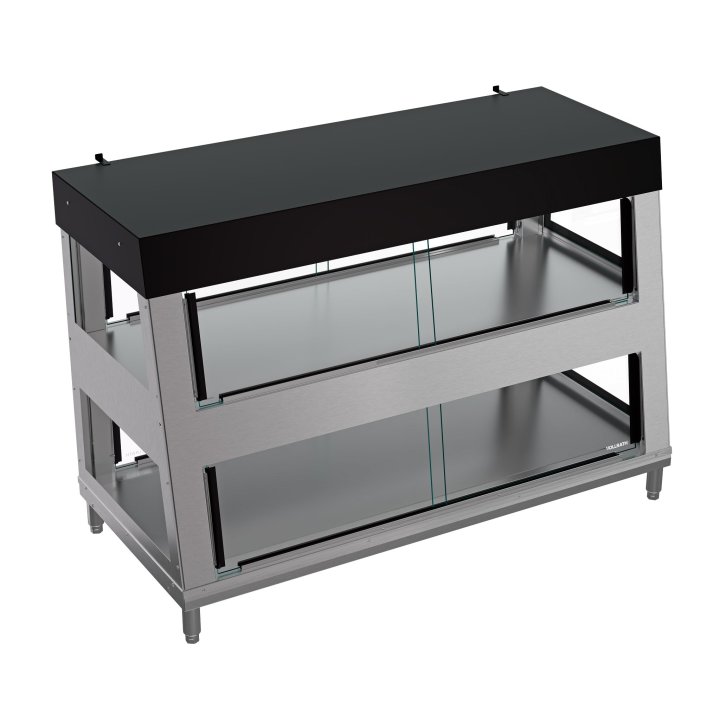

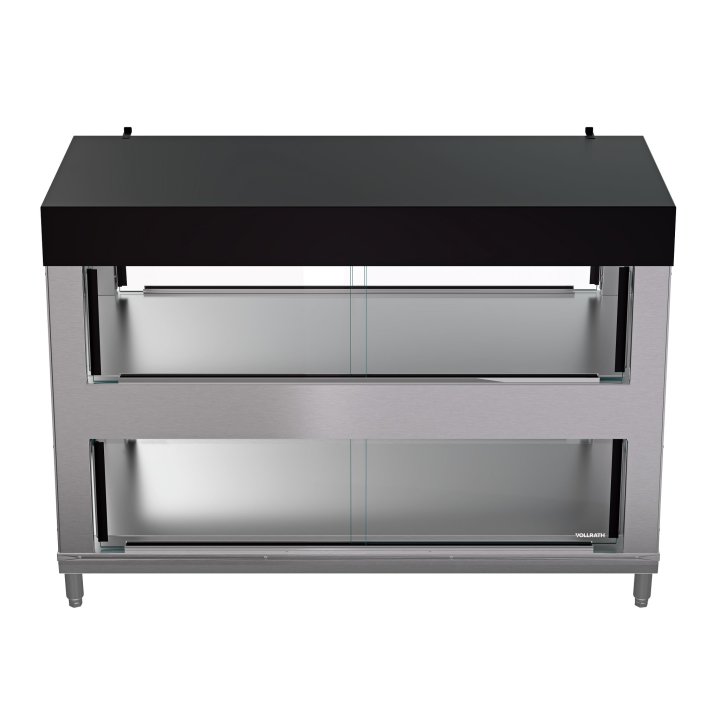

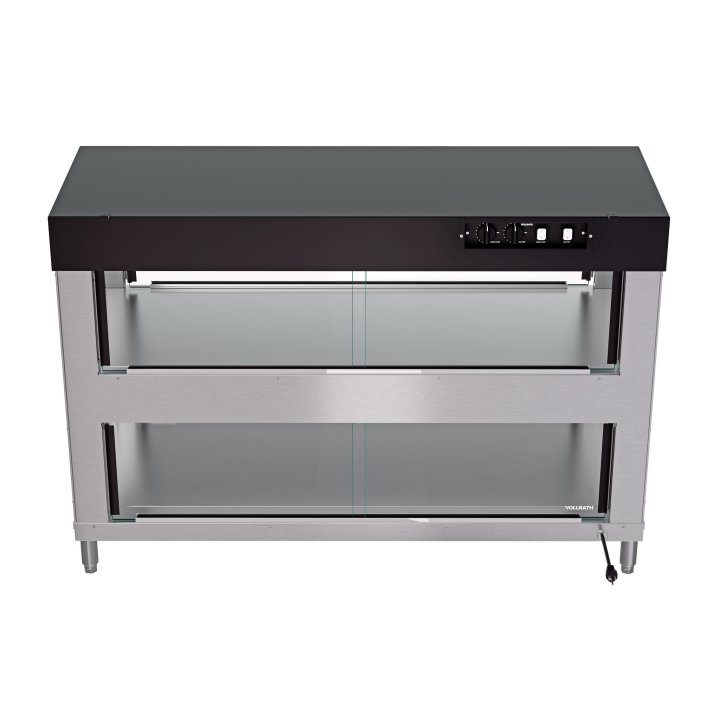

55-inch-wide 208-240-volt 4-pan humidity-controlled hot food display case
For fried foods that stay crispy and crunchy longer, set your sights on the Vollrath humidity-controlled hot food display case, with the capacity to hold up to four full-size steam table pans per shelf. Thanks to a discreet integrated fan system that extracts humid air, it holds chicken, sides, sandwiches, and other fried foods at proper serving temperatures above 140 degrees Fahrenheit while keeping items crispy, crunchy, and tastefully merchandised. Dual heating zones allow you to set the top and bottom zones independently, each with overhead radiant heat that’s user-adjustable via intuitive dials, and preset shelf heat operated by each zone’s power switch. With doors on both sides for easy access and flexible display options, you can count on visually appealing, crispy food that keeps customers coming back for more.
Holds up to 4 full-size steam table pans per shelf
Holds fried foods longer than other cases
Hidden fans extract humid air to keep food crispy longer
Independent dual heating zones
LED lighting highlights foods on display
Sliding glass doors with handles open on both sides of case
Doors lift and remove for easy cleaning
Glass panels on sides allow clear product visibility
Includes wire racks for shelf display
Includes 4-inch adjustable legs or can be sealed to countertop
Classified by UL to the NSF 4 standard for hot food holding
Perfect for chicken, sandwiches, potatoes and other sides
Durable stainless steel and glass
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | HCM-4 |
| UPC | 198594144313 |

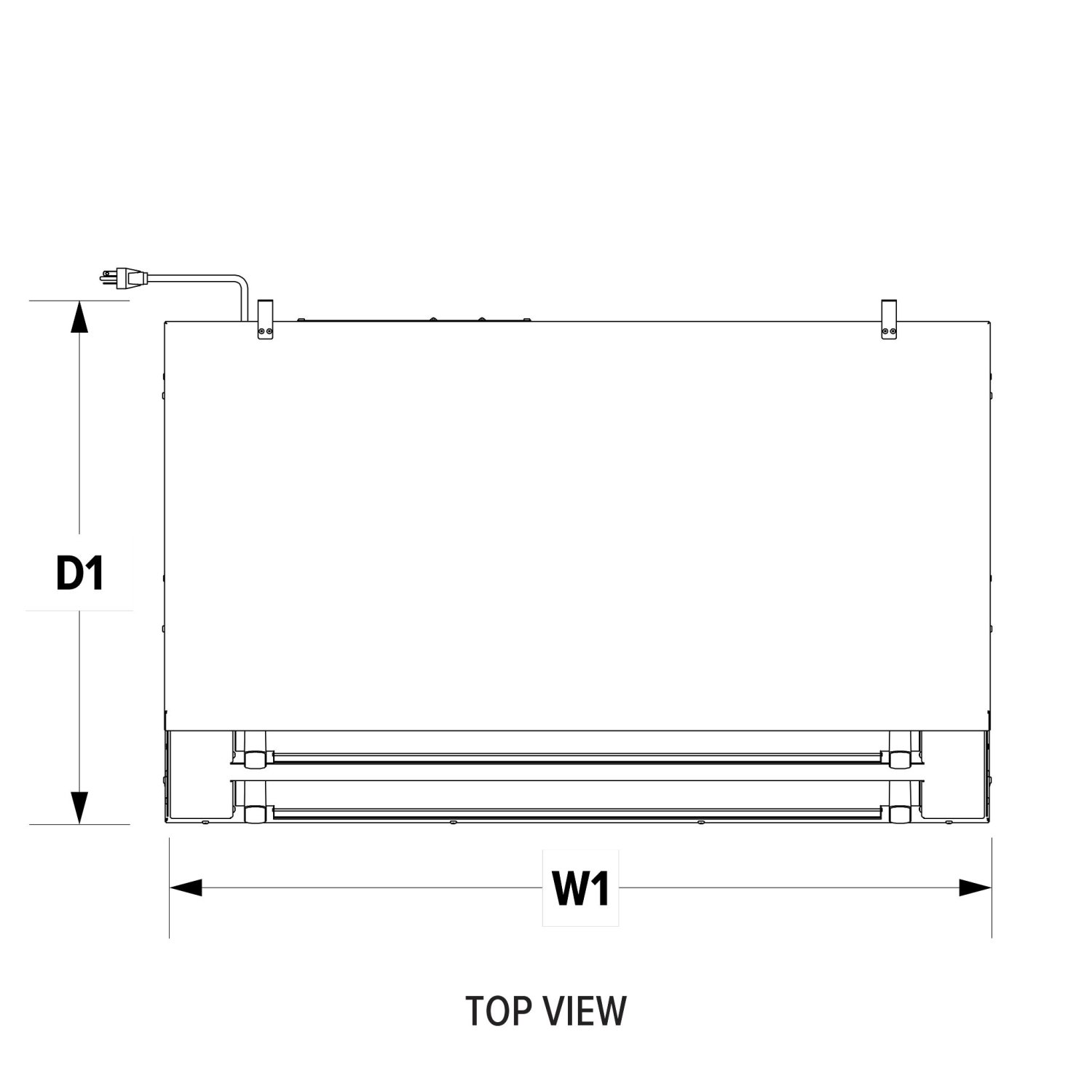

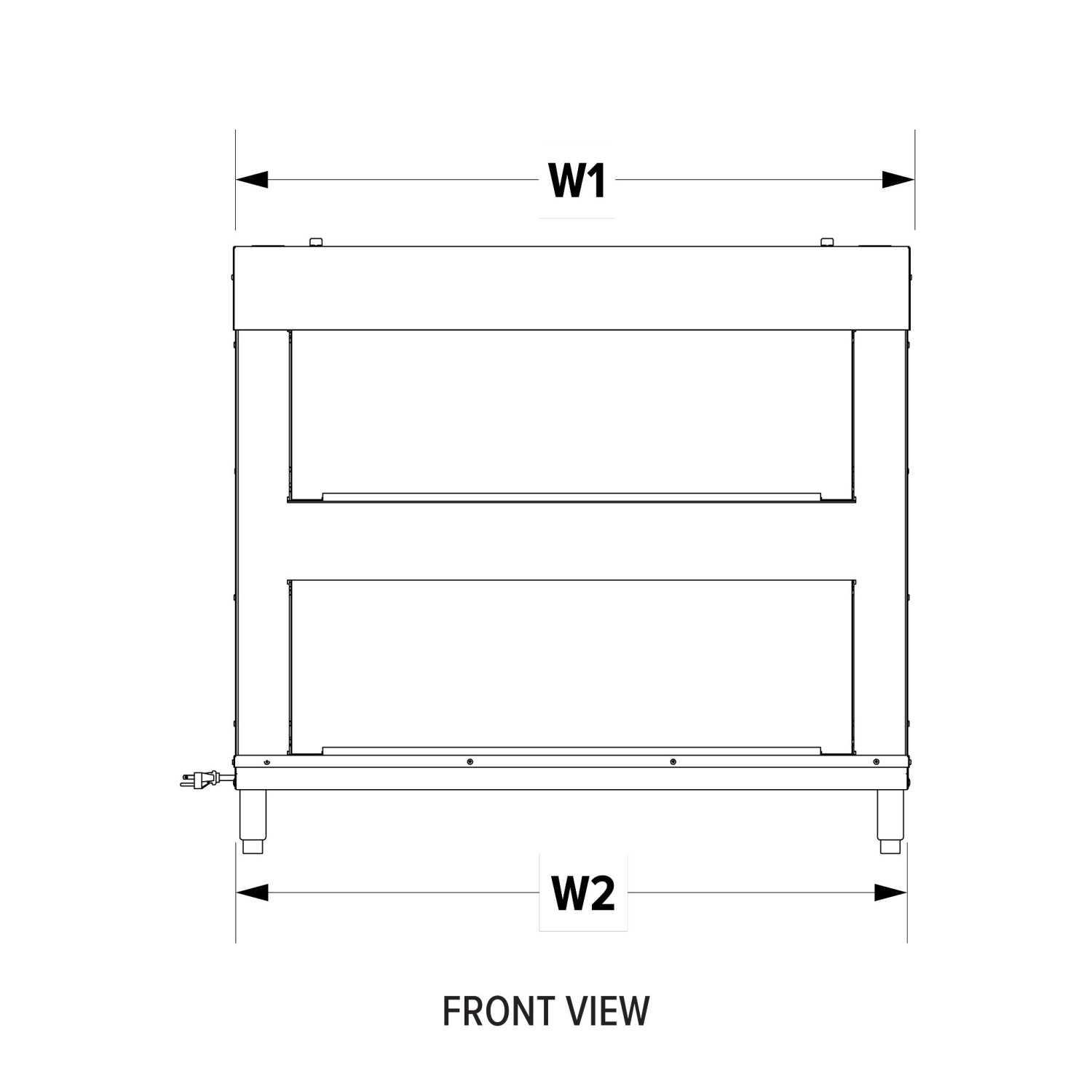

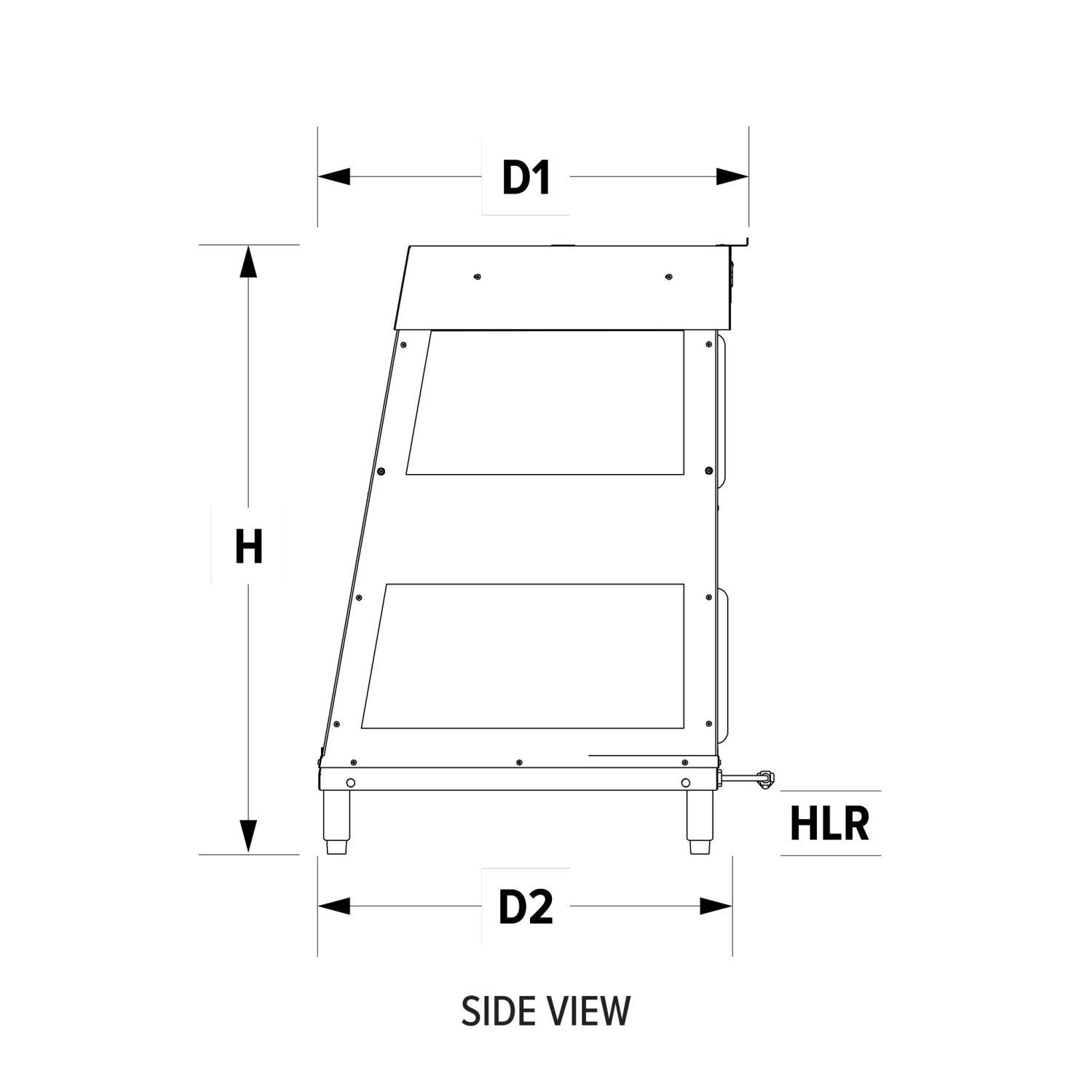

Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 55.75 |
| (D) Depth (IN) | 26.89 |
| (H) Height (IN) | 34.61 |
Electrical
| Name | Value |
|---|---|
| Amps | 12.2-14.1 |
| Plug | NEMA 6-20P |
| Voltage | 208-240 |
| Watts | 2533-3372 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 350 |
Construction
| Name | Value |
|---|---|
| Construction Feature 1 | Angled-Front |
| Construction Feature 3 | Humidity-Controlled |
| Construction Feature 2 | Hot Holding |
| Product Function | Heated food display cases |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 62 |
| Case Height | 45.25 |
| Case Length | 34 |
| Case Lot Cube (ft.) | 55.2 |
| Case Lot Weight (lbs.) | 350 |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| 14 Ga Straight Strain Relief | B400320 | $8.00 |
| NUT W/WASHER #10-24 ZINC PLT | 21574-3 | $0.70 |
| Heavy Duty 4" Leg | 2351601-1 | $31.80 |
| CONNECTOR 5 WIRE WAGO 221-415 | 4350812-1 | $5.30 |
| CONNECTOR 3 WIRE WAGO 221-413 | 4350811-1 | $8.80 |
| CORD POWER 14/3 60" 6-20 PLUG | B401050 | $68.60 |
| Rect Power Switch 240V Dpst | 352774-1 | $50.60 |
| Control Knob | 351788-06-1 | $7.60 |
| 5/8 SNAP BUSHING | B400332 | $0.10 |
| POWER FOR LED | RDC0145 | $91.70 |
| ELEMENT SUPPORT BRACKET | 352607-2 | $8.70 |
| RELAY | 351310-1 | $57.90 |
| LEFT PANEL SPARE - HCM | 356379-2 | $782.70 |
| DOOR TRIM SEAL - HCM | 355620-1 | $6.40 |
| SHELF HEATER VHB TAPE SPARE | 356239-1 | $129.30 |
| LED - HCM-4 | 355626-1 | $112.20 |
| CHANNEL CVR UPPER RIGHT - HCM | 355623-2 | $17.60 |
| CHANNEL CVR LOWER RIGHT - HCM | 355562-2 | $16.50 |
| GLASS REAR HANDLE - HCM | 355619-1 | $21.40 |
| CHANNEL COVER UPPER LEFT - HCM | 355549-2 | $17.60 |
| REAR GLASS SPARE - HCM-4 | 356381-2 | $271.10 |
| RIGHT PANEL SPARE - HCM | 356378-2 | $782.70 |
| SHELF HEATER SPARE - HCM-4 | 356384-2 | $429.70 |
| CHANNEL COVER LOWER LEFT - HCM | 355550-2 | $16.50 |
| CONNECTOR 2 WIRE WAGO 221-412 | 4350810-1 | $1.40 |
| HEATING ELEMENT SIZE 48 RED | 1791542-1 | $70.20 |
| LED METAL STRIP | 353209-1 | $12.00 |
| HOT HOLDING THERMOMETER | 353200-1 | $87.20 |
| FMA DOOR TRACK, BK HFM-48 | 353120-1 | $47.40 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
