PO6-20818
18-inch 208-volt conveyor pizza oven
The Vollrath® 18-inch conveyor pizza oven is ideal for fresh or par-baked pizzas and flatbreads.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

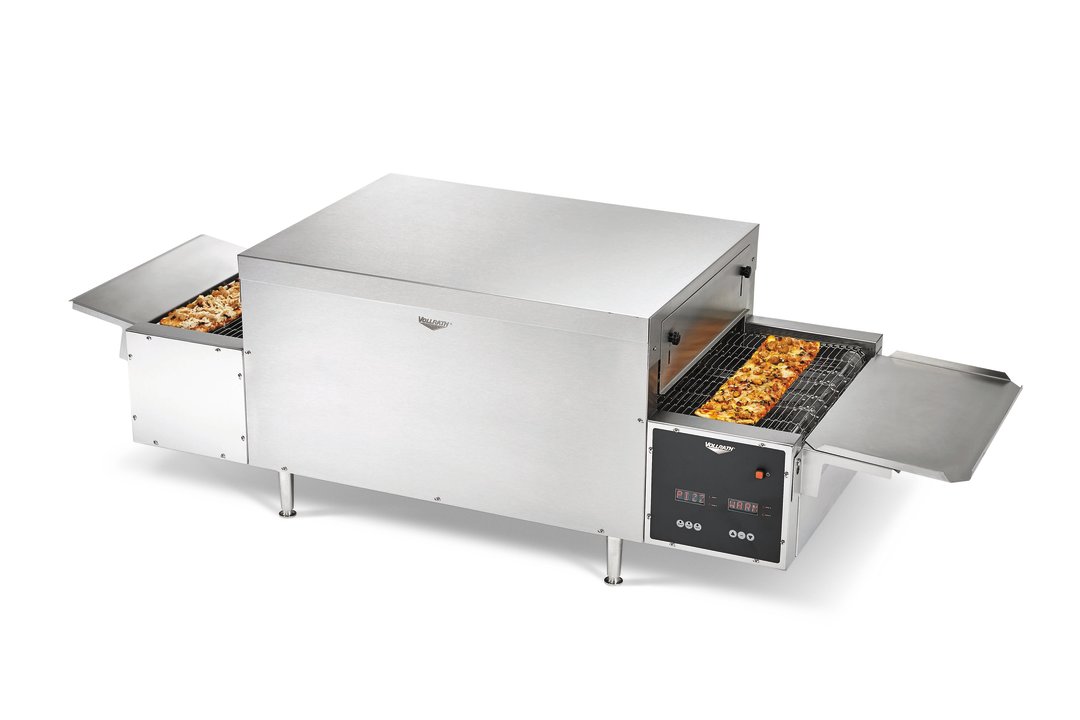

18-inch 208-volt conveyor pizza oven with digital controls
The Vollrath® 18-inch conveyor pizza oven is ideal for fresh or par-baked pizzas and flatbreads. The 18-inch-wide conveyor fits a variety of foods and easily changes direction. The adjustable 1½- to 4-inch product opening accommodates foods of varying heights. This digital oven has six programmable menu options for repeatable results and added versatility, while the digital speed controls allow quick adjustments during baking if needed. The energy-efficient quartz heating elements are fast and powerful, while digital top and bottom thermostatic controls ensure desired results. The ventless design allows flexibility in placement and lowers installation costs. Loading and receiving trays make it easy to keep products moving in and out, speeding up your service. A maintenance-free drive system simplifies operation and servicing, and the durable stainless and aluminized steel exterior is built to last.
Designed for medium-volume operations that regularly produce fresh or par-baked pizza or flatbreads, not pizzerias
Save valuable countertop space by stacking two units together with the stacker spacer accessory (sold separately).
Frozen pizzas straight from the freezer cook evenly with crispy crusts, saving time while delivering delicious results
Quartz heating elements respond quickly and save energy
Digital conveyor controls change the direction of the conveyor with the push of a button
Digital thermostatic heat controls ensure accurate temperatures for each heating zone
Digital speed control allows for real-time adjustments
Six programmable menu options for repeatable results and added versatility
UL-tested and verified for ventless operation – meets or surpasses EPA 202. (Local codes may apply. Contact your local authority having jurisdiction for more information.)
Wide conveyor fits a variety of products
NSF-certified
Adjustable 1 ½- to 4-inch product opening
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | MGD18 |
| UPC | 671080718231 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 68 x 22.875 x 21 |
| (W) Width (IN) | 68 |
| (D) Depth (IN) | 22.87 |
| (H) Height (IN) | 21 |
| (H2) Secondary Height (IN) | 39.5 |
| (WL) Width between legs | 25.5 |
| (DL) Depth between legs | 20.5 |
| Product Opening Dimensions (IN) | 1.5 - 4 |
| Conveyor Width (IN) | 18 |
| Overall Dimensions (CM) | 172.7 x 57.7 x 53.3 |
| (W) Width (CM) | 172.7 |
| (D) Depth (CM) | 57.7 |
| (H) Height (CM) | 53.3 |
| (H2) Secondary Height (CM) | 100.3 |
| (WL) Width between legs (CM) | 64.8 |
| (DL) Depth between legs (CM) | 52.1 |
| Product Opening Dimensions (CM) | 3.8 - 10.2 |
| Conveyor Width (CM) | 45.7 |
| Size | 18 |
Electrical
| Name | Value |
|---|---|
| Amps | 29.8 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 180 |
| Hz | 60 |
| Plug | NEMA 6-50P |
| Voltage | 208 |
| Watts | 6200 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 30 |
| Case Height | 25 |
| Case Length | 58 |
| Case Lot Cube (ft.) | 25.17 |
| Case Lot Weight (lbs.) | 240 |
Product Accessories
| Name | Item # |
|---|---|
| JPO18/MGD18 Dual Oven Stacking Spacer | 351037 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| CORD FAN HP-75.24-A | B401060 | $14.50 |
| PO4 18" CRUMB TRAY ASSM | B205106 | $156.50 |
| COLLAR SHAFT .375 X .750 | B401347 | $7.60 |
| SOCKET RELAY MOTOR | B401170 | $38.40 |
| SHAFT IDLER | B401378 | $218.90 |
| CHAIN LADDER 21 1/4" LONG | B401399 | $36.20 |
| UNLOAD TRAY | B305754 | $68.90 |
| SPRING | B400263 | $10.90 |
| OVEN CONTROL 24V | B401152 | $1,295.40 |
| CLASS B 240V FAN MOTOR | B405011 | $108.50 |
| SPEED/DRIVER BOARD 24V | B401153 | $474.70 |
| KNOB STUD PHENOLIC | B401188 | $6.70 |
| UNLOAD TRAY | B305761 | $62.30 |
| SPROCKET 25B24 X 3/8 | B401304 | $82.30 |
| BEARING SPRING LOADED | B401353 | $60.90 |
| SWITCH FAN CERAMIC | B401107 | $49.70 |
| 68C RESET SWITCH | B405028 | $36.90 |
| CONTROL BOARD BODINE 24V | B401163 | $729.70 |
| CONTROL PANEL | B202053 | $3,332.60 |
| 5A CIRCUIT BREAKER | B405014 | $35.00 |
| SWITCH TOGGLE ON/ON 15A | B401116 | $83.90 |
| 50A 10/3 72" POWER CORD | B401088 | $200.60 |
| PO4 18" UNLOAD TRAY ASSM | B205107 | $193.10 |
| LOADUP TRAY | B305744 | $107.20 |
| POWER SUPPLY 24 VDC | B401164 | $197.40 |
| PO 18" WIRE BELT | B205109 | $508.60 |
| POWER SUPPLY/TRANS 24 VAC | B401155 | $128.00 |
| PO6 CONTROL OVERLAY | B401422 | $71.60 |
| HEYCO 1" SNAP BUSHING 2140 | B400334 | $0.80 |
| 11-TOOTH SPROCKET | B401301 | $46.40 |
| MOTOR 24V DC | B401215 | $1,233.60 |
| NUT KEPS #6-32 | 17019-3 | $0.80 |
| CONTACTOR MANUAL 208/240 | B401175 | $111.90 |
| TERMINAL BLOCK 5 POSITION | B401033 | $18.80 |
| GUARD FAN | B401220 | $10.40 |
| MOTOR CONTROL RELAY | B401157 | $79.10 |
| TERMINAL BLOCK 2 POSITION | B401034 | $6.80 |
| LEG METAL PLATED 4" ADJ | B400301 | $43.30 |
| TEMP PROBE | B401154 | $116.70 |
| BEARING, TEFLON 3/8 REV C | B401357 | $10.20 |
| 7/8 WIRE CLAMP | B400331 | $1.20 |
| 18" BELT SUPPORT | B401370 | $132.10 |
| MGD LOW VOLTAGE SIGNAL WIRE J7 | B202045 | $29.80 |
| POWER SIDE PANEL | B305808 | $81.20 |
| MGD LOW VOLTAGE SIGNAL WIR J37 | B202044 | $41.90 |
| MGD LOW VOLTAGE SIGNAL WIR J38 | B202040 | $23.90 |
| MGD LOW VOLTAGE SIGNAL WIRE J1 | B202041 | $29.80 |
| BEARING ASSEMBLY 3/8" | B201101 | $24.80 |
| 2PK HEAT ELEM19-3/8 69.3V 525W | 59903 | $166.20 |
| PO6 RELAY KIT: PRE-2023 MODELS | 60118 | $581.90 |
| SMALL BLANK SIDE PANEL | B305796 | $24.40 |
| MGD LOW VOLTAGE SIGNAL WIR J13 | B202043 | $26.50 |
| CONTROL SIDE PANEL | B305804 | $46.70 |
| MGD LOW VOLTAGE SIGNAL WIR J12 | B202042 | $68.20 |
| 1 AMP MAX LABEL | B405054 | $10.00 |
| LONG BLANK SIDE PANEL | B305797 | $117.80 |
| SHAFT DRIVE | B401377 | $219.10 |
| TERMINAL STRIP, 3 CIRC, 15MM | B401014 | $14.10 |
Product Downloads
CAD / REVIT
Customer Questions
Be the first to ask a question
