PO6-22018

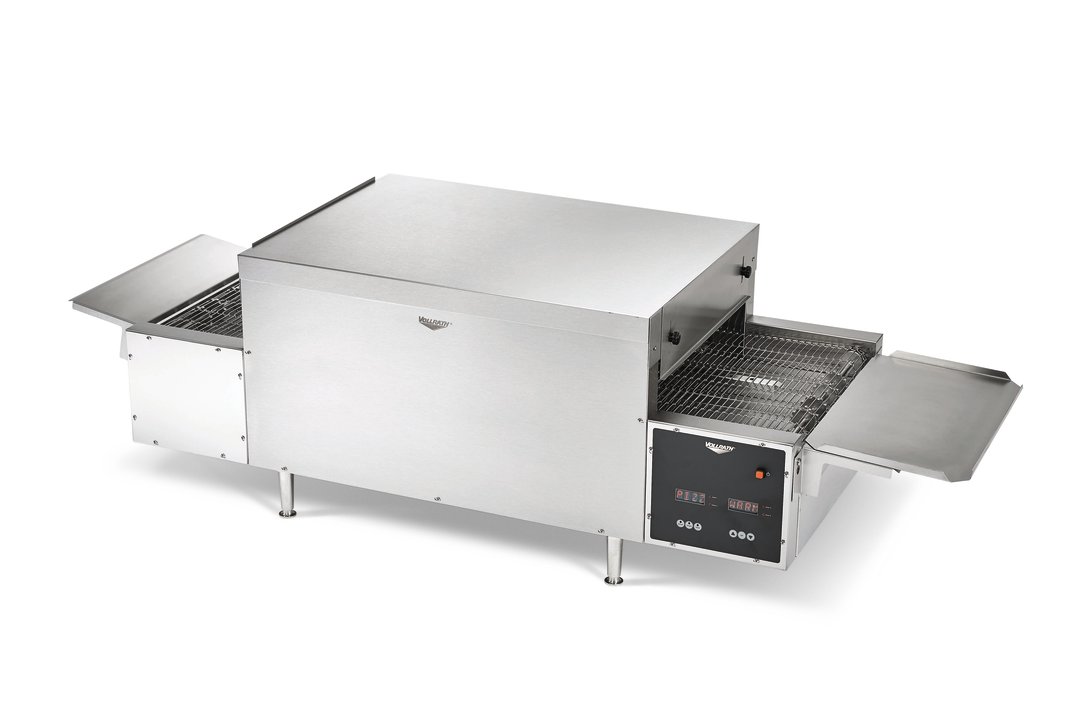

18-inch 220-volt conveyor pizza oven with digital controls
-
-
-
-
-
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
The 18-inch conveyor pizza oven by Vollrath bakes crusts, melts cheese and toasts toppings to perfection, making it ideal for par-baked pizzas and flatbreads. The 18-inch-wide conveyor fits a variety of foods and easily changes direction. The adjustable 1 ½- to 4-inch product opening accommodates foods of varying heights. This digital oven has six programmable menu options for repeatable results and added versatility, while the digital speed controls allow quick adjustments during baking. The energy-efficient quartz heating elements are fast and powerful, and digital top and bottom thermostatic controls ensure desired results. The ventless design offers flexibility in placement and lowers installation costs. Loading and receiving trays make it easy to keep products moving in and out, speeding up your service. A maintenance-free drive system simplifies operation and servicing, and the durable stainless and aluminized steel exterior is built to last.
- Designed for medium-volume operations that regularly produce fresh or par-baked pizzas or flatbreads, not pizzerias
- Save valuable countertop space by stacking two units together with the stacker spacer accessory (sold separately).
- Not intended to bake frozen pizza or cook raw food or raw toppings
- Quartz heating elements respond quickly and save energy
- Digital conveyor controls change the direction of the conveyor with the push of a button
- Digital thermostatic heat controls ensure accurate temperatures for each heating zone
- Digital speed control allows for real-time adjustments
- Six programmable menu options for repeatable results and added versatility
- UL-tested and verified for ventless operation – meets or surpasses EPA 202. (Local codes may apply. Contact your local authority having jurisdiction for more information.)
- Wide conveyor fits a variety of products
- NSF-certified
- Adjustable 1 ½- to 4-inch product opening
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | MGD18 |
| UPC | 671080718248 |

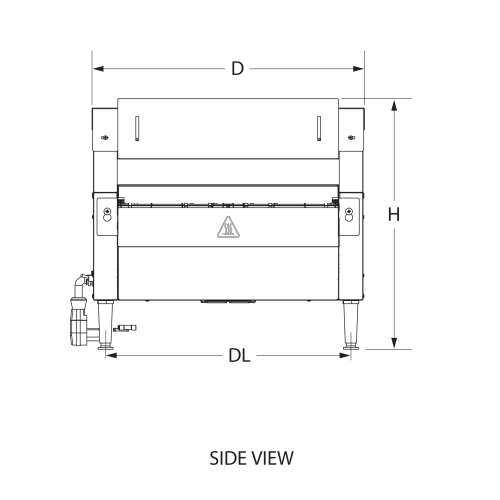

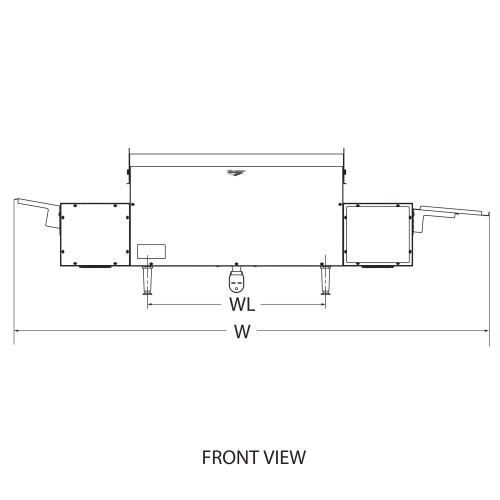

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 68 x 22.875 x 21 |
| (W) Width (IN) | 68 |
| (D) Depth (IN) | 22.87 |
| (H) Height (IN) | 21 |
| (H2) Secondary Height (IN) | 39.5 |
| (WL) Width between legs | 25.5 |
| (DL) Depth between legs | 20.5 |
| Product Opening Dimensions (IN) | 1.5 - 4 |
| Conveyor Width (IN) | 18 |
| Overall Dimensions (CM) | 172.7 x 57.7 x 53.3 |
| (W) Width (CM) | 172.7 |
| (D) Depth (CM) | 57.7 |
| (H) Height (CM) | 53.3 |
| (H2) Secondary Height (CM) | 100.3 |
| (WL) Width between legs (CM) | 64.8 |
| (DL) Depth between legs (CM) | 52.1 |
| Product Opening Dimensions (CM) | 3.8 - 10.2 |
| Conveyor Width (CM) | 45.7 |
| Size | 18 |
Electrical
| Name | Value |
|---|---|
| Amps | 28.3 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 180 |
| Hz | 60 |
| Plug | NEMA 6-50P |
| Voltage | 220 |
| Watts | 6200 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 30 |
| Case Height | 25 |
| Case Length | 58 |
| Case Lot Cube (ft.) | 25.17 |
| Case Lot Weight (lbs.) | 240 |
Product Accessories
| Name | Item # |
|---|---|
| JPO18/MGD18 Dual Oven Stacking Spacer | 351037 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| NUT KEPS #6-32 | 17019-3 | $0.70 |
| 2PK HEAT ELEM19-3/8 73.3V 525W | 59909 | $136.50 |
| BEARING ASSEMBLY 3/8" | B201101 | $20.50 |
| MGD LOW VOLTAGE SIGNAL WIR J38 | B202040 | $22.10 |
| MGD LOW VOLTAGE SIGNAL WIRE J1 | B202041 | $27.60 |
| MGD LOW VOLTAGE SIGNAL WIR J12 | B202042 | $63.10 |
| MGD LOW VOLTAGE SIGNAL WIR J13 | B202043 | $24.50 |
| MGD LOW VOLTAGE SIGNAL WIR J37 | B202044 | $38.70 |
| MGD LOW VOLTAGE SIGNAL WIRE J7 | B202045 | $27.60 |
| CONTROL PANEL | B202053 | $3,081.20 |
| PO4 18" CRUMB TRAY ASSM | B205106 | $144.70 |
| PO4 18" UNLOAD TRAY ASSM | B205107 | $176.80 |
| PO 18" WIRE BELT | B205109 | $417.70 |
| LOADUP TRAY | B305744 | $98.20 |
| UNLOAD TRAY | B305754 | $63.70 |
| UNLOAD TRAY | B305761 | $57.60 |
| SMALL BLANK SIDE PANEL | B305796 | $22.60 |
| LONG BLANK SIDE PANEL | B305797 | $108.90 |
| CONTROL SIDE PANEL | B305804 | $43.20 |
| POWER SIDE PANEL | B305808 | $75.10 |
| SPRING | B400263 | $10.10 |
| LEG METAL PLATED 4" ADJ | B400301 | $35.50 |
| 7/8 WIRE CLAMP | B400331 | $1.10 |
| HEYCO 1" SNAP BUSHING 2140 | B400334 | $0.70 |
| TERMINAL BLOCK 5 POSITION | B401033 | $15.40 |
| TERMINAL BLOCK 2 POSITION | B401034 | $5.60 |
| CORD FAN HP-75.24-A | B401060 | $11.90 |
| 50A 10/3 72" POWER CORD | B401088 | $164.70 |
| SWITCH FAN CERAMIC | B401107 | $40.80 |
| SWITCH TOGGLE ON/ON 15A | B401116 | $68.90 |
| OVEN CONTROL 24V | B401152 | $1,063.90 |
| SPEED/DRIVER BOARD 24V | B401153 | $393.60 |
| TEMP PROBE | B401154 | $96.80 |
| POWER SUPPLY/TRANS 24 VAC | B401155 | $105.10 |
| MOTOR CONTROL RELAY | B401157 | $65.60 |
| CONTROL BOARD BODINE 24V | B401163 | $605.00 |
| POWER SUPPLY 24 VDC | B401164 | $163.70 |
| SOCKET RELAY MOTOR | B401170 | $35.50 |
| CONTACTOR MANUAL 208/240 | B401175 | $92.80 |
| KNOB STUD PHENOLIC | B401188 | $5.50 |
| MOTOR 24V DC | B401215 | $1,013.20 |
| GUARD FAN | B401220 | $8.50 |
| 11-TOOTH SPROCKET | B401301 | $38.10 |
| SPROCKET 25B24 X 3/8 | B401304 | $68.20 |
| COLLAR SHAFT .375 X .750 | B401347 | $7.00 |
| BEARING SPRING LOADED | B401353 | $50.50 |
| BEARING, TEFLON 3/8 REV C | B401357 | $9.40 |
| 18" BELT SUPPORT | B401370 | $122.10 |
| SHAFT DRIVE | B401377 | $180.00 |
| SHAFT IDLER | B401378 | $181.50 |
| CHAIN LADDER 21 1/4" LONG | B401399 | $30.00 |
| PO6 CONTROL OVERLAY | B401422 | $59.30 |
| CLASS B 240V FAN MOTOR | B405011 | $89.10 |
| 5A CIRCUIT BREAKER | B405014 | $28.70 |
| 68C RESET SWITCH | B405028 | $30.30 |
| 1 AMP MAX LABEL | B405054 | $9.20 |
