PO4-20818L-R

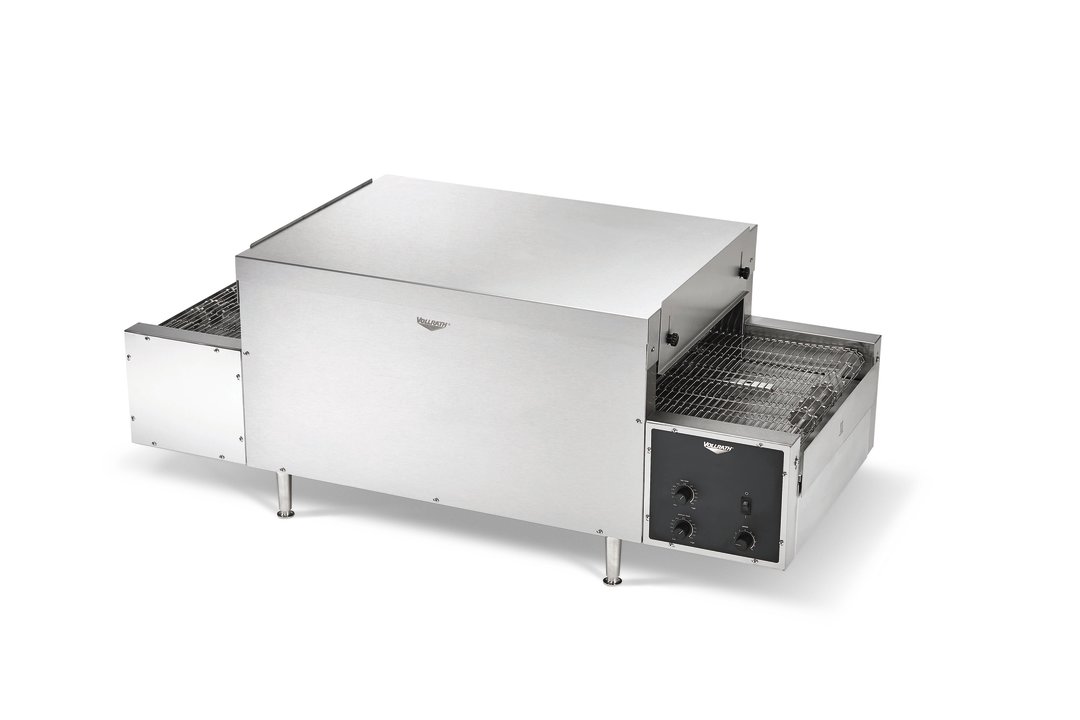

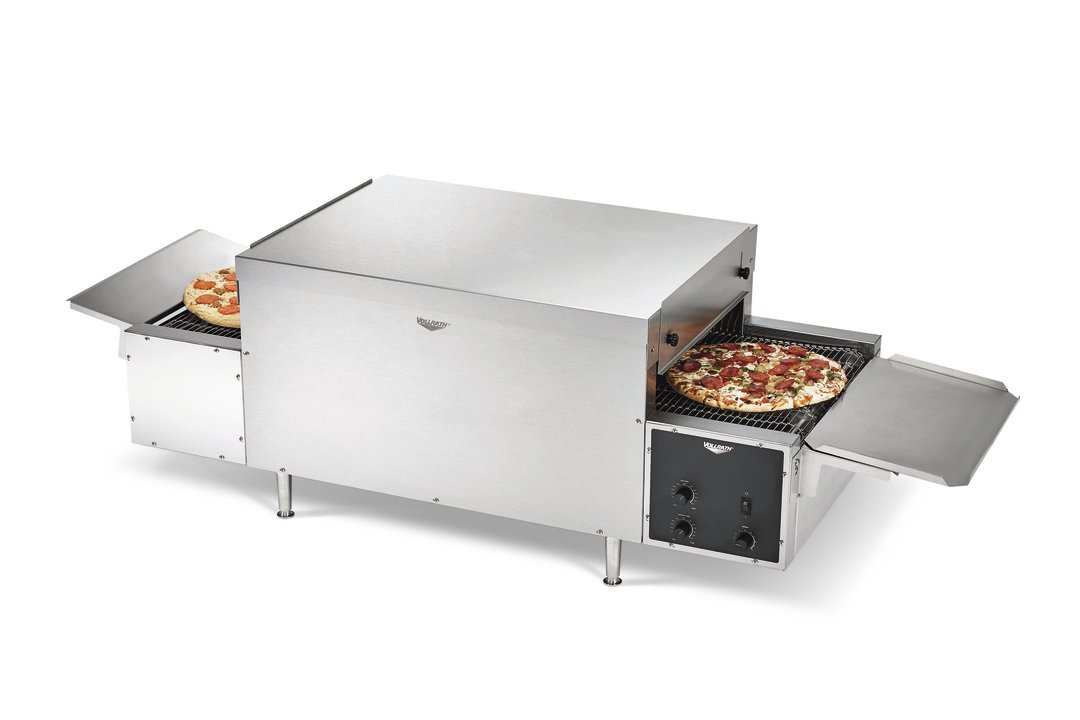

18-inch 208-volt conveyor pizza oven with left-to-right operation
-
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
The Vollrath® 18-inch conveyor pizza oven is ideal for fresh or par-baked pizzas and flatbreads. This 18-inch-wide conveyor fits a variety of foods and moves from left to right. The adjustable 1½- to 4-inch product opening accommodates foods of varying heights. Variable-speed controls allow quick adjustments during baking if needed. The energy-efficient quartz heating elements are fast and powerful, while individual top and bottom thermostatic controls ensure desired results. The ventless design allows flexibility in placement and lowers installation costs. Loading and receiving trays make it easy to keep products moving in and out, speeding up your service. A maintenance-free drive system simplifies operation and servicing, and the durable stainless and aluminized steel exterior is built to last.
- Designed for medium-volume operations that regularly produce fresh or par-baked pizza or flatbreads, not pizzerias
- Save valuable countertop space by stacking two units together with the stacker spacer accessory (sold separately).
- Not intended to bake frozen pizza, or cook raw food or raw toppings
- Quartz heating elements respond quickly and save energy
- UL-tested and verified for ventless operation – meets or surpasses EPA 202. (Local codes may apply. Contact your local authority having jurisdiction for more information.)
- 18” x 68” conveyor fits a variety of products and moves from left to right
- Adjustable 1½- to 4-inch product opening
Product Specifications
Model Information
Name | Value |
---|---|
Model | JPO18 |
UPC | 671080718125 |

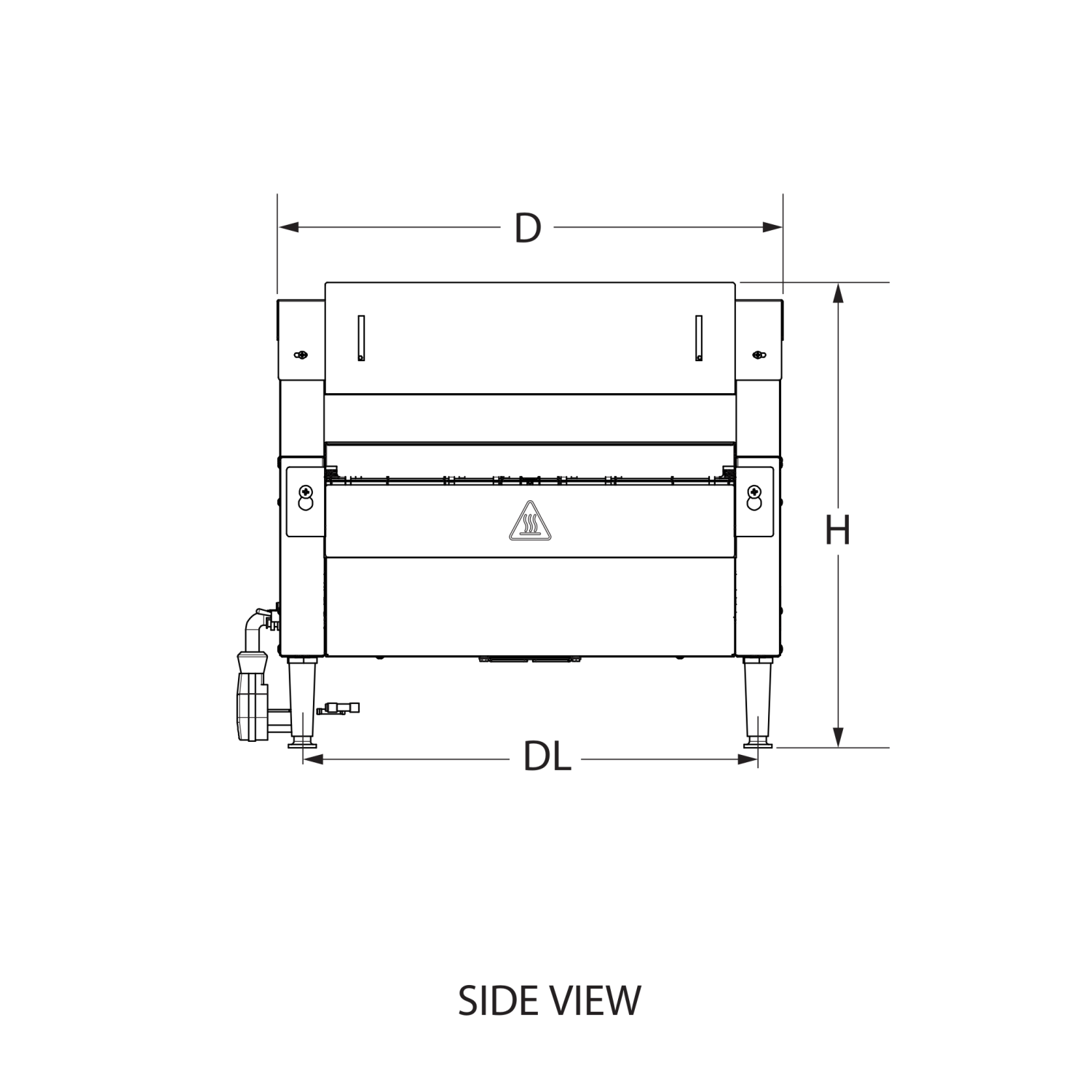

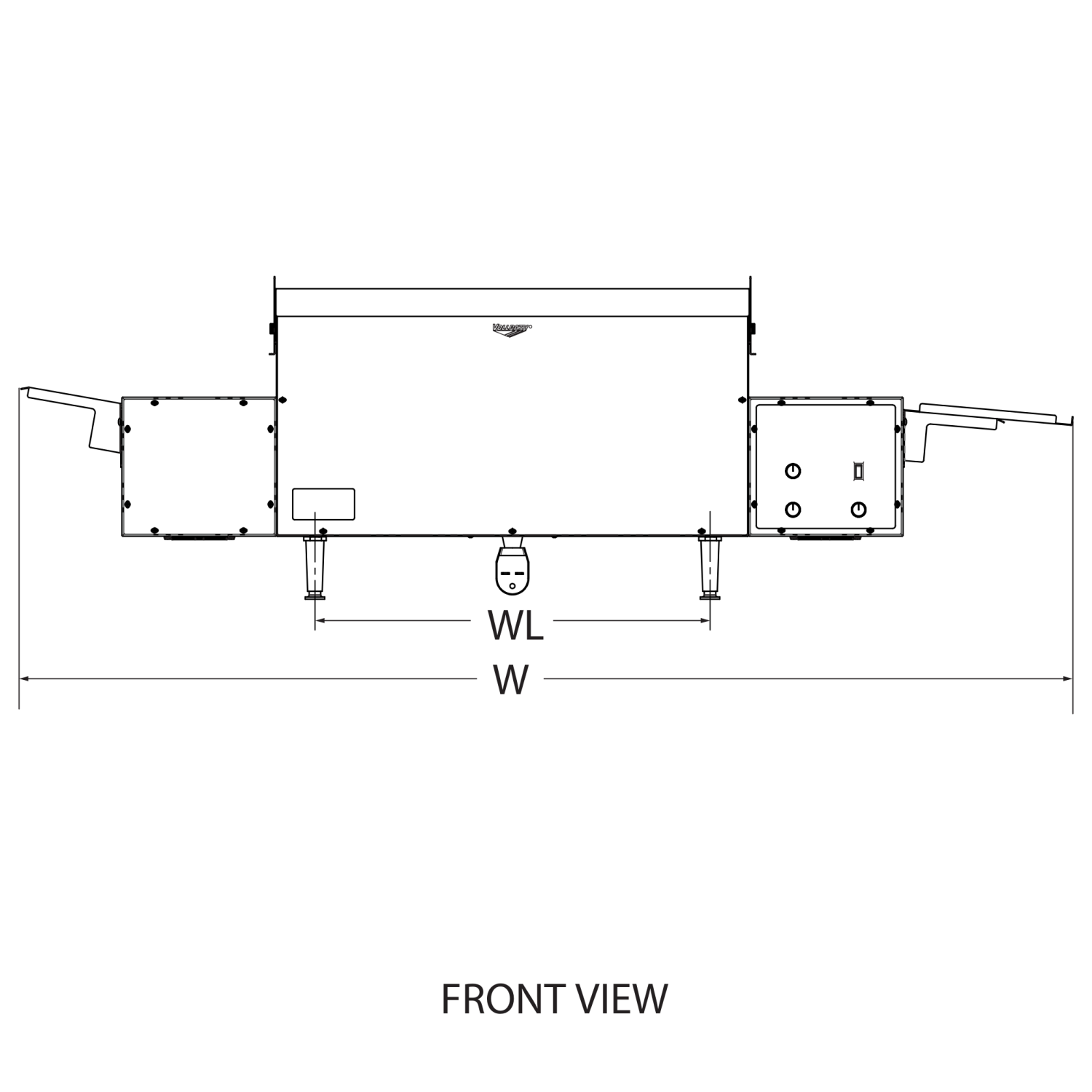

Unit Dimensions
Name | Value |
---|---|
Overall Dimensions (IN) | 22.875 x 20.5 x 21 |
(W) Width (IN) | 68 |
(D) Depth (IN) | 22.87 |
(H) Height (IN) | 21 |
(WL) Width between legs | 25.5 |
(DL) Depth between legs | 20.5 |
Product Opening Dimensions (IN) | 1.5 - 4 |
Conveyor Width (IN) | 18 |
Overall Dimensions (CM) | 57.7 x 52.1 x 53.3 |
(W) Width (CM) | 172.7 |
(D) Depth (CM) | 57.7 |
(H) Height (CM) | 53.3 |
(WL) Width between legs (CM) | 64.8 |
(DL) Depth between legs (CM) | 52.1 |
Product Opening Dimensions (CM) | 3.8 - 10.2 |
Conveyor Width (CM) | 45.7 |
Size | 18 |
Electrical
Name | Value |
---|---|
Amps | 29.8 |
Cord Length (IN) | 72 |
Cord Length (CM) | 180 |
Hz | 60 |
Plug | NEMA 6-50P |
Voltage | 208 |
Watts | 6200 |
Construction
Name | Value |
---|---|
Countertop or Drop-In | Countertop |
Case Lot Measurement
Name | Value |
---|---|
Case Lot | 1 |
Case Width | 30 |
Case Height | 24 |
Case Length | 58 |
Case Lot Cube (ft.) | 24.17 |
Case Lot Weight (lbs.) | 234 |
Product Accessories
Name | Item # |
---|---|
JPO18/MGD18 Dual Oven Stacking Spacer | 351037 |
Product Parts
Name | Part # | Price |
---|---|---|
2PK HEAT ELEM 19-3/8 208V 700W | 59897 | $144.50 |
CONTROL SPEED 1000 OHM | B200918 | $87.90 |
BEARING ASSEMBLY 3/8" | B201101 | $20.50 |
PO4 18" CRUMB TRAY ASSM | B205106 | $144.70 |
PO4 18" UNLOAD TRAY ASSM | B205107 | $176.80 |
PO 18" WIRE BELT | B205109 | $417.70 |
LOADUP TRAY | B305744 | $98.20 |
UNLOAD TRAY | B305754 | $63.70 |
UNLOAD TRAY | B305761 | $57.60 |
SMALL BLANK SIDE PANEL | B305796 | $22.60 |
LONG BLANK SIDE PANEL | B305797 | $108.90 |
CONTROL SIDE PANEL ANALOG | B305835 | $25.60 |
BLANK POWER SIDE PANEL | B305856 | $73.50 |
SPRING | B400263 | $10.10 |
LEG METAL PLATED 4" ADJ | B400301 | $35.50 |
7/8 WIRE CLAMP | B400331 | $1.10 |
HEYCO 1" SNAP BUSHING 2140 | B400334 | $0.70 |
TERMINAL BLOCK 5 POSITION | B401033 | $15.40 |
TERMINAL BLOCK 2 POSITION | B401034 | $5.60 |
CORD FAN HP-75.24-A | B401060 | $11.90 |
50A 10/3 72" POWER CORD | B401088 | $164.70 |
SWITCH FAN CERAMIC | B401107 | $40.80 |
THERMISTOR PROBE | B401120 | $137.70 |
30 AMP CONTROL | B401121 | $413.30 |
POT ASSEMBLY | B401122 | $46.30 |
KNOB STUD PHENOLIC | B401188 | $5.50 |
MOTOR DRIVE 208/240V REVERSED | B401203 | $188.00 |
GUARD FAN | B401220 | $8.50 |
11-TOOTH SPROCKET | B401301 | $38.10 |
SPROCKET 25B24 X 3/8 | B401304 | $68.20 |
COLLAR SHAFT .375 X .750 | B401347 | $7.00 |
BEARING SPRING LOADED | B401353 | $50.50 |
BEARING, TEFLON 3/8 REV C | B401357 | $9.40 |
18" BELT SUPPORT | B401370 | $122.10 |
SHAFT DRIVE | B401377 | $180.00 |
SHAFT IDLER | B401378 | $181.50 |
CHAIN LADDER 29.75" LONG | B401460 | $30.00 |
CLASS B 240V FAN MOTOR | B405011 | $89.10 |
5A CIRCUIT BREAKER | B405014 | $28.70 |
SILVER PUSH-ON KNOB W/SET SCRW | B405019 | $14.70 |
PO4 CONTROL OVERLAY | B405020 | $64.80 |
68C RESET SWITCH | B405028 | $30.30 |
1 AMP MAX LABEL | B405054 | $9.20 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
