72227

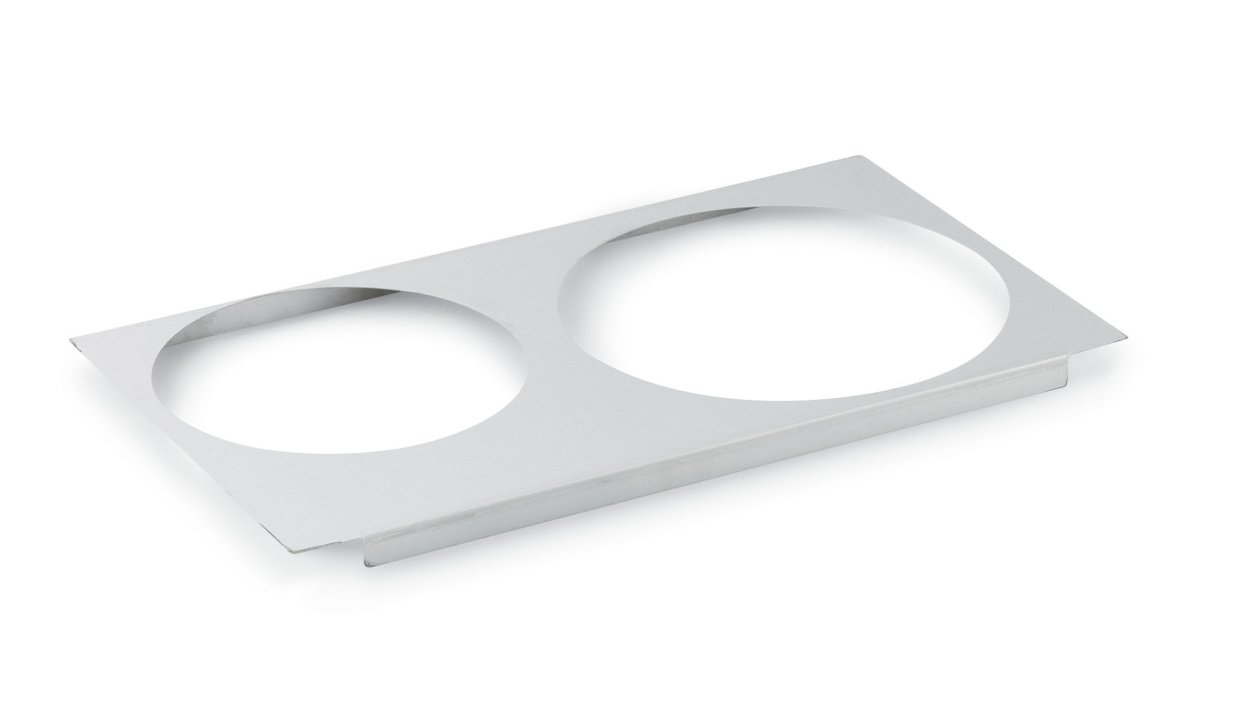

Two-opening adapter plate for 7 ¼-quart and 11-quart insets
This 300-Series stainless steel adapter plate features 8 ½- and 10 ½-inch inset holes and fits standard steam table openings.
Two-opening stainless steel adapter plate for 7 ¼-quart and 11-quart insets
This 300-Series stainless steel adapter plate features 8 ½- and 10 ½-inch inset holes and fits standard steam table openings. This plate allows you to use round insets in a rectangular food warmer without spills or escaping steam. It covers the drop-in opening to maintain a polished look and holds insets securely in place. The durable stainless steel provides lasting reliability and is easy to clean. This plate is compatible with Vollrath® item number 78184.
Durable 300-Series stainless steel construction
One 8 ½-inch and one 10 ½-inch opening
Fits standard steam table openings
Great for serving and prep tables
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419162444 |

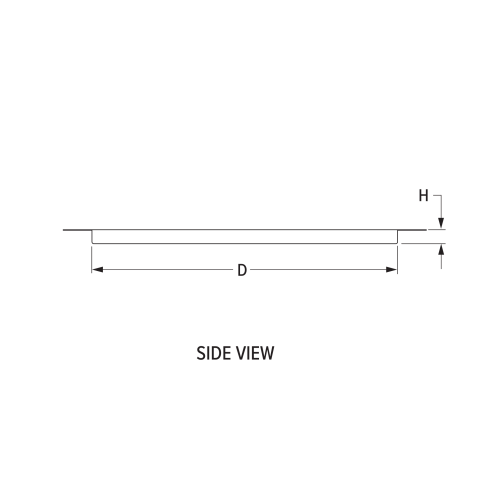

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 11.906 x 21.093 x 0.811 |
| (W) Width (IN) | 11.9 |
| (D) Depth (IN) | 21.09 |
| (H) Height (IN) | 0.81 |
| (DI) Diameter | 10.375 |
| (DI2) Diameter (IN) | 8.375 |
| (WC) Width Cutout (IN) | 12.75 |
| (DC) Depth Cutout (IN) | 20.75 |
| (W) Width (CM) | 30.2 |
| (D) Depth (CM) | 53.6 |
| (H) Height (CM) | 2.1 |
| (DI) Diameter (CM) | 26.4 |
| (DI2) Diameter (CM) | 21.3 |
| (WC) Width Cutout (CM) | 32.4 |
| (DC) Depth Cutout (CM) | 52.7 |
| Size | 7.25, 11 |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Material Type | Metals |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 13.5 |
| Case Height | 2 |
| Case Length | 22.5 |
| Case Lot Cube (ft.) | 0.35 |
| Case Lot Weight (lbs.) | 1.94 |
