Vollrath Double Boilers
This impressive inset by Vollrath fits perfectly into your 20-quart double boiler set (Vollrath® item number 77130).

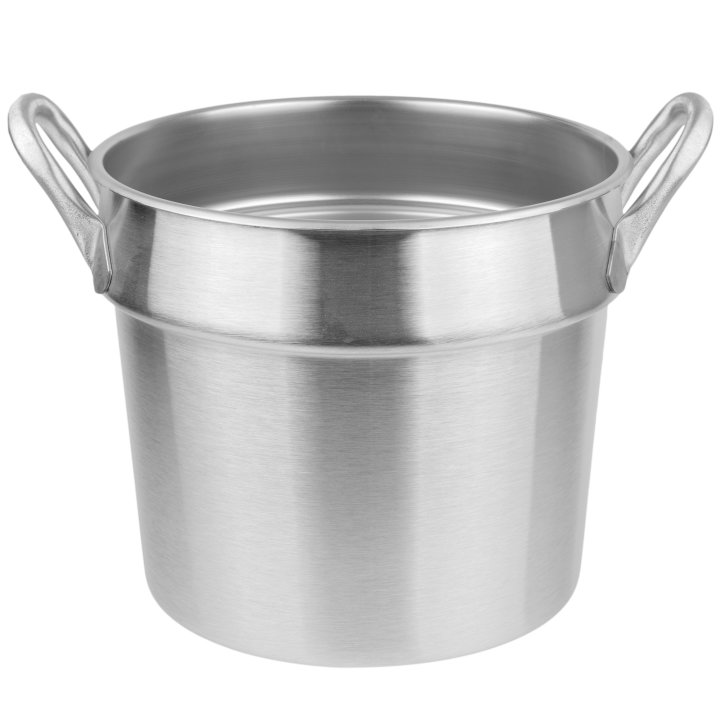

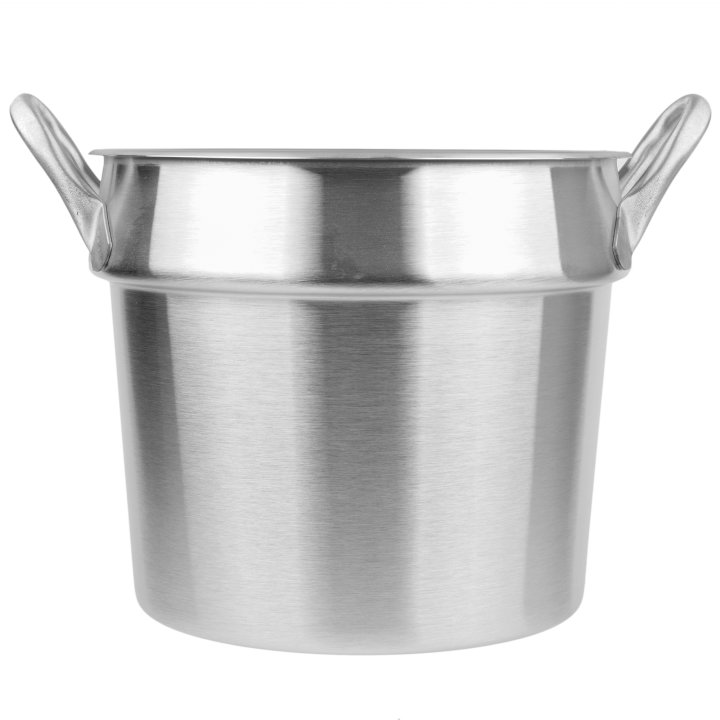

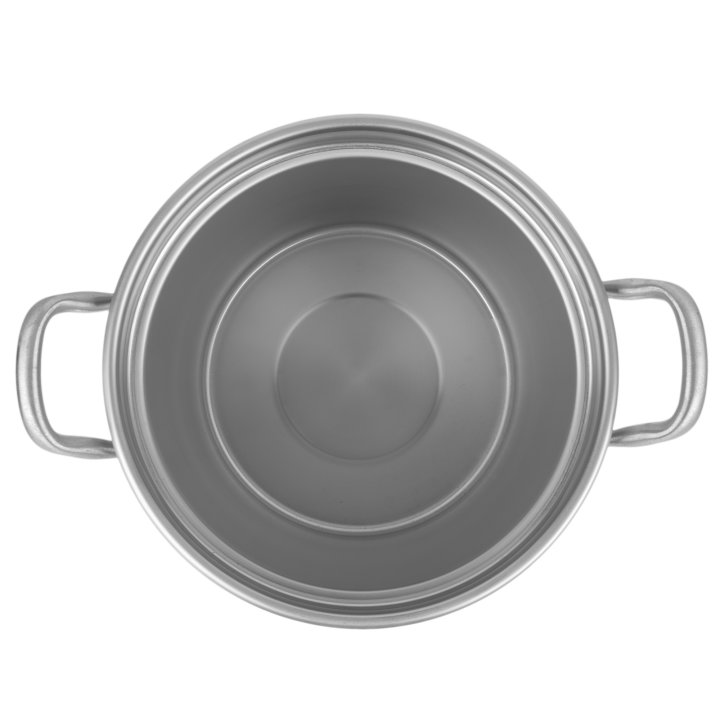

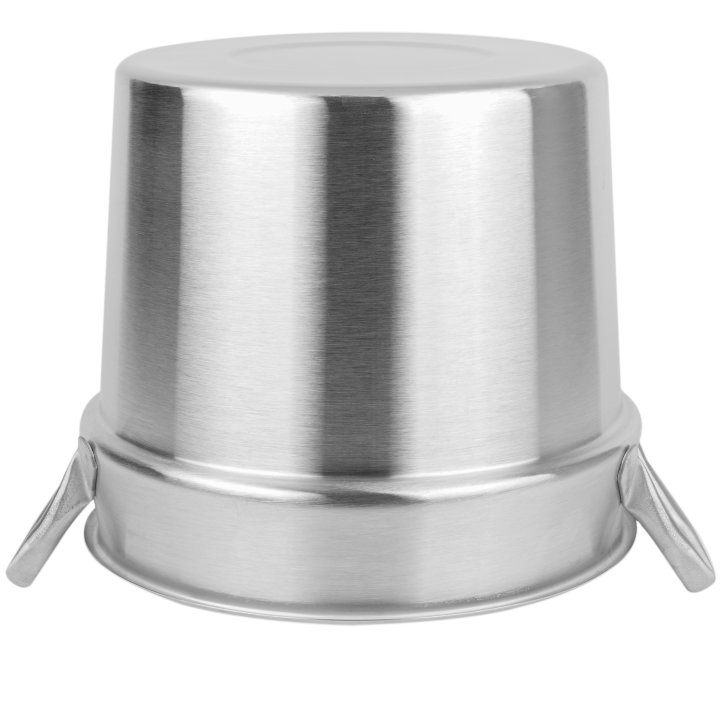

20-quart stainless steel double boiler inset

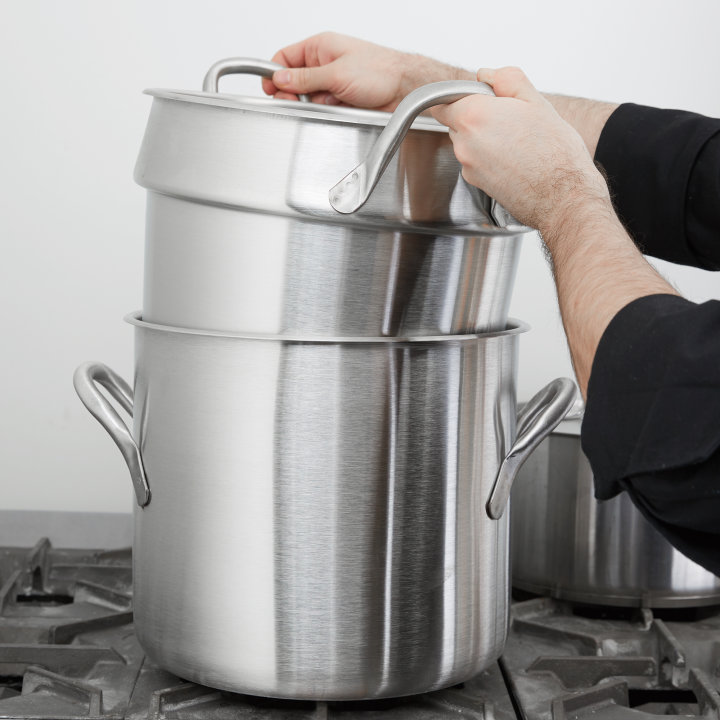

This impressive inset by Vollrath fits perfectly into your 20-quart double boiler set (Vollrath® item number 77130). The stainless steel construction is strong and durable; the arc-sprayed aluminum bottom ensures even heating and the sleek design fits snuggly into the pot, creating a tight seal that traps heat and speeds cooking times. Welded handles provide convenient transportation, and the smooth interior is easy to clean.
Made in the USA
18-8 grade stainless steel construction is durable and long-lasting
Arc-sprayed aluminum bottom ensures even heating

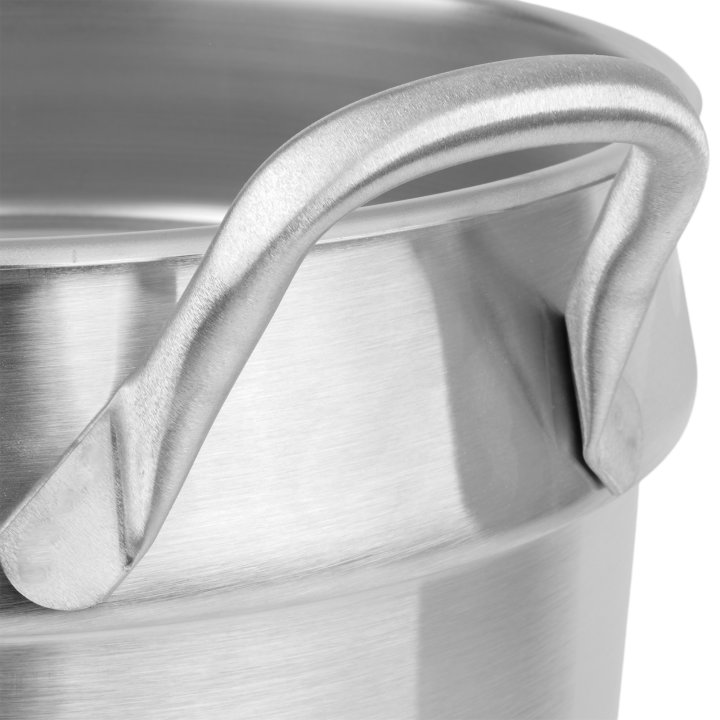

Stainless steel welded handles provide convenient transportation
Smooth interior is easy to clean
Fits snugly to speed up cooking times
Will not color delicate foods
NSF-certified
Designed for your Vollrath 20-quart double boiler set (Vollrath item number 77130)
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419039074 |

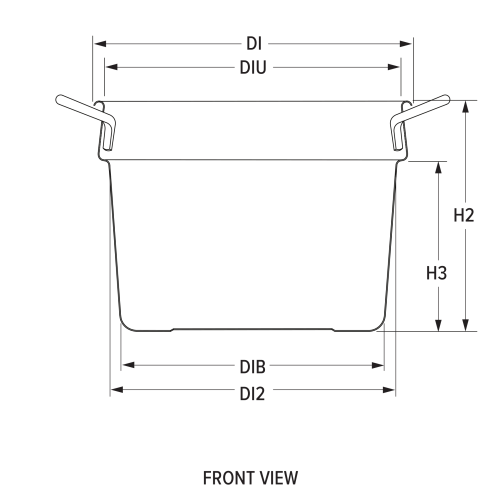

Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 13.500007 |
| (H) Height (IN) | 13.500007 |
| (H2) Secondary Height (IN) | 8 |
| (H3) Additional Height (IN) | 11 |
| (H4) Additional Height (IN) | 11 |
| (DI) Diameter | 12.859 |
| (DiU) Usable Diameter (IN) | 12.078 |
| (DIB) Base Diameter (IN) | 12.25 |
| (DI2) Diameter (IN) | 12.109 |
| (WH) Handle Width (IN) | 2.969 |
| (DH) Handle Depth (IN) | 0.375 |
| (H2) Secondary Height (CM) | 20.3 |
| (H3) Additional Height (CM) | 27.9 |
| (H4) Additional Height (CM) | 27.9 |
| (DI) Diameter (CM) | 33.7 |
| (DiU) Usable Diameter (CM) | 30.7 |
| (DIB) Base Diameter (CM) | 31.1 |
| (DI2) Diameter (CM) | 30.8 |
| (WH) Handle Width (CM) | 7.5 |
| (DH) Handle Depth (CM) | 1 |
Volume
| Name | Value |
|---|---|
| Inset Capacity (L) | 18.9 |
| Inset Capacity (QT) | 20 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 5.55 |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Construction Material 2 | 18-8 |
| Gauge | 24 |
| Induction Ready | No |
| Inset Bottom | Flat |
| Material Type | Metals |
| Cookware Type | Double Boiler Insets |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 13.5 |
| Case Height | 13.5 |
| Case Length | 13.5 |
| Case Lot Cube (ft.) | 1.42 |
| Case Lot Weight (lbs.) | 5.55 |
