77113
11-quart Vollrath Double Boilers
NSF Certified Made in U.S.A.
$211.68
MSRP
Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$352.80
List Price
List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.

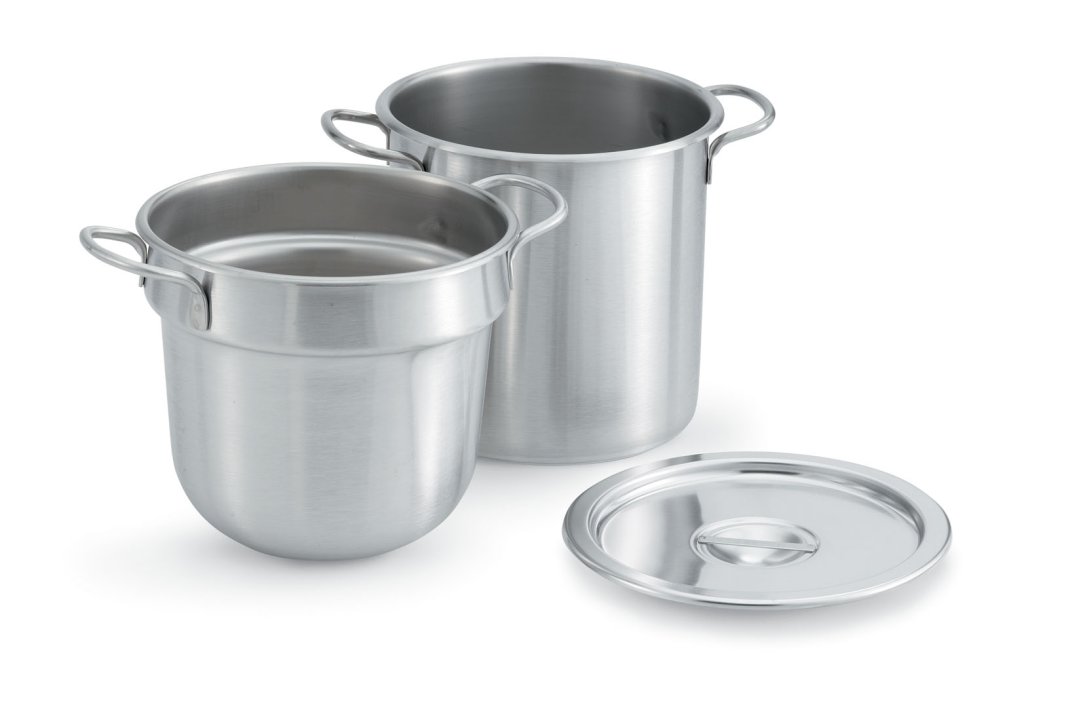

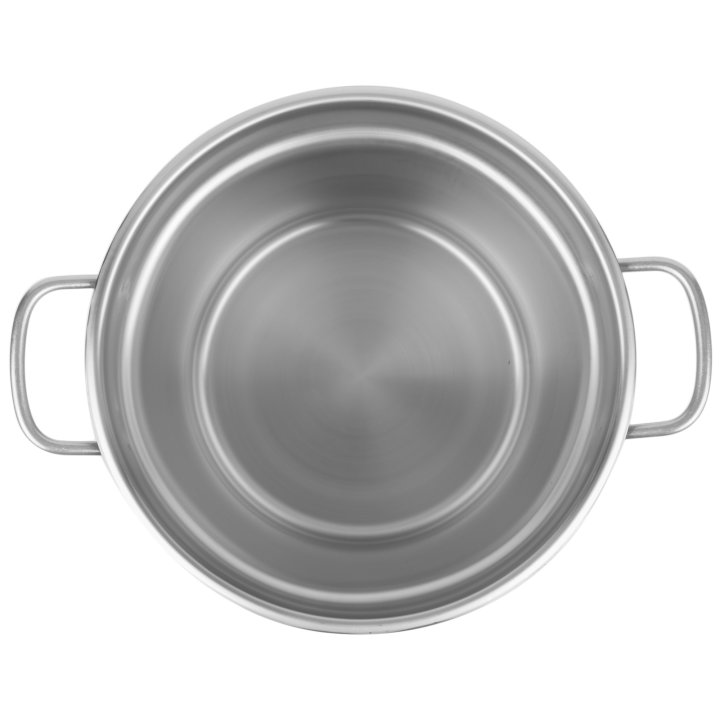

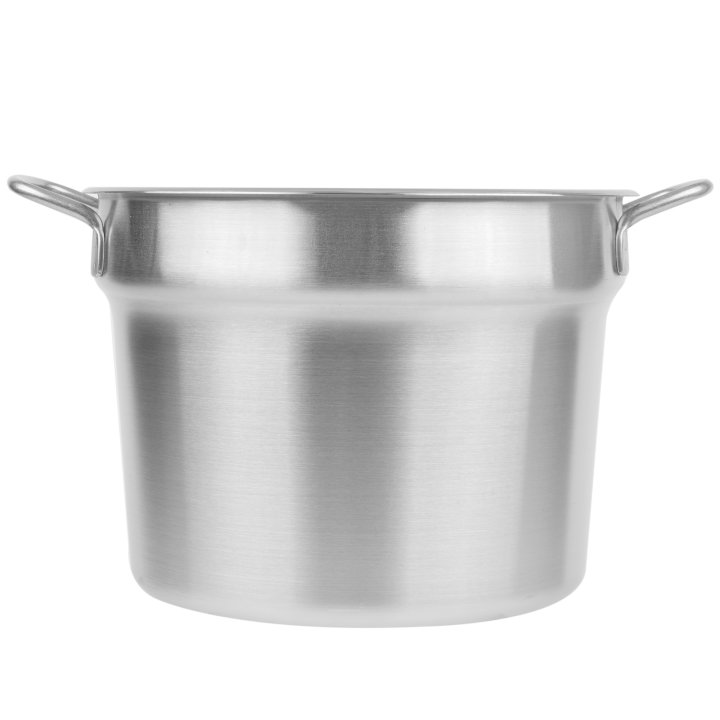

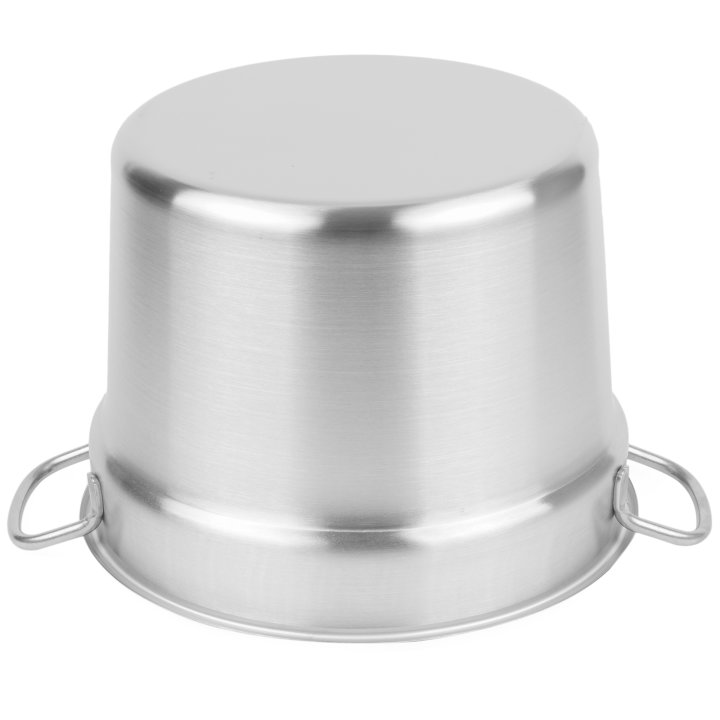

Stainless Steel Double Boiler Inset
NSF Certified Made in U.S.A

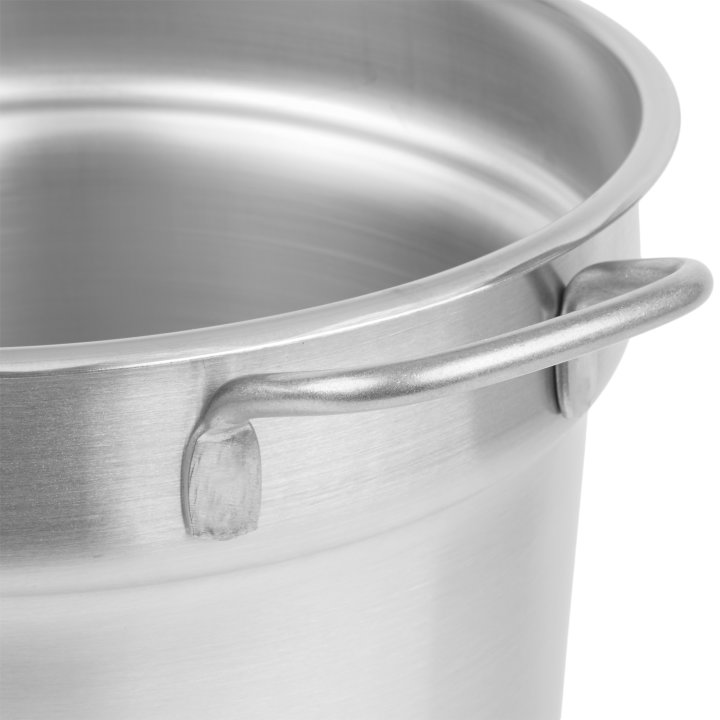

Solid welded stainless steel handles for durability and easy cleaning
18-8 stainless steel
Feature an arc-sprayed aluminum bottom to distribute heat evenly
Slotted covers sold separately
Insets fit snug to speed cooking time
Ideal for delicate food preparation, reheating, preheating and moisture free cooking
Rounded bottom inset pan only available for 77070 7 qt
Complete sets (77070, 77110, 77130) include: inset, pot and solid cover
Will not color delicate foods
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419191093 |

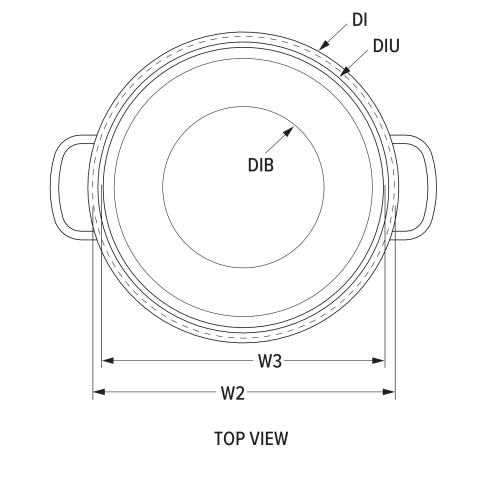

Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 14.344 |
| (W2) Secondary Width (IN) | 11 |
| (W3) Additional Width (IN) | 10.25 |
| (D) Depth (IN) | 14.344 |
| (H) Height (IN) | 8.43 |
| (H2) Secondary Height (IN) | 8.188 |
| (DI) Diameter | 11.312 |
| (DiU) Usable Diameter (IN) | 10.533 |
| (DIB) Base Diameter (IN) | 9.375 |
| (W) Width (CM) | 35.7 |
| (W2) Secondary Width (CM) | 27.9 |
| (W3) Additional Width (CM) | 26 |
| (H) Height (CM) | 21.4 |
| (H2) Secondary Height (CM) | 20.8 |
| (DI) Diameter (CM) | 28.7 |
| (DiU) Usable Diameter (CM) | 26.8 |
| (DIB) Base Diameter (CM) | 23.8 |
Volume
| Name | Value |
|---|---|
| Inset Capacity (L) | 10.4 |
| Inset Capacity (QT) | 11 |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Construction Material 2 | 18-8 |
| Gauge | 24 |
| Induction Ready | No |
| Inset Bottom | Flat |
| Material Type | Metals |
| Cookware Type | Double Boiler Insets |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 12.25 |
| Case Height | 10 |
| Case Length | 12.25 |
| Case Lot Cube (ft.) | 0.87 |
| Case Lot Weight (lbs.) | 3.6 |
