Cayenne Full-Size Heat N Serve Rethermalizer
The Vollrath® full-size Heat 'N Serve countertop rethermalizer would fit perfectly in your restaurant, buffet or concession stand.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

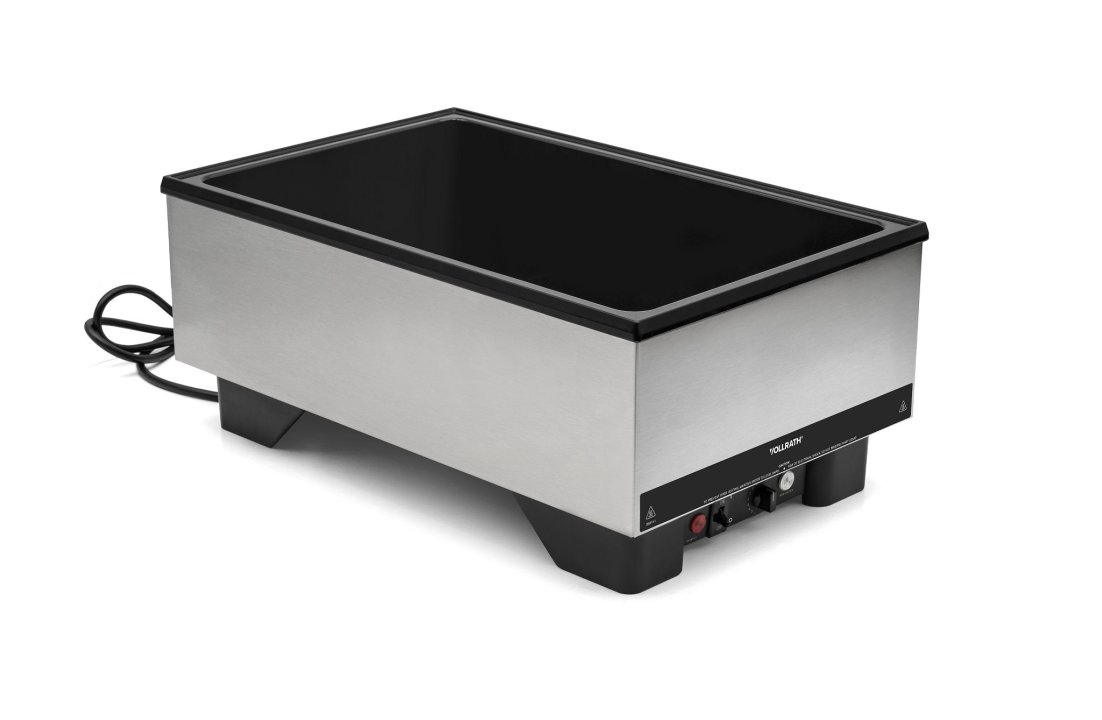

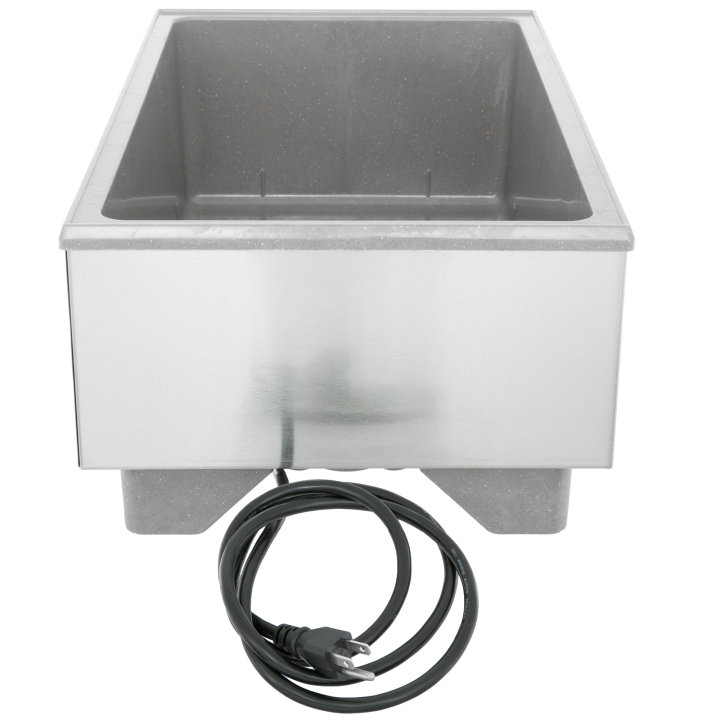

Full-size 120-volt Model 1220 Heat 'N Serve countertop rethermalizer
The Vollrath® full-size Heat 'N Serve countertop rethermalizer would fit perfectly in your restaurant, buffet or concession stand. Thermostatic controls ensure accurate heating, while the lighted on/off switch and low-water indicator keep you informed. The wide feet improve stability and prevent movement on any countertop, while the brushed stainless steel exterior gives this unit a clean, sleek look.
Efficiently warms a wide variety of food

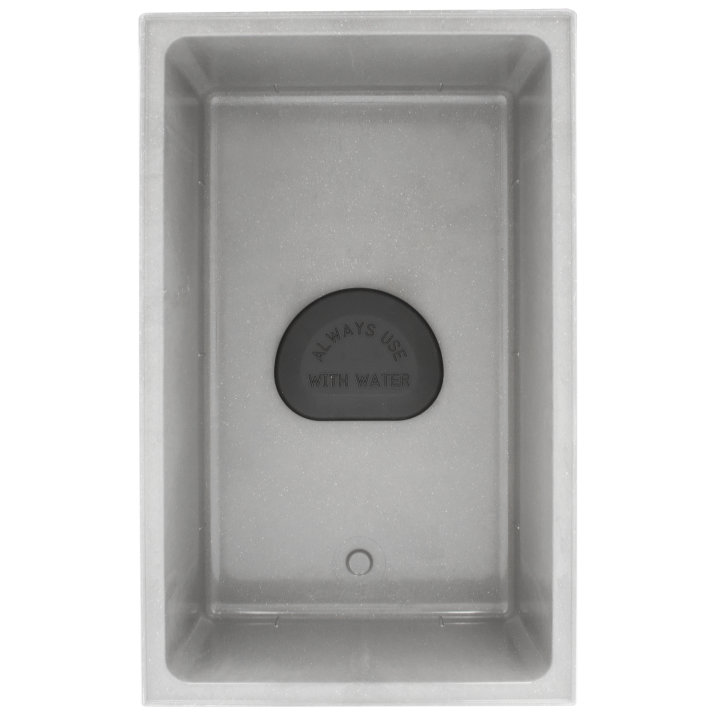

Must be used with water
International Models — available for export only
Designed to fit 4-inch-deep full- and fractional-sized pans
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | 1220 |
| UPC | 029419232277 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 13.779 x 21.779 x 9.05 |
| (W) Width (IN) | 13.77 |
| (WU) Usable Width (IN) | 12.04 |
| (D) Depth (IN) | 21.77 |
| (DU) Usable Depth (IN) | 19.992 |
| (H) Height (IN) | 9.05 |
| (W) Width (CM) | 35 |
| (WU) Usable Width (CM) | 30.6 |
| (D) Depth (CM) | 55.3 |
| (DU) Usable Depth (CM) | 50.8 |
| (H) Height (CM) | 23 |
| Size | Full-size |
Electrical
| Name | Value |
|---|---|
| Amps | 8.3 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 183 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 1000 |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Construction Material 2 | Fiber-Reinforced Plastic |
| Construction Material 3 | Electrical Components |
| Material Type | Metals |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 11 |
| Case Height | 25 |
| Case Length | 16 |
| Case Lot Cube (ft.) | 3.09 |
| Case Lot Weight (lbs.) | 19.65 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| STRAIN RELIEF BUSHING BLACK | 17024-3 | $1.80 |
| INDICATOR LAMP 125V RED DOME | 2515841-1 | $21.90 |
| POWER SWITCH SPST 125V NON-ILL | 2515840-1 | $16.10 |
| HI LIMIT ASSEMBLY | 44407-2 | $21.80 |
| HEATER CAST 1000W 120V | 44273-1 | $107.00 |
| SCREW THREAD ROLLING 10-32 | 17014-3 | $0.80 |
| CONTROL KNOB (BLACK) | 17012-1 | $6.30 |
| 3/8 DIA CLOSED CELL FEET | 17015-1 | $0.90 |
| CONNECTOR 3 WIRE WAGO 221-413 | 4350811-1 | $8.80 |
| THERMOSTAT HIGH LIMIT | 17950-1 | $5.20 |
| POP RIVET .125 DIA | 23686-3 | $1.70 |
| PILOT LIGHT - BLUE 125V | 1755901-1 | $6.70 |
| 16 GA. POWER CORD 120V | 17085-1 | $21.30 |
| SILICONE D-HEATER GASKET | 178681-1 | $17.90 |
| NUT KEPS #6-32 | 17019-3 | $0.80 |
| 12X20 BMC WL, BLCK, CLSED DRN | 17489-2 | $199.10 |
| THERMOSTAT SHORT CAPIL. EGO | 17074-1 | $103.40 |
| REG THERMOSTAT FSTB 390MM 121C | 355162-1 | $35.90 |
| HIGH LIMIT THERMOSTAT 125C | 25438-1 | $23.70 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
