72550
Cayenne Full-Size Heat N Serve Rethermalizer

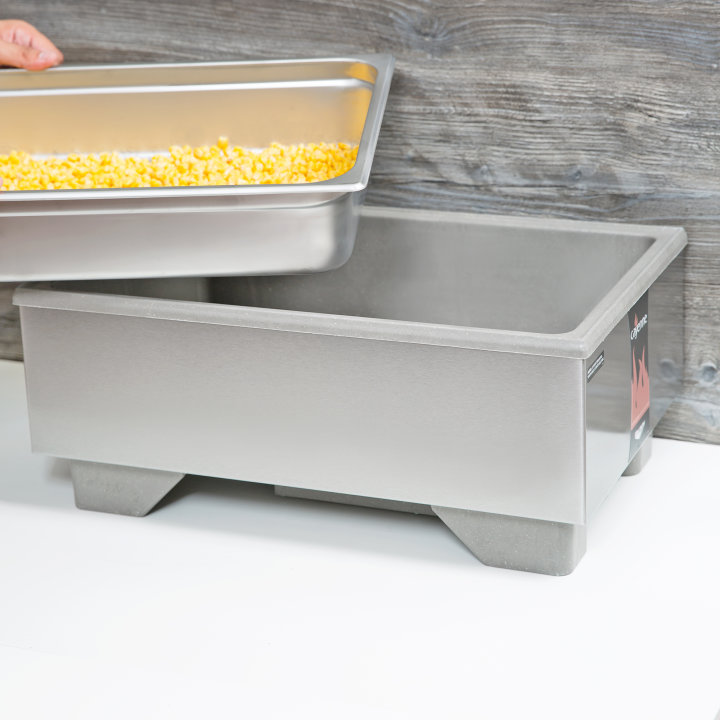

The Vollrath® full-size Cayenne Heat 'N Serve countertop rethermalizer would fit perfectly in your restaurant, buffet or concession stand.
Full-size 230-volt full-size Cayenne® Heat 'N Serve countertop rethermalizer

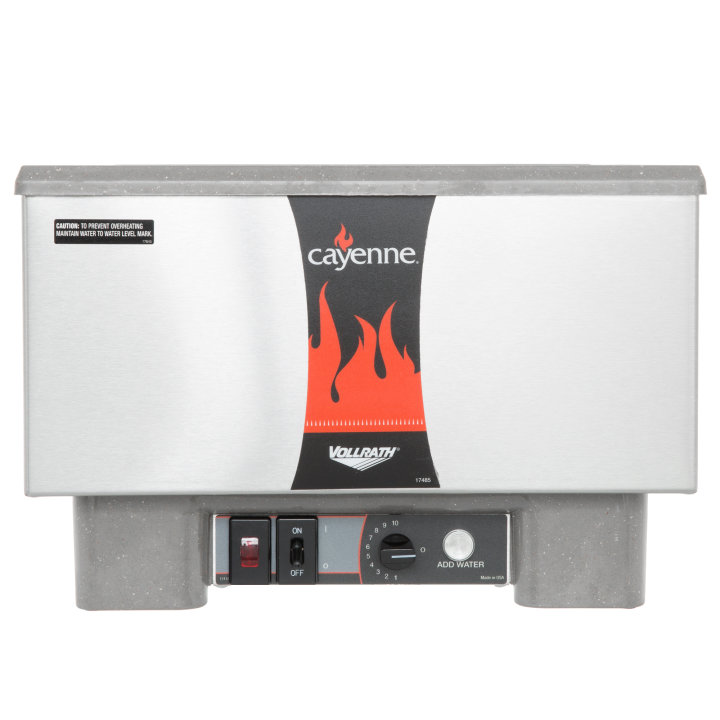

The Vollrath® full-size Cayenne Heat 'N Serve countertop rethermalizer would fit perfectly in your restaurant, buffet or concession stand. Thermostatic controls ensure accurate heating, while the lighted on/off switch and low-water indicator keep you informed. The wide feet improve stability and prevent movement on any countertop, while the brushed stainless steel exterior gives this unit a clean, sleek look.
Efficiently warms a wide variety of food
Must be used with water
International Models — available for export only
Designed to fit 4-inch-deep full- and fractional-sized pans
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | 1220 |
| UPC | 029419260898 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 13.779 x 21.779 x 9.05 |
| (W) Width (IN) | 13.77 |
| (WU) Usable Width (IN) | 12.04 |
| (D) Depth (IN) | 21.77 |
| (DU) Usable Depth (IN) | 19.992 |
| (H) Height (IN) | 9.05 |
| (W) Width (CM) | 35 |
| (WU) Usable Width (CM) | 30.6 |
| (D) Depth (CM) | 55.3 |
| (DU) Usable Depth (CM) | 50.8 |
| (H) Height (CM) | 23 |
| Size | Full |
Electrical
| Name | Value |
|---|---|
| Amps | 4.3 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 183 |
| Hz | 50/60 |
| Plug | UK (Type G) |
| Domestic / International | United Kingdom |
| Voltage | 230 |
| Watts | 1000 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 18.5 |
| Case Height | 26.25 |
| Case Length | 26.25 |
| Case Lot Cube (ft.) | 3.09 |
| Case Lot Weight (lbs.) | 20.66 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| HI LIMIT ASSEMBLY | 44407-2 | $21.80 |
| THERMOSTAT HIGH LIMIT | 17950-1 | $5.20 |
| POP RIVET .125 DIA | 23686-3 | $1.70 |
| CONTROL KNOB (BLACK) | 17012-1 | $6.30 |
| 3/8 DIA CLOSED CELL FEET | 17015-1 | $0.90 |
| PILOT LIGHT BLUE 250V | 2327901-1 | $16.20 |
| SILICONE D-HEATER GASKET | 178681-1 | $17.90 |
| STRAIN RELIEF BUSHING BLACK | 17024-3 | $1.80 |
| INDICATOR LAMP RED 250V | 25287-1 | $24.20 |
| SCREW THREAD ROLLING 10-32 | 17014-3 | $0.80 |
| HIGH LIMIT THERMOSTAT 125C | 25438-1 | $23.70 |
| CONNECTOR 3 WIRE WAGO 221-413 | 4350811-1 | $8.80 |
| POWER SWITCH SPST 125V NON-ILL | 2515840-1 | $16.10 |
| 12X20 BMC WL, BLCK, CLSED DRN | 17489-2 | $199.10 |
| PILOT LIGHT - RED 250V | 1755910-1 | $10.00 |
| HEATER CAST 1090W 240V | 44271-1 | $95.80 |
| NUT KEPS #6-32 | 17019-3 | $0.80 |
| THERMOSTAT SHORT CAPIL. EGO | 17074-1 | $103.40 |
| UK POWER CORD - 220V/240V | 17235-1 | $88.80 |
| REG THERMOSTAT FSTB 390MM 121C | 355162-1 | $35.90 |
Product Downloads
CAD / REVIT
Customer Questions
Be the first to ask a question
