72023

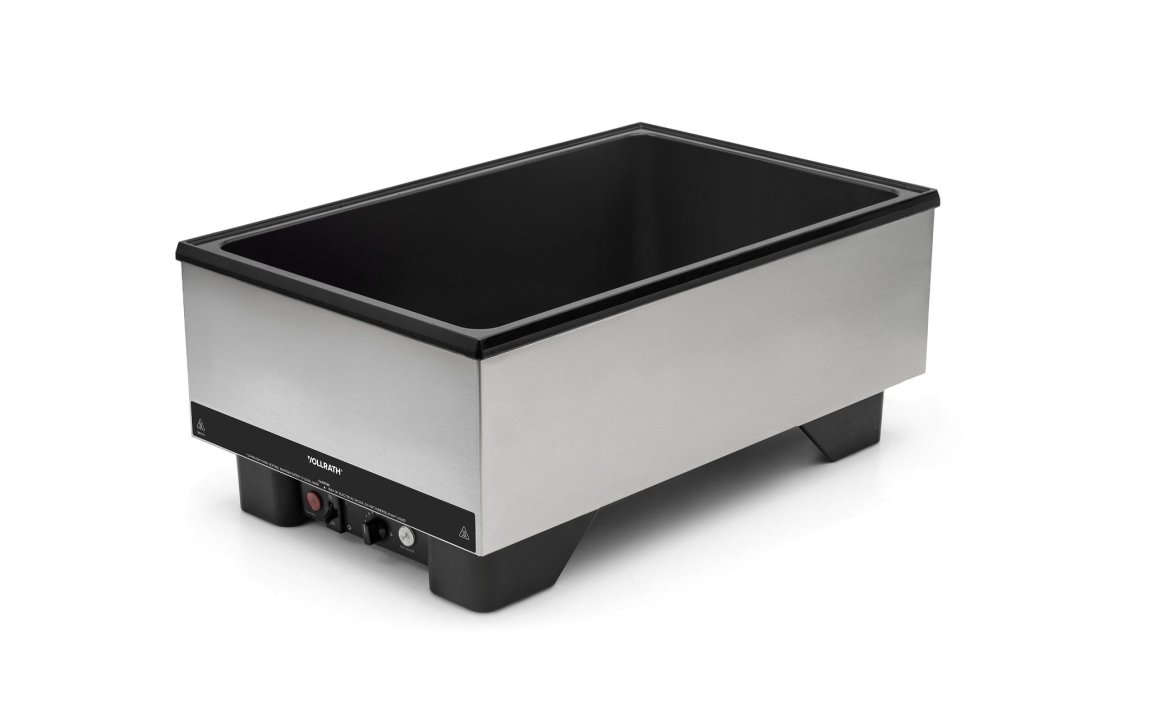

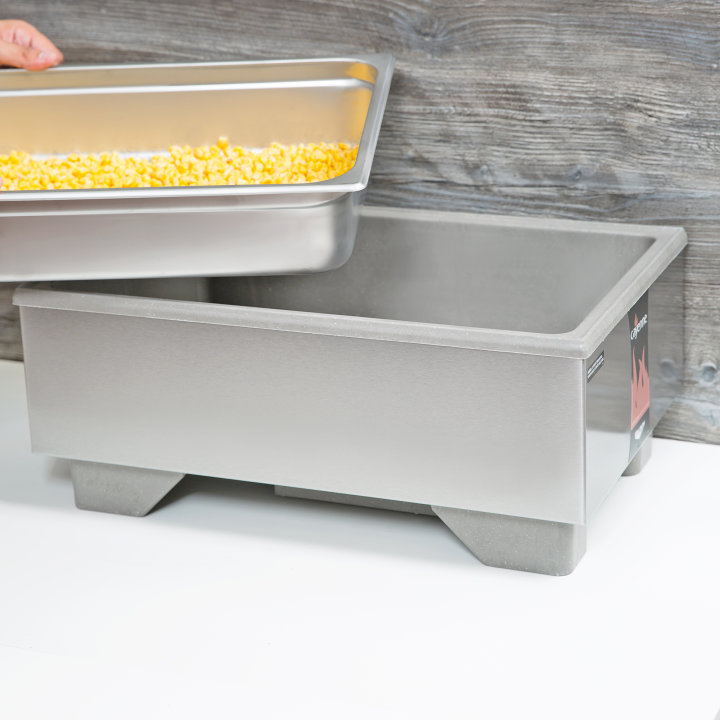

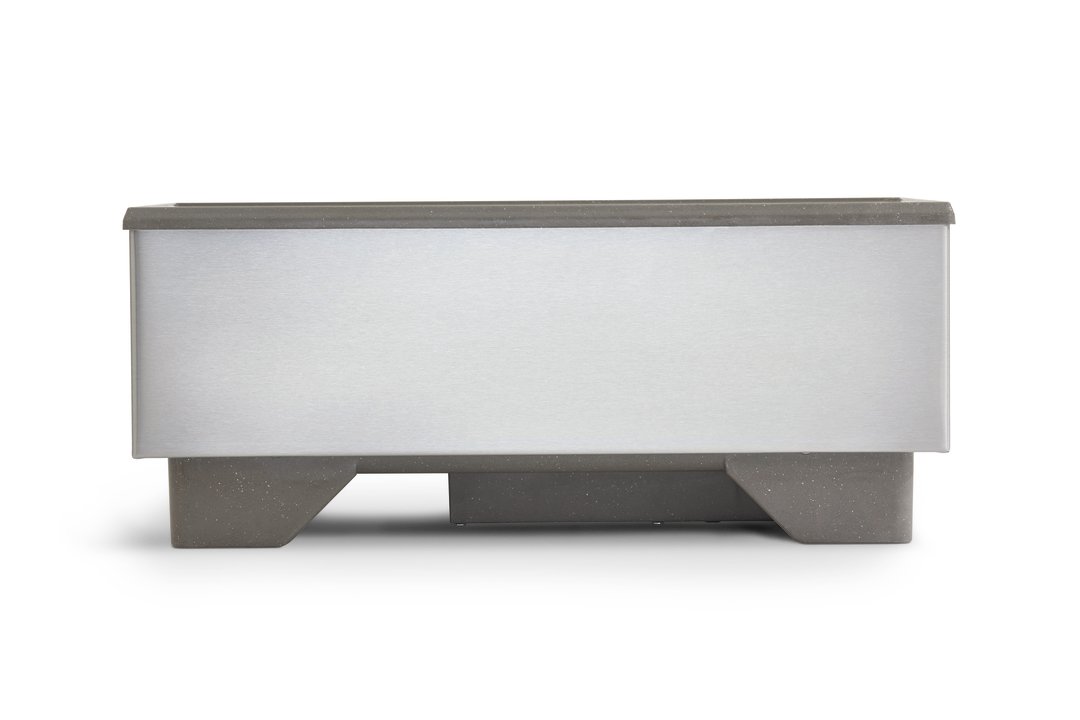

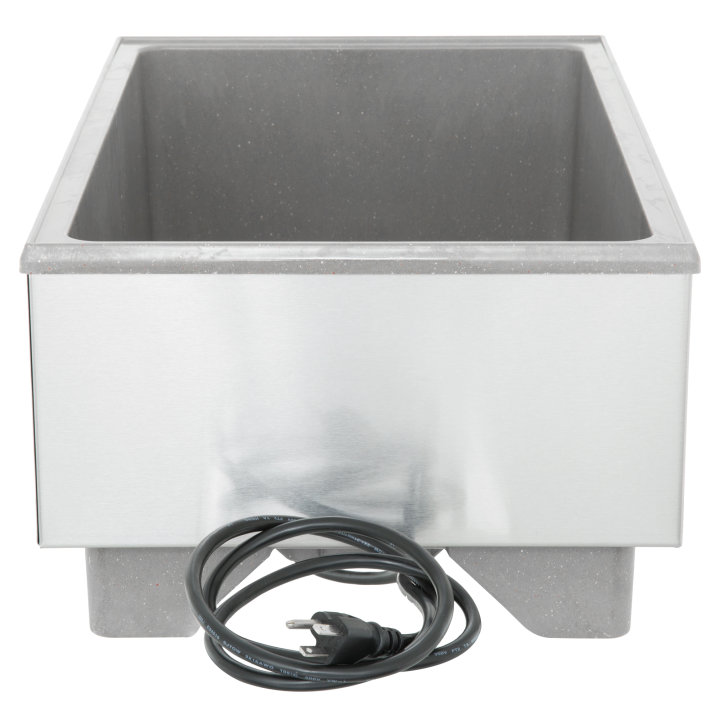

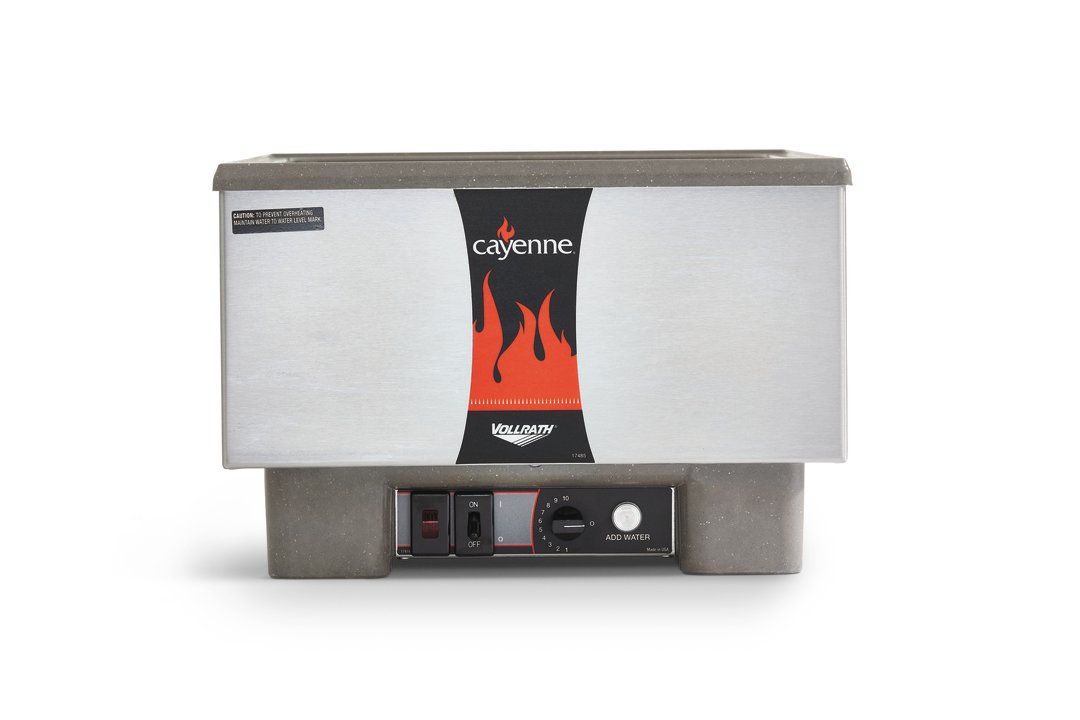

Full-size 120-volt Cayenne® Heat 'N Serve countertop rethermalizer
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
$499.98
MSRP
Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$833.30
List Price
List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.

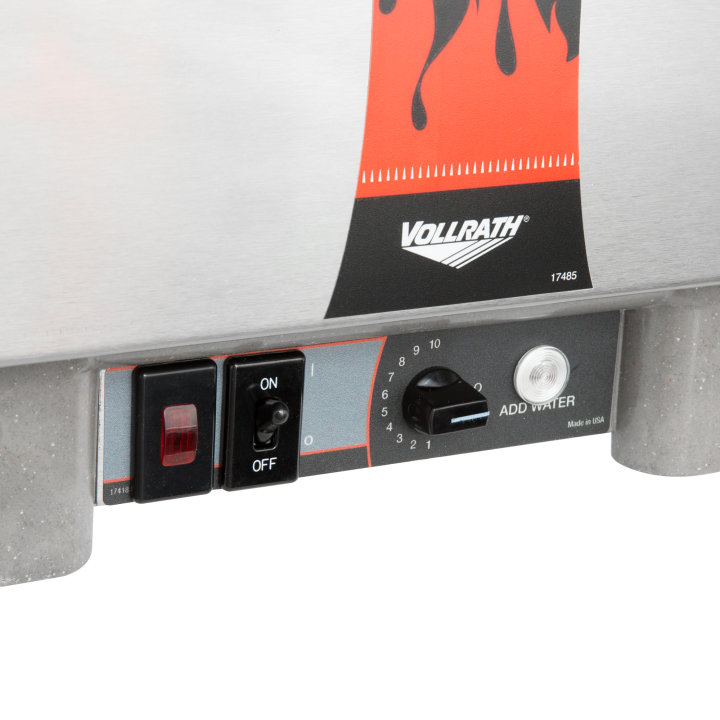

The Vollrath® full-size Cayenne Heat 'N Serve countertop rethermalizer would fit perfectly in your restaurant, buffet or concession stand. Thermostatic controls ensure accurate heating, while the lighted on/off switch and low-water indicator keep you informed. The wide feet improve stability and prevent movement on any countertop, while the brushed stainless steel exterior gives this unit a clean, sleek look.
- Efficiently warms a wide variety of food

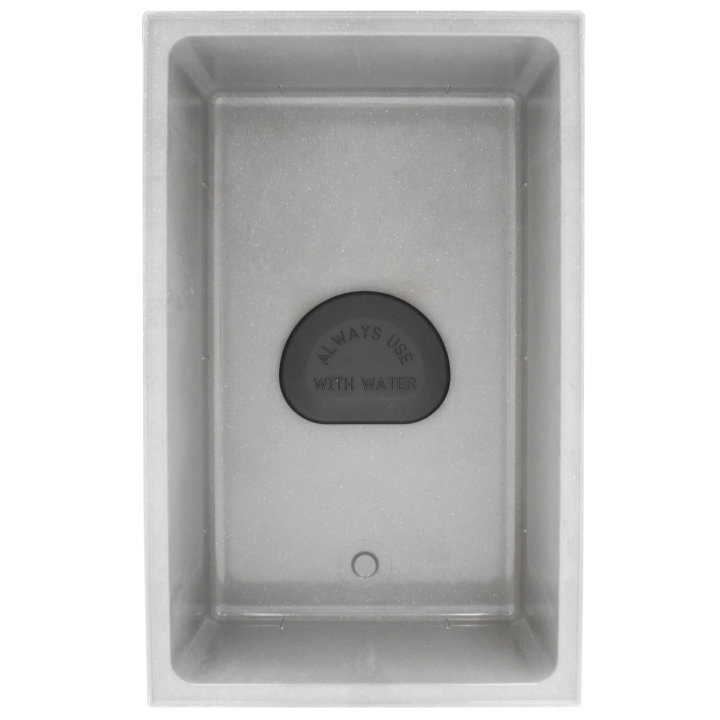

- Must be used with water
- International Models — available for export only
- Designed to fit 4-inch-deep full- and fractional-sized pans
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | 1220 |
| UPC | 029419664177 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 13.779 x 21.779 x 9.05 |
| (W) Width (IN) | 13.77 |
| (WU) Usable Width (IN) | 12.04 |
| (D) Depth (IN) | 21.77 |
| (DU) Usable Depth (IN) | 19.992 |
| (H) Height (IN) | 9.05 |
| (W) Width (CM) | 35 |
| (WU) Usable Width (CM) | 30.6 |
| (D) Depth (CM) | 55.3 |
| (DU) Usable Depth (CM) | 50.8 |
| (H) Height (CM) | 23 |
| Size | Full |
Electrical
| Name | Value |
|---|---|
| Amps | 12 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 183 |
| Hz | 60 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 1400 |
Volume
| Name | Value |
|---|---|
| Capacity (QT) | 14 |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Construction Material 2 | Fiber-Reinforced Plastic |
| Construction Material 3 | Electrical Components |
| Material Type | Metals |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 11.25 |
| Case Height | 26 |
| Case Length | 18.5 |
| Case Lot Cube (ft.) | 3.13 |
| Case Lot Weight (lbs.) | 19.94 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| CONTROL KNOB (BLACK) | 17012-1 | $6.30 |
| 3/8 DIA CLOSED CELL FEET | 17015-1 | $0.90 |
| 16 GA. POWER CORD 120V | 17085-1 | $21.30 |
| HI LIMIT ASSEMBLY | 44407-2 | $21.80 |
| THERMOSTAT HIGH LIMIT | 17950-1 | $5.20 |
| POP RIVET .125 DIA | 23686-3 | $1.70 |
| SILICONE D-HEATER GASKET | 178681-1 | $17.90 |
| STRAIN RELIEF BUSHING BLACK | 17024-3 | $1.80 |
| INDICATOR LAMP 125V RED DOME | 2515841-1 | $21.90 |
| SCREW THREAD ROLLING 10-32 | 17014-3 | $0.80 |
| HIGH LIMIT THERMOSTAT 125C | 25438-1 | $23.70 |
| CONNECTOR 3 WIRE WAGO 221-413 | 4350811-1 | $8.80 |
| POWER SWITCH SPST 125V NON-ILL | 2515840-1 | $16.10 |
| NUT KEPS #6-32 | 17019-3 | $0.80 |
| PILOT LIGHT - BLUE 125V | 1755901-1 | $6.70 |
| REG THERMOSTAT FSTB 390MM 121C | 355162-1 | $35.90 |
| THERMOSTAT SHORT CAPIL. EGO | 17074-1 | $103.40 |
| 12X20 BMC WL, BLCK, CLSED DRN | 17489-2 | $199.10 |
| PILOT LIGHT - RED 125V | 17559-1 | $6.50 |
Product Downloads
CAD / REVIT
