CF2-1800DUAL
120-Volt 10 lb. standard-duty double-well countertop fryer
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
$1103.46
MSRP
Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$1,839.10
List Price
List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.

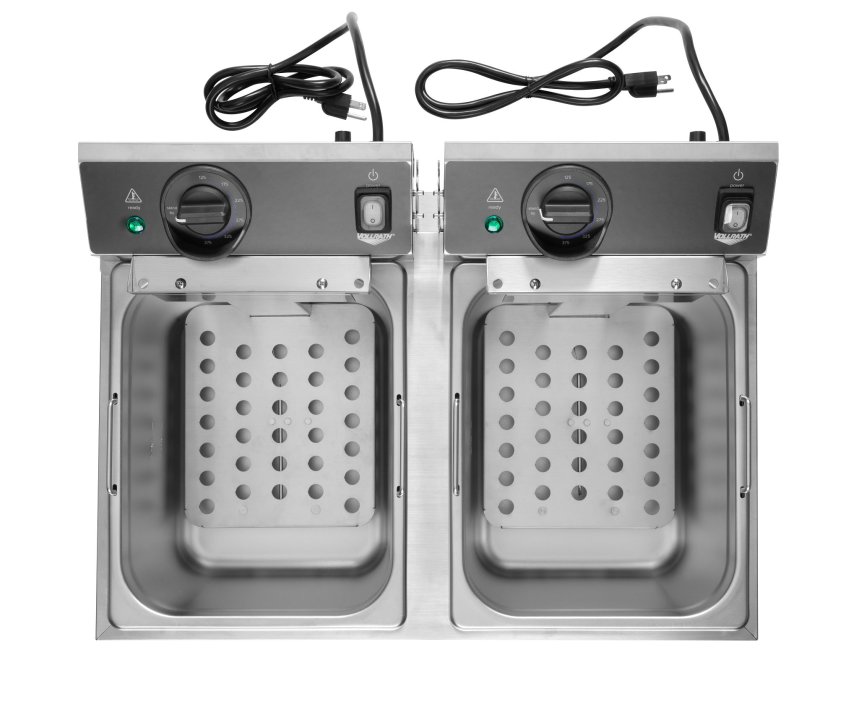

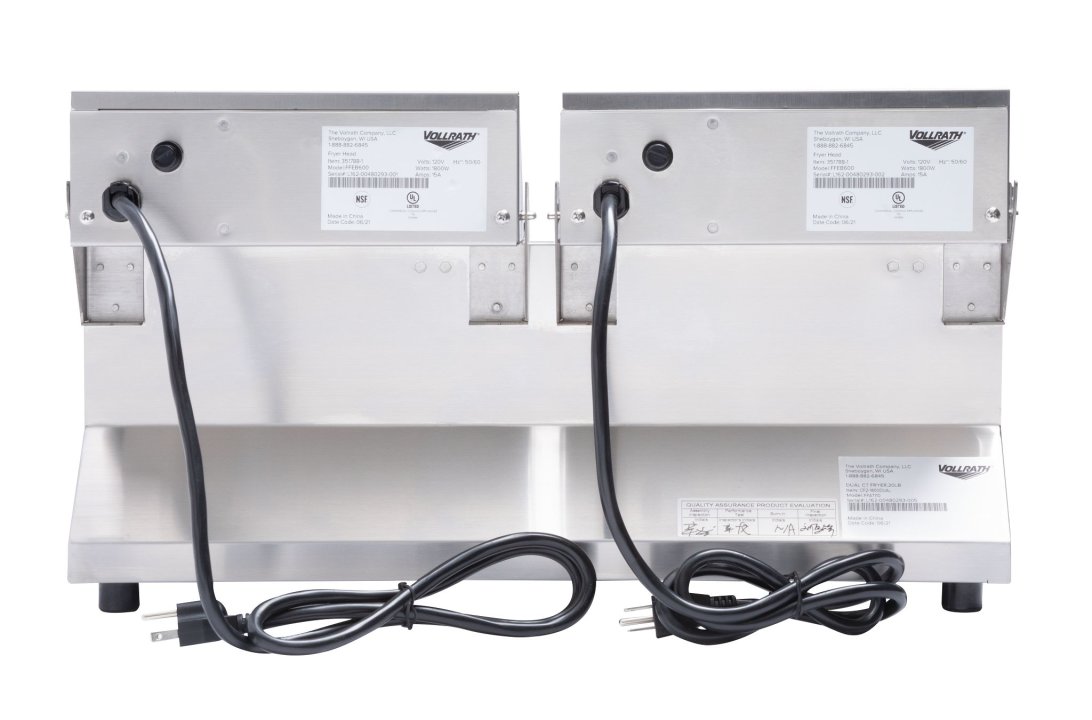

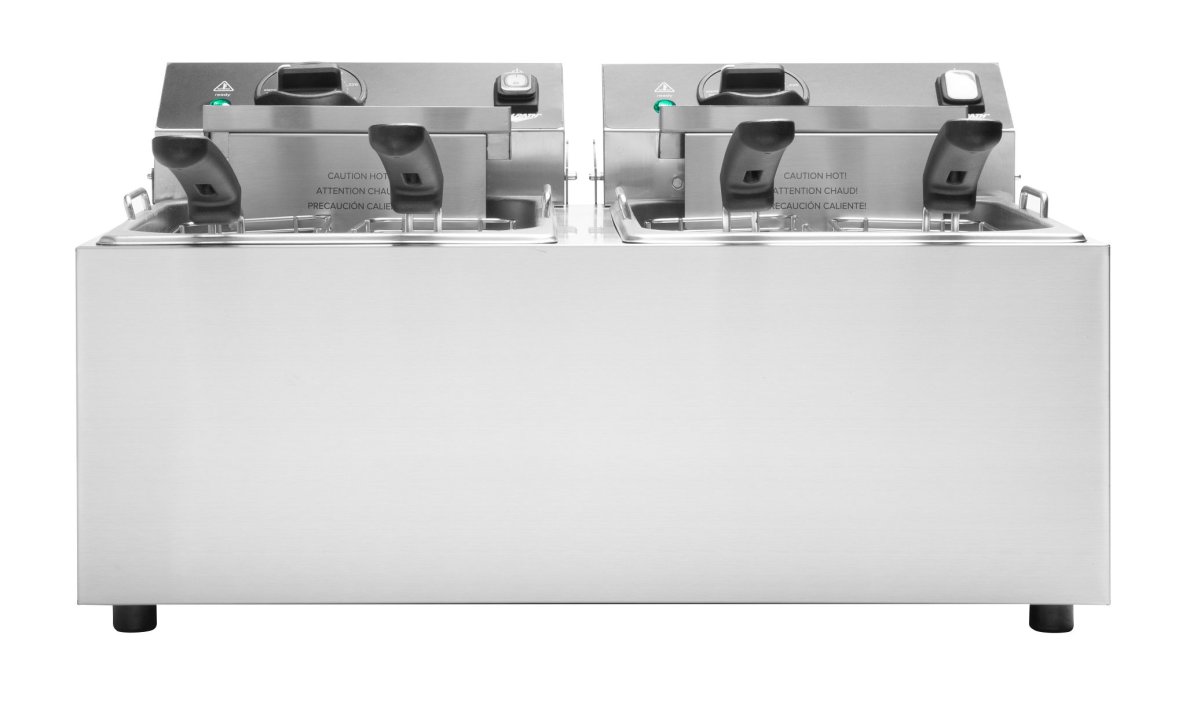

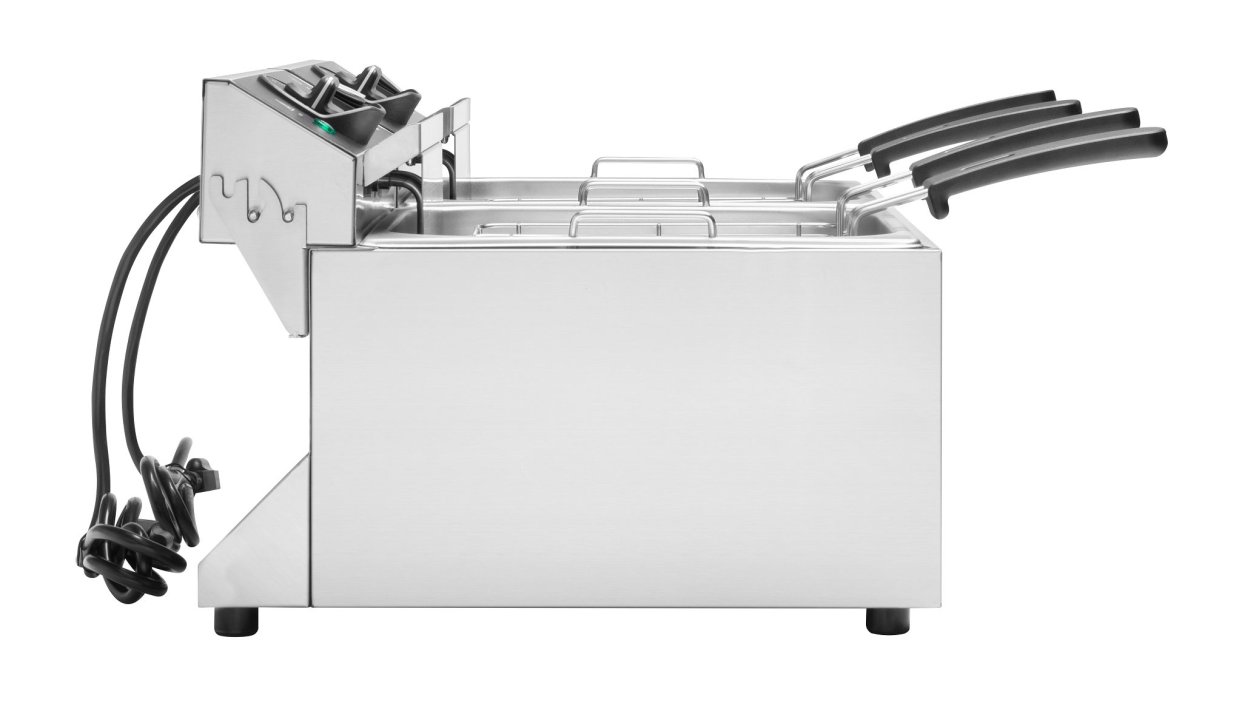

The Vollrath® double-well countertop fryer provides twice the capacity with the same safe handling, durability and low maintenance. It features powerful performance in a dual unit, for more cooking capacity while keeping fried food flavors separate. Easy-to-clean standard fryer ships with 4 stainless steel wire baskets, each featuring a cool-touch handle for comfort and safety.
- Dual-well fryer delivers 1800 watts per well
- New components deliver quality, safety and durability
- Lighted power switch and oil-ready indicators
- Thermostatically controlled to 375°F; auto shutoff at 500°F
- 3-position fryer heads enable easy pan removal and cleaning
- Separate stainless tanks with handles lift out for cleaning
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | FFA7020 |
| UPC | 671080969350 |
Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 23 |
| (D) Depth (IN) | 17.125 |
| (H) Height (IN) | 12.625 |
| (DB) Depth of Body (IN) | 16.75 |
| (W) Width (CM) | 58.4 |
| (D) Depth (CM) | 43.5 |
| (H) Height (CM) | 32.1 |
| (DB) Depth of Body (CM) | 42.5 |
Electrical
| Name | Value |
|---|---|
| Amps | 15 per well |
| Cord Length (IN) | 48 |
| Cord Length (CM) | 121.9 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 1800 per well |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Construction Material 2 | Electrical Components |
| Material Type | Metals |
| Number of Wells | 2 |
| Product Function | Fryer |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 21.57 |
| Case Height | 17.28 |
| Case Length | 24.8 |
| Case Lot Weight (lbs.) | 40 |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| RUBBER GASKET | 351788-09-1 | $1.50 |
| INTERLOCK SWITCH KIT | 351814-1 | $17.60 |
| FRYER HEAD OVERLAY | 351788-01-1 | $15.70 |
| FRYER INTERLOCK MAGNET | 351792-04-1 | $11.70 |
| REGULATING THERMOSTAT | 351788-12-1 | $12.70 |
| HI-LIMIT THERMOSTAT COVER | 351788-03-1 | $10.40 |
| Control Knob | 351788-06-1 | $7.20 |
| HI-LIMIT THERMOSTAT | 351788-02-1 | $12.70 |
| 120V PILOT LIGHT | 351788-17-1 | $30.10 |
| Fryer Head 120V | 351788-1 | $434.00 |
| 20LB BODY ASSM | 351816-02-1 | $287.40 |
| RECTANGULAR POWER SWITCH 120V | 352739-1 | $10.60 |
| 120V RELAY KIT | 351815-01-1 | $79.70 |
| 120V HEATING ELEMENT KIT | 351813-01-1 | $66.80 |
| SPILLAGE PAN ASSM | 351797-1 | $72.80 |
| Kit, Foot, 1.00" OD, 20Mm LG | 351775-1 | $8.00 |
| 5-15 POWER CORD STRT STRN RELF | 354199-1 | $60.30 |
| FRYER BEZEL & OVERLAY | 354203-1 | $50.60 |
| Kit, Foot, 1.00" OD, 20Mm LG | 351775-1 | $8.00 |
Product Downloads
CAD / REVIT
Customer Questions
Be the first to ask a question
