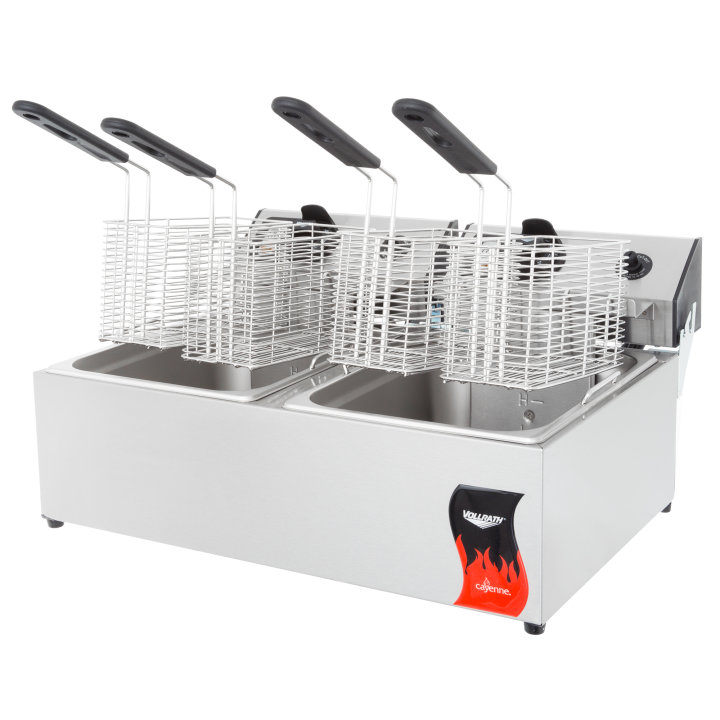

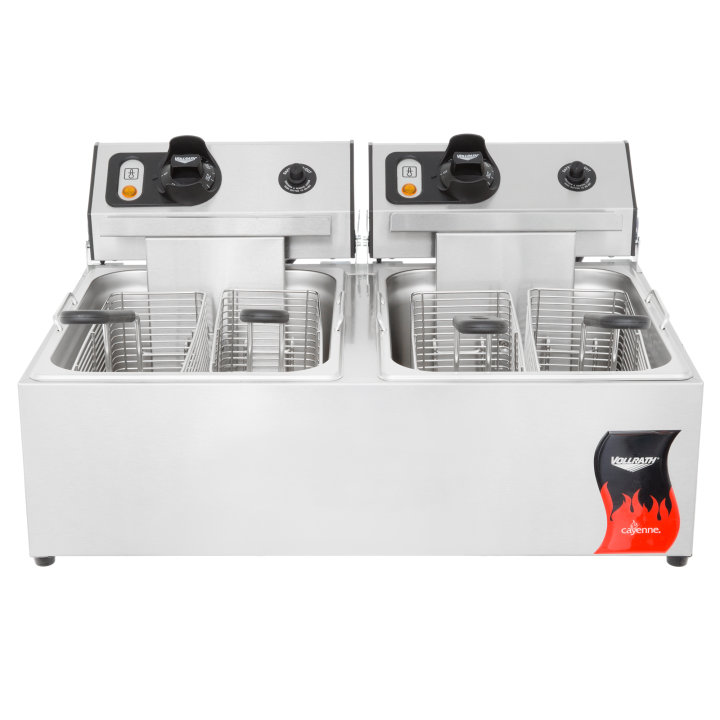

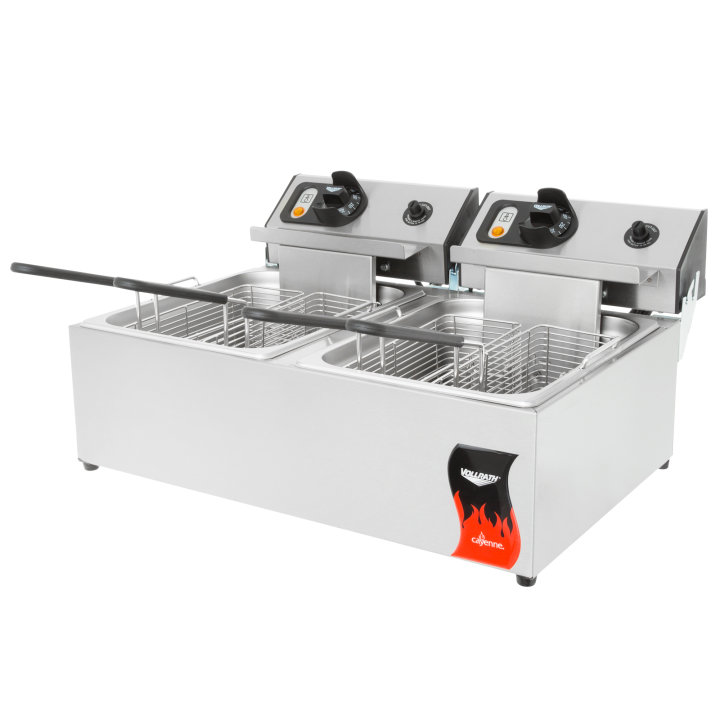

DiscontinuedDouble-well 120-volt 10-lb standard-duty Cayenne® countertop deep fryer
The Vollrath® double-well 10-lb Cayenne countertop deep fryer efficiently prepares a variety of fried foods while saving precious counter space.
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

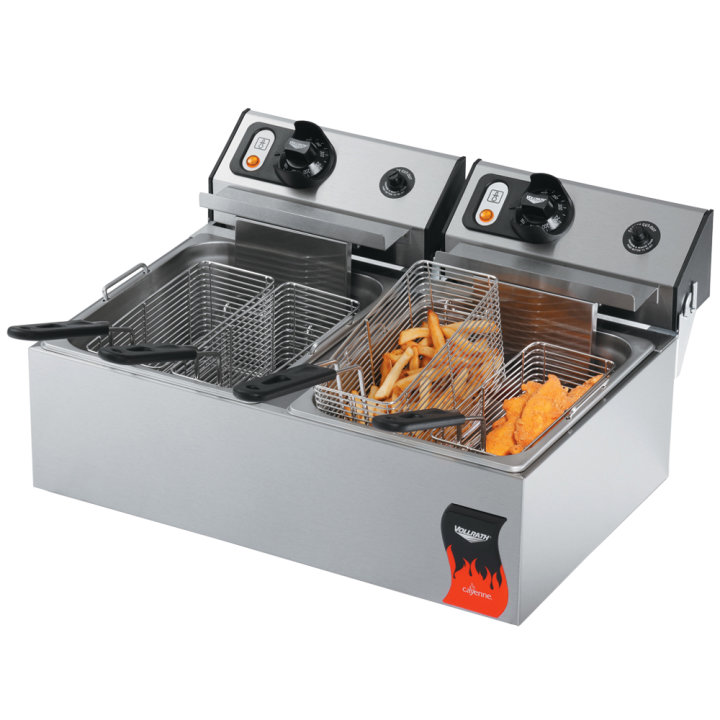

Double-well 120-volt 10-lb standard-duty Cayenne® countertop deep fryer
The Vollrath® double-well 10-lb Cayenne countertop deep fryer efficiently prepares a variety of fried foods while saving precious counter space. This fryer is thermostatically controlled to 375°F and has quick heating and recovery times. This double-well unit increases volume and variety while keeping food and flavors separate. Two nickel-plated steel fryer baskets have Kool-Touch® handles for your safety and comfort. The one-piece stainless steel tanks simply lift out by their handles, making cleaning easy and efficient, while nonskid rubber feet prevent the unit from moving during use. Thanks to its compact size, this unit fits nicely on any countertop.
Quickly fry chicken, french fries, seafood, and more
One-piece stainless steel tank with carrying handles is durable and easy to clean

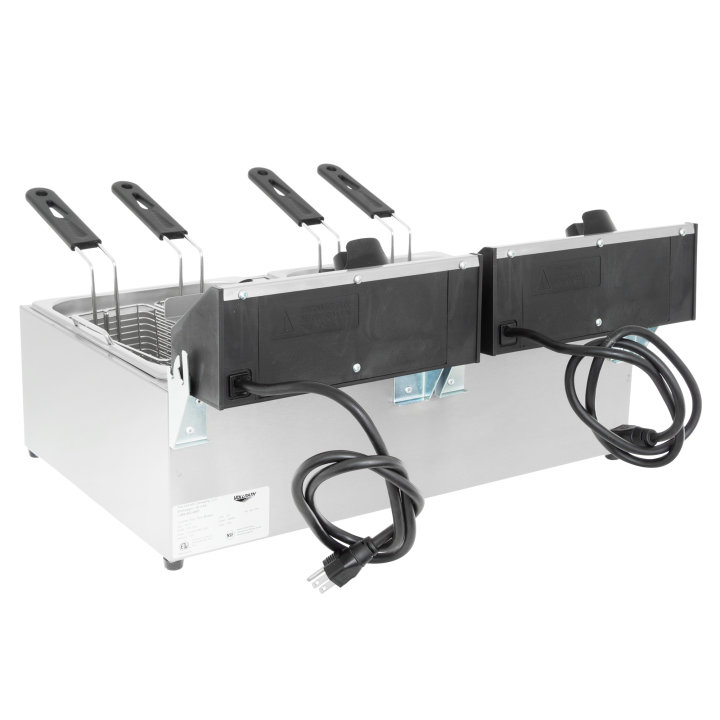

Double-well unit features two separate power cords and requires two receptacles

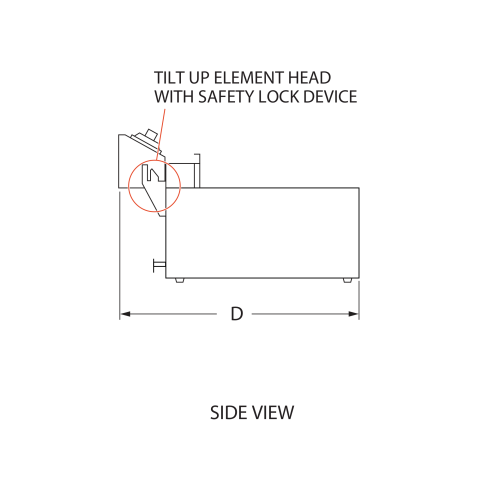

Microswitch safely shuts off unit when element box is removed

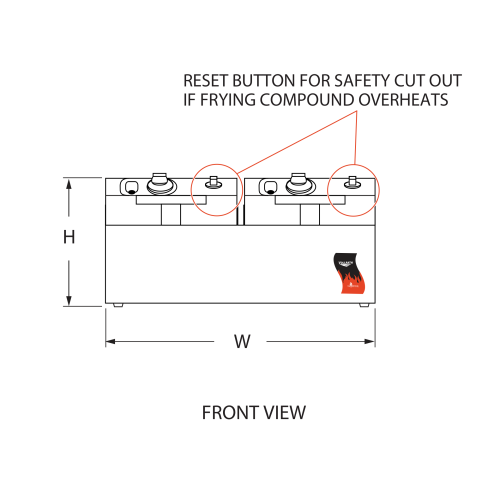

Automatic shutoff feature at 390°F maintains safety of operation

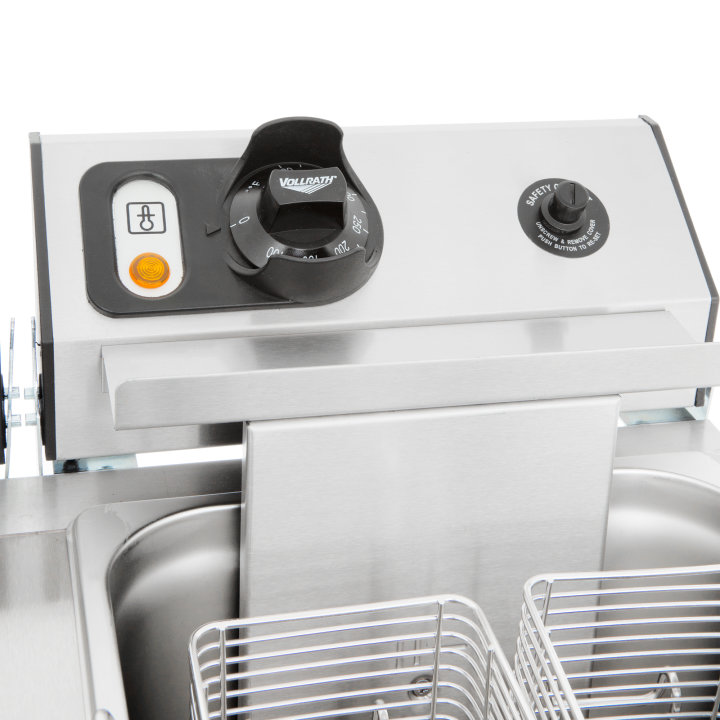

Thermostatic controls maintain a temperature of 375°F for more accurate heating
Two 4- x 10- x 4-inch fryer baskets fit a variety of products
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | FFA7020 |
| UPC | 029419718870 |

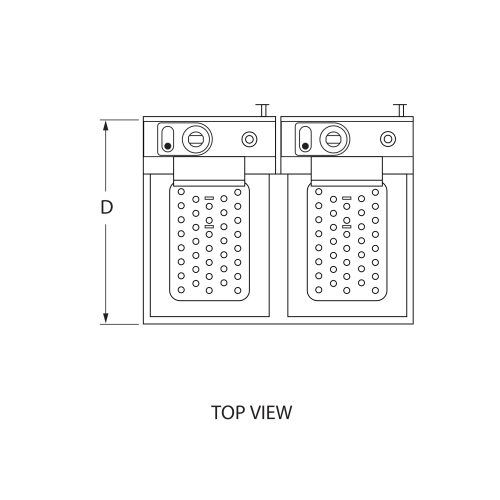

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 23 x 17.625 x 11 |
| (W) Width (IN) | 23 |
| (D) Depth (IN) | 17.62 |
| (H) Height (IN) | 11 |
| Overall Dimensions (CM) | 58.4 x 44.7 x 27.9 |
| (W) Width (CM) | 58.4 |
| (D) Depth (CM) | 44.7 |
| (H) Height (CM) | 27.9 |
| Size | 10 |
Electrical
| Name | Value |
|---|---|
| Amps | 15 per well |
| Cord Length (IN) | 60 |
| Cord Length (CM) | 150 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 1800 per well |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
| Number of Wells | 2 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 26 |
| Case Height | 21.5 |
| Case Length | 14 |
| Case Lot Cube (ft.) | 4.58 |
| Case Lot Weight (lbs.) | 30.98 |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| CONTROL PANEL FASCIA - BLACK | XAA0009 | $31.70 |
| RUBBER FOOT TSA(ALL) (#40/41) | XTSA0004 | $6.70 |
| MICROSWITCH SAFETY FFA7110/811 | XFFA0011 | $37.10 |
| MICROSWITCH PUSH PIN FFA7110/8 | XFFA0012 | $15.20 |
| ELEMENT 120V FFA7110/7020 (#27 | XFFA0002 | $197.40 |
| CABLE RESTRAINT COA7001/7002/8 | XCOA1013 | $9.50 |
| OVER-TEMP THERMOSTAT FFA7110 | XFFA0009 | $247.80 |
| SAFETY CUT OUT PLASTIC CAP FF | XFFA0013 | $8.10 |
| FEB0005 ELEMENT BOX COMPLETE 1 | FFEB100 | $561.60 |
| POWERCORD 120V (NEMA5-15P) | XAA0005 | $54.80 |
| S/STEEL INSERT FFA7010/7110/8 | XFEIN001 | $205.80 |
| THERMOSTAT FFA(ALL)(#19) | XFFA0008 | $104.30 |
| PILOT LIGHT 110V (YELLOW) | XAA0011 | $13.10 |
| VOLLRATH CONTROL KNOB FFA7110/ | XFFA0004 | $18.70 |
