CVT4-208900
208-volt JT3HC convertible conveyor toaster
Double your capabilities and increase versatility with the convertible conveyor toaster by Vollrath, which converts from a standard toaster to a pass-through toaster easily and efficiently.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

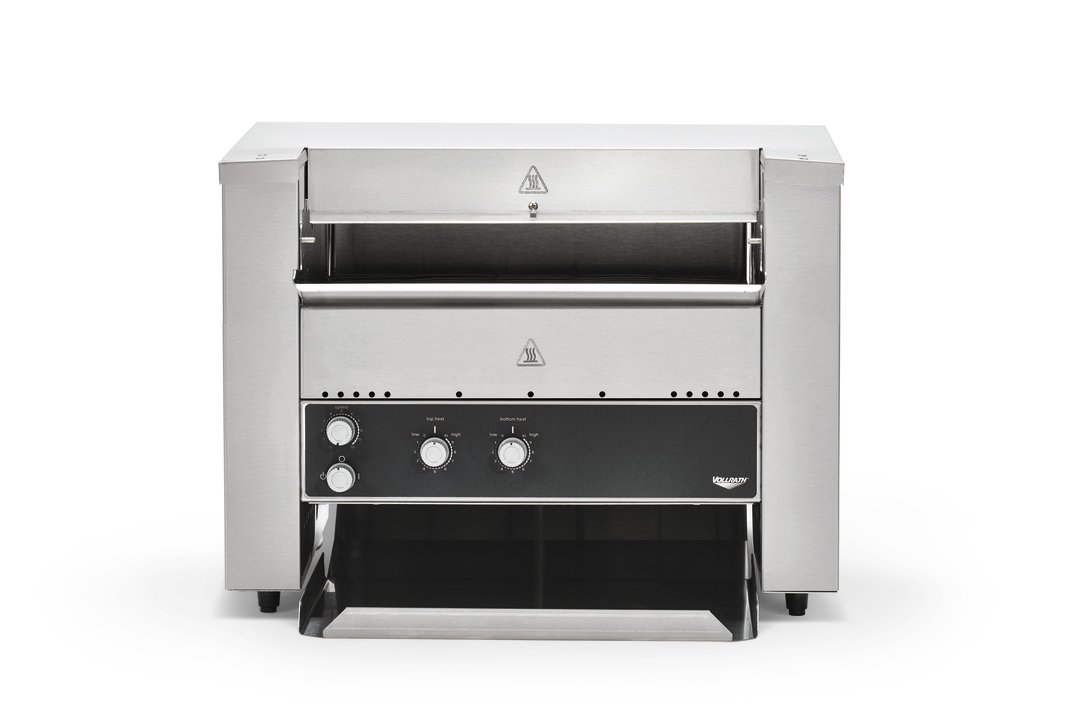

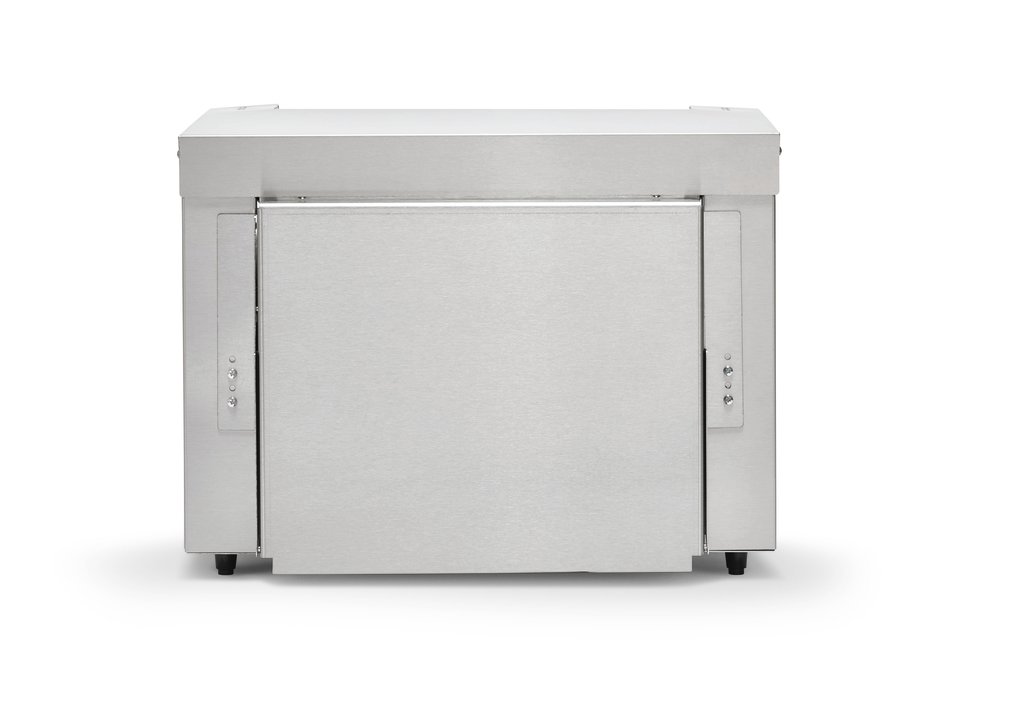

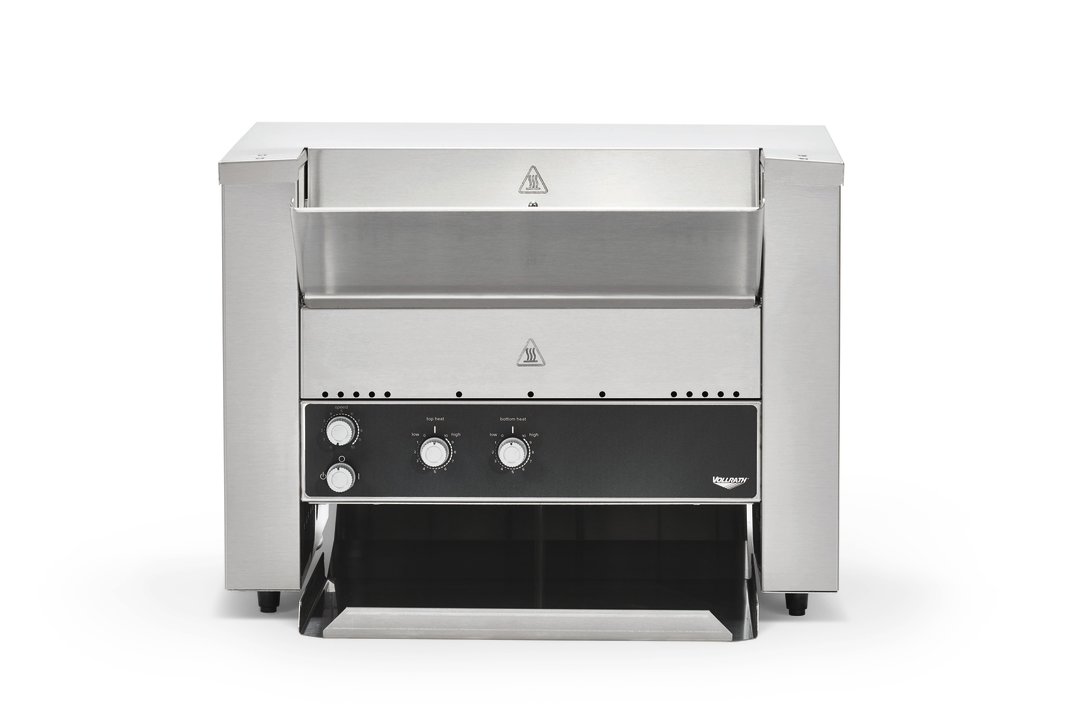

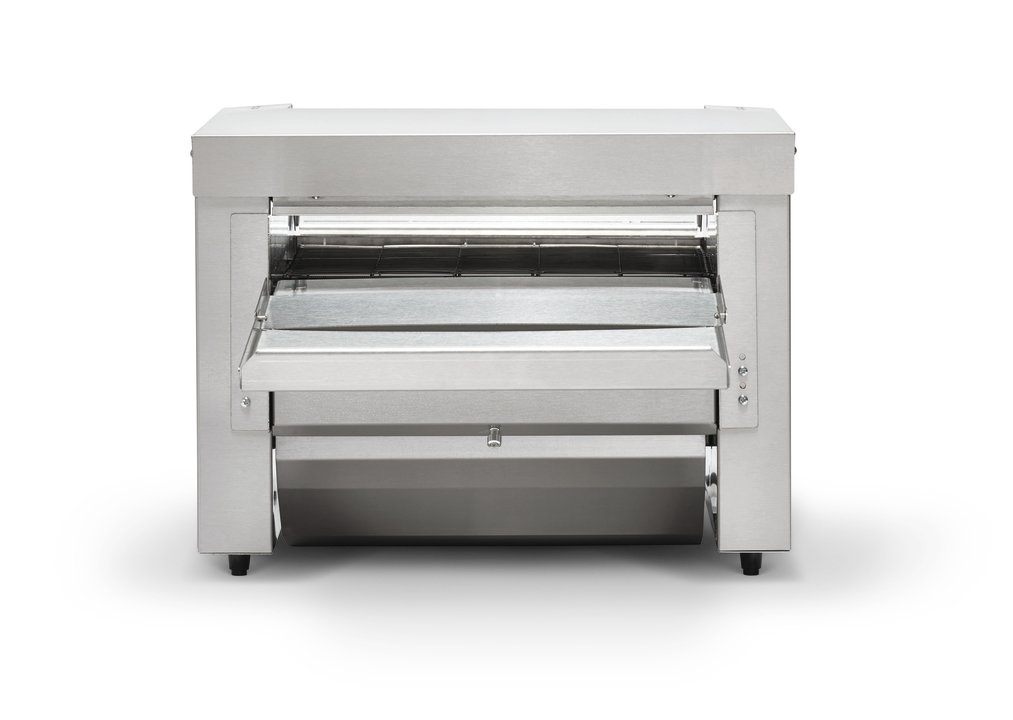

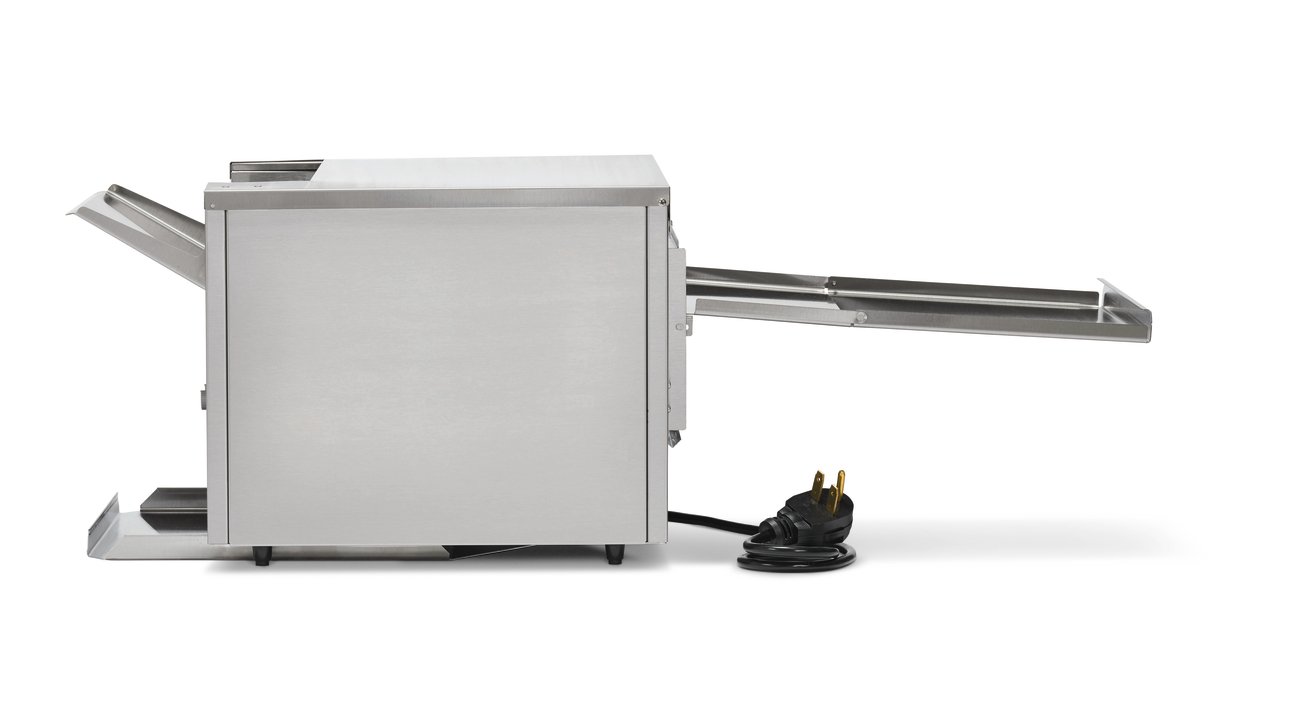

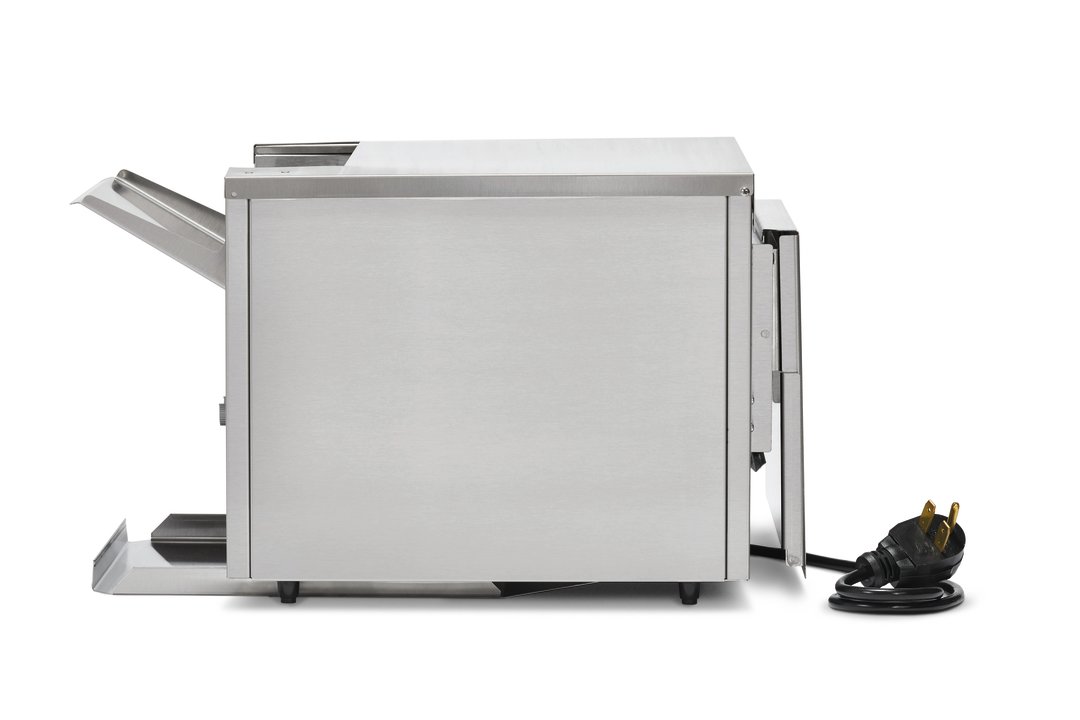

208-volt JT3HC convertible conveyor toaster
Double your capabilities and increase versatility with the convertible conveyor toaster by Vollrath, which converts from a standard toaster to a pass-through toaster easily and efficiently. Powerful quartz heating elements respond quickly, while forced convection ensures consistent toasting. The variable-speed control and variable top and bottom heat controls help you achieve desired results. Standby mode reduces energy use up to 75 percent during slow periods and quickly returns the unit to full power when needed. The adjustable 1 ½- to 3-inch product opening fits a variety of items, making this toaster ideal for bread, buns, bagels and more. This convertible conveyor toaster fits up to 900 items per hour, and the convertible design helps you save space without sacrificing quality.
Designed for medium-volume establishments
Quick, easy conversion between standard and pass-through toasting, allowing you to toast bread and bagels as well as toast sandwiches and melt cheese
Variable-speed control and variable top and bottom heat controls help you achieve desired results
Forced convection ensures even toasting
Quartz heating elements respond quickly and save energy
Standby mode saves up to 75 percent energy during slow periods when unit is not in use and allows it to quickly return to full power
Durable stainless and aluminized steel is built to last
Accommodates up to 900 items per hour
1 ½- to 3-inch adjustable product opening easily fits bread, buns, bagels and other high-clearance items
Based on independent UL testing, this product complies with NFPA96 for ventless operation using the EPA202 test method. Ventless allowance is dependent upon AHJ approval.
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | JT3HC |
| UPC | 671080705880 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 19.875 x 43.125 x 15 |
| (W) Width (IN) | 19.87 |
| (D) Depth (IN) | 43.12 |
| (D2) Secondary Depth (IN) | 24.3125 |
| (H) Height (IN) | 15 |
| (WL) Width between legs | 17.25 |
| (DL) Depth between legs | 14 |
| Product Opening Dimensions (IN) | 1.5 - 3 |
| Conveyor Width (IN) | 14.5 |
| Overall Dimensions (CM) | 50.5 x 109.5 x 12.7 |
| (W) Width (CM) | 50.5 |
| (D) Depth (CM) | 109.5 |
| (D2) Secondary Depth (CM) | 61.7 |
| (H) Height (CM) | 12.7 |
| (WL) Width between legs (CM) | 43.8 |
| (DL) Depth between legs (CM) | 35.6 |
| Product Opening Dimensions (CM) | 3.8 - 7.6 |
| Conveyor Width (CM) | 36.8 |
Electrical
| Name | Value |
|---|---|
| Amps | 17.3 |
| Cord Length (IN) | 48 |
| Cord Length (CM) | 140 |
| Hz | 60 |
| Plug | NEMA 6-30P |
| Voltage | 208 |
| Watts | 3600 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
| Food Type | Standard Breads, Specialty Breads, Buns, Bagels |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 23 |
| Case Height | 20 |
| Case Length | 25 |
| Case Lot Weight (lbs.) | 73.5 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| CORD FAN HP-75.24-A | B401060 | $14.50 |
| SPROCKET 25B17-8MM | B401300 | $32.70 |
| SHAFT IDLER 14.5" | B401343 | $58.10 |
| SILVER PUSH-ON KNOB W/SET SCRW | B405019 | $17.90 |
| MOTOR DRIVE 208/240V RMS 344 | B401201 | $239.70 |
| SILVER PUSH-ON KNOB | B405018 | $9.80 |
| SPRING .038" DIA 2.462" LENGTH | B400260 | $10.40 |
| LABEL RESET CT4 | B401425 | $8.50 |
| CVT4 18" LOAD-UP TRAY | B300052 | $64.50 |
| SWITCH FAN CERAMIC | B401107 | $49.70 |
| CORD POWER 12/3 60" 6-30P | B401051 | $69.70 |
| CVT4 18" UNLOAD TRAY | B300051 | $75.90 |
| WIRE CONVEYOR BELT 14.5"X29.5" | B204277 | $156.70 |
| LADDER CHAIN 14.5" | B401398 | $30.40 |
| TERMINAL BLOCK 5 POSITION | B401033 | $18.80 |
| GUARD FAN | B401220 | $10.40 |
| SWITCH 240 V | B401102 | $54.80 |
| CT4 18" TOAST CHUTE | B300013 | $105.80 |
| CT4 18" CONTROL LABEL | B401402 | $29.80 |
| SHAFT DRIVE 14.5" | B401342 | $62.60 |
| 11-TOOTH SPROCKET | B401301 | $46.40 |
| CONTROL SPEED 500 OHM CT4 | B200901 | $83.10 |
| BEARING FRONT SPRING LOADED | B401350 | $18.80 |
| RESET SWITCH | B401100 | $49.70 |
| LEGS BLACK 1" 1/4-20 | B400300 | $19.00 |
| CT4 18" CRUMB TRAY ASSEMBLY | B204278 | $87.70 |
| BEARING ASSEMBLY 5/16 | B201100 | $29.10 |
| SWITCH ROTARY POWER SAVER | B401103 | $68.60 |
| TERMINAL BLOCK 2 POSITION | B401034 | $6.80 |
| 2PK HEAT ELEM 15-3/8 104V 900W | 59839 | $211.20 |
| MOTOR FAN | B401211 | $97.80 |
| STRGHT 12 GA STRAIN RLF BSHNG | B400321 | $0.80 |
| BEARING, TEFLON 5/16 | B401355 | $9.20 |
| CT4H 18" HEAT SHUTTER | B300059 | $19.50 |
| 1 1/4" SNAP BUSHING | B400330 | $0.70 |
