CVT4-220900

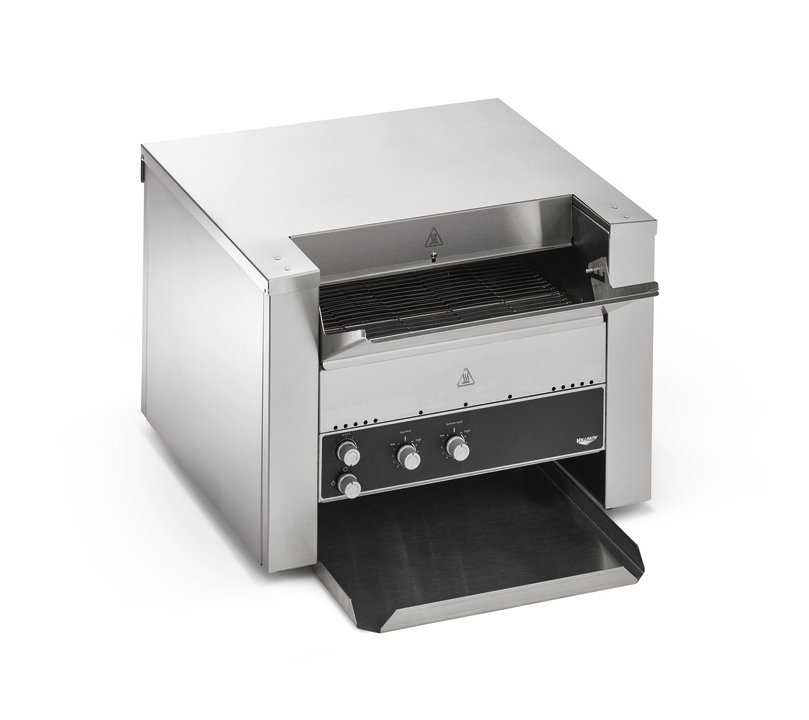

220-volt JT3HC convertible conveyor toaster
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
$2142.48
MSRP
Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$3,570.80
List Price
List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
Double your capabilities and increase versatility with the convertible conveyor toaster by Vollrath, which converts from a standard toaster to a pass-through toaster easily and efficiently. Powerful quartz heating elements respond quickly, while forced convection ensures consistent toasting. The variable-speed control and variable top and bottom heat controls help you achieve desired results. Standby mode reduces energy use up to 75 percent during slow periods and quickly returns the unit to full power when needed. The adjustable 1 ½- to 3-inch product opening fits a variety of items, making this toaster ideal for bread, buns, bagels and more. This convertible conveyor toaster fits up to 900 items per hour, and the convertible design helps you save space without sacrificing quality.
- Designed for medium-volume establishments
- Quick, easy conversion between standard and pass-through toasting, allowing you to toast bread and bagels as well as toast sandwiches and melt cheese
- Variable-speed control and variable top and bottom heat controls help you achieve desired results
- Forced convection ensures even toasting
- Quartz heating elements respond quickly and save energy
- Standby mode saves up to 75 percent energy during slow periods when unit is not in use and allows it to quickly return to full power
- Durable stainless and aluminized steel is built to last
- Made in the USA
- NSF-certified
- Accommodates up to 900 items per hour
- ½- to 3-inch adjustable product opening fits bread, buns, bagels and other high-clearance items easily
- Please note this is a made-to-order item. These items require additional time for fulfillment. Made-to-order items cannot be changed, canceled or returned and may be subject to a minimum-order quantity. Contact your Vollrath sales representative for details.
- Based on independent UL testing, this product complies with NFPA96 for ventless operation using the EPA202 test method. Ventless allowance is dependent upon AHJ approval.
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | JT3HC |
| UPC | 671080705903 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 19.875 x 43.125 x 15 |
| (W) Width (IN) | 19.87 |
| (D) Depth (IN) | 43.12 |
| (D2) Secondary Depth (IN) | 24.3125 |
| (H) Height (IN) | 15 |
| (WL) Width between legs | 17.25 |
| (DL) Depth between legs | 14 |
| Product Opening Dimensions (IN) | 1.5 - 3 |
| Conveyor Width (IN) | 14.5 |
| Overall Dimensions (CM) | 50.5 x 109.5 x 12.7 |
| (W) Width (CM) | 50.5 |
| (D) Depth (CM) | 109.5 |
| (D2) Secondary Depth (CM) | 61.7 |
| (H) Height (CM) | 12.7 |
| (WL) Width between legs (CM) | 43.8 |
| (DL) Depth between legs (CM) | 35.6 |
| Product Opening Dimensions (CM) | 3.8 - 7.6 |
| Conveyor Width (CM) | 36.8 |
Electrical
| Name | Value |
|---|---|
| Amps | 16.4 |
| Cord Length (IN) | 48 |
| Cord Length (CM) | 140 |
| Hz | 60 |
| Plug | NEMA 6-30P |
| Voltage | 220 |
| Watts | 3600 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
| Food Type | Standard Breads, Specialty Breads, Buns, Bagels |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 23 |
| Case Height | 20 |
| Case Length | 25.5 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| CORD FAN HP-75.24-A | B401060 | $13.80 |
| SPROCKET 25B17-8MM | B401300 | $31.10 |
| SHAFT IDLER 14.5" | B401343 | $55.30 |
| MOTOR DRIVE 208/240V RMS 344 | B401201 | $228.30 |
| SILVER PUSH-ON KNOB | B405018 | $9.30 |
| SPRING .038" DIA 2.462" LENGTH | B400260 | $9.90 |
| LABEL RESET CT4 | B401425 | $8.22 |
| CVT4 18" LOAD-UP TRAY | B300052 | $61.46 |
| SWITCH FAN CERAMIC | B401107 | $47.30 |
| SILVER PUSH-ON KNOB W/SET SCRW | B405019 | $17.00 |
| 2PK HEAT ELEM 15-3/8 110V 900W | 59840 | $189.50 |
| CORD POWER 12/3 60" 6-30P | B401051 | $66.40 |
| LADDER CHAIN 14.5" | B401398 | $29.20 |
| TERMINAL BLOCK 5 POSITION | B401033 | $17.90 |
| GUARD FAN | B401220 | $9.90 |
| CVT4 18" UNLOAD TRAY | B300051 | $73.01 |
| SHAFT DRIVE 14.5" | B401342 | $60.20 |
| 11-TOOTH SPROCKET | B401301 | $44.20 |
| WIRE CONVEYOR BELT 14.5"X29.5" | B204277 | $149.20 |
| CONTROL SPEED 500 OHM CT4 | B200901 | $79.10 |
| BEARING FRONT SPRING LOADED | B401350 | $17.90 |
| SWITCH 240 V | B401102 | $52.20 |
| LEGS BLACK 1" 1/4-20 | B400300 | $18.10 |
| CT4 18" CRUMB TRAY ASSEMBLY | B204278 | $83.51 |
| CT4 18" TOAST CHUTE | B300013 | $100.78 |
| CT4 18" CONTROL LABEL | B401402 | $28.40 |
| BEARING ASSEMBLY 5/16 | B201100 | $27.70 |
| SWITCH ROTARY POWER SAVER | B401103 | $65.30 |
| TERMINAL BLOCK 2 POSITION | B401034 | $6.50 |
| STRGHT 12 GA STRAIN RLF BSHNG | B400321 | $0.80 |
| RESET SWITCH | B401100 | $47.30 |
| 1 1/4" SNAP BUSHING | B400330 | $0.62 |
| MOTOR FAN | B401211 | $93.10 |
| BEARING, TEFLON 5/16 | B401355 | $8.84 |
| CT4H 18" HEAT SHUTTER | B300059 | $18.72 |
