SO2-24010.5
10 ½-inch 240-volt conveyor sandwich oven
The conveyor sandwich oven by Vollrath is perfect for toasting sandwich bread, cheese melting and more.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
10 _-inch 240-volt conveyor sandwich oven
The conveyor sandwich oven by Vollrath is perfect for toasting sandwich bread, cheese melting and more. The 10 ½-inch-wide conveyor fits a variety of foods, and the adjustable 1 ½- to 3-inch product opening accommodates foods of varying heights. Variable-speed controls allow quick adjustments during toasting. The energy-efficient quartz heating elements are fast and powerful, and individual top and bottom controls ensure desired results. Forced convection saves energy while providing consistent heating for uniform toasting. The ventless design offers flexibility in placement and lowers installation costs. The extended conveyor on both the front and rear makes it easy to keep products moving in and out, speeding up your service. A maintenance-free drive system simplifies operation and servicing, and the durable stainless and aluminized steel exterior is built to last.
Designed to toast sandwiches and melt cheese, not intended to cook raw food
Save valuable countertop space by stacking two units together with the stacker spacer accessory (sold separately).
Quartz heating elements respond quickly and save energy
Variable-speed control and infinite top and bottom heat controls help you achieve desired results
Forced convection toasting achieves consistent results and improves energy efficiency
Extended front and rear conveyor ensures pass-through convenience
UL tested and verified for ventless operation – meets or surpasses EPA 202. (Local codes may apply. Contact your local Authority Having Jurisdiction for more information.)
Wide conveyor fits a variety of products
Made in the USA
NSF-certified
Adjustable 1 ½- to 3-inch product opening for added heat control
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | JB2H |
| UPC | 671080720524 |

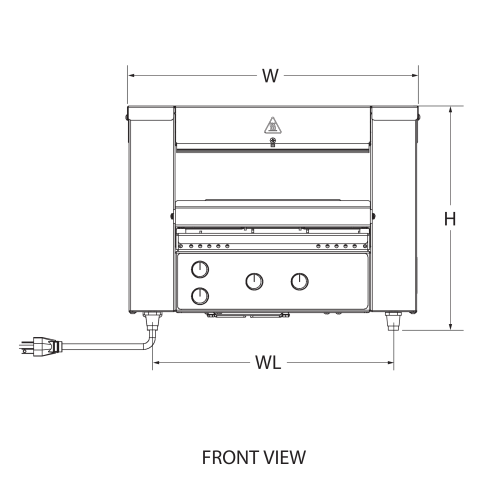

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 16.125 x 40.875 x 12.5 |
| (W) Width (IN) | 16.12 |
| (D) Depth (IN) | 40.87 |
| (H) Height (IN) | 12.5 |
| (WL) Width between legs | 13.312 |
| (DL) Depth between legs | 13.875 |
| Product Opening Dimensions (IN) | 1.5 - 3 |
| Conveyor Width (IN) | 10.5 |
| Overall Dimensions (CM) | 40.9 x 103.6 x 31.8 |
| (W) Width (CM) | 40.9 |
| (D) Depth (CM) | 103.6 |
| (H) Height (CM) | 31.8 |
| (WL) Width between legs (CM) | 33.8 |
| (DL) Depth between legs (CM) | 35.3 |
| Product Opening Dimensions (CM) | 3.8 - 7.6 |
| Conveyor Width (CM) | 26.7 |
| Size | 10.5 |
Electrical
| Name | Value |
|---|---|
| Amps | 12.7 |
| Cord Length (IN) | 54 |
| Cord Length (CM) | 140 |
| Hz | 60 |
| Plug | NEMA 6-20P |
| Voltage | 240 |
| Watts | 2800 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 25.5 |
| Case Height | 16 |
| Case Length | 36 |
| Case Lot Cube (ft.) | 8.5 |
| Case Lot Weight (lbs.) | 64.7 |
Product Accessories
| Name | Item # |
|---|---|
| Dual Stacking Spacer for JB2H | 351038 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| CORD FAN HP-75.24-A | B401060 | $14.50 |
| SPROCKET 25B17-8MM | B401300 | $32.70 |
| SILVER PUSH-ON KNOB W/SET SCRW | B405019 | $17.90 |
| LABEL CONTROL CT4 | B401401 | $23.10 |
| WIRE CONVEYOR BELT 10.5" X 57" | B205132 | $903.70 |
| 14 Ga Straight Strain Relief | B400320 | $8.00 |
| SILVER PUSH-ON KNOB | B405018 | $9.80 |
| 2PK HEAT ELEM 11-3/8 120V 700W | 59854 | $181.50 |
| SWITCH FAN CERAMIC | B401107 | $49.70 |
| SHAFT DRIVE | B401366 | $60.80 |
| TRAY UNLOAD | B300806 | $41.10 |
| SO2 10.5" UNLOAD TRAY ASSM | B205130 | $124.80 |
| TERMINAL BLOCK 5 POSITION | B401033 | $18.80 |
| SPRING PIN 5/16 " X 1 1/4" SS | B400259 | $4.20 |
| GUARD FAN | B401220 | $10.40 |
| SHAFT IDLER 10.625" CT2 | B401344 | $95.00 |
| SWITCH 240 V | B401102 | $54.80 |
| FRONT BEARING SPRING-LOADED | B401352 | $28.90 |
| MOTOR DRIVE 208/240V REVERSED | B401203 | $228.90 |
| SO2 10.5" CRUMB TRAY ASSM | B205128 | $109.90 |
| CONTROL SPEED 500 OHM | B200908 | $107.90 |
| SPRING .038" DIA 1.500" LENGTH | B400261 | $3.70 |
| CORD POWER 14/3 60" 6-20 PLUG | B401050 | $68.60 |
| RESET SWITCH | B401100 | $49.70 |
| SPROCKET 25B17-3/8 | B401303 | $45.30 |
| LEGS BLACK 1" 1/4-20 | B400300 | $19.00 |
| BEARING ASSEMBLY 3/8" | B201101 | $24.80 |
| SWITCH ROTARY POWER SAVER | B401103 | $68.60 |
| CHAIN LADDER 13.25." | B401386 | $31.20 |
| TERMINAL BLOCK 2 POSITION | B401034 | $6.80 |
| SO2 SIDE PANEL | B300802 | $51.60 |
| MOTOR FAN | B401211 | $97.80 |
| BEARING, TEFLON 3/8 REV C | B401357 | $10.20 |
| 7/8 WIRE CLAMP | B400331 | $1.20 |
| SO2 10.5" NOSE GUARD | B300804 | $28.30 |
| CT4H HEAT SHUTTER | B300058 | $15.50 |
| CORD WARNING LABEL | B401404 | $0.40 |
| 1 1/4" SNAP BUSHING | B400330 | $0.70 |
| 5/8 SNAP BUSHING | B400332 | $0.10 |
