SO2-22014.5

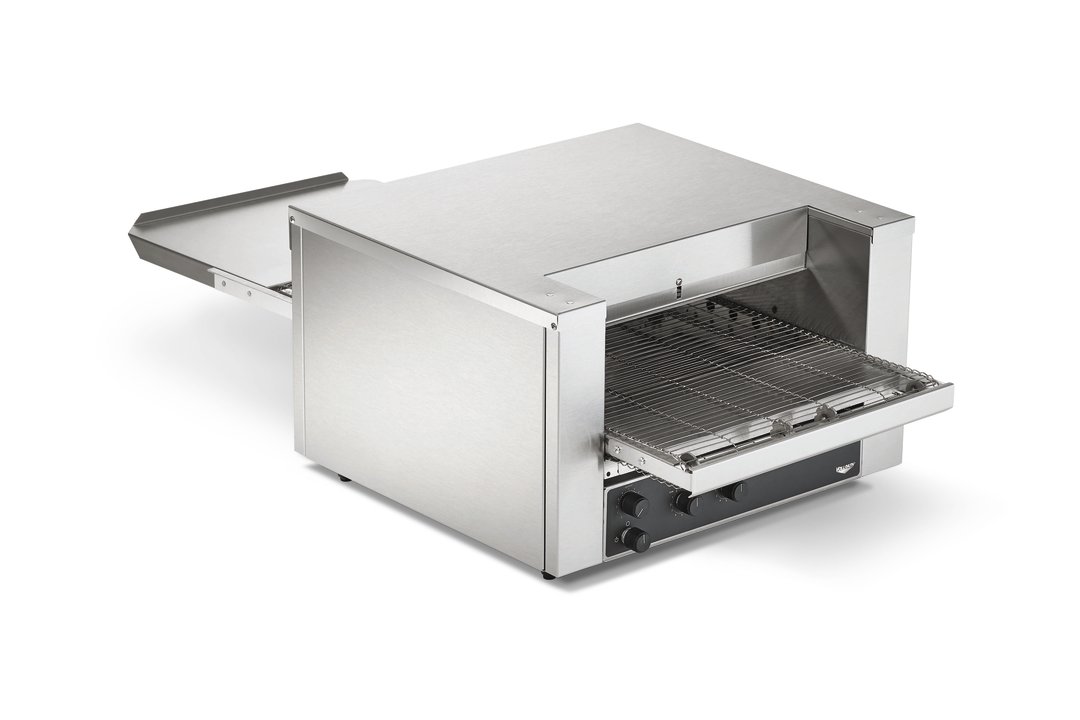

14 ½-inch 220-volt conveyor sandwich oven
The conveyor sandwich oven by Vollrath is perfect for toasting sandwich bread, cheese melting and more.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
14 _-inch 220-volt conveyor sandwich oven
The conveyor sandwich oven by Vollrath is perfect for toasting sandwich bread, cheese melting and more. The 14 ½-inch-wide conveyor fits a variety of foods, and the adjustable 1 ½- to 3-inch product opening accommodates foods of varying heights. Variable-speed controls allow quick adjustments during toasting. The energy-efficient quartz heating elements are fast and powerful, and individual top and bottom controls ensure desired results. Forced convection saves energy while providing consistent heating for uniform toasting. The ventless design offers flexibility in placement and lowers installation costs. The extended conveyor on both the front and rear makes it easy to keep products moving in and out, speeding up your service. A maintenance-free drive system simplifies operation and servicing, and the durable stainless and aluminized steel exterior is built to last.
Designed to toast sandwiches and melt cheese, not intended to cook raw food
Quartz heating elements respond quickly and save energy
Variable-speed control and individual top and bottom heat controls help you achieve desired results
Forced convection toasting achieves consistent results and improves energy efficiency
Extended front and rear conveyor ensures pass-through convenience
UL-certified for ventless operation, meets or surpasses EPA 202 (Local codes may apply. Contact your local authority having jurisdiction for more information.)
Wide conveyor fits a variety of products
Made in the USA
NSF-certified
Adjustable 1 ½- to 3-inch product opening for added heat control
UL tested and verified for ventless operation – meets or surpasses EPA 202. (Local codes may apply. Contact your local Authority Having Jurisdiction for more information.)
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | JB3H |
| UPC | 671080720517 |

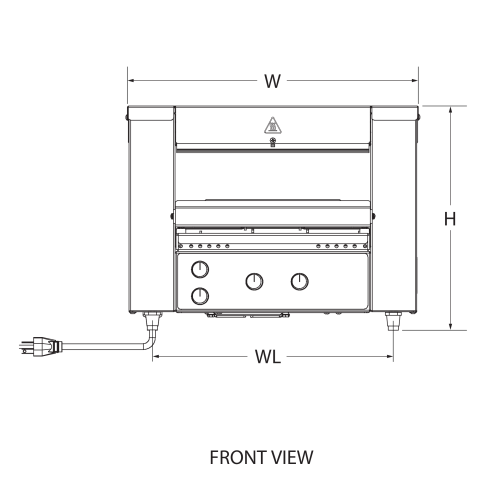

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 16.125 x 40.875 x 12.5 |
| (W) Width (IN) | 14.5 |
| (D) Depth (IN) | 40.87 |
| (H) Height (IN) | 12.5 |
| (WL) Width between legs | 17.312 |
| (DL) Depth between legs | 13.875 |
| Product Opening Dimensions (IN) | 1.5 - 3 |
| Conveyor Width (IN) | 14.5 |
| Overall Dimensions (CM) | 40.9 x 103.6 x 31.8 |
| (W) Width (CM) | 36.8 |
| (D) Depth (CM) | 103.6 |
| (H) Height (CM) | 31.8 |
| (WL) Width between legs (CM) | 38.9 |
| (DL) Depth between legs (CM) | 35.3 |
| Product Opening Dimensions (CM) | 3.8 - 7.6 |
| Conveyor Width (CM) | 36.8 |
| Size | 14.5 |
Electrical
| Name | Value |
|---|---|
| Amps | 16.4 |
| Cord Length (IN) | 54 |
| Cord Length (CM) | 140 |
| Hz | 60 |
| Plug | NEMA 6-30P |
| Voltage | 220 |
| Watts | 3600 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 25.5 |
| Case Height | 16 |
| Case Length | 35.75 |
| Case Lot Cube (ft.) | 8.44 |
| Case Lot Weight (lbs.) | 72.35 |
Product Accessories
| Name | Item # |
|---|---|
| Dual Stacking Spacer for JB3H | 351042 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| CORD FAN HP-75.24-A | B401060 | $14.50 |
| SPROCKET 25B17-8MM | B401300 | $32.70 |
| SILVER PUSH-ON KNOB W/SET SCRW | B405019 | $17.90 |
| SILVER PUSH-ON KNOB | B405018 | $9.80 |
| WIRE CONVEYOR BELT 14.5" X 57" | B205133 | $303.50 |
| CT4-2000 NOSE GUARD | B300807 | $52.10 |
| SHAFT IDLER | B401349 | $72.50 |
| SWITCH FAN CERAMIC | B401107 | $49.70 |
| CORD POWER 12/3 60" 6-30P | B401051 | $69.70 |
| SHAFT DRIVE | B401348 | $93.80 |
| 2PK HEAT ELEM 15-3/8 110V 600W | 59867 | $177.80 |
| TERMINAL BLOCK 5 POSITION | B401033 | $18.80 |
| SPRING PIN 5/16 " X 1 1/4" SS | B400259 | $4.20 |
| GUARD FAN | B401220 | $10.40 |
| SWITCH 240 V | B401102 | $54.80 |
| FRONT BEARING SPRING-LOADED | B401352 | $28.90 |
| MOTOR DRIVE 208/240V REVERSED | B401203 | $228.90 |
| CT4 18" CONTROL LABEL | B401402 | $29.80 |
| CONTROL SPEED 500 OHM | B200908 | $107.90 |
| TRAY UNLOAD | B300808 | $44.70 |
| SPRING .038" DIA 1.500" LENGTH | B400261 | $3.70 |
| RESET SWITCH | B401100 | $49.70 |
| SPROCKET 25B17-3/8 | B401303 | $45.30 |
| LEGS BLACK 1" 1/4-20 | B400300 | $19.00 |
| BEARING ASSEMBLY 3/8" | B201101 | $24.80 |
| SO2 14.5" CRUMB TRAY ASSM | B205129 | $116.60 |
| SWITCH ROTARY POWER SAVER | B401103 | $68.60 |
| CHAIN LADDER 13.25." | B401386 | $31.20 |
| SO2 14.5" UNLOAD TRAY ASSM | B205131 | $120.40 |
| SO2 SIDE PANEL | B300802 | $51.60 |
| MOTOR FAN | B401211 | $97.80 |
| STRGHT 12 GA STRAIN RLF BSHNG | B400321 | $0.80 |
| BEARING, TEFLON 3/8 REV C | B401357 | $10.20 |
| 7/8 WIRE CLAMP | B400331 | $1.20 |
| CORD WARNING LABEL | B401404 | $0.40 |
| CT4H 18" HEAT SHUTTER | B300059 | $19.50 |
| 1 1/4" SNAP BUSHING | B400330 | $0.70 |
| 5/8 SNAP BUSHING | B400332 | $0.10 |
