VCBF168-37-AF
120-volt frozen-beverage machine three 2.6-gallon
The frozen-beverage machine by Vollrath is designed for a variety of frozen treats including slushies, granitas, smoothies, cocktails and more.
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

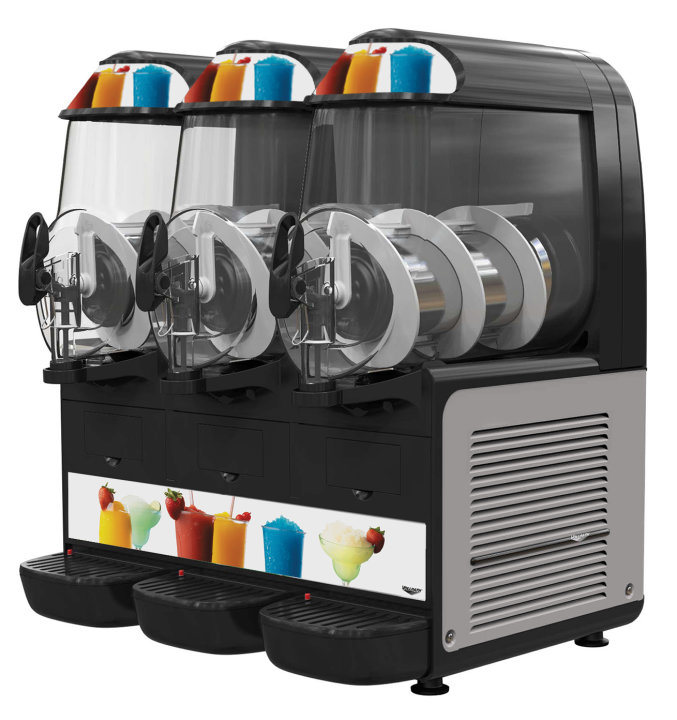

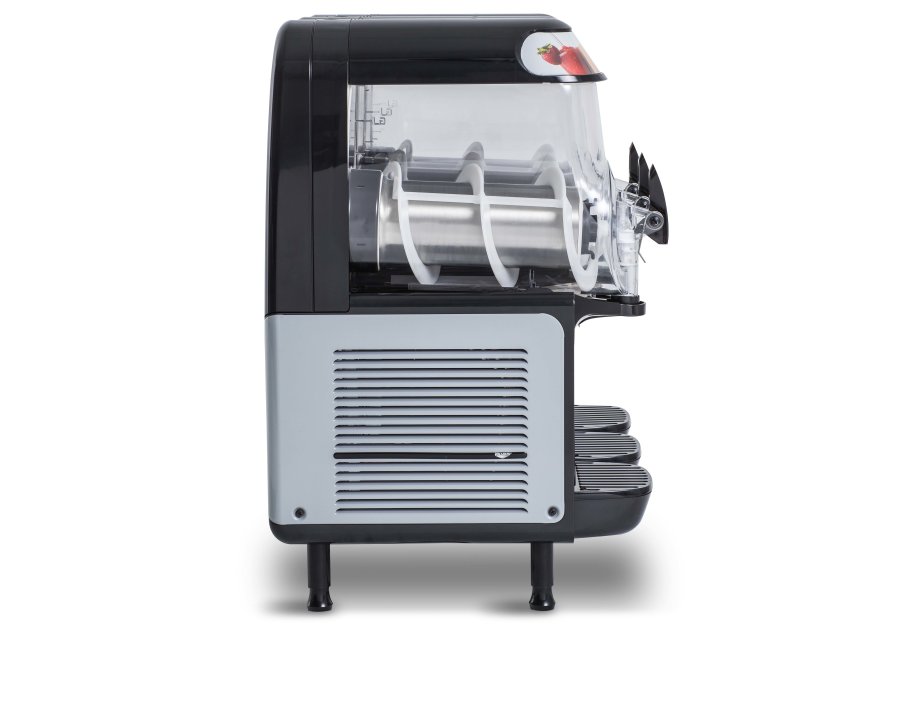

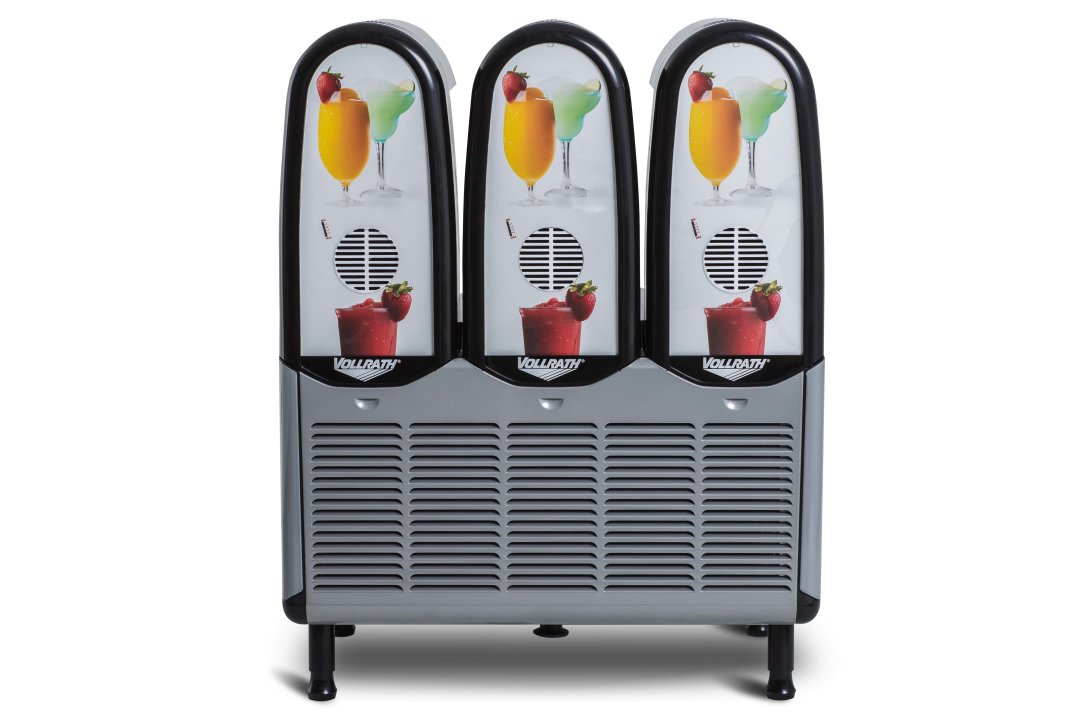

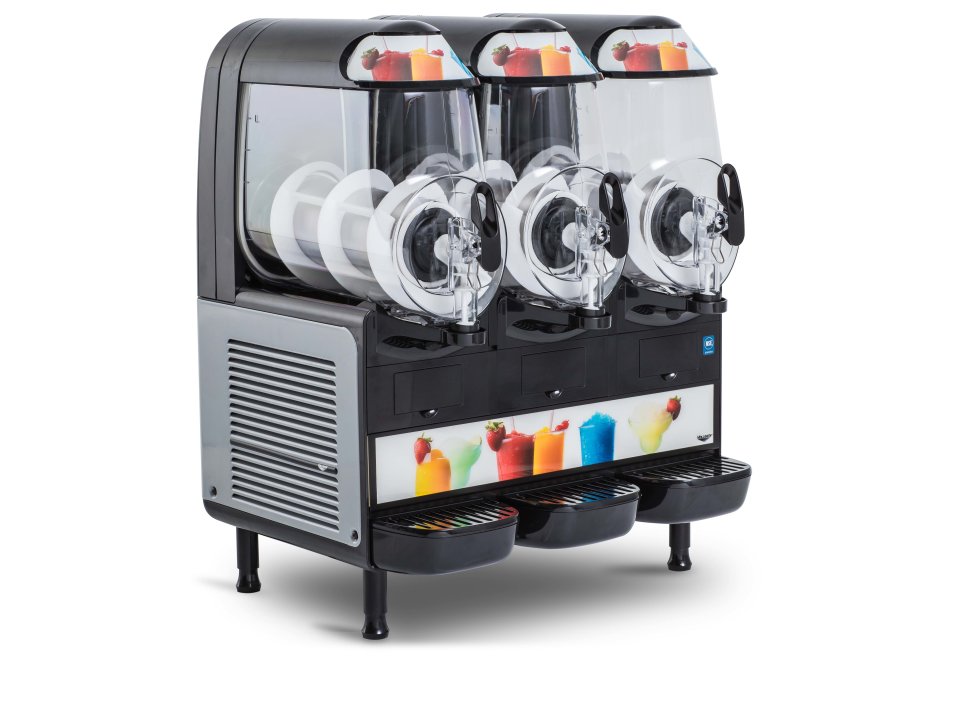

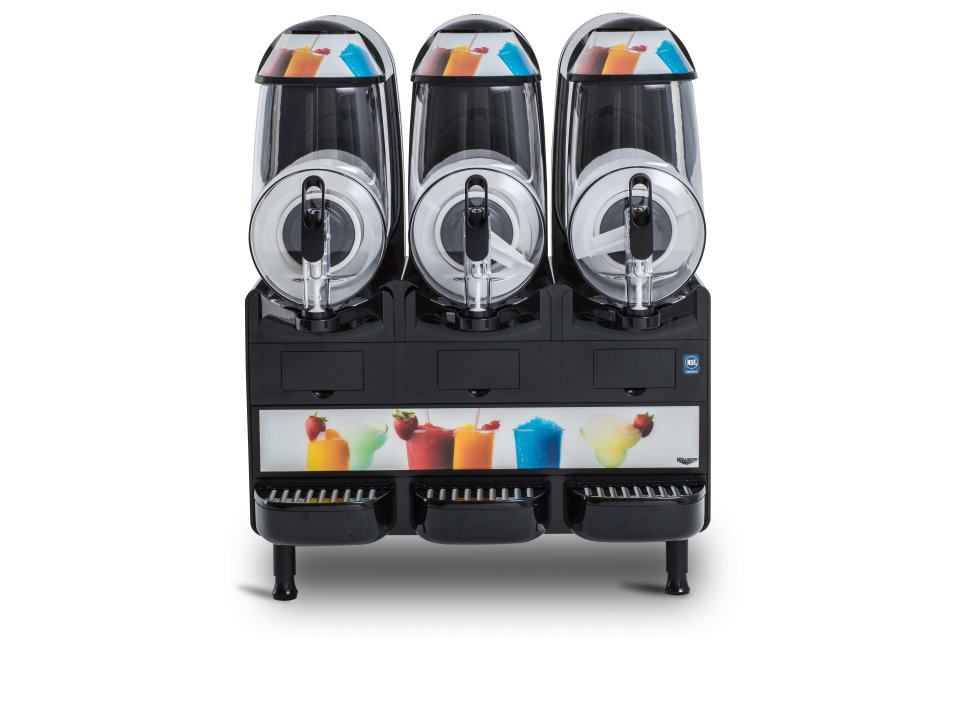

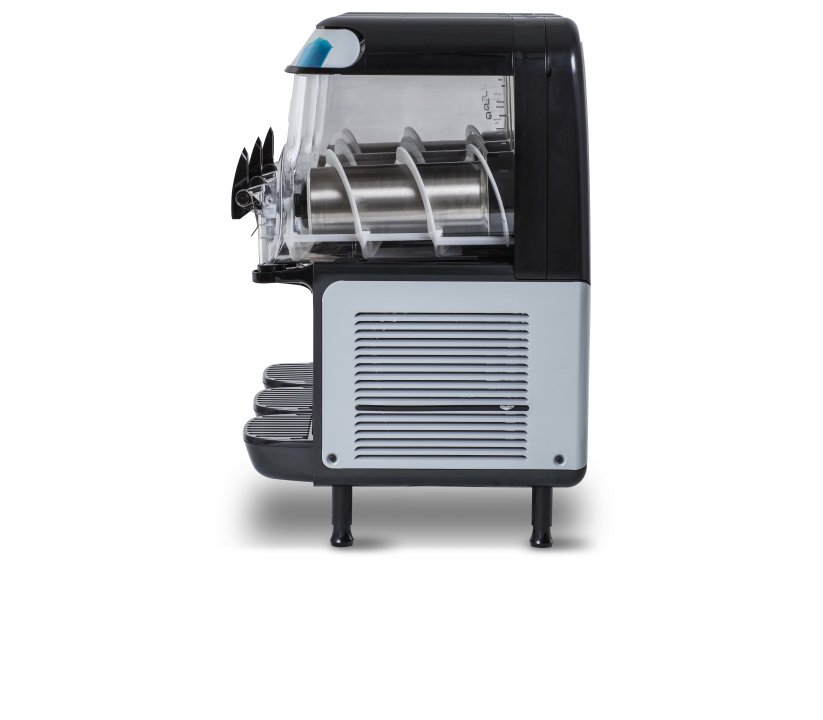

120-volt frozen-beverage machine three 2.6-gallon (10-liter) bowls and Auto-Fill kit compatibility
The frozen-beverage machine by Vollrath is designed for a variety of frozen treats including slushies, granitas, smoothies, cocktails and more. The three clear bowls provide excellent product visibility, gently illuminated by an interior light. Easy-to-use controls are customizable, allowing you to adjust temperature and consistency for increased versatility. And, this machine features Auto-Fill kit compatibility, which helps keep the drinks flowing and requires less manual refilling, making it the perfect choice for high-volume operations. A magnetic drive system is more reliable and durable than a traditional mechanical drive system, resulting in less maintenance and longer service. The large freezing surface and high-quality compressor make this machine more efficient, allowing it to reach ideal temperatures quickly, and the gasketless spigot design makes cleaning simple, all of which save you valuable time.
Simple controls allow for temperature and consistency customization
Magnetic drive system provides years of service
Large freezing surface and high-quality compressor improve efficiency
Auto-Fill kit compatibility keeps the drinks flowing and makes it easy to keep up with high demand
Gasketless spigot makes cleaning quick and efficient
For parts and service information, please contact our White Glove Service Network or Parts Town: Contact White Glove Service Network: 800-319-9549 Contact Parts Town: 855-304-8992
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | VCBF168 |
| UPC | 671080926551 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 23.5 x 19.5 x 27 |
| (W) Width (IN) | 23.5 |
| (D) Depth (IN) | 19.5 |
| (H) Height (IN) | 27 |
| (WL) Width between legs | 20.375 |
| (DL) Depth between legs | 11.3125 |
| (W) Width (CM) | 59.4 |
| (D) Depth (CM) | 49.7 |
| (H) Height (CM) | 68.4 |
| (WL) Width between legs (CM) | 51.7 |
| (DL) Depth between legs (CM) | 28.7 |
Electrical
| Name | Value |
|---|---|
| Amps | 13.9 |
| Frequency (Hz) | 60 |
| Hardwired Connection | No |
| Hz | 60 |
| Phase | 1 |
| Plug | NEMA 5-20P |
| Plug Connection | Yes |
| Voltage | 120 |
Volume
| Name | Value |
|---|---|
| Capacity (GAL) | 7.8 |
| Capacity (L) | 30 |
| Container Capacity (GAL) | 2.6 |
| Container Capacity (L) | 10 |
| Total Bowl Capacity (GAL) | 7.8 |
| Total Bowl Capacity (L) | 30 |
| Total Container Capacity (GAL) | 7.8 |
| Total Container Capacity (L) | 30 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 129 |
| Weight (KG) | 58.5 |
Construction
| Name | Value |
|---|---|
| Number of Bowls | 3 |
| Refrigerant | R448A |
| Product Function | Frozen Beverage Dispenser |
Frozen Treat: General Specifications
| Name | Value |
|---|---|
| Compressor (Btu/hr) | 3630 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 22.75 |
| Case Height | 30 |
| Case Length | 26 |
| Case Lot Weight (lbs.) | 143 |
