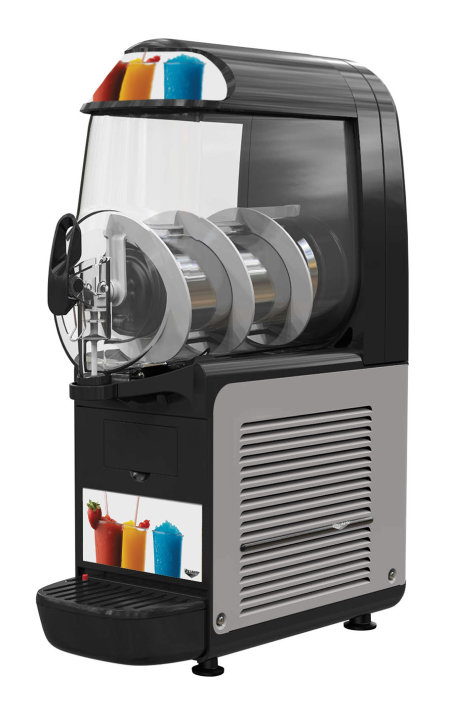

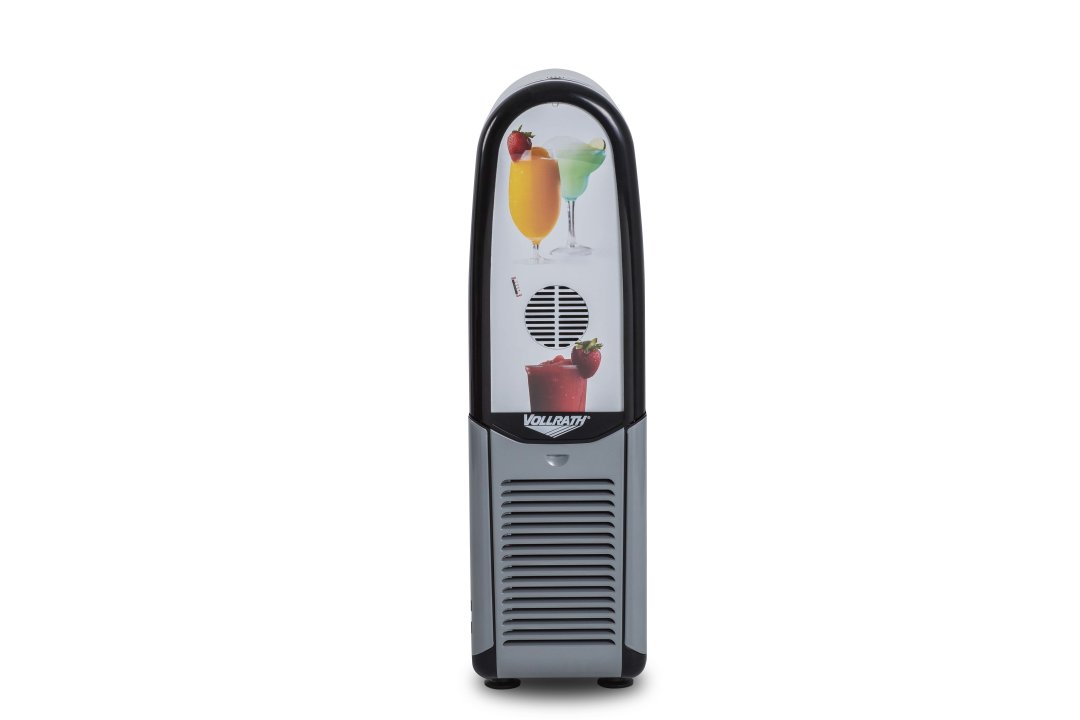

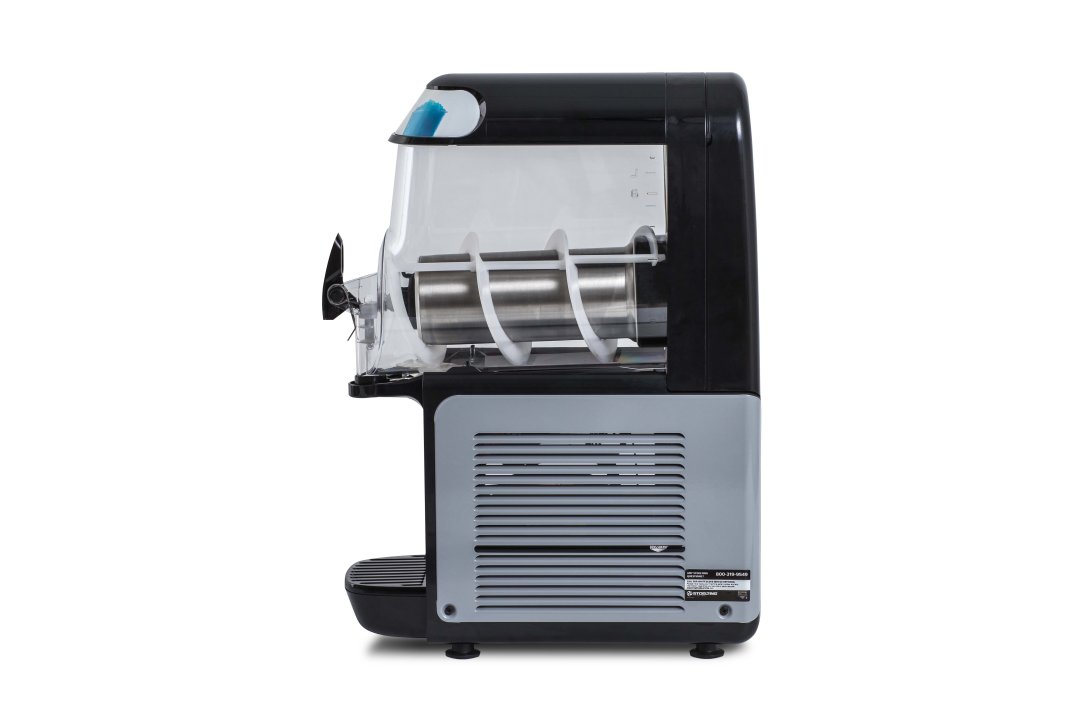

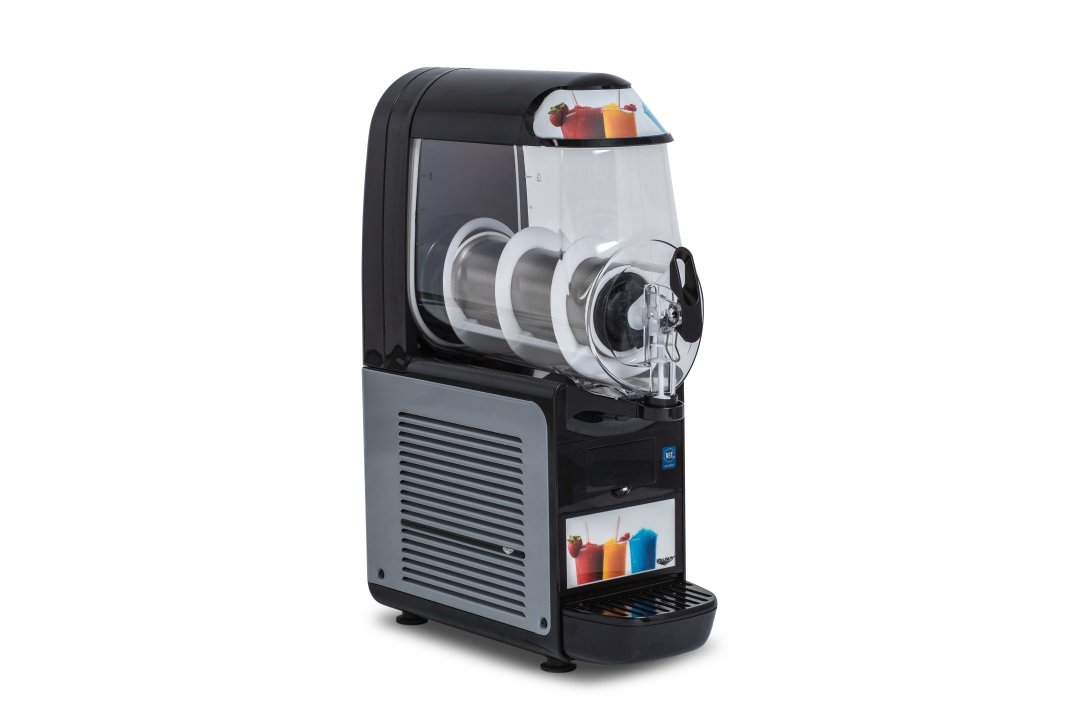

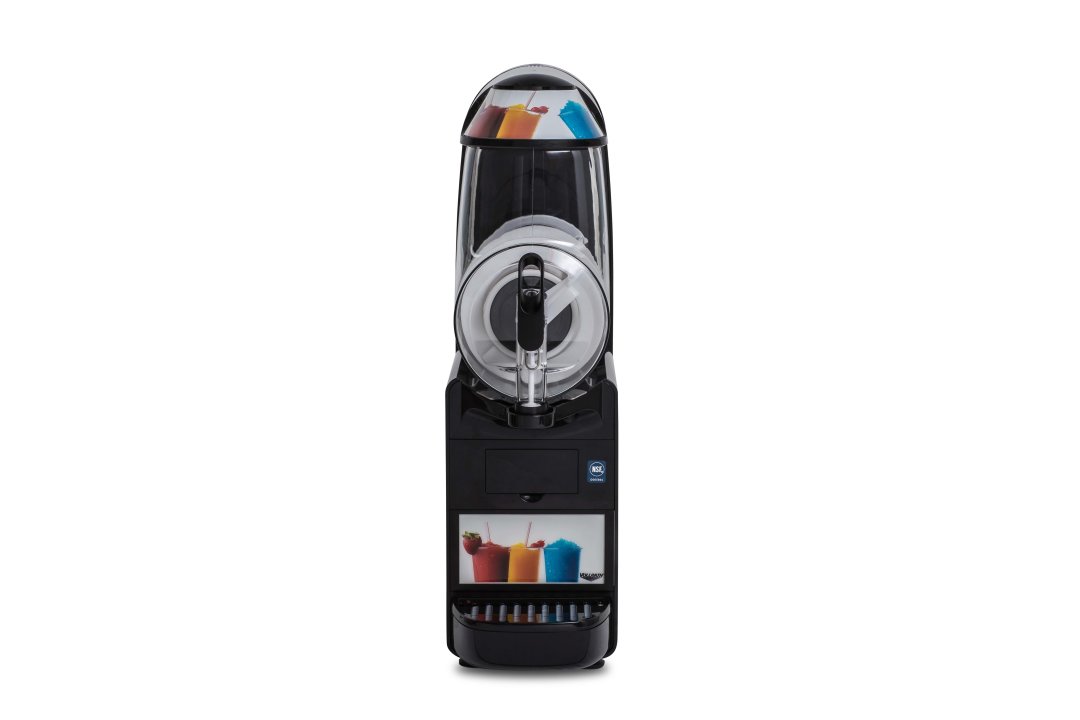

VCBF118-37
2.6-gallon single-bowl frozen-beverage machine
The Vollrath® single-bowl frozen-beverage machine is designed for a variety of frozen treats including slushies, granitas, smoothies, cocktails and more.
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.
2.6-gallon single-bowl frozen-beverage machine
The Vollrath® single-bowl frozen-beverage machine is designed for a variety of frozen treats including slushies, granitas, smoothies, cocktails and more. The clear 2.6-gallon bowl provides excellent product visibility, gently illuminated by an interior light. Easy-to-use controls are customizable, allowing you to adjust temperature and consistency for increased versatility. A magnetic drive system is more reliable and durable than a traditional mechanical drive system, resulting in less maintenance and longer service. The large freezing surface and high-quality compressor make this machine more efficient, allowing it to quickly reach ideal temperatures, and the gasketless spigot design makes cleaning simple, all of which saves you valuable time.
Simple controls allow for temperature and consistency customization
Magnetic drive system provides years of service
Large freezing surface and high-quality compressor improve efficiency
Gasketless spigot makes cleaning quick and efficient
Optional double-wall bowl minimizes external condensation
For parts and service information, please contact our White Glove Service Network or Parts Town:
Contact White Glove Network: 800-319-9549
Contact Parts Town: 855-304-8992
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | VCBF118 |
| UPC | 671080737546 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 7.75 x 19.5 x 27 |
| (W) Width (IN) | 7.75 |
| (D) Depth (IN) | 19.5 |
| (H) Height (IN) | 27 |
| (WL) Width between legs | 5 |
| (DL) Depth between legs | 11.3125 |
| (W) Width (CM) | 19.4 |
| (D) Depth (CM) | 49.7 |
| (H) Height (CM) | 68.4 |
| (WL) Width between legs (CM) | 12.7 |
| (DL) Depth between legs (CM) | 28.7 |
Electrical
| Name | Value |
|---|---|
| Amps | 4.8 |
| Frequency (Hz) | 60 |
| Hardwired Connection | No |
| Hz | 60 |
| Phase | 1 |
| Plug | NEMA 5-15P |
| Plug Connection | Yes |
| Voltage | 120 |
Volume
| Name | Value |
|---|---|
| Bowl Capacity (GAL) | 2.64 |
| Bowl Capacity (L) | 10 |
| Capacity (GAL) | 2.6 |
| Capacity (L) | 10 |
| Container Capacity (GAL) | 2.6 |
| Container Capacity (L) | 10 |
| Total Bowl Capacity (GAL) | 1.6 |
| Total Bowl Capacity (L) | 6 |
| Total Container Capacity (GAL) | 2.6 |
| Total Container Capacity (L) | 10 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 61 |
| Weight (KG) | 27.7 |
Construction
| Name | Value |
|---|---|
| Number of Bowls | 1 |
Frozen Treat: General Specifications
| Name | Value |
|---|---|
| Compressor (Btu/hr) | 1100 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 11 |
| Case Height | 29.5 |
| Case Length | 23 |
| Case Lot Weight (lbs.) | 62 |
