37040
Signature Server® Hot Food Base with Touch-Temp® Panel
High density glass fiber insulation..
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

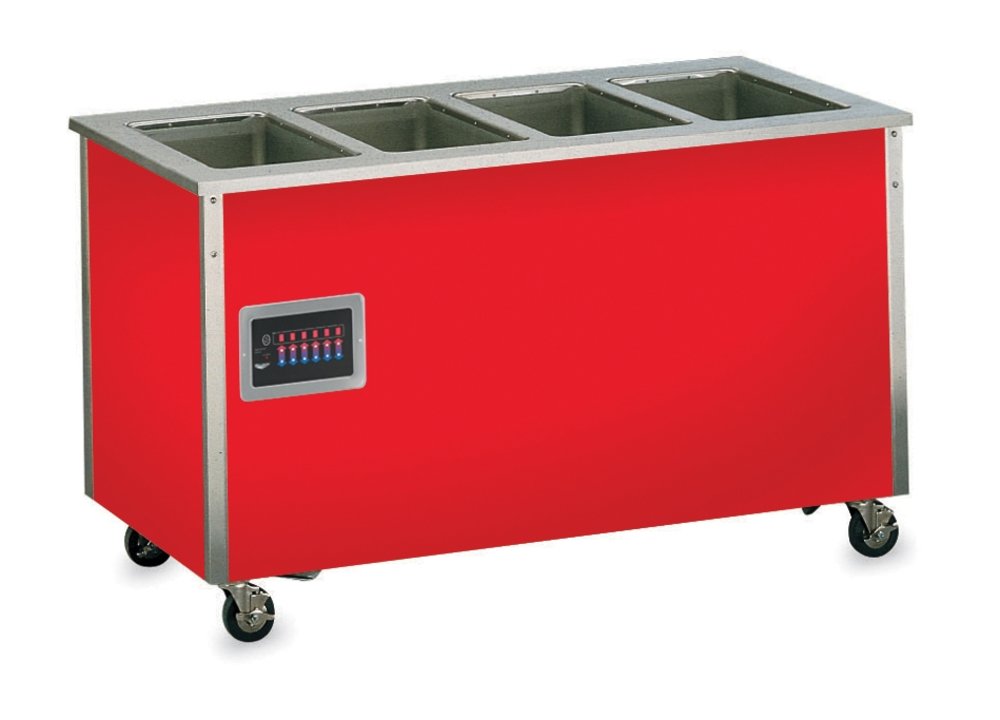

4-Series Hot Food Base with Touch-Temp® Panel
High density glass fiber insulation.
Entire base constructed of corrosion resistant 18 gauge stainless steel with standard black laminate.
Optional brushed stainless steel exterior finish or choose from hundreds of laminate finishes
18 or 16 gauge 300 series stainless steel counters and wells
300 series stainless steel tray slides and plate rests
Heavy-duty 4" (10 cm) swivel casters with brakes
5 1/4" (13.3 cm) clearance between floor and bottom of unit
18 gauge 300 series steel work surface
Touch-Temp electronic control
Optional dial controls
Manifold hot well drains are standard
Optional 14 gauge work surface available
Energy efficient 625W elements
Drain hose on operator side of base
NSF listed
Note: 4-Series equipment orders cannot be cancelled or returned.
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419468065 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 60 x 28 x 34 |
| (W) Width (IN) | 60 |
| (W2) Secondary Width (IN) | 11.875 |
| (D) Depth (IN) | 28 |
| (D2) Secondary Depth (IN) | 19.875 |
| (H) Height (IN) | 34 |
| (H2) Secondary Height (IN) | 5.25 |
| (H3) Additional Height (IN) | 8.5 |
| Caster Size (IN) | 4 |
| (W) Width (CM) | 152 |
| (W2) Secondary Width (CM) | 30.2 |
| (D) Depth (CM) | 71 |
| (D2) Secondary Depth (CM) | 50.5 |
| (H) Height (CM) | 86 |
| (H2) Secondary Height (CM) | 13.3 |
| (H3) Additional Height (CM) | 21.6 |
| Caster Size (CM) | 10 |
Electrical
| Name | Value |
|---|---|
| Cord Length (IN) | 8 |
| Cord Length (CM) | 2.4 |
| Voltage | 120-240 |
Construction
| Name | Value |
|---|---|
| Component Type | Rectangular Base |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 40 |
| Case Height | 75 |
| Case Length | 64 |
| Case Lot Cube (ft.) | 99.26 |
| Case Lot Weight (lbs.) | 380.0 |
