38203
ServeWell® Hot Food Stations
Featuring a design thatʼs even sleeker than the original, the Servewell SL streamlined hot-food table by Vollrath is more powerful, efficient and innovative than ever.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

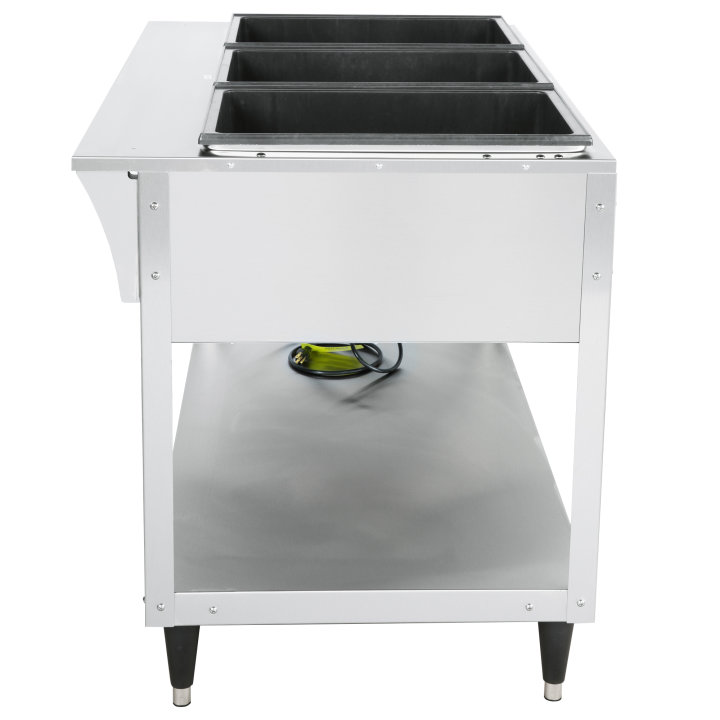

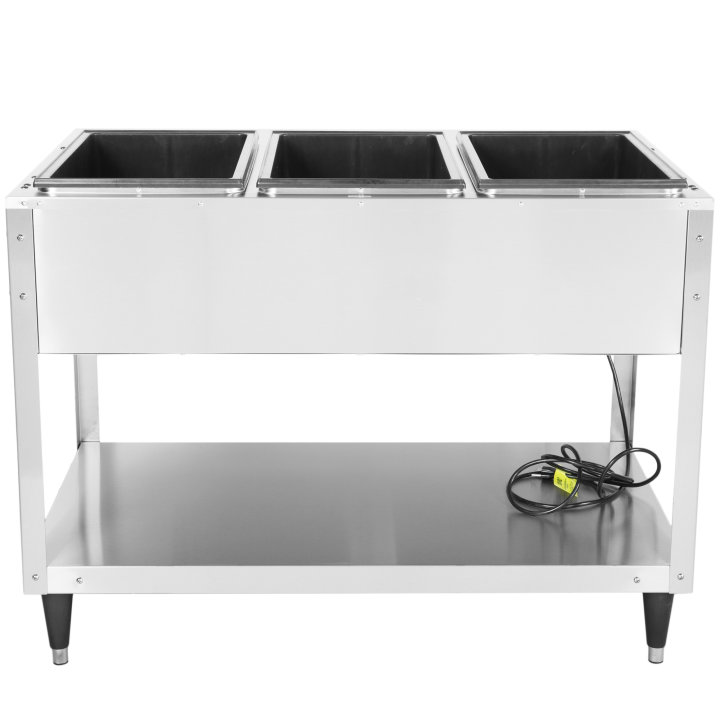

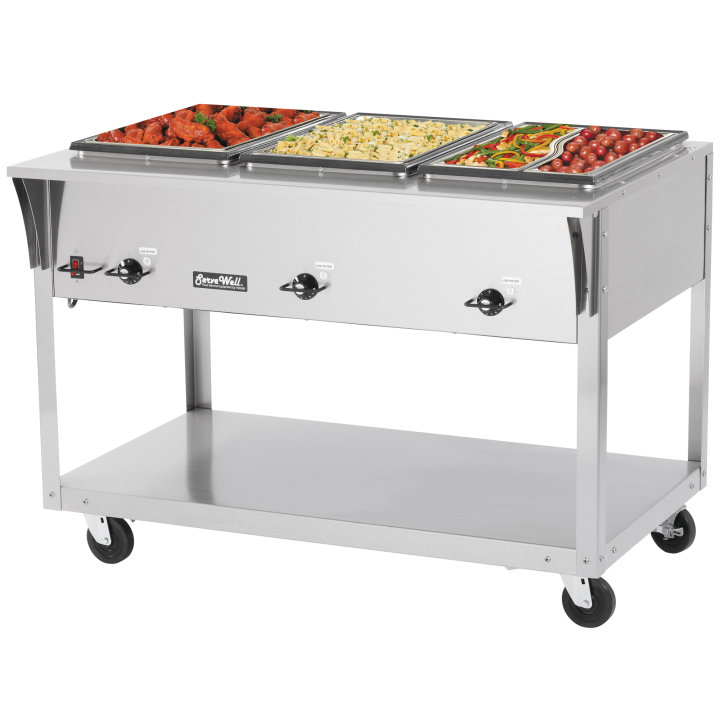

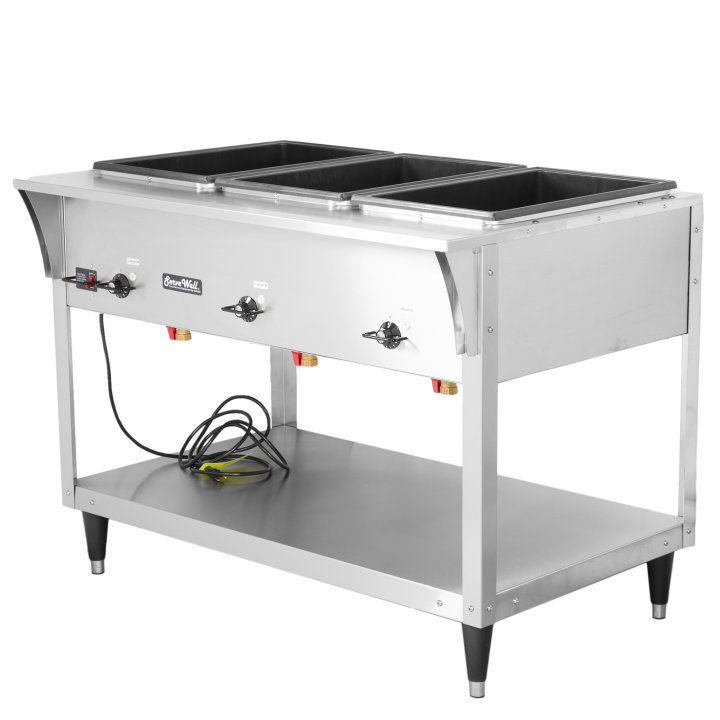

120-volt 1440-watt three-well Servewell® SL streamlined stainless steel hot-food table
Featuring a design thatʼs even sleeker than the original, the Servewell SL streamlined hot-food table by Vollrath is more powerful, efficient and innovative than ever. The table and legs are made of strong stainless steel, while the wells are constructed of self-insulating thermoset fiber-reinforced resin to offer maximum energy efficiency. The dome heating elements use up to 25 percent less energy by concentrating that energy in the wells, while the capillary tube thermostat supplies power only when itʼs needed to reduce operational costs. Thermostatic controls ensure accurate heating and adjust automatically for water temperature and food volume changes to reduce food waste. A low-water indicator light keeps you informed, and the wide no-drip lips on the wells keep the surface dry. The streamlined design is exceptionally sleek and saves valuable space without compromising quality.
Designed to hold and serve hot food at perfect serving temperatures
Streamlined design is narrower than standard Servewell models and creates an exceptionally sleek appearance
20-gauge stainless steel table and 16-gauge stainless steel legs are durable and long-lasting
Self-insulating thermoset fiber-reinforced resin wells offer maximum energy efficiency
Wells will not rust or pit
Dome heating elements use up to 25 percent less energy and concentrate energy in wells
Capillary tube thermostat supplies power only when it is needed for maximum efficiency
Thermostatic controls ensure accurate heating and adjust automatically for water temperature and food volume changes to reduce waste

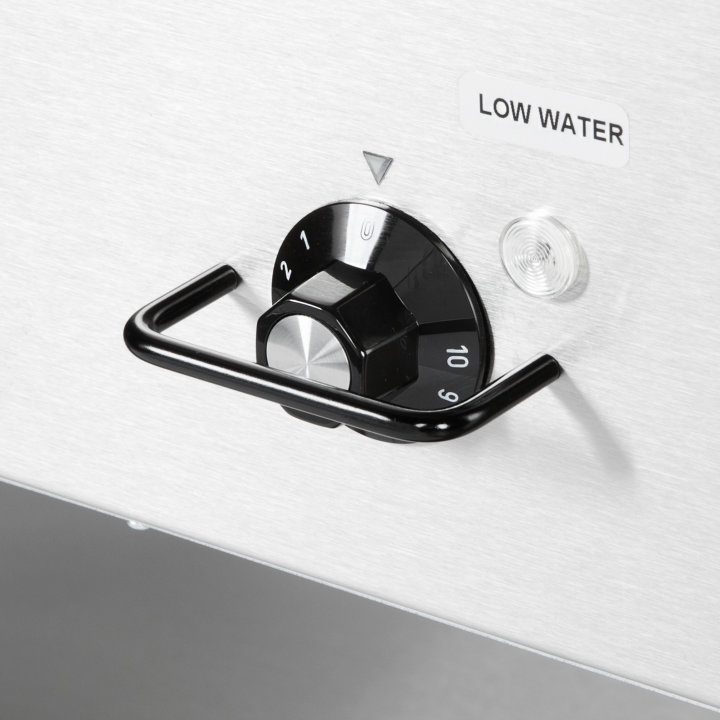

Low-water indicator light keeps you informed and eliminates guesswork
Wide no-drip lip on wells keeps table surface dry
Guards on controls and power switch prevent accidental adjustments
Recommended for use with full- or fractional-size pans at least 4 inches deep
Bottom-exit 10-foot power cord and plug
480 watts per well, 1440 watts total
Ships knocked down
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419743872 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 46 x 29.5 x 34 |
| (W) Width (IN) | 46 |
| (D) Depth (IN) | 29.5 |
| (H) Height (IN) | 34 |
| (W) Width (CM) | 116.8 |
| (D) Depth (CM) | 74.9 |
| (H) Height (CM) | 86.4 |
Electrical
| Name | Value |
|---|---|
| Amps | 12 |
| Hz | 60 |
| Plug | NEMA 5 - 15P |
| Voltage | 120 |
| Watts | 1440 |
| Watts per Well | 480 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 33.75 |
| Case Height | 17 |
| Case Length | 47.75 |
| Case Lot Cube (ft.) | 20.54 |
| Case Lot Weight (lbs.) | 125.0 |
Product Accessories
| Name | Item # |
|---|---|
| 46-inch Servewell® stainless steel double-deck overshelf | 38033 |
| 46-inch Servewell® stainless steel overshelf | 38043 |
| 46-inch Servewell® stainless steel single-deck overshelf with acrylic panel cafeteria guard | 38053 |
| 46-inch buffet-style breath guard for Servewell® table | 38063 |
| 46-inch stainless steel plate rest for Servewell® table | 38093 |
| 4-inch caster set for Servewell® table | 38099 |
| 42 1/2-inch polyethylene cutting board for Servewell® streamlined hot-food table | 2342901 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| HI LIMIT ASSEMBLY | 44407-2 | $21.80 |
| SCREW THREAD ROLLING 10-32 | 17014-3 | $0.80 |
| KNOB CONTROL | 23423-1 | $9.30 |
| SWITCH TOGGLE LIGHTED | 23540-1 | $61.60 |
| SILICONE D-HEATER GASKET | 178681-1 | $17.90 |
| DRAIN ADAPTOR - MOLDED | 25958-1 | $29.00 |
| LEG - UPRIGHT POST | 28702-2 | $25.00 |
| NUT HEAVY JAM 1/2-13 ZINC PLD | 23434-3 | $1.90 |
| HIGH LIMIT THERMOSTAT 125C | 25438-1 | $23.70 |
| THERMOSTAT HIGH LIMIT | 17950-1 | $5.20 |
| POP RIVET .125 DIA | 23686-3 | $1.70 |
| BRACKET - PLATE REST SW2 | 2871101-2 | $22.70 |
| THERMOSTAT- 34" CAPILLARY | 17124-1 | $106.70 |
| POWER CORD 128" 5-15P X ROJ8" | 25271-1 | $35.40 |
| KNOBGUARD PER BLUEPRINT LISTED | 17749-1 | $19.10 |
| STRAIN RELIEF - FOR 3/8 CORD | 26543-3 | $2.30 |
| NUT KEPS #6-32 | 17019-3 | $0.80 |
| CAST HEATER 480W 120V | 44200-1 | $102.10 |
| PILOT LIGHT - BLUE 125V | 1755901-1 | $6.70 |
| BRACKET/CASTER | 28707-2 | $22.30 |
| 3/4" BALL VALVE, FEMALE | 354250-1 | $16.00 |
| PEG LEG - ADJUSTABLE | 23425-1 | $27.00 |
