38119
ServeWell® Hot Food Stations
Featuring powerful heating and an innovative design, the Servewell hot-food table by Vollrath adds value to any buffet or serving area.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

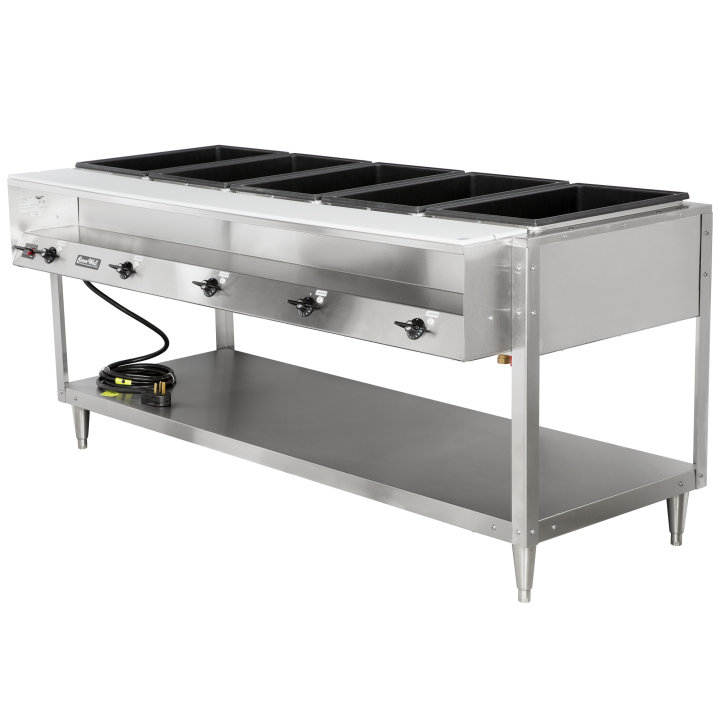

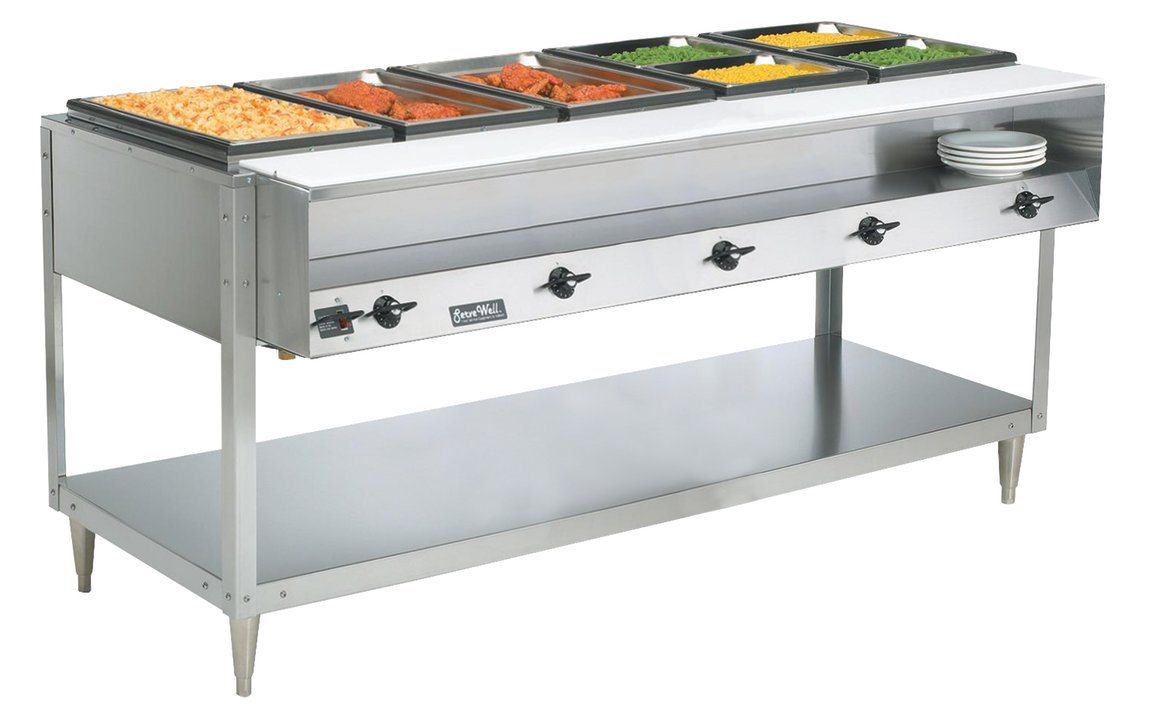

208- to 240-volt 3000- to 4000-watt five-well Servewell® stainless steel hot-food table
Featuring powerful heating and an innovative design, the Servewell hot-food table by Vollrath adds value to any buffet or serving area. The table and legs are made of strong stainless steel, while the wells are constructed of self-insulating thermoset fiber-reinforced resin to offer maximum energy efficiency. The dome heating elements use up to 25 percent less energy by concentrating that energy in the wells, while the capillary tube thermostat supplies power only when itʼs needed to reduce operational costs. Thermostatic controls ensure accurate heating and adjust automatically for water temperature and food volume changes to reduce food waste. A low-water indicator light keeps you informed, and the wide no-drip lips on the wells keep the surface dry. Built-in features like a cutting board, a side shelf, control guards and a long bottom-mounted power cord ensure a convenient, safe and streamlined user experience.
Designed to hold and serve hot food at perfect serving temperatures
20-gauge stainless steel table and 16-gauge stainless steel legs are durable and long-lasting
Self-insulating thermoset fiber-reinforced resin wells offer maximum energy efficiency
Wells will not rust or pit
Dome heating elements use up to 25 percent less energy and concentrate energy in wells
Capillary tube thermostat supplies power only when it is needed for maximum efficiency
Thermostatic controls ensure accurate heating and adjust automatically for water temperature and food volume changes to reduce waste
Low-water indicator light keeps you informed and eliminates guesswork
Wide no-drip lip on wells keeps table surface dry
Guards on controls and power switch prevent accidental adjustments
Recommended for use with full- or fractional-size pans at least 4 inches deep
8-inch-wide, ⅜-inch-thick cutting board
7 ½-inch-wide plate shelf
Bottom-exit 10-foot power cord and plug
600 to 800 watts per well, 3000 to 4000 watts total
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419411320 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 76 x 32 x 34 |
| (W) Width (IN) | 76 |
| (D) Depth (IN) | 32 |
| (H) Height (IN) | 34 |
| (W) Width (CM) | 193 |
| (D) Depth (CM) | 81.3 |
| (H) Height (CM) | 86.4 |
Electrical
| Name | Value |
|---|---|
| Voltage | 208-240 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 36 |
| Case Height | 16.625 |
| Case Length | 79.25 |
| Case Lot Cube (ft.) | 27.44 |
| Case Lot Weight (lbs.) | 215.0 |
Product Accessories
| Name | Item # |
|---|---|
| 76-inch Servewell® stainless steel double-deck overshelf | 38035 |
| 76-inch Servewell® stainless steel overshelf | 38045 |
| 76-inch Servewell® stainless steel single-deck overshelf with cafeteria-style breath guard | 38055 |
| 76-inch buffet-style breath guard for Servewell® table | 38065 |
| 76-inch stainless steel plate rest for Servewell® table | 38095 |
| 4-inch caster set for Servewell® table | 38099 |
| 4-inch ADA height caster set for Servewell® tables | 3809934 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| SWITCH TOGGLE LIGHTED | 23540-1 | $61.60 |
| CUTTING BOARD (75") | 23432-1 | $206.80 |
| KNOB CONTROL | 23423-1 | $9.30 |
| HI LIMIT ASSEMBLY | 44407-2 | $21.80 |
| HEATER CAST 600/800W 208/240V | 44277-1 | $109.40 |
| SCREW THREAD ROLLING 10-32 | 17014-3 | $0.80 |
| THERMOSTAT HIGH LIMIT | 17950-1 | $5.20 |
| POP RIVET .125 DIA | 23686-3 | $1.70 |
| BRACKET/CASTER | 28707-2 | $22.30 |
| LEG - UPRIGHT POST | 28702-2 | $25.00 |
| DRAIN ADAPTOR - MOLDED | 25958-1 | $29.00 |
| THERMOSTAT- 34" CAPILLARY | 17124-1 | $106.70 |
| SILICONE D-HEATER GASKET | 178681-1 | $17.90 |
| STRAIN RELIEF - FOR 3/8 CORD | 26543-3 | $2.30 |
| NUT KEPS #6-32 | 17019-3 | $0.80 |
| NUT HEAVY JAM 1/2-13 ZINC PLD | 23434-3 | $1.90 |
| HIGH LIMIT THERMOSTAT 125C | 25438-1 | $23.70 |
| PEG LEG - ADJUSTABLE | 23425-1 | $27.00 |
| PILOT LIGHT BLUE 250V | 2327901-1 | $16.20 |
| KNOBGUARD PER BLUEPRINT LISTED | 17749-1 | $19.10 |
| 3/4" BALL VALVE, FEMALE | 354250-1 | $16.00 |
Product Downloads
Download Sell Sheet
CAD / REVIT
