FC-4TD-28120-C
SerVue Refrigerated Slide-In
Create a fresh food bar experience with the SerVue™ touchless refrigerated slide-in.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

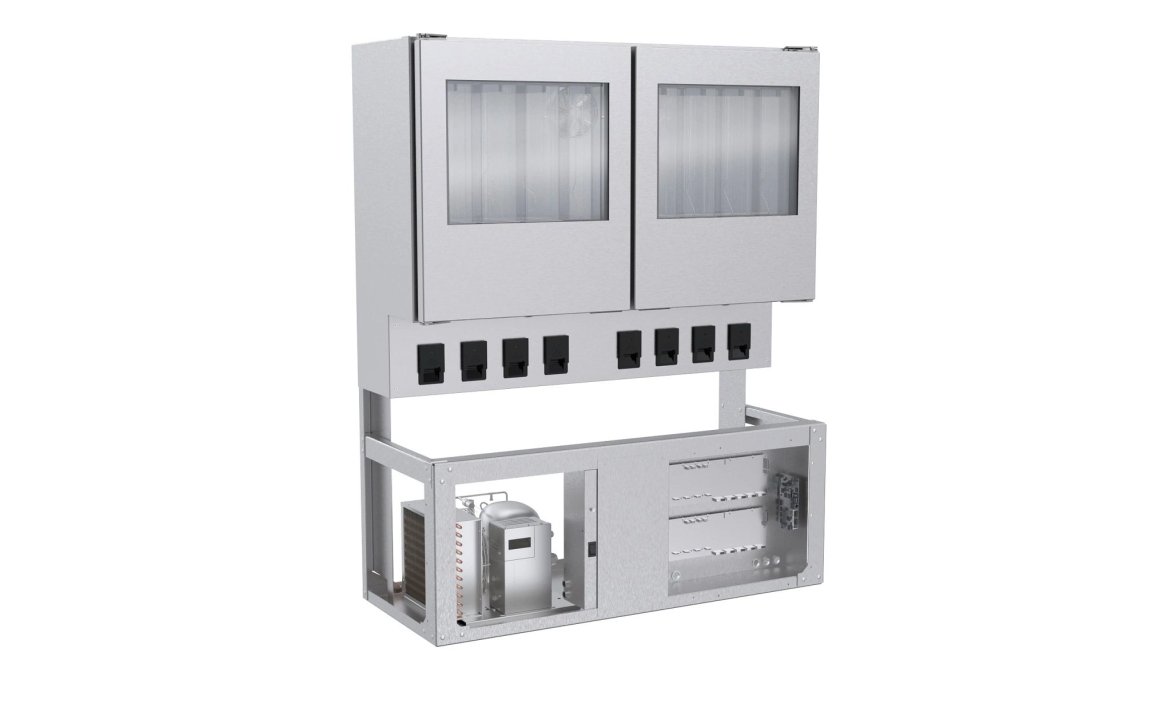

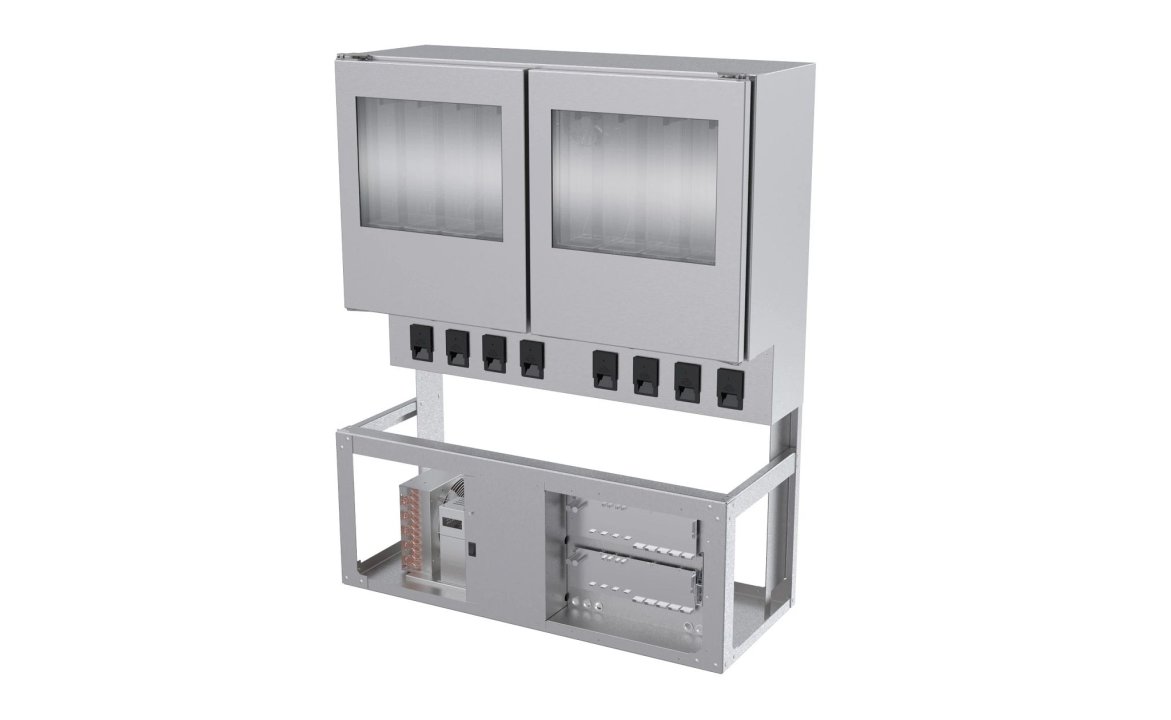

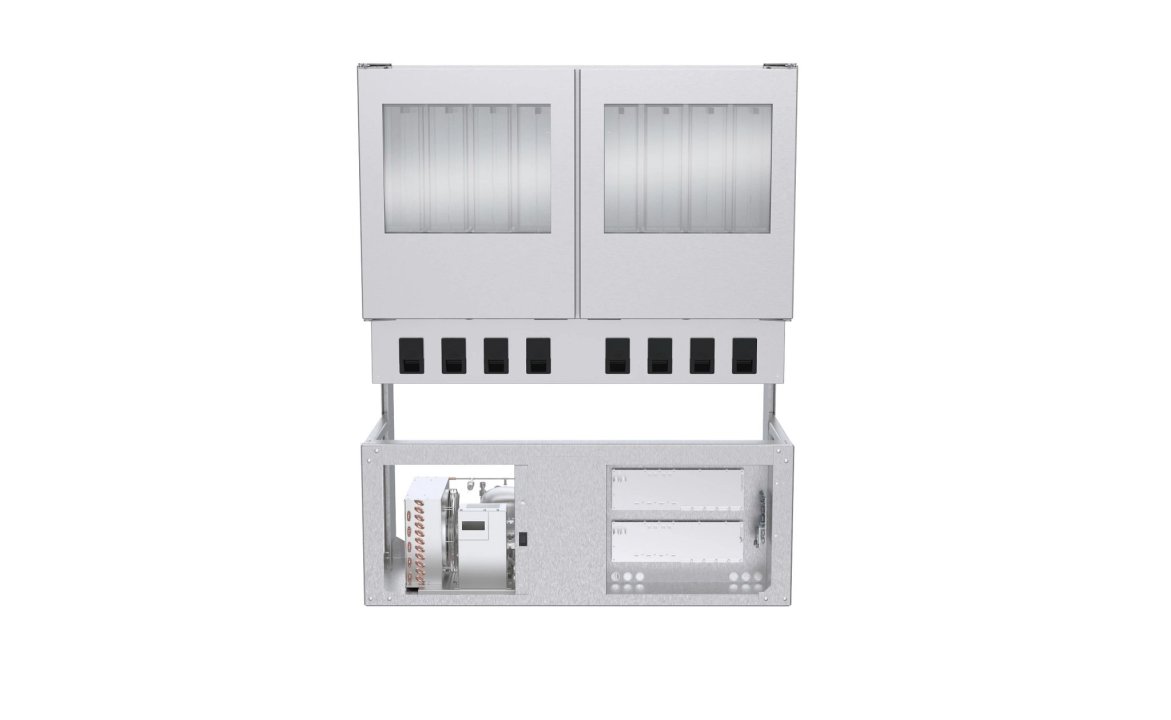

120-volt SerVue™ Touchless Refrigerated Slide-In
Create a fresh food bar experience with the SerVue™ touchless refrigerated slide-in. This self-contained refrigerated cabinet replaces open salad bars in the space of a 4-well drop-in. Ingredients are stored behind lit insulated glass doors, in covered canisters to maintain food-safe temperatures and reduce contaminants and waste. The touchless, self-serve design automatically dispenses predetermined portions, while remaining food is stored in configurable covered canisters to reduce transport. And SerVue™ is beautifully customizable; choose fabricated cabinetry, or arrange back to back for design flexibility.
Self-contained dispensing and storage containers keep foods fresher, longer
Well-lit glass doors highlight ingredients’ freshness and aesthetics
Touchless, self-serve design reduces food waste, contamination and mess
Refrigeration chamber captures cold air to maximize efficiency
Integrated canisters eliminate serving utensils and breath guards
2 sets of sensors enable efficient, simultaneous dispensing
8 interchangeable canisters in 2 sizes allow for customization
Durable stainless steel design includes condensate evaporator; no drain required
Compact footprint fits in the space of a 4-well drop-in
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419634071 |

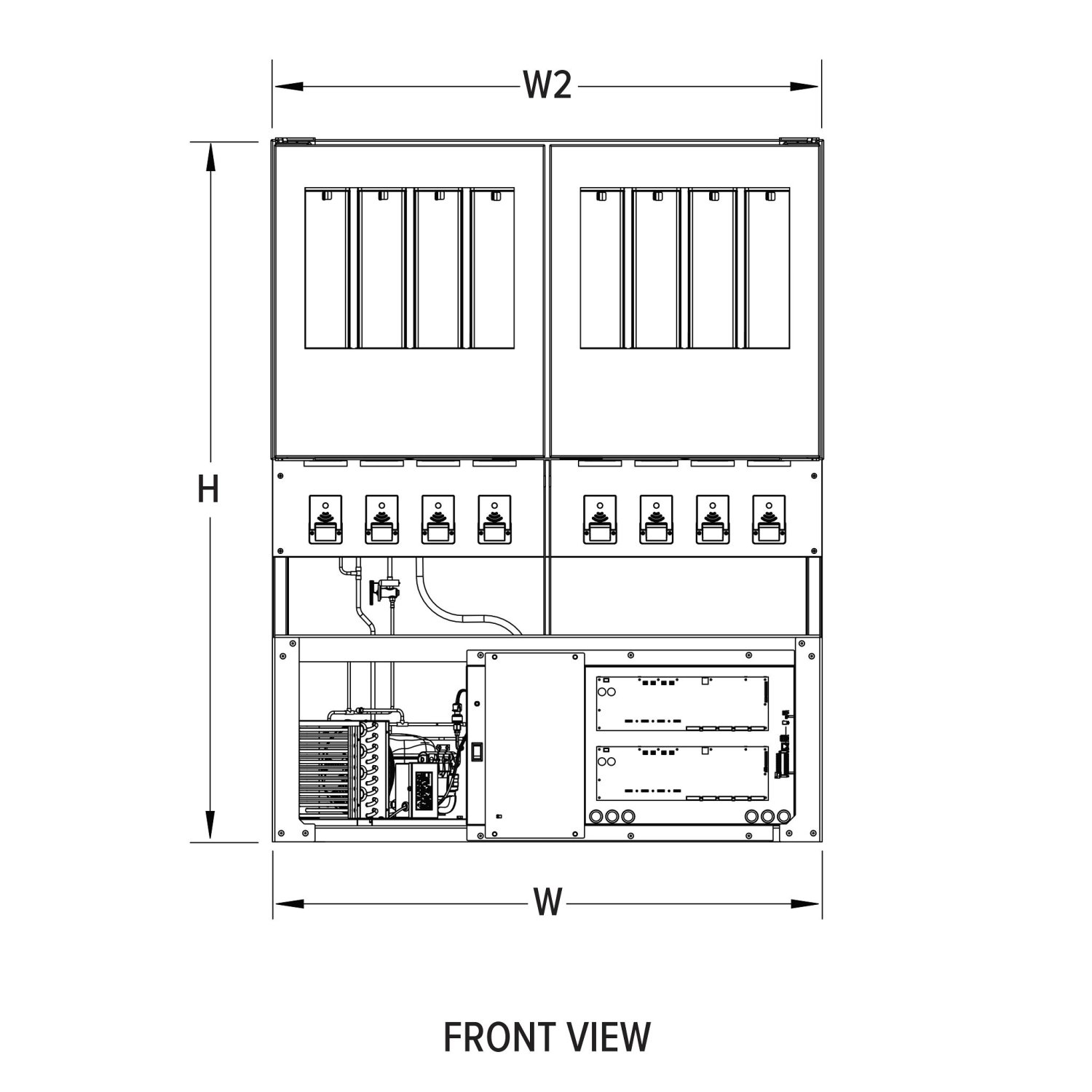

Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 51.4 |
| (D) Depth (IN) | 21.3 |
| (H) Height (IN) | 64.3 |
| (H2) Secondary Height (IN) | 26.2 |
| (W) Width (CM) | 130.56 |
| (D) Depth (CM) | 54.1 |
| (H) Height (CM) | 163.32 |
| (H2) Secondary Height (CM) | 66.55 |
Electrical
| Name | Value |
|---|---|
| Amps | 15 |
| Hz | 60 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Material Type | Metals |
| Refrigerant | R513A |
| Product Function | Slide-In Refrigerated Unit |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
Product Accessories
| Name | Item # |
|---|---|
| Small Wheel Shaft | 2210645 |
| Large Wheel Shaft | 2210647 |
| Large Canister Cover | 2210690 |
| Small Canister Cover | 2210691 |
| 306 oz. Large Serving Canister | 2210701 |
| 172 oz. Small Serving Canister | 2210702 |
| Large 6-paddle Dispensing Wheel | 2210706 |
| Small 6-Paddle Dispensing Wheel | 2210707 |
| Small 10-Paddle Dispensing Wheel | 2210708 |
| Small Agitation Rod | 2210738 |
| Large Agitation Rod | 2210739 |
| Large Funnel Adapter Assembly | 2210785 |
| Small Funnel Adapter Assembly | 2210786 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| FILTER DRIER DCL 032 | 351333-1 | $112.50 |
| 16 GA. POWER CORD - 120V | 26550-1 | $41.90 |
| CONNECTOR 5 WIRE WAGO 221-415 | 4350812-1 | $5.30 |
| CONNECTOR 3 WIRE WAGO 221-413 | 4350811-1 | $8.80 |
| PRESSURE TRANSDUCER EMBRACO | 353828-1 | $526.50 |
| KIT ELEC PARTS FFU80 EMBRACO | 353831-1 | $174.50 |
| STRAIN RELIEF - FOR 3/8 CORD | 26543-3 | $2.30 |
| CAN-BUS CABLE,VEND 2 TO VEND 1 | 431465 | $312.50 |
| SERVUE SM FUNNEL ASSY | 2210643 | $221.50 |
| FAN MOTOR 9W EMBRACO | 353829-1 | $562.30 |
| KIT, M6000 W/INSTRUCTION | 333333-SV | $159.90 |
| CLIP, EDFX LED LIGHT | 266089 | $10.40 |
| CABLE, SERVUE STEPPER MOTOR | 431434 | $110.50 |
| CABLE, SERVUE IR SENSOR | 431433 | $165.00 |
| CONNECTOR 2 WIRE WAGO 221-412 | 4350810-1 | $1.40 |
| KIT, TXV ORIF1 BP FOR EMBRACO | 353834-2 | $157.30 |
