69505

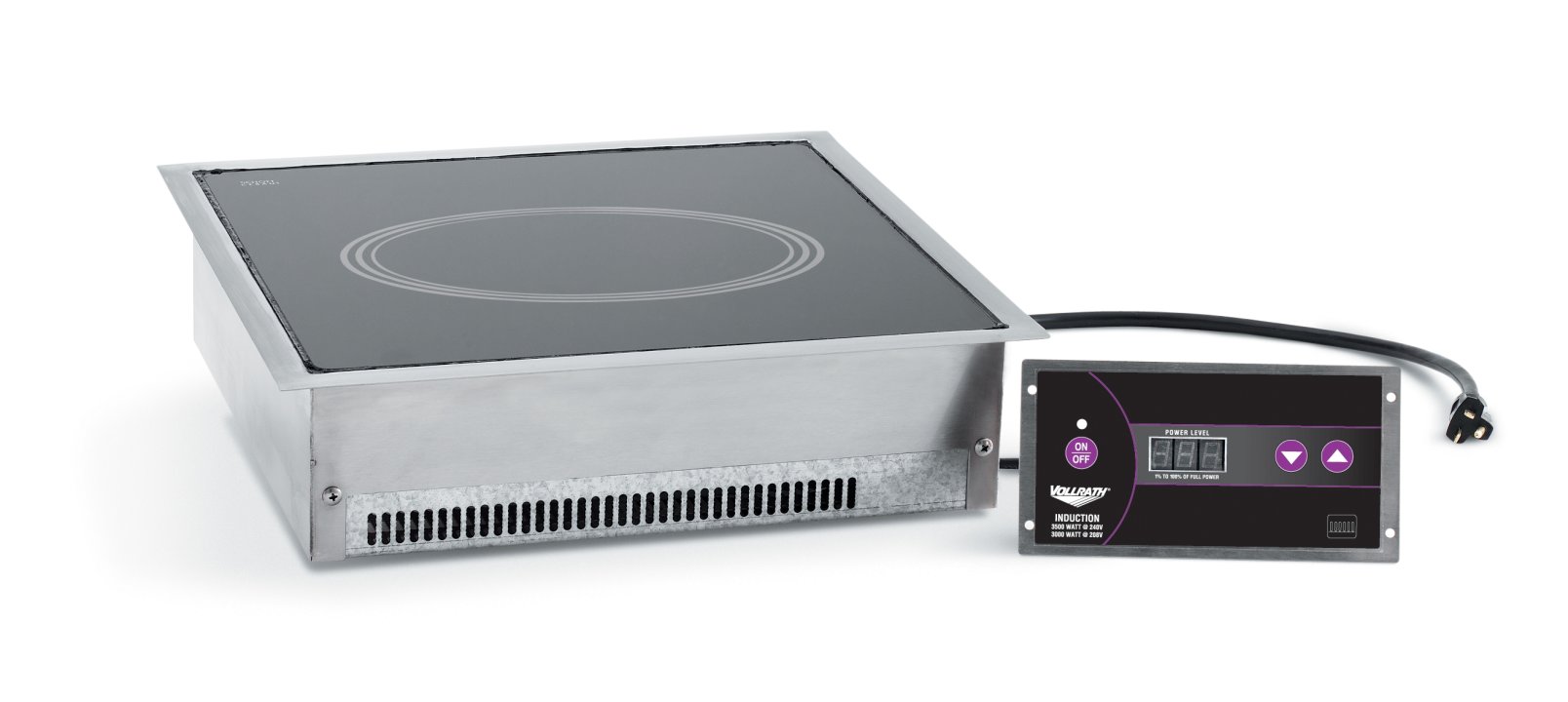

208- to 240-volt 3500-watt Ultra-Series single-hob drop-in induction range
Perfect for sauté, sauce and stockpots, the Ultra-Series drop-in induction range by Vollrath is a powerful, versatile choice.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
208- to 240-volt 3500-watt Ultra-Series single-hob drop-in induction range
Perfect for sauté, sauce and stockpots, the Ultra-Series drop-in induction range by Vollrath is a powerful, versatile choice. With impressive induction technology, this drop-in range is a valuable addition to any lineup and approximately 40 percent more efficient than electric or gas. It features a framed ceramic top that’s equally sleek and durable, and the countersunk installation creates a streamlined work surface. The digital remote control offers high-speed temperature adjustments and 100 different power settings for impressive accuracy, while the flat face prevents accidental temperature changes. With continuous-duty induction circuitry, this induction range is made for nonstop cooking.
Made in the USA
Framed ceramic top and heavy-duty 18-8 grade stainless steel casing is sleek and durable
Induction heating offers efficiencies of 90 percent or more, 40 percent more efficient than electric or gas
Continuous-duty induction circuitry handles nonstop cooking with ease
Firewall-protected circuitry with oversized fans
Compact, space-saving design and countersunk installation create a streamlined, easy-to-clean work surface
100 power settings for impressive accuracy
Digital control offers accurate, high-speed temperature adjustments and prevents accidental temperature changes
“Hot” warning display for safety
NSF-certified
2-year parts and labor limited warranty
6-foot cord and plug
3-foot remote control cord
Versatile design is ideal for sauté, sauce and stockpots
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419376445 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 17.375 x 16.5 x 4.75 |
| (W) Width (IN) | 17.37 |
| (D) Depth (IN) | 16.5 |
| (H) Height (IN) | 4.75 |
| (W) Width (CM) | 43.2 |
| (D) Depth (CM) | 41.9 |
| (H) Height (CM) | 12 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Drop-In |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 19.25 |
| Case Height | 9.13 |
| Case Length | 24.125 |
| Case Lot Cube (ft.) | 2.55 |
| Case Lot Weight (lbs.) | 26.4 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| LED VOLLRATH UNITS | 250312-1 | $32.90 |
| CONTROL BOX ASY 69505 / 69508 | 630301-2 | $256.20 |
| STRAIN RELIEF/LOCK NUT | 352344-1 | $22.70 |
| 69505 EMI AND POWER BOARD KIT | 352563-1 | $598.60 |
| 69508/69524 TOP GLASS ASSEMBLY | 352561-1 | $869.10 |
| 6-20P POWER CORD - TERMINATED | 251552-1 | $112.10 |
| COIL TRAY SUB-ASY-69504/80, 05 | 710102-2 | $237.70 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
