69504

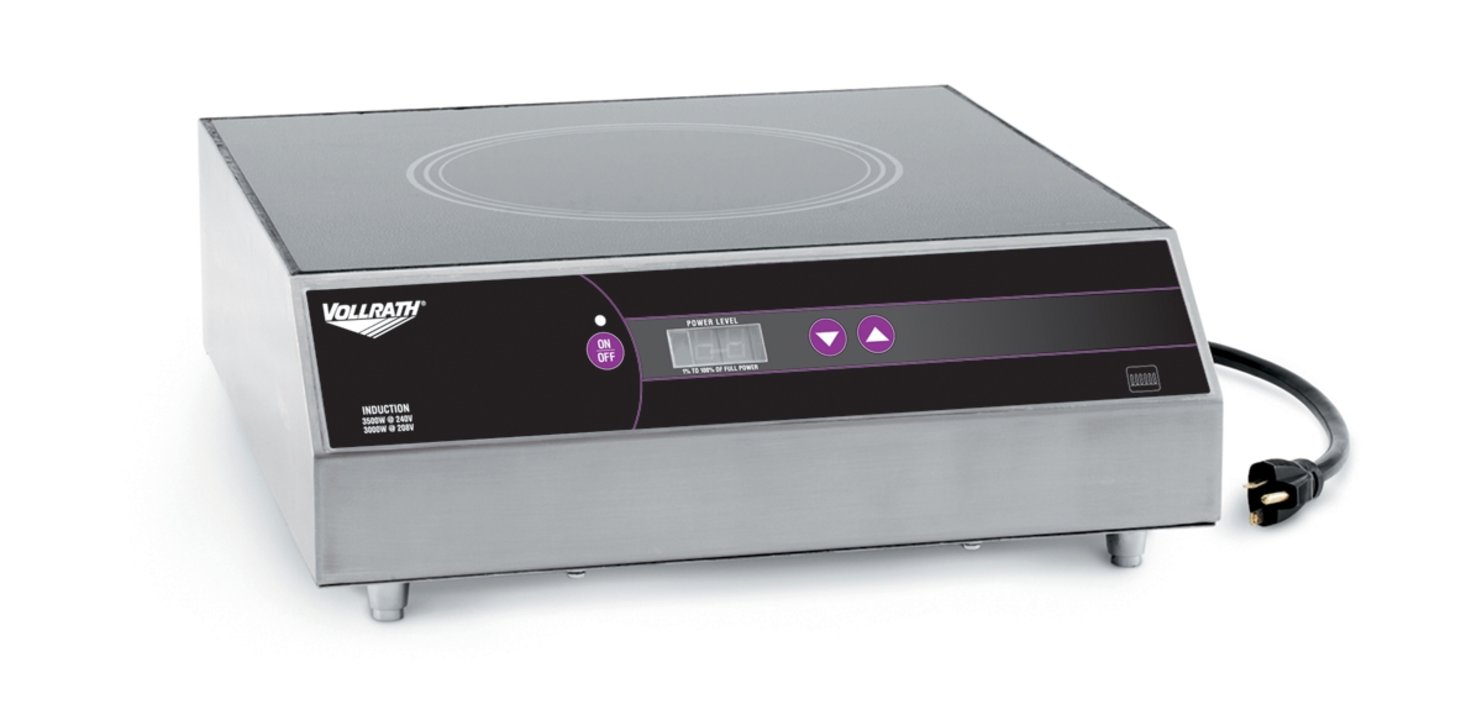

Discontinued208- to 240-volt 3500-watt Ultra-Series countertop single-hob induction range
This device complies with Part 18 of the FCC Rules
This symbol represents products that are certified to meet safe levels of radiofrequency radiation based on FCC regulations.

This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
The Vollrath® Ultra-Series countertop induction range is powerful and versatile. The 100 setting options ensure precise heating. You can decide between power settings or temperature settings based on your preference, and the smooth digital controls are easy to use and clean. They also prevent accidental temperature adjustments. This continuous-duty induction range is built for hours of use, while the 18-gauge stainless steel casing is durable and longlasting. Several safety features, along with firewall-protected circuitry and oversized fans, extend the life of the unit. The smooth top is easy to clean, and the sleek design looks good in any kitchen. This unit is protected by a 2-year parts and labor limited warranty.
- Designed specifically for sauté, sauce pots and stock pots
- Hot-surface warning, 3-hour shutoff, and empty pan auto-shutoff safety features extend the life of the unit
- Fits pans with a bottom diameter of 14 inches or less
- 1-100 power setting option for increased versatility
- 6-foot cord and plug
- Maximum pan diameter is provided as a guideline for achieving maximum performance. Other factors impact performance including pan construction material, the density and volume of the food in the pan, ambient temperature and food temperature.
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419376438 |

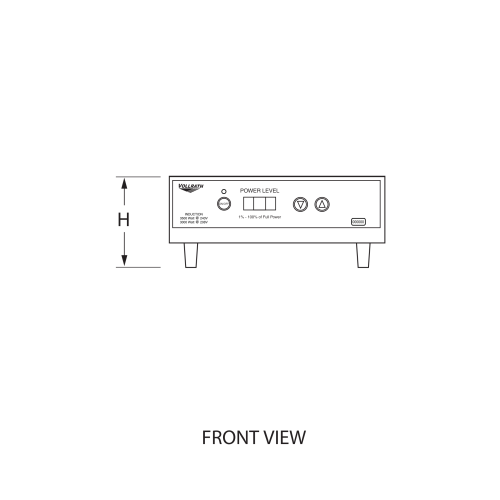

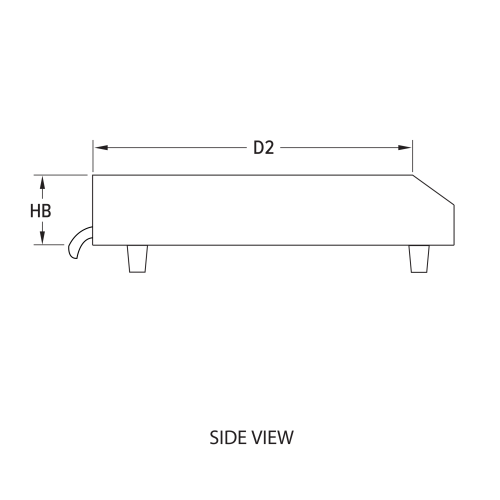

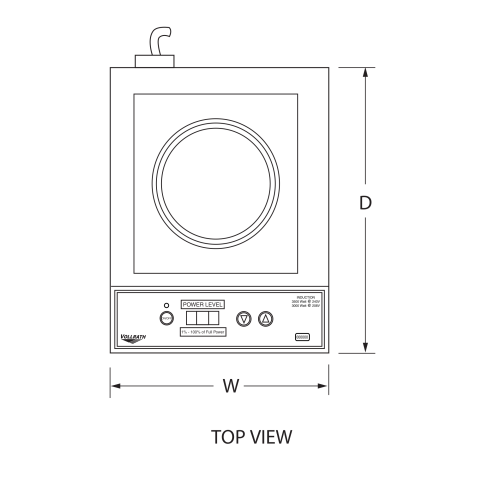

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 15.875 x 18.5 x 5.75 |
| (W) Width (IN) | 15.87 |
| (D) Depth (IN) | 18.5 |
| (D2) Secondary Depth (IN) | 15 |
| (H) Height (IN) | 5.75 |
| (MPD) Maximum Pan Bottom Diameter (IN) | 14 |
| (HB) Height of Body (IN) | 4.75 |
| Overall Dimensions (CM) | 40.3 x 47 x 14.6 |
| (W) Width (CM) | 40.3 |
| (D) Depth (CM) | 47 |
| (D2) Secondary Depth (CM) | 38.1 |
| (H) Height (CM) | 14.6 |
| (MPD) Maximum Pan Bottom Diameter (CM) | 35.6 |
| (HB) Height of Body (CM) | 12.1 |
Electrical
| Name | Value |
|---|---|
| Amps | 14.6 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 183 |
| Hz | 50/60 |
| kW | 3.0 - 3.5 |
| Plug | NEMA 6-20P |
| Voltage | 208 - 240 |
| Watts | 3500 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 19.25 |
| Case Height | 9.75 |
| Case Length | 25.5 |
| Case Lot Cube (ft.) | 2.77 |
| Case Lot Weight (lbs.) | 25.6 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| LED VOLLRATH UNITS | 250312-1 | $29.90 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
