59503SBDW
DiscontinuedMirage® Drop-In Induction Buffet Warmers
Maximize your menu offerings without maxing out your electrical capacity with the Mirage® Induction Buffet Warmers.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

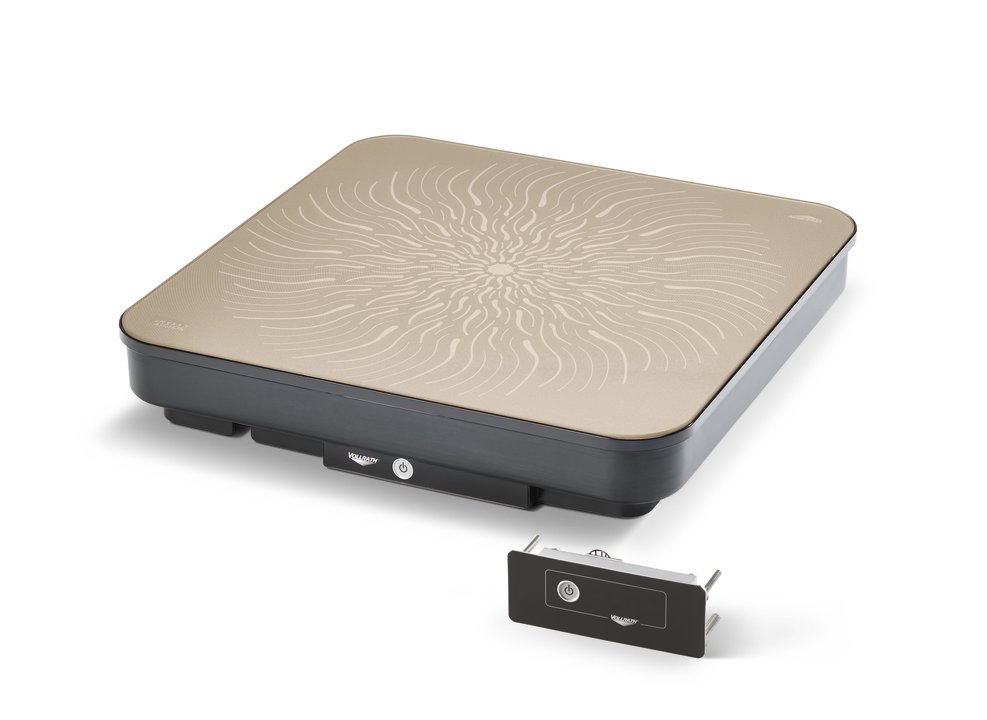

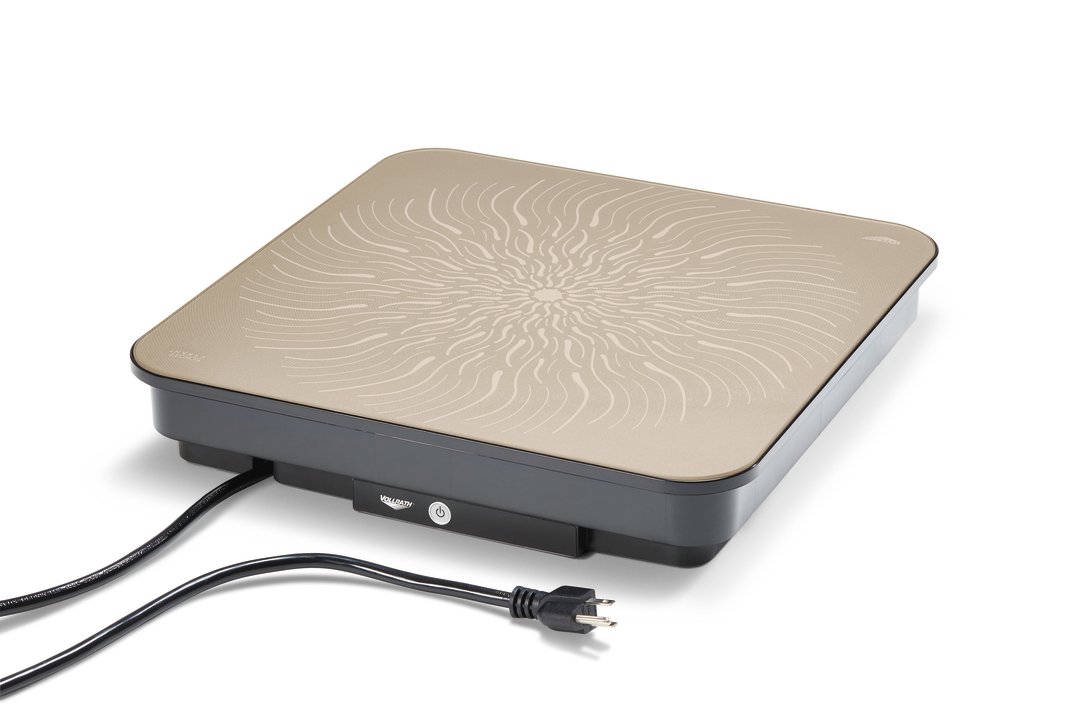

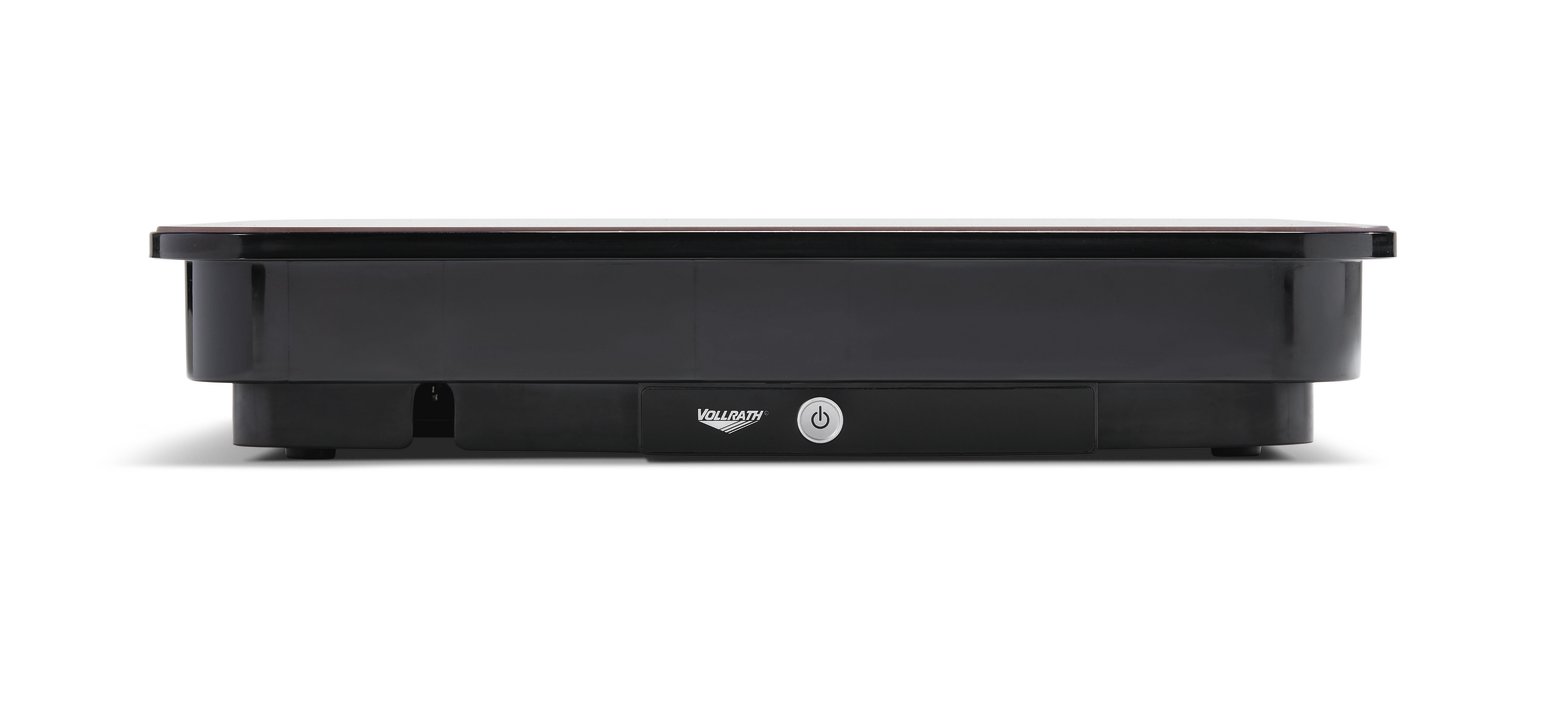

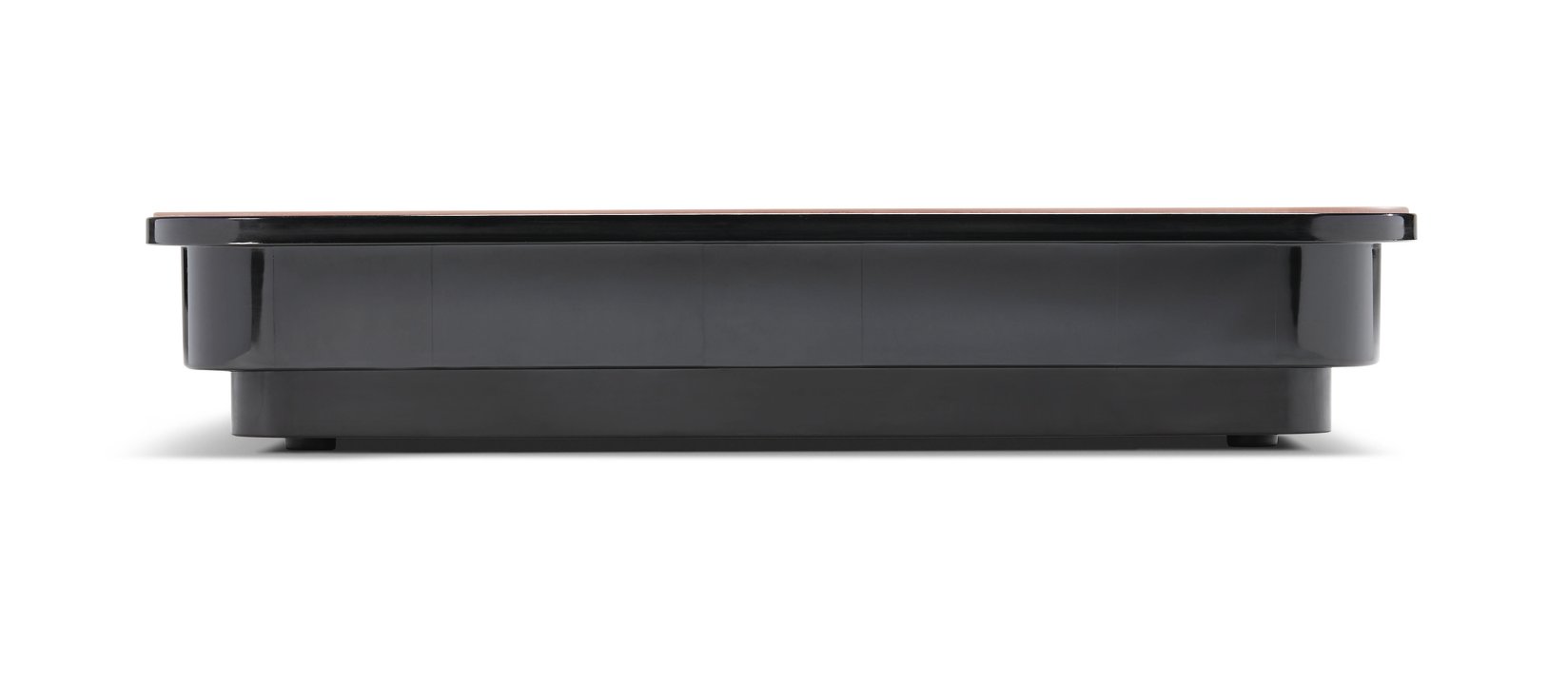

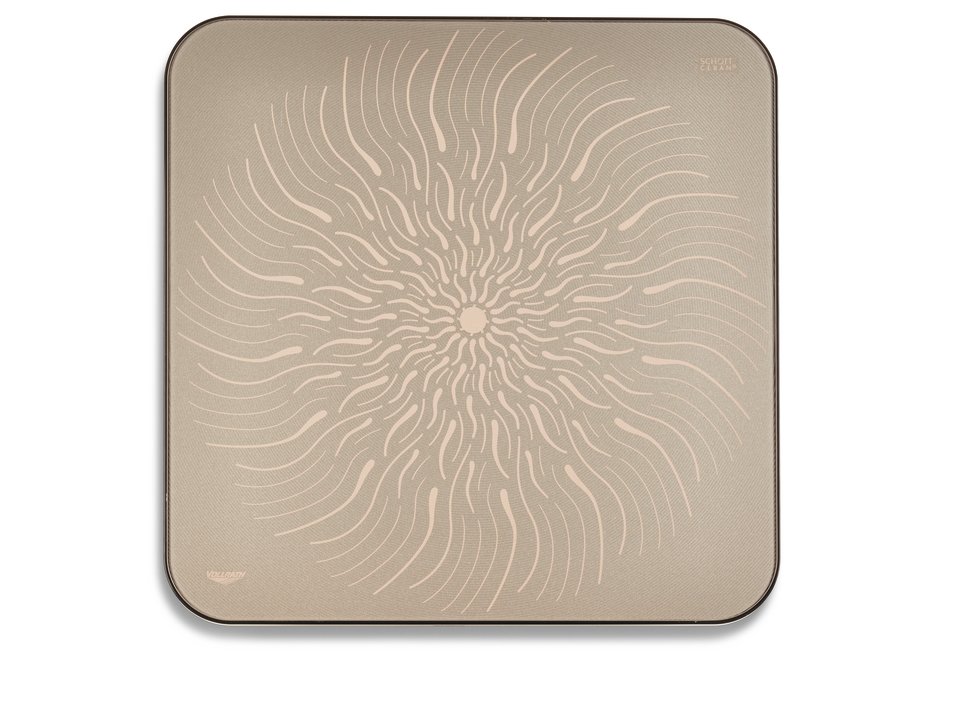

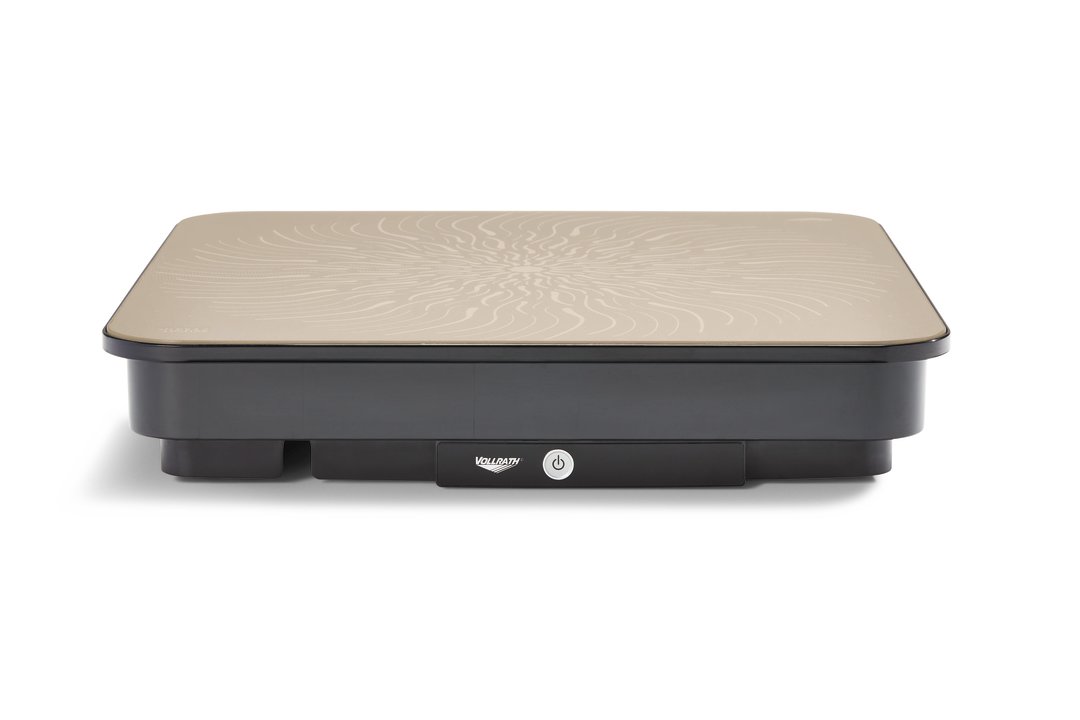

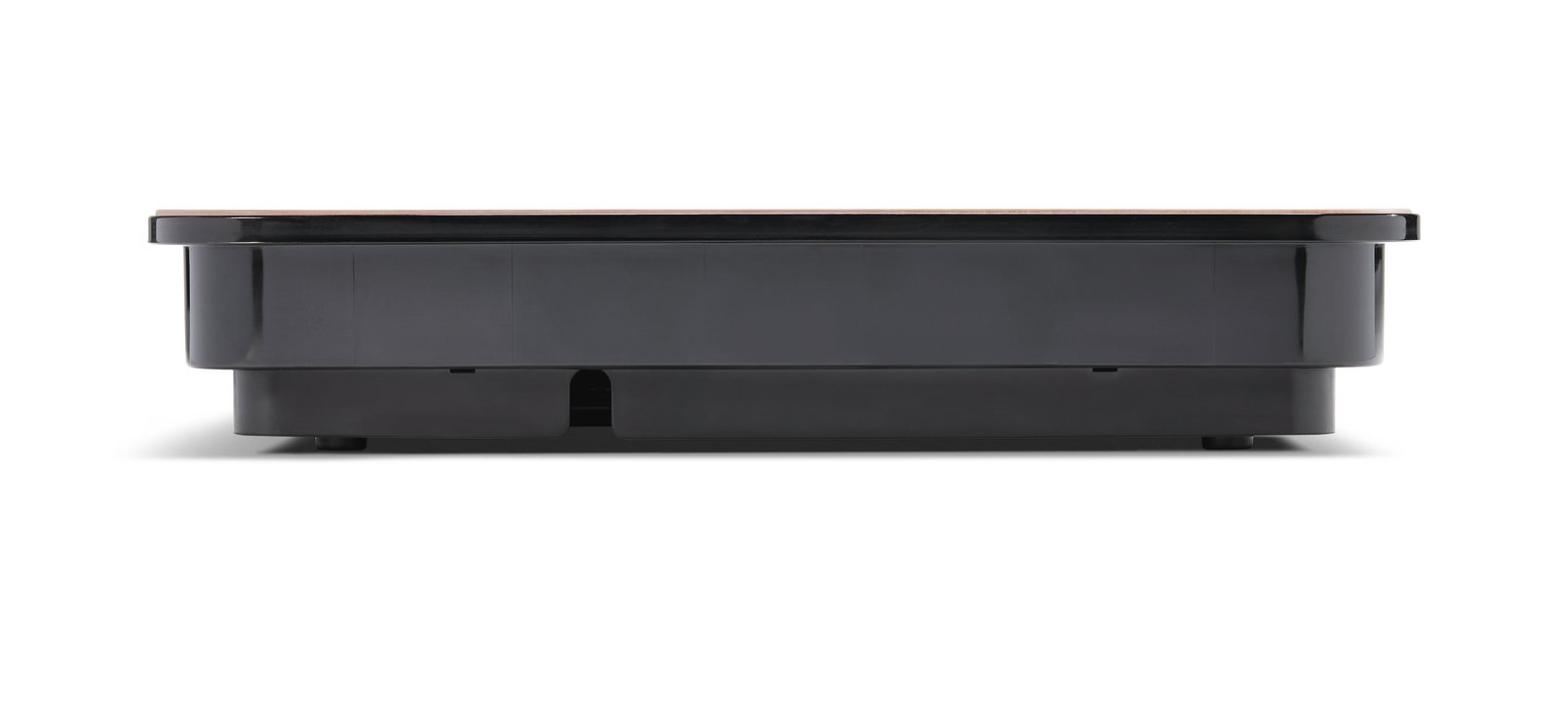

Mirage® Drop-In Induction Buffet Warmers
Maximize your menu offerings without maxing out your electrical capacity with the Mirage® Induction Buffet Warmers. The low wattage warmers can be interconnected to one electrical outlet, which simplifies the planning and management of power cords, access to outlets and load capacity.
Fewer cords- connect up to 3 units together with an inter-connect cord – and only run one power cord to outlet on wall
Use for holding/warming of foods for serving - ideal for banquets and catering
Subtle, low-profile, attractive design coordinates with any serving set-up
Four power levels - low, medium, high and chafer preheat
LED indicator lights on control panel and glass
U.S. units only : At 2.5 Amps each, up to 5 units (at maximum power) can be plugged into a 15 amp circuit. 3 per power cord.
Convenient storage compartment underneath unit for cords not in use
Designed to work with one (1) Vollrath chafer or serving vessel, or equivalent induction-ready chafer or serving vessel
Custom decorative patterns or logos available on 16x16 units. Contact your local Vollrath sales representative for more information.
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | 59503 |
| UPC | 671080766584 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 16 x 16 x 3.1 |
| (W) Width (IN) | 16 |
| (WB) Width Base (IN) | 13.88 |
| (D) Depth (IN) | 16 |
| (DB) Depth Base (IN) | 14.375 |
| (H) Height (IN) | 3.1 |
| (H2) Secondary Height (IN) | 2.01 |
| (H3) Additional Height (IN) | 0.375 |
| (MPD) Maximum Pan Bottom Diameter (IN) | 14 |
| (WC) Width Cutout (IN) | 15.3125 - 16.0626 |
| (DC) Depth Cutout (IN) | 15.3125 - 16.0626 |
| (W) Width (CM) | 40.6 |
| (WB) Width Base (CM) | 35.3 |
| (D) Depth (CM) | 40.6 |
| (DB) Depth Base (CM) | 36.5 |
| (H) Height (CM) | 7.9 |
| (H2) Secondary Height (CM) | 5.1 |
| (H3) Additional Height (CM) | 1 |
| (MPD) Maximum Pan Bottom Diameter (CM) | 3.56 |
| (WC) Width Cutout (CM) | 38.9 - 40.8 |
| (DC) Depth Cutout (CM) | 38.9 - 40.8 |
Electrical
| Name | Value |
|---|---|
| Amps | 2.5 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 183 |
| Hz | 50/60 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 300 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 14 |
| Weight (KG) | 6.4 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Drop-In |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
Product Parts
