72109

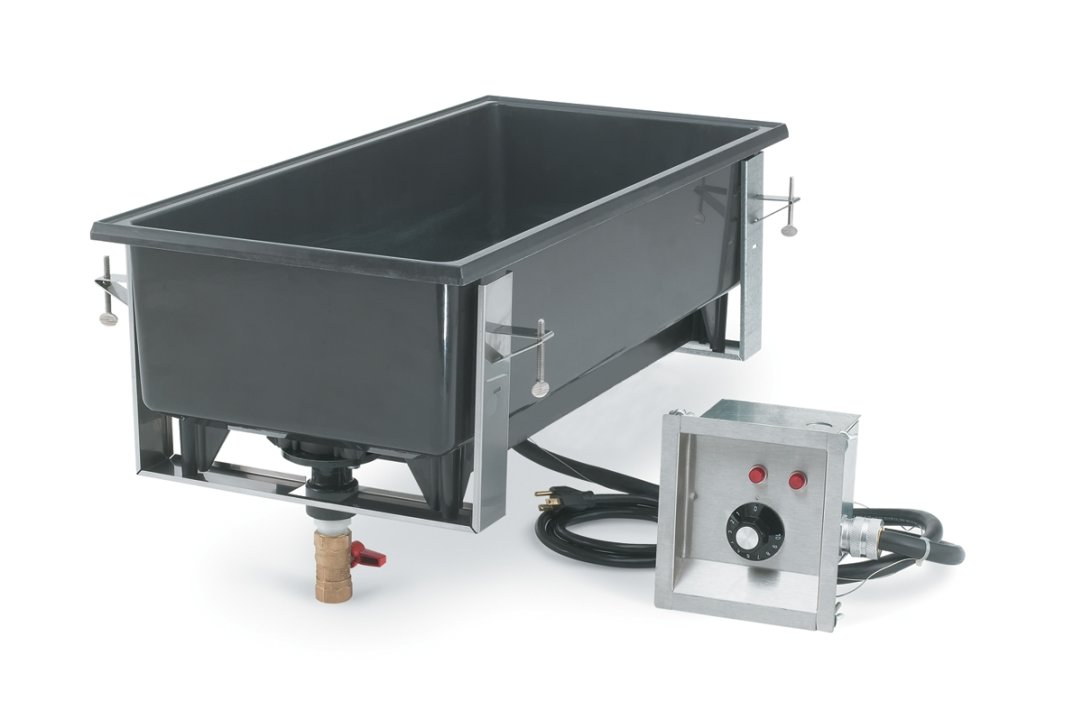

120-volt single-well full-size Cayenne® drop-in warmer with integral drain and front-mounted control panel
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
The one-well Cayenne drop-in food warmer by Vollrath heats your food while maximizing energy efficiency. This full-size drop-in well has front-mounted thermostatic temperature controls for more accurate warming. The self-insulating design and direct-contact heating element improve energy efficiency. A low-water indicator light keeps you informed, and a bottom-mounted drain and drain valve make cleaning simple. This warmer comes with a 5-foot cord and plug for ultimate convenience and fits into your countertop easily.
- Made in the USA
- Thermoset fiber-reinforced resin well is durable and long-lasting
- Self-insulating well improves energy efficiency
- Reliable thermostatic controls ensure accurate heating
- Direct-contact heating element improves efficiency
- Low-water indicator light keeps you informed
- Bottom-mounted drain for easy cleaning
- NSF-certified
- 5-foot cord and plug
- 4-inch-deep full or fractional size pans are recommended
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | TD43R-DI |
| UPC | 029419520367 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 28.758 x 16.624 x 11.888 |
| (W) Width (IN) | 28.75 |
| (W2) Secondary Width (IN) | 6.25 |
| (D) Depth (IN) | 16.62 |
| (D2) Secondary Depth (IN) | 13.734 |
| (D3) Additional Depth (IN) | 4.3 |
| (H) Height (IN) | 11.88 |
| Usable Height (IN) | 6.875 |
| (H2) Secondary Height (IN) | 9.145 |
| (H3) Additional Height (IN) | 0.585 |
| (WC) Width Cutout (IN) | 28.25 (and 6.375) |
| (DC) Depth Cutout (IN) | 13.25 (and 5.875) |
| (W) Width (CM) | 73 |
| (W2) Secondary Width (CM) | 15.9 |
| (D) Depth (CM) | 42.2 |
| (D2) Secondary Depth (CM) | 34.9 |
| (D3) Additional Depth (CM) | 10.9 |
| (H) Height (CM) | 30.2 |
| Usable Height (CM) | 17.5 |
| (H2) Secondary Height (CM) | 23.2 |
| (H3) Additional Height (CM) | 1.5 |
| (WC) Width Cutout (CM) | (71.7 (and 16.1) |
| (DC) Depth Cutout (CM) | 33.6 (and 14.9) |
| Size | Full |
Electrical
| Name | Value |
|---|---|
| Amps | 13.3 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 183 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 1600 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 19.75 |
| Case Height | 15.5 |
| Case Length | 37.25 |
| Case Lot Cube (ft.) | 2.3 |
| Case Lot Weight (lbs.) | 18.9 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| MOUNTING BRACKET | 44001-2 | $37.30 |
| HI LIMIT ASSEMBLY | 44407-2 | $21.80 |
| NUT W/WASHER #10-24 ZINC PLT | 21574-3 | $0.70 |
| DROP-IN MOUNTING CLIP | 44179-1 | $3.30 |
| CONTROL BOX COVER | 44189-2 | $12.00 |
| SCREW THREAD ROLLING 10-32 | 17014-3 | $0.80 |
| BOTTOM PANEL - 4/3 WARMER | 44024-2 | $45.60 |
| SILICONE D-HEATER GASKET | 178681-1 | $17.90 |
| HIGH LIMIT THERMOSTAT 125C | 25438-1 | $23.70 |
| KNOB CONTROL | 23423-1 | $9.30 |
| THERMOSTAT HIGH LIMIT | 17950-1 | $5.20 |
| STRAIN RELIEF - FOR 3/8 CORD | 26543-3 | $2.30 |
| THUMBSCREW 1/4-20 X 2" | 23035-3 | $5.10 |
| CONNECTOR 3 WIRE WAGO 221-413 | 4350811-1 | $8.80 |
| THERMOSTAT 96" CAPILARY | 17816-1 | $122.70 |
| NUT KEPS #6-32 | 17019-3 | $0.80 |
| PILOT LIGHT - BLUE 125V | 1755901-1 | $6.70 |
| HEATER CAST 800W 120V | 44287-1 | $125.80 |
| 3/4" BALL VALVE, FEMALE | 354250-1 | $16.00 |
| CORDSET 14AWG SJTOW | 17847-1 | $42.10 |
| POP RIVET .125 DIA | 23686-3 | $1.70 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
