72107

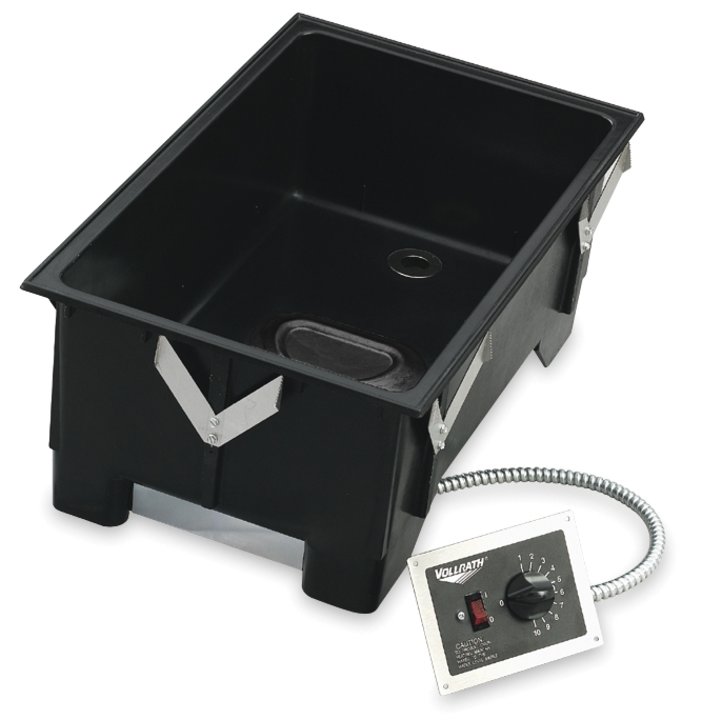

One-well 120-volt full-size Cayenne® drop-in warmer with drain and remote control panel
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
The one-well Cayenne drop-in food warmer by Vollrath heats your food while maximizing energy efficiency. This full-size drop-in well has thermostatic temperature controls for more accurate warming, and a remote control panel for convenient operation. The self-insulating design and direct-contact heating element improve energy efficiency. A low-water indicator light keeps you informed, and a bottom-mounted drain and drain valve make cleaning simple. This warmer comes with a 6-foot cord and plug and a 2-foot remote control cord.
- Made in the USA
- Thermoset fiber-reinforced resin well is durable and long-lasting
- Remote control panel for convenient operation
- Self-insulating well improves energy efficiency
- Reliable thermostatic controls ensure accurate heating
- Direct-contact heating element improves efficiency
- Low-water indicator light keeps you informed
- Manifold drains with individual well shutoffs for user convenience
- Full-perimeter gasket under drip flange reduces installation time
- NSF-certified
- NSF-certified
- NSF-certified
- 6 ⅜-inch depth accommodates 6-inch-deep pans
- Please note this is a made-to-order item. These items require additional time for fulfillment. Made-to-order items cannot be changed, canceled or returned and may be subject to a minimum-order quantity. Contact your Vollrath sales representative for details.
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | 3002D |
| UPC | 029419203994 |

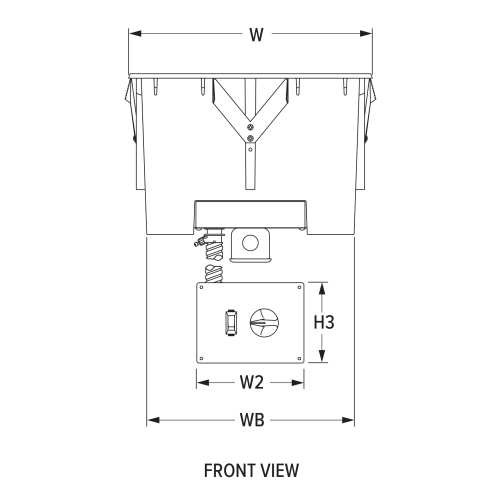

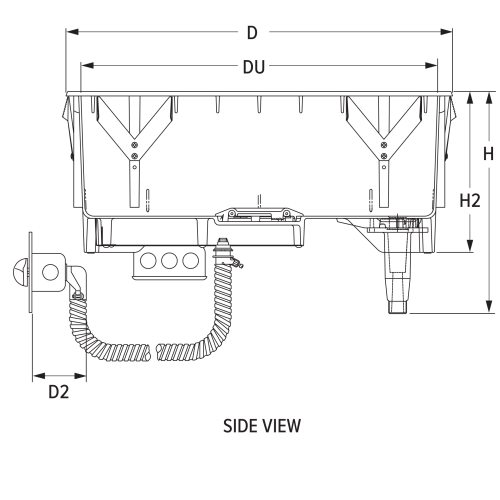

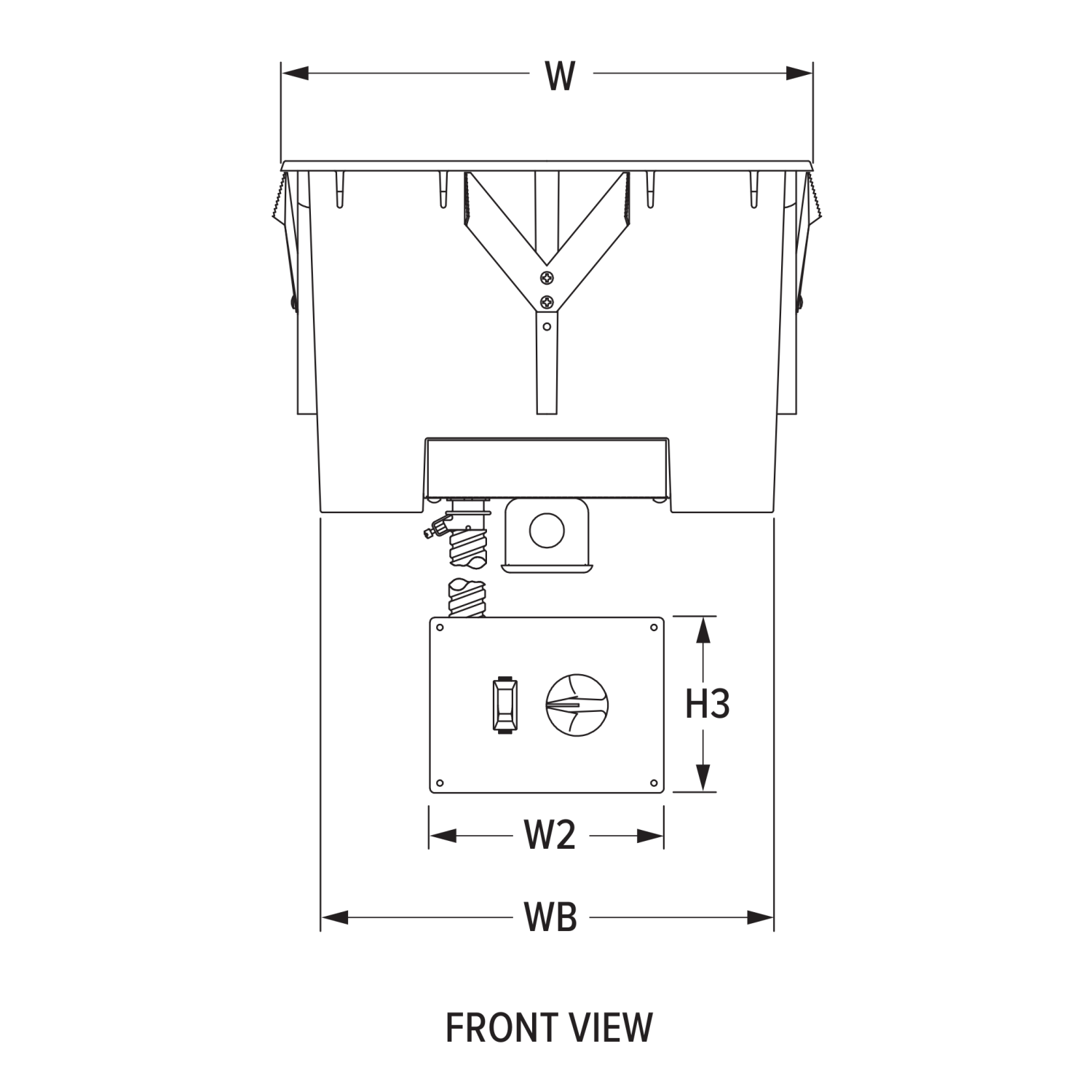

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 13.655 x 21.655 x 11.375 |
| (W) Width (IN) | 13.65 |
| (WB) Width Base (IN) | 11.613 |
| (W2) Secondary Width (IN) | 6 |
| (D) Depth (IN) | 21.65 |
| (DU) Usable Depth (IN) | 19.984 |
| (D2) Secondary Depth (IN) | 3.05 |
| (H) Height (IN) | 11.37 |
| (H2) Secondary Height (IN) | 9.015 |
| (H3) Additional Height (IN) | 4.5 |
| (WC) Width Cutout (IN) | 12.875 (and 3.5) |
| (DC) Depth Cutout (IN) | 20.875 (and 5) |
| (W) Width (CM) | 34.7 |
| (WB) Width Base (CM) | 29.5 |
| (W2) Secondary Width (CM) | 15.2 |
| (D) Depth (CM) | 55 |
| (DU) Usable Depth (CM) | 50.8 |
| (D2) Secondary Depth (CM) | 7.73 |
| (H) Height (CM) | 28.9 |
| (H2) Secondary Height (CM) | 22.9 |
| (H3) Additional Height (CM) | 11.4 |
| (WC) Width Cutout (CM) | 32.7 (and 8.9 |
| (DC) Depth Cutout (CM) | 53 (and 12.7) |
| Size | Full |
Electrical
| Name | Value |
|---|---|
| Amps | 5.8 |
| Plug | Hard Wire |
| Voltage | 120 |
| Watts | 700 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 18.5 |
| Case Height | 26.25 |
| Case Length | 13.5 |
| Case Lot Cube (ft.) | 3.79 |
| Case Lot Weight (lbs.) | 23.5 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| HI LIMIT ASSEMBLY | 44407-2 | $21.75 |
| TIMER/CONTROL KNOB (F/17170) | 17388-1 | $6.70 |
| BOTTOM PANEL | 44451-2 | $16.13 |
| SCREW THREAD ROLLING 10-32 | 17014-3 | $0.80 |
| POP RIVET .125 DIA | 23686-3 | $1.70 |
| CAST HEATER 700W 120V | 44204-1 | $110.90 |
| SILICONE D-HEATER GASKET | 178681-1 | $17.20 |
| DRAIN ADAPTOR - MOLDED | 25958-1 | $29.00 |
| MINATURE ROCKER SWITCH 125V | 23420-1 | $23.36 |
| THERMOSTAT HIGH LIMIT | 17950-1 | $4.70 |
| STRAIN RELIEF - FOR 3/8 CORD | 26543-3 | $2.00 |
| 3/4" BALL VALVE, FEMALE | 354250-1 | $9.40 |
| NUT KEPS #6-32 | 17019-3 | $0.80 |
| THERMOSTAT- 34" CAPILLARY | 17124-1 | $106.70 |
