72105

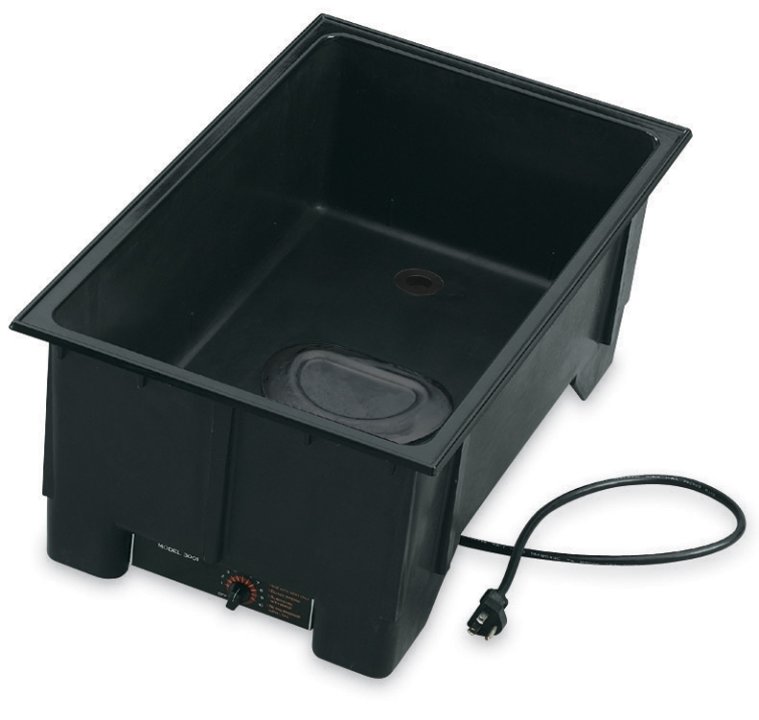

One-well 120-volt full-size Cayenne® drop-in warmer with drain and unit-mounted control panel

This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

$416.04 MSRP

$693.40 List Price

Where to Buy

The one-well Cayenne drop-in food warmer by Vollrath heats your food while maximizing energy efficiency. This full-size drop-in well has unit-mounted thermostatic temperature controls for more accurate warming. The self-insulating design and direct-contact heating element improve energy efficiency. A low-water indicator light keeps you informed, and a bottom-mounted drain and drain valve make cleaning simple. This warmer comes with a 6-foot cord and plug for ultimate convenience and fits easily into your countertop.

Made in the USA
Thermoset fiber-reinforced resin well is durable and long-lasting
Self-insulating well improves energy efficiency
Reliable thermostatic controls ensure accurate heating
Direct-contact heating element improves efficiency
Low-water indicator light keeps you informed
Bottom-mount drain for easy cleaning
NSF-certified
6-foot cord and plug easily reach your outlet
4-inch-deep full or fractional size pans are recommended

Product Specifications

Model Information

Name	Value
Model	3001D
UPC	029419203970

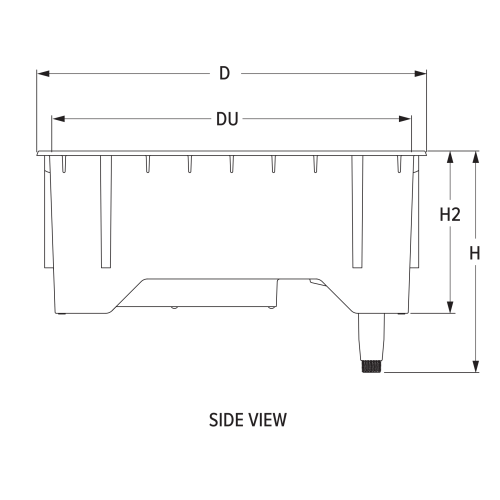

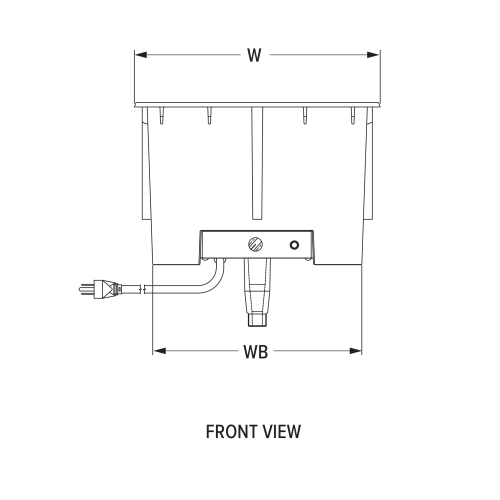

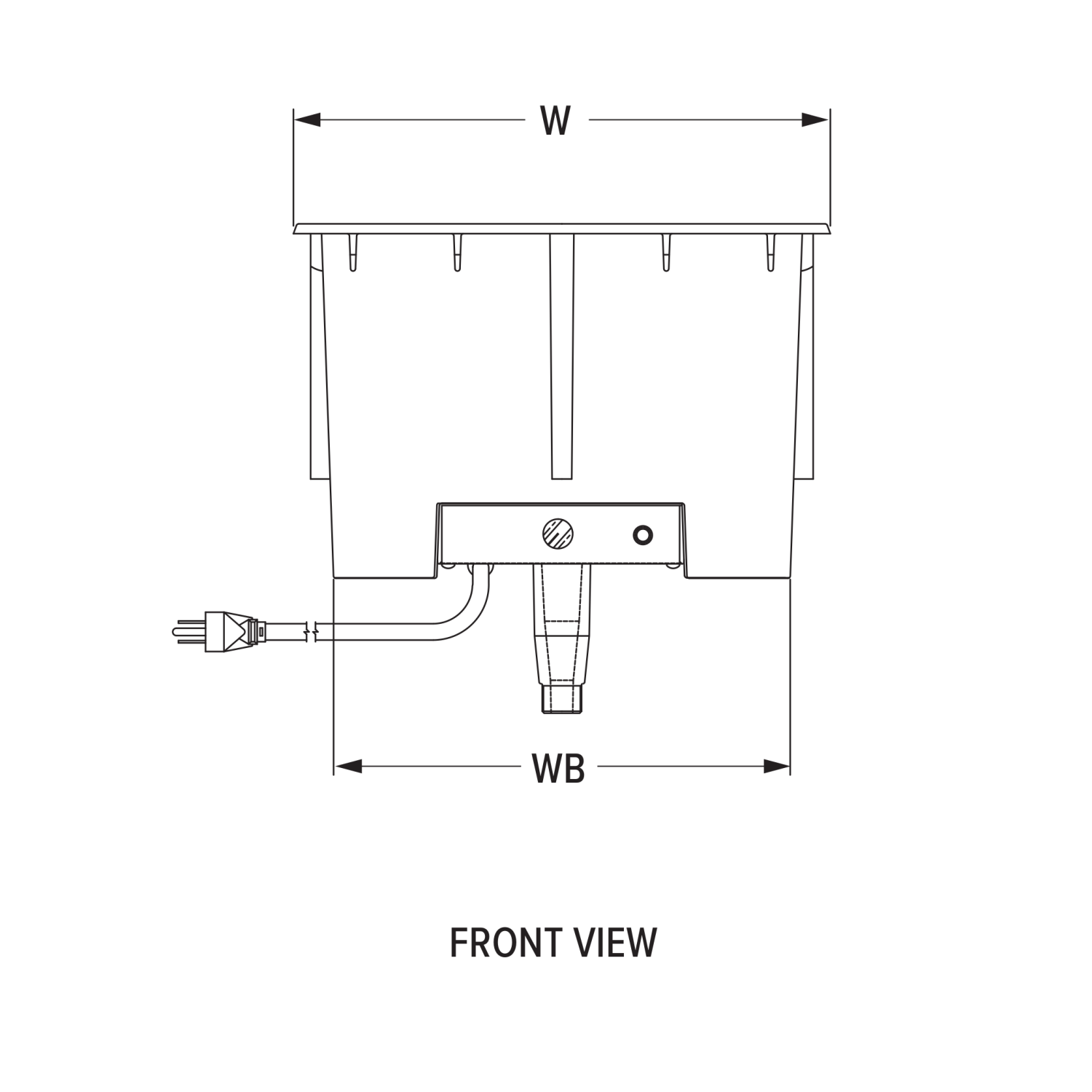

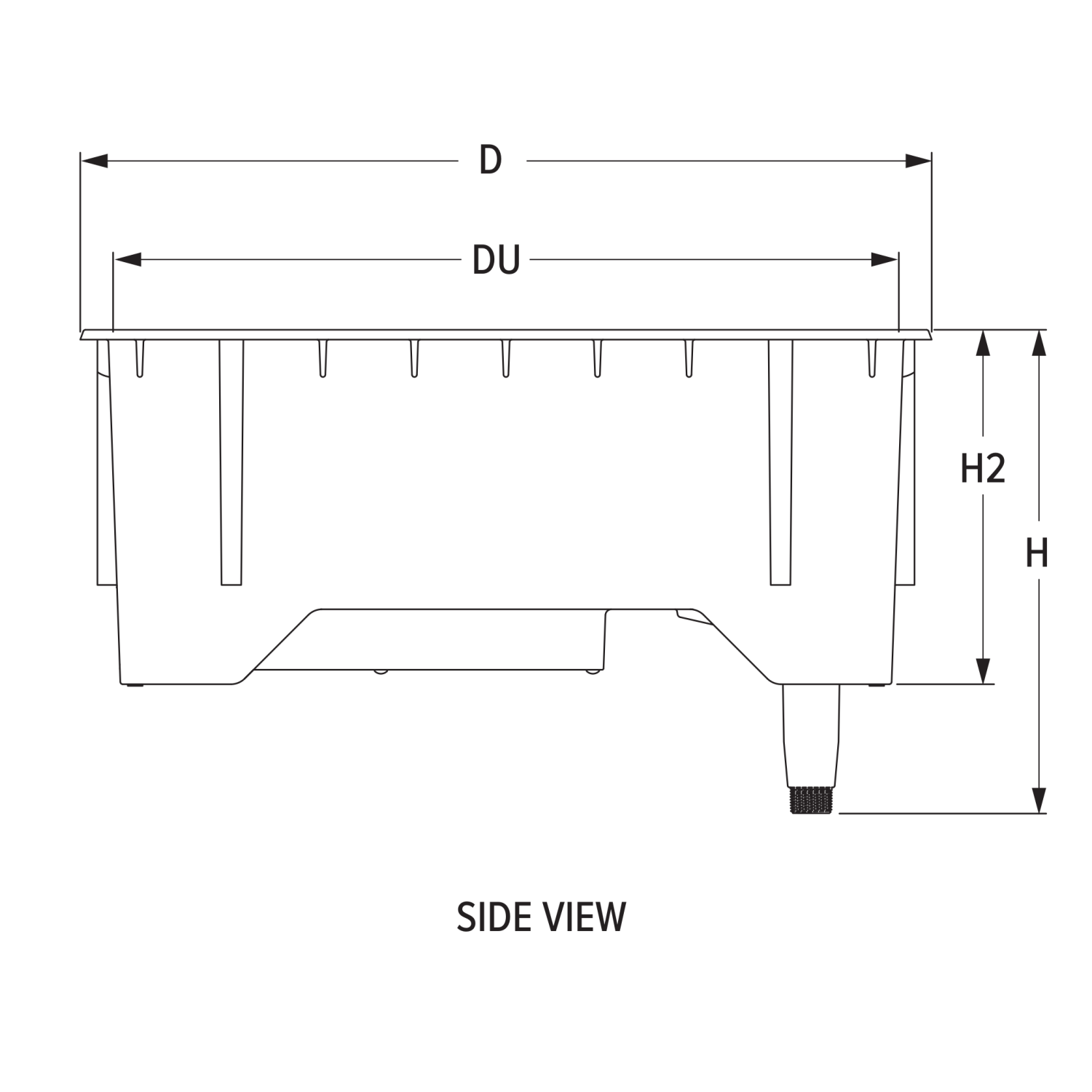

Unit Dimensions

Name	Value
Overall Dimensions (IN)	13.655 x 21.655 x 11.375
(W) Width (IN)	13.65
(WB) Width Base (IN)	11.613
(D) Depth (IN)	21.65
(DU) Usable Depth (IN)	19.984
(H) Height (IN)	11.37
(H2) Secondary Height (IN)	9.015
(WC) Width Cutout (IN)	12.875
(DC) Depth Cutout (IN)	20.875
(W) Width (CM)	34.7
(WB) Width Base (CM)	29.5
(D) Depth (CM)	55
(DU) Usable Depth (CM)	50.8
(H) Height (CM)	28.9
(H2) Secondary Height (CM)	22.9
(WC) Width Cutout (CM)	32.7
(DC) Depth Cutout (CM)	53
Size	Full

Electrical

Name	Value
Amps	5.8
Cord Length (IN)	72
Cord Length (CM)	183
Plug	NEMA 5-15P
Voltage	120
Watts	700

Case Lot Measurement

Name	Value
Case Lot	1
Case Width	18.5
Case Height	13.875
Case Length	26.375
Case Lot Cube (ft.)	3.92
Case Lot Weight (lbs.)	15.22

Product Parts

Name	Part #	Price
CONTROL KNOB (BLACK)	17012-1	$6.30
3/8 DIA CLOSED CELL FEET	17015-1	$0.80
POWER CORD (18 GA) 6 FT	17023-1	$19.50
HI LIMIT ASSEMBLY	44407-2	$21.75
STRAIN RELIEF BUSHING BLACK	17024-3	$1.50
THERMOSTAT HIGH LIMIT	17950-1	$4.70
SCREW THREAD ROLLING 10-32	17014-3	$0.80
POP RIVET .125 DIA	23686-3	$1.70
CAST HEATER 700W 120V	44204-1	$110.90
SILICONE D-HEATER GASKET	178681-1	$17.20
HIGH LIMIT THERMOSTAT 125C	25438-1	$23.70
DRAIN ADAPTOR - MOLDED	25958-1	$29.00
NUT KEPS #6-32	17019-3	$0.80
PILOT LIGHT - BLUE 125V	1755901-1	$6.10
THERMOSTAT SHORT CAPIL. EGO	17074-1	$103.40
3/4" BALL VALVE, FEMALE	354250-1	$9.40
