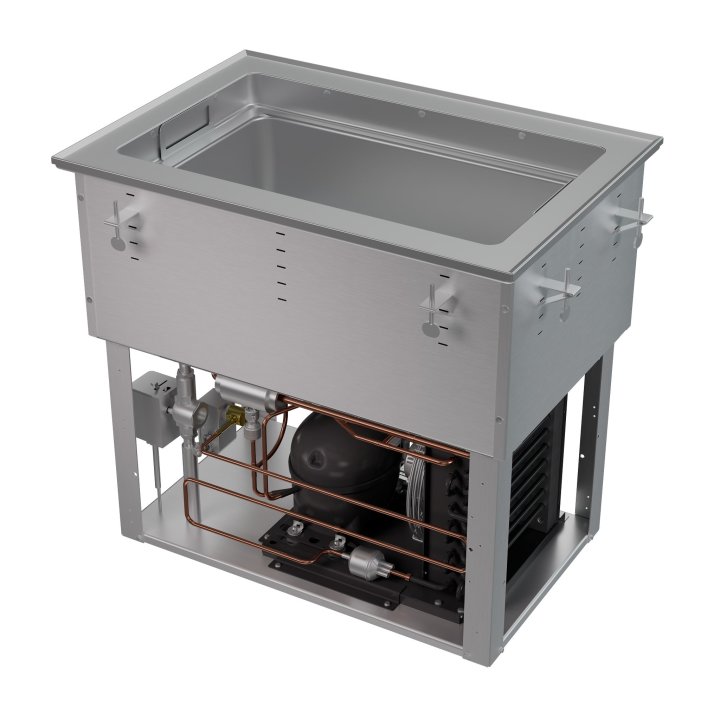

One-well 120-volt Hot, Cold, Frozen drop-in unit with auto drain

FC-HCF-01120-AD

One-well 120-volt Hot, Cold, Frozen drop-in unit with auto drain

This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

$8198.40 MSRP

$13,664.00 List Price

Request A Quote Where to Buy

Crafted from rugged 18-gauge, 300-series stainless steel, this unit is built to withstand heavy use while maintaining its sleek appearance. The foamed-in-place polyurethane insulation and well-wrapped refrigeration coils ensure energy efficiency and consistent performance. Using eco-friendly R290 refrigerant, the component minimizes environmental impact without sacrificing functionality. Designed for flexibility, it accommodates full-size and fractional food pans up to 6 inches deep, with a 2-inch stepped cold-wall recess that maintains NSF compliance by creating a cold-air blanket over food. With features like a built-in ¾-inch integral drain, optional auto-drain capabilities, and flexible mounting options for counters up to 3 inches thick, this innovative solution simplifies installation, cleaning, and operation to keep your kitchen running smoothly.

Rugged 18-gauge, 300-series stainless steel construction for durability
Independent well operation in hot, cold, or frozen modes
Eco-friendly R290 refrigerant with a lower GWP (Global Warming Potential)
User interface with 4' (1.2 m) connection for flexible mounting
Wrapped refrigeration coils for maximum cooling efficiency
Foamed-in-place polyurethane insulation enhances thermal performance
Standard mounting clips included for installation on counters up to 3" (7.6 cm) thick
2" cold-wall recess creates cold-air blanket for NSF compliance
Compatible with full-size and fractional pans up to 6" deep
¾" integral drain simplifies water removal
6' (1.5 m) cord with plug included for easy setup
Made in the USA

Product Specifications

Model Information

Name	Value
UPC	198594074436

Unit Dimensions

Name	Value
(W) Width (IN)	18
(D) Depth (IN)	26
(H) Height (IN)	24.27
(WC) Width Cutout (IN)	17.325
(DC) Depth Cutout (IN)	25.25
(W) Width (CM)	45.7
(D) Depth (CM)	66
(H) Height (CM)	61.6
(WC) Width Cutout (CM)	44
(DC) Depth Cutout (CM)	64.14

Electrical

Name	Value
Amps	5.1
Cord Length (IN)	72
Cord Length (CM)	150
hp	0.25
Plug	NEMA 5-15P
Voltage	120
Watts	625 per well

Weight

Name	Value
Weight (LB)	107
Weight (KG)	48.5

Construction

Name	Value
Number of Wells	1
Refrigerant	R290

Product Parts

Name	Part #	Price
DROP-IN MOUNTING CLIP	44179-1	$3.10
THERMOSTAT HIGH LIMIT	17950-1	$4.70
DRAIN HOSE-5/8"ID HOT WELLS	26907-3	$13.20
HOT WELL DRAIN SCREEN	44406-2	$2.90
HIGH LIMIT THERMOSTAT 125C	25438-1	$23.70
THUMBSCREW 1/4-20 X 2"	23035-3	$4.90
HOSE CLAMP	26681-1	$2.90
KIT 120V 625W ELEMENT	351884-2	$328.40
STRAIN RELIEF - FOR 3/8 CORD	26543-3	$2.00
VALVE BODY DRAIN 2-WAY STEAM	23538-1	$228.80
VALVE ACTUATOR NORMAL CLOSED	23542-1	$599.30
CONNECTOR 2 WIRE WAGO 221-412	4350810-1	$1.40
16 GA. POWER CORD - 120V	26550-1	$23.30
KIT, CONDENSING UNIT	355070-SV	$2,552.26
UI2024221 USER INTERFACE	355529-1	$331.76
KIT ELEC, UMX4121U EMBRACO	356268-1	$241.99
SOLENOID VALVE 1/4 X 1/4 ODF	355157-1	$76.29
FAN MOTOR, UMX4121/4140U	356267-1	$524.34
KIT, HCF RELAY BOARD W/INST	355528-SV	$424.52
KIT, M6000 W/INSTRUCTION	333333-SV	$148.76
PRESSURE TRANSDUCER EMBRACO	356266-1	$453.23
THERMISTOR ASSY, 84" LONG	355531-1	$15.22
VALVE INVERTED FLARE CONNECT	23545-1	$34.90
HOT-COLD PAN LIFTER	46536-2	$130.60
IND. WELL USB CORD ASSM	350183-1	$12.40
