RDCCV-36DI

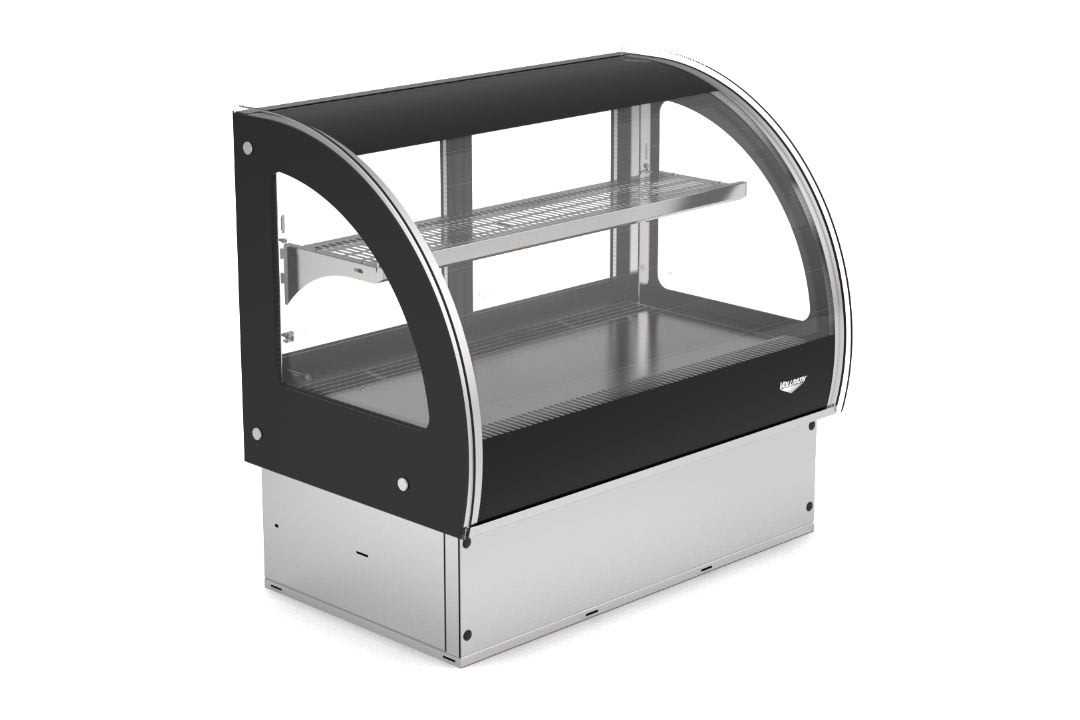

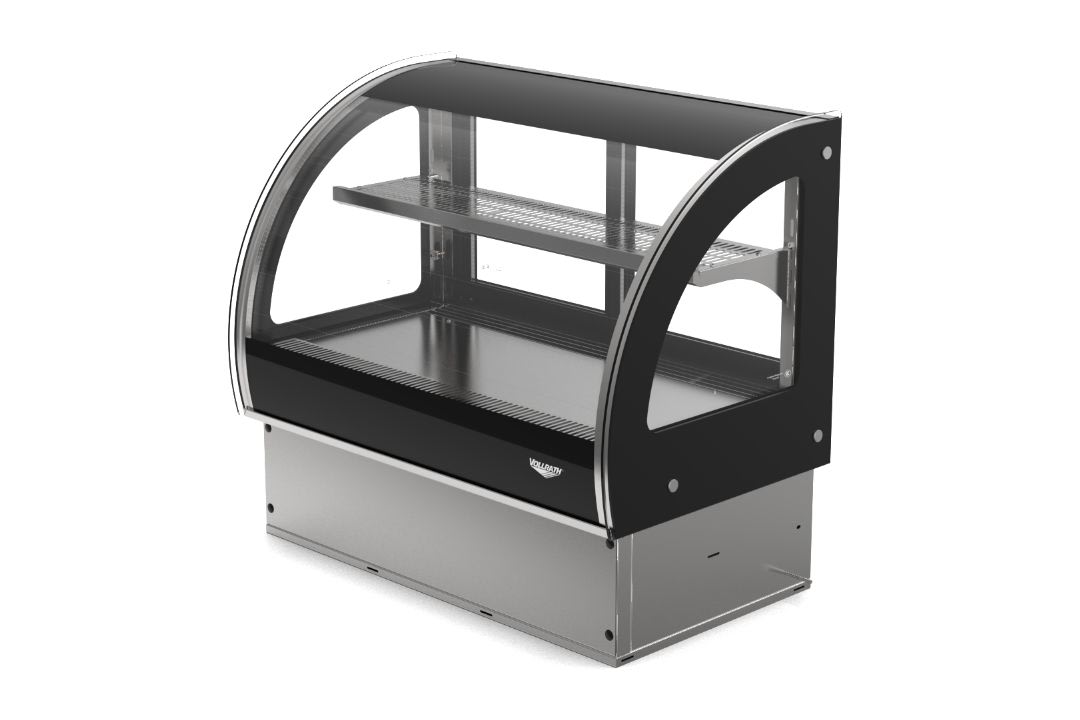

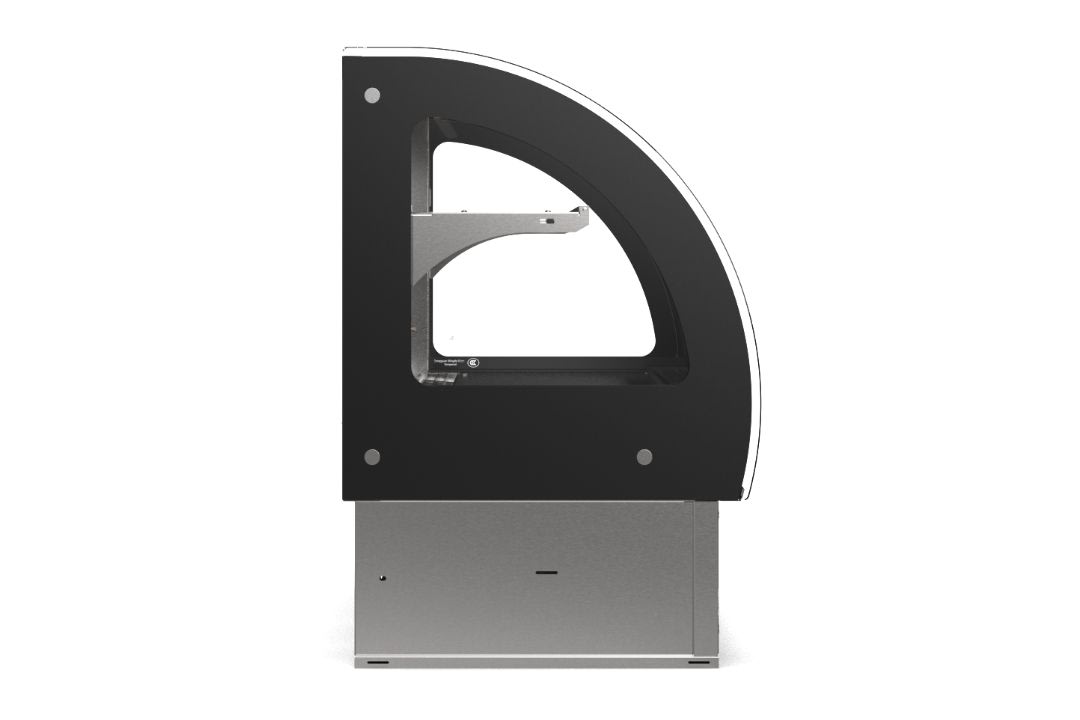

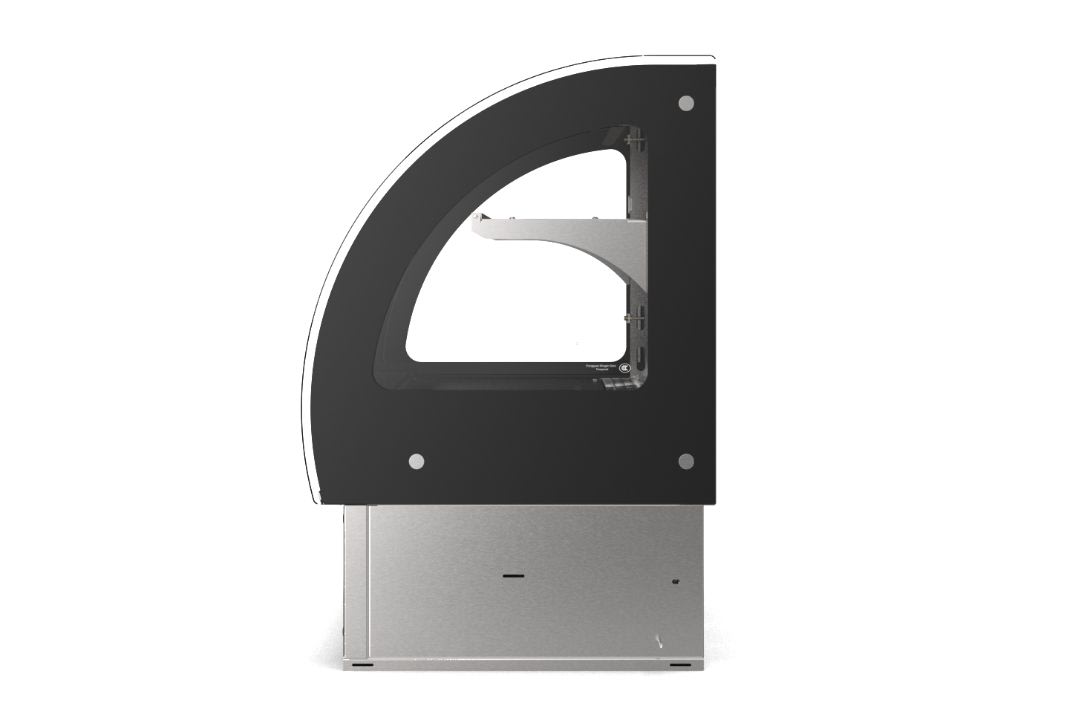

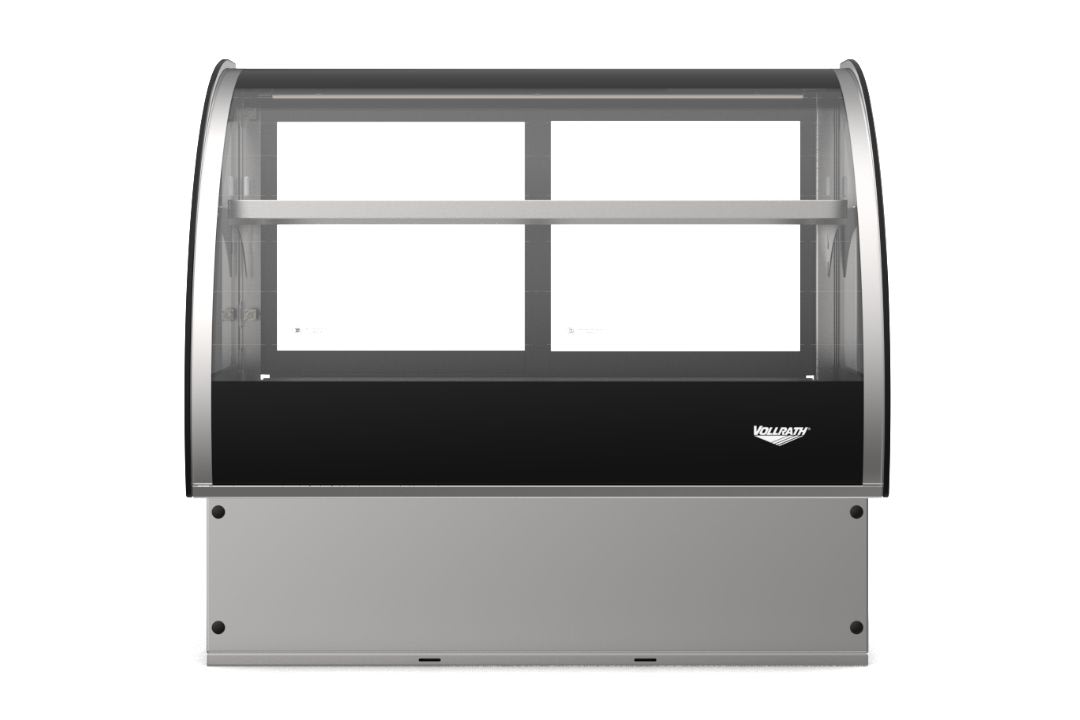

36-inch-wide 120-volt curved-glass drop-in Refrigerated display case with rear access
The UL Energy Verified Mark confirms compliance with requirements and procedures of selected energy efficiency regulations while helping ensure trustworthiness of the resulting data since they have been measured by UL, a trustworthy and independent third party.
$7288.38
MSRP
Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$12,147.30
List Price
List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
With the Vollrath® drop-in refrigerated display case, customers have a clear view of the cool products, not the refrigeration below. Drop it into your space to set the stage for freshness, which is always on display thanks to double-glazed front glass that won’t fog and a floating shelf that’s adjustable to three positions. Serving up 120 volts, its precise digital temperature control, interior lighting at the top and shelf, and easy-access rear sliding doors make the case for must-have convenience. Can be used as a countertop unit too!
- 32°F to 46°F temperature range adds versatility
- Fans circulate air for accurate, even cooling
- Self-contained system offers auto or manual defrost
- Glass heater keeps customer viewing area clear
- Sliding doors lift and remove for easy cleaning
- 6-foot cord allows you to display virtually anywhere
- Digital thermostat on control panel provides precise settings
- Glass heater keeps customer viewing area clear
- Rear sliding doors lift and remove for easy cleaning
- R-290 is a high-performing, environmentally friendly refrigerant
- Standard Vollrath 1 year warranty, 5-year limited warranty on compressor
- UL Energy Verified for Canada
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | RDC9136 |
| UPC | 029419601219 |
Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 35.9 |
| (D) Depth (IN) | 21.5 |
| (D2) Secondary Depth (IN) | 18.8 |
| (H) Height (IN) | 32 |
| (H2) Secondary Height (IN) | 8.7 |
| Top Shelf Depth (IN) | 8.6 |
| Bottom Shelf Depth (IN) | 11.8 |
| (W) Width (CM) | 91 |
| (D) Depth (CM) | 55 |
| (D2) Secondary Depth (CM) | 48 |
| (H) Height (CM) | 81 |
| (H2) Secondary Height (CM) | 22 |
| Top Shelf Depth (CM) | 22 |
| Bottom Shelf Depth (CM) | 30 |
Electrical
| Name | Value |
|---|---|
| Amps | 6.1 |
| Hz | 60 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot Weight (lbs.) | 309.0849 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| 36" LED 0.50M | RDC0084-36L | $155.30 |
| 36" BACK SLDNG DOOR TRACK UP | RDC0128-36 | $90.80 |
| 36" CURVED TOP SHELF ASM | RDC0090-36 | $406.20 |
| 36" EVAPORATOR | RDC0053-36 | $406.20 |
| CONDENSOR FAN | RDC0093 | $182.80 |
| RDE TERMINAL BLOCK | RDC0043 | $80.00 |
| RDE DRY FILTER | RDC0106 | $50.20 |
| EM2X3134U COMPRESSOR | RDC0147S | $567.40 |
| HIGH PRESSURE SWITCH | RDC0195 | $68.10 |
| POWERCORD W/STRAIN RELIEF | RDC0501 | $63.30 |
| 36" CURVED DOOR ASM | RDC0130-36 | $618.80 |
| 36" FAN PANEL ASM | RDC0086-36 | $203.10 |
| 36" AIR OUTLET DUCT | RDC0042-36 | $129.00 |
| REAR DOOR SLIDER BTM WHEEL | RDC0155 | $56.10 |
| EVAPORATOR FAN | RDC0163 | $95.60 |
| CURVED DOOR GASKET | RDC0160 | $64.50 |
| 36" LED 0.15M | RDC0084-36S | $131.40 |
| 36" BACK VENT PANEL REAR | RDC0127-36 | $70.50 |
| 36" REAR AIR GRILL | RDC0088-36 | $102.70 |
| SLOT PLUG, QTY. 4 | RDC0523 | $31.10 |
| COOL HOLDING THERMOMETER | RDC0273 | $57.30 |
| GLASS HARDWARE | RDC0522 | $37.00 |
| CAPACITOR | RDC0112 | $38.20 |
| 36" CURVED BOTTOM SHELF | RDC0089-36 | $131.40 |
| GLASS HEATING POWER | RDC0164 | $76.40 |
| 36" BOTTOM DOOR TRACK | RDC0115-36 | $95.60 |
| POWER FOR LED | RDC0145 | $76.40 |
| 3-PIN LED LIGHT SOCKET | RDC0066 | $53.80 |
| RDE HDE NTC SENSOR | RDC0141 | $23.90 |
| RDE FILTER | RDC0039 | $66.90 |
| DIGITAL CONTROLLER, RDC | RDC0502 | $215.00 |
| RDE CONDENSER | RDC0149 | $569.80 |
| RDCCV-DI END GLASS R ASM | RDC0258 | $657.00 |
| FRONT GLASS KIT, RDCCV-36DI | RDC0504 | $2,387.90 |
| 36" RDCCV-DI FRONT VENT PANEL | RDC0262-36 | $129.00 |
| RDCCV-DI END GLASS L ASM | RDC0259 | $657.00 |
| Heavy Duty 4" Leg | 2351601-1 | $28.90 |
| 36" RDCCV-DI CONDENSING UNIT | RDC0067-36DI | $2,628.10 |
