40842
Discontinued36-inch-wide 120-volt curved-front Cayenne® refrigerated drop-in display case with rear access
The Vollrath® curved-front Cayenne refrigerated drop-in display case chills and displays a variety of food items.
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

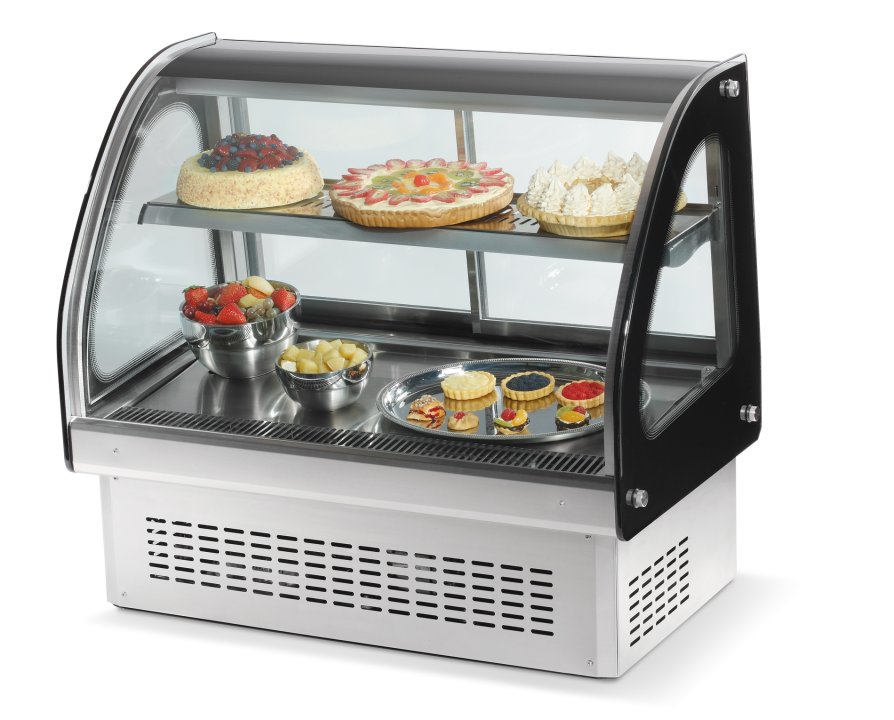

36-inch-wide 120-volt curved-front Cayenne® refrigerated drop-in display case with rear access
The Vollrath® curved-front Cayenne refrigerated drop-in display case chills and displays a variety of food items. The unique design allows this display to be used either as a drop-in or freestanding countertop unit. Precise temperature controls keep items looking and tasting fresh, while durable triple-glazed glass provides excellent insulation and visibility. Rear sliding doors allow easy access, making food selection and restocking simple and convenient. The two shelves provide plenty of room for your products, and the interior lighting optimizes food visibility.
Digitally controlled thermostat allows more accurate cooling
Dual fans circulate air for improved temperature distribution
Temperature ranges from 36°F to 46°F to accommodate a large variety of food products
Rear doors lift out for easy cleaning
3-year limited warranty on compressor
Please note that this item must be shipped by truck
International models have CE certification only
These units utilize R134a refrigerant
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | RDE7136 |
| UPC | 029419728947 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 36 x 20.875 x 31.75 |
| (W) Width (IN) | 36 |
| (WB) Width Base (IN) | 32.75 |
| (W2) Secondary Width (IN) | 1.625 |
| (D) Depth (IN) | 20.87 |
| (DB) Depth Base (IN) | 18.125 |
| (D2) Secondary Depth (IN) | 19 |
| (D3) Additional Depth (IN) | 7.5 |
| (D4) Additional Depth (IN) | 1.375 |
| (H) Height (IN) | 31.75 |
| (H2) Secondary Height (IN) | 23.25 |

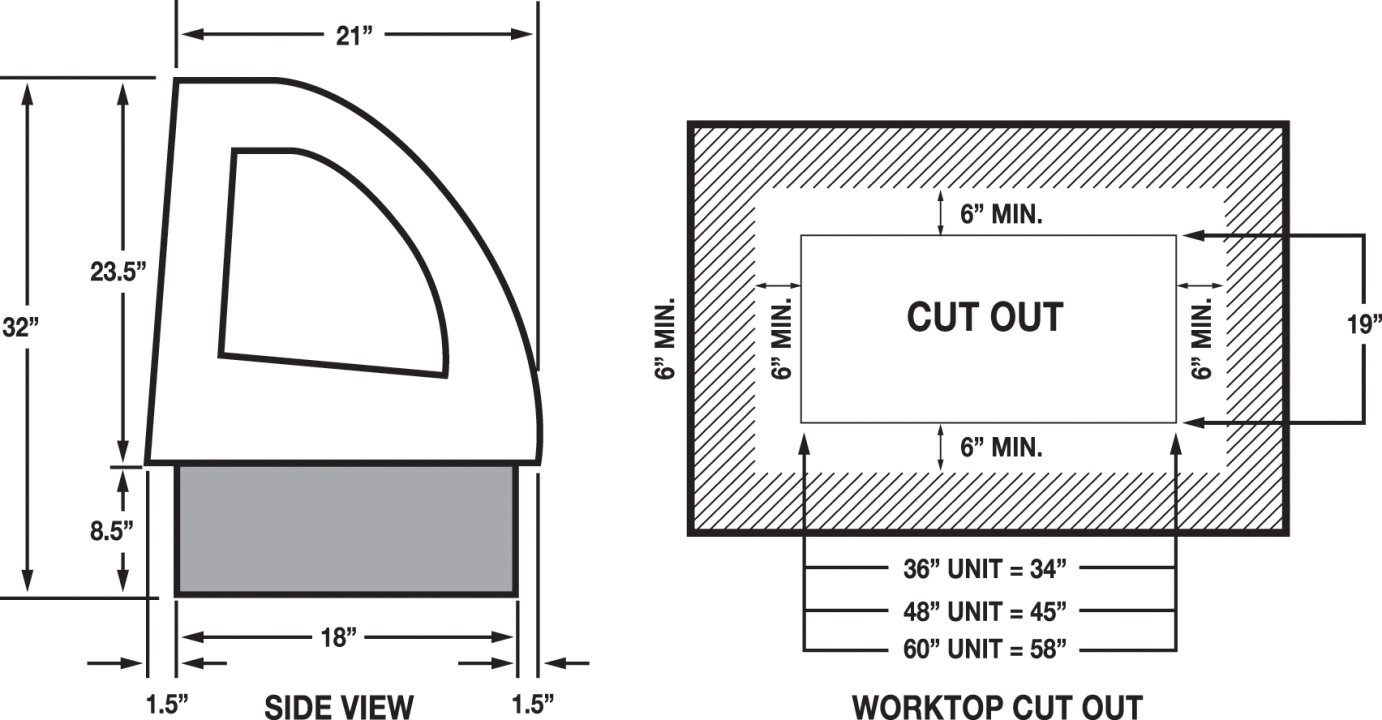

| (WC) Width Cutout (IN) | 34 |
| (DC) Depth Cutout (IN) | 19 |
| (W) Width (CM) | 91.4 |
| (WB) Width Base (CM) | 83.2 |
| (W2) Secondary Width (CM) | 4.1 |
| (D) Depth (CM) | 53 |
| (DB) Depth Base (CM) | 46 |
| (D2) Secondary Depth (CM) | 48.3 |
| (D3) Additional Depth (CM) | 19 |
| (D4) Additional Depth (CM) | 3.5 |
| (H) Height (CM) | 80.6 |
| (H2) Secondary Height (CM) | 59.1 |
| (WC) Width Cutout (CM) | 86.3 |
| (DC) Depth Cutout (CM) | 48.2 |
| Size | 36 |
Electrical
| Name | Value |
|---|---|
| Amps | 3.4 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 183 |
| hp | 1/5 |
| Hz | 60 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 210 |
| Weight (KG) | 95.3 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 37.5 |
| Case Height | 38 |
| Case Length | 23.75 |
| Case Lot Cube (ft.) | 19.59 |
| Case Lot Weight (lbs.) | 230.0 |
