CB98637

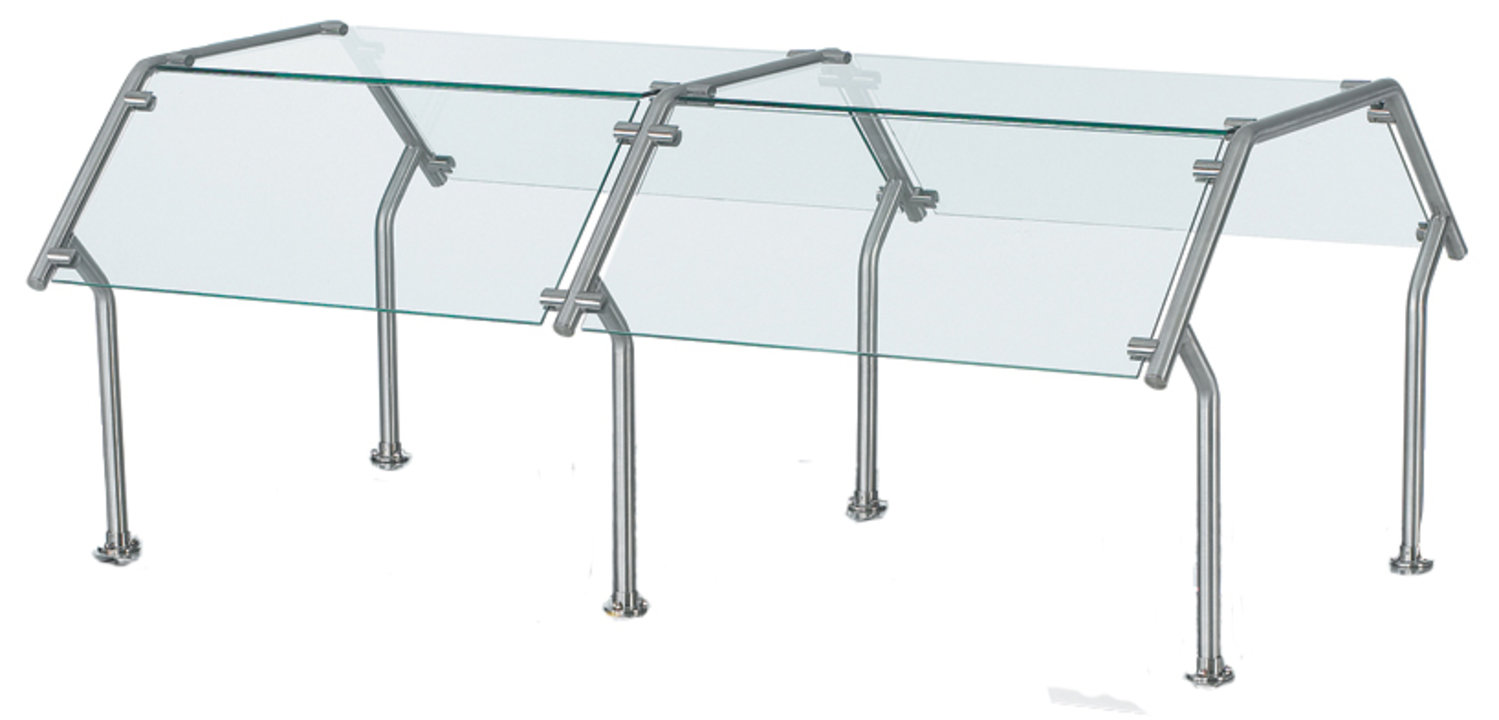

Standard Contemporary Breath Guard
These breath guards can be used with Signature Server® and V-class bases, as well as drop-ins.
47-inch Standard Contemporary Breath Guards
These breath guards can be used with Signature Server® and V-class bases, as well as drop-ins. They are available in Standard and NSF certified models. For more information and detailed dimensions, please reference our spec sheets.
1" (2.5 cm) stainless steel tubular construction is sleek, durable, easy to clean, and enhances food presentation
3/8" (9.5 mm) tempered glass with polished ends protects food
Standard 2 through 6 well configurations fit most popular drop-in models - custom sizes also available
Available in brushed standard Gray Hammer, brass, or black finishes
Accessories include florescent lights, Cayenne Heat Strips, and Cayenne Heat Strips with Lights. Electrical appliances are UL and CUL listed
Shipped knocked down for lower shipping costs
Easy to assemble and install - instructions and mounting materials included
Mounts to stainless steel, solid surface, and laminate counter tops
Food safe and meets sanitation requirements
Important: Specify 14 gauge stainless steel counter tops when using Contemporary Breath Guards
*Information below is not complete. For detailed specifications and step-by-step ordering instructions, please see PDF spec sheet attachment on resources tab below
NOTE: Item made to order, cannot be cancelled or returned.
Color shown in image may differ from options available for specific item
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419650354 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 47 x 36 x 23.75 |
| (W) Width (IN) | 47 |
| (D) Depth (IN) | 36 |
| (H) Height (IN) | 23.75 |
| (W) Width (CM) | 119.4 |
| (D) Depth (CM) | 91.4 |
| (H) Height (CM) | 60.3 |
Construction
| Name | Value |
|---|---|
| Component Type | Breath Guard Choice |
| Installation | Variety of Countertop Options |
| NSF Compliant | No |
| Breath Guard Function | Double-Sided Buffet |
| Breath Guard - Design Style | Contemporary Style |
| Pairs with 2-Series Front-of-House | Yes |
| Pairs with 4-Series Front-of-House | Yes |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 0 |
| Case Height | 0 |
| Case Length | 0 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| 5/16-24 X 5/16 NYLON-TIP | 350435-1 | $6.20 |
