72788
Cayenne Heat N Serve Rethermalizer
Maximize your serving capacity with the Vollrath® Cayenne model T43R Heat 'N Serve rethermalizer kit.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

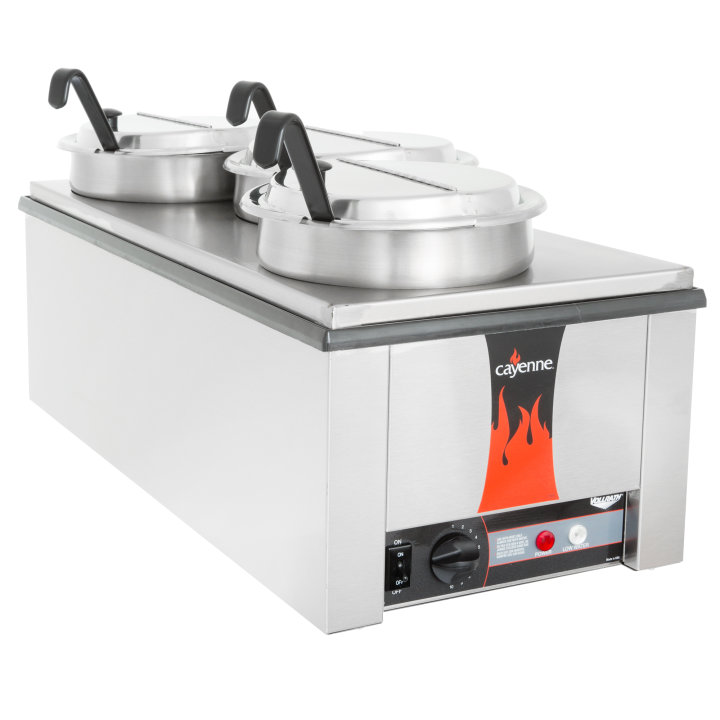

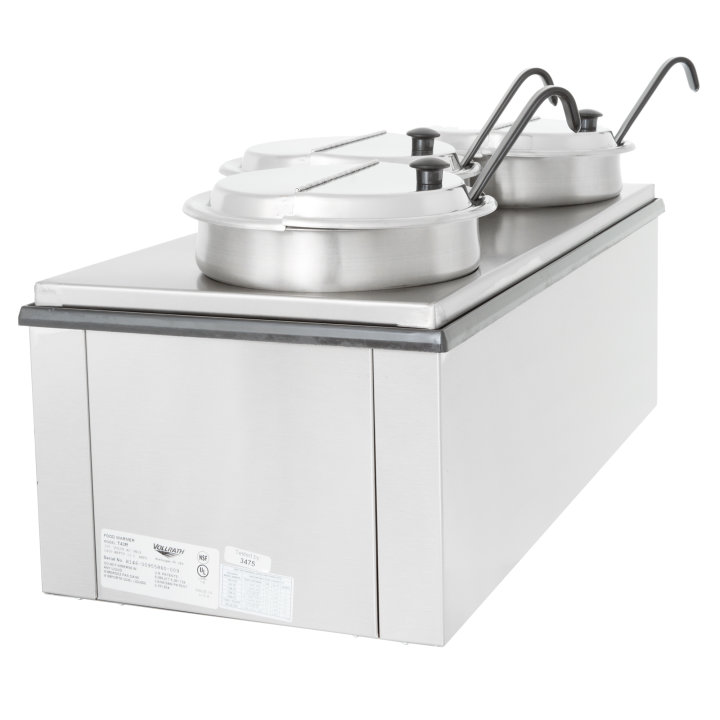

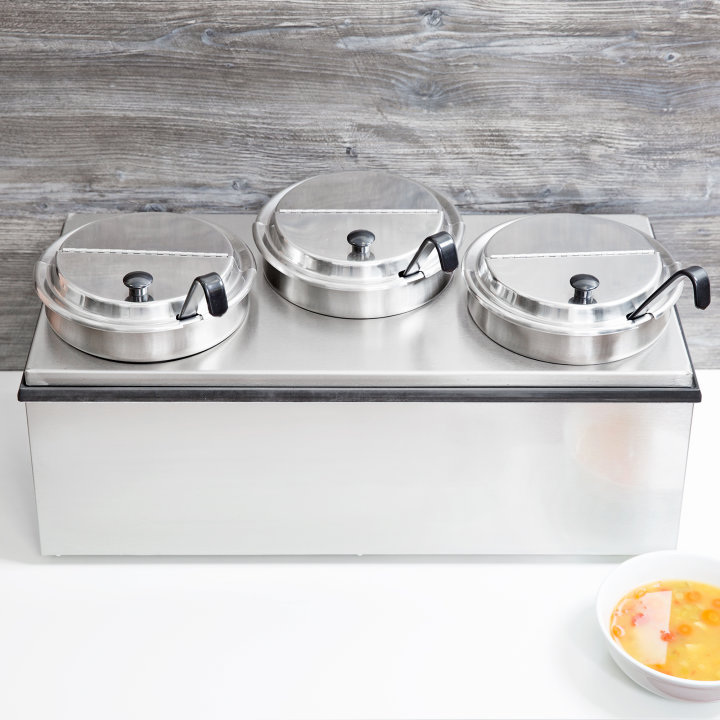

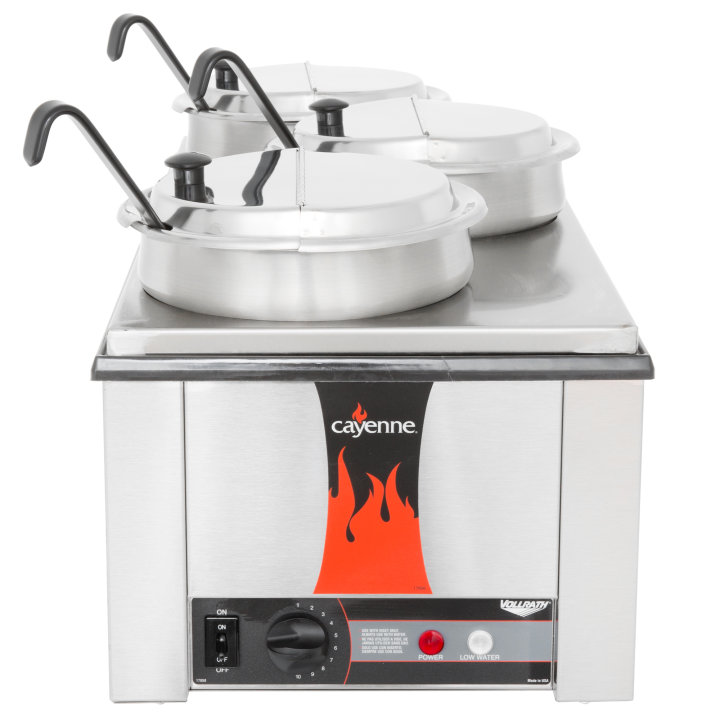

120-volt Cayenne® model T43R Heat 'N Serve countertop rethermalizer kit
Maximize your serving capacity with the Vollrath® Cayenne model T43R Heat 'N Serve rethermalizer kit. The oversized well is made of thermoset fiber-reinforced self-insulating resin, increasing energy efficiency. With the direct contact heating system, this rethermalizer uses up to 25 percent less energy and quickly heats your food. A capillary tube thermostat ensures temperature accuracy, and the recessed controls and switches prevent accidental adjustment. The low-water light and power indicator light keep you informed, and a drain keeps cleaning simple. The dual 800-watt elements have a nonstick surface to prevent scale buildup, reduce cleaning time, and extend the life of this unit. The bottom-exit power cord provides flexibility in countertop placement, increasing the versatility of this compact, powerful rethermalizer.
Easily rethermalize multiple foods at once
Durable stainless steel exterior makes cleaning easy and efficient
Wide no-drip lip keeps countertops dry and returns condensation to well
Adapter bars (Item 75012 sold separately) recommended to reduce evaporation and conserve energy

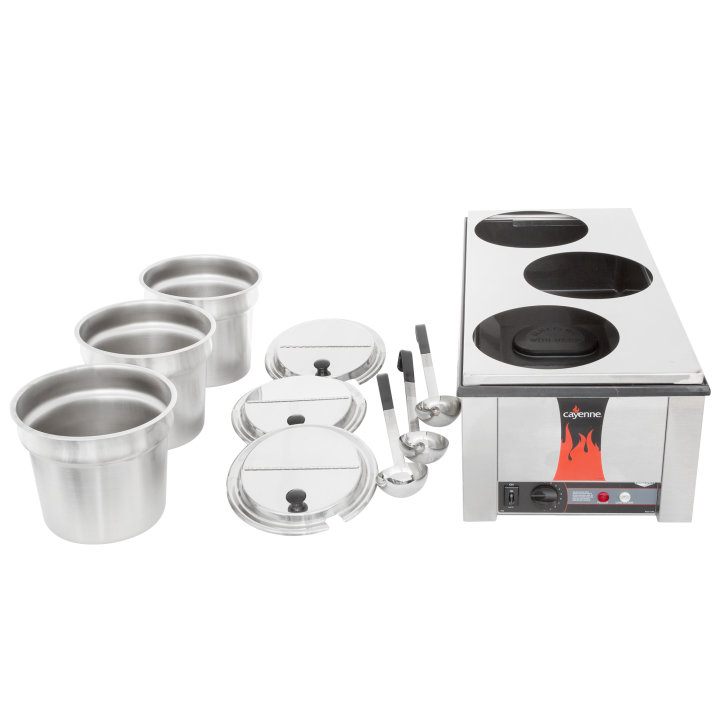

Accessory kit includes: one 19188 adapter plate, three 78184 insets, three 47488 hinged inset covers, and three 4980420 heavy-duty 4-ounce black Kool-Touch® ladles
800-watt elements allow for fast heating and recovery times
28 3/4” x 13 3/4” well fits four third-size food pans up to 6 inches deep, creating a serving capacity that is 33 percent greater than full-size warmers
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | T43R |
| UPC | 029419724253 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 13.75 x 28.75 x 9.75 |
| (W) Width (IN) | 13.75 |
| (D) Depth (IN) | 28.75 |
| (H) Height (IN) | 9.75 |
| Usable Height (IN) | 6.875 |
| (W) Width (CM) | 34.9 |
| (D) Depth (CM) | 73 |
| (H) Height (CM) | 24.8 |
| Usable Height (CM) | 17.5 |
Electrical
| Name | Value |
|---|---|
| Amps | 13.3 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 183 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 1600 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 19.5 |
| Case Height | 15.25 |
| Case Length | 34.24 |
| Case Lot Cube (ft.) | 5.89 |
| Case Lot Weight (lbs.) | 51.7 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| HI LIMIT ASSEMBLY | 44407-2 | $21.80 |
| TIMER/CONTROL KNOB (F/17170) | 17388-1 | $7.00 |
| SILICONE D-HEATER GASKET | 178681-1 | $17.90 |
| SWITCH 20A ROCKER - DPST | 2325401-1 | $20.10 |
| SCREW THREAD ROLLING 10-32 | 17014-3 | $0.80 |
| THERMOSTAT HIGH LIMIT | 17950-1 | $5.20 |
| CORDSET 14AWG SJTOW | 17847-1 | $42.10 |
| HIGH LIMIT SWITCH | 17504-1 | $11.50 |
| HIGH LIMIT THERMOSTAT 125C | 25438-1 | $23.70 |
| POWER SWITCH SPST 125V NON-ILL | 2515840-1 | $16.10 |
| .625" BULLET FOOT | 23754-1 | $3.30 |
| HIGH LIMIT SWITCH BRACKET | 44459-2 | $2.20 |
| 90 DEG STRAIN RELIEF | 17872-3 | $5.80 |
| KOOL-TOUCH KNOB | 22470-1 | $3.20 |
| THERMOSTAT SHORT CAPIL. EGO | 17074-1 | $103.40 |
| POP RIVET .125 DIA | 23686-3 | $1.70 |
| NUT KEPS #6-32 | 17019-3 | $0.80 |
| PILOT LIGHT - BLUE 125V | 1755901-1 | $6.70 |
| REG THERMOSTAT FSTB 390MM 121C | 355162-1 | $35.90 |
| HEATER CAST 800W 120V | 44287-1 | $125.80 |
| LEG - PHENOLIC BLACK | 17416-1 | $13.00 |
| PILOT LIGHT - RED 125V | 17559-1 | $6.50 |
Product Downloads
CAD / REVIT
