72055
Cayenne Heat N Serve Rethermalizer
Maximize your serving capacity with the Vollrath® four-third-size Cayenne model T43R Heat 'N Serve rethermalizer.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

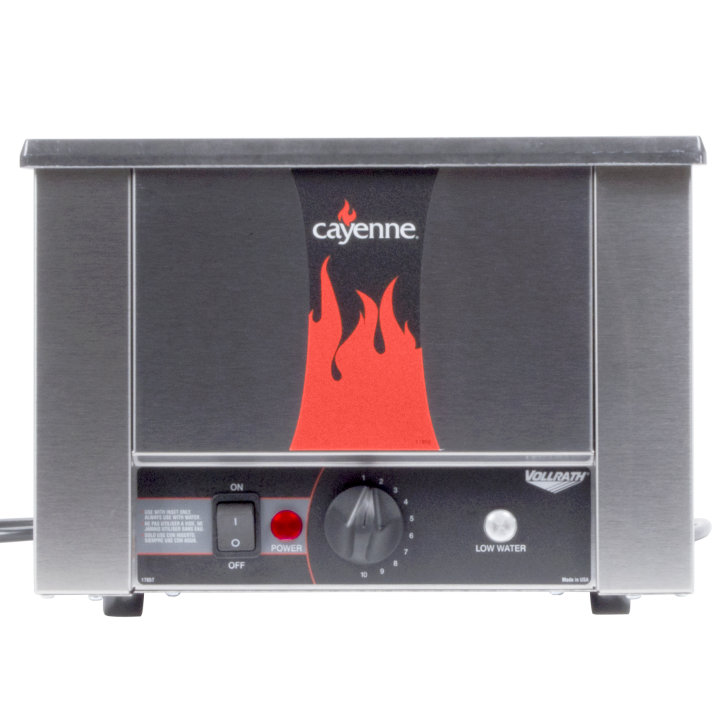

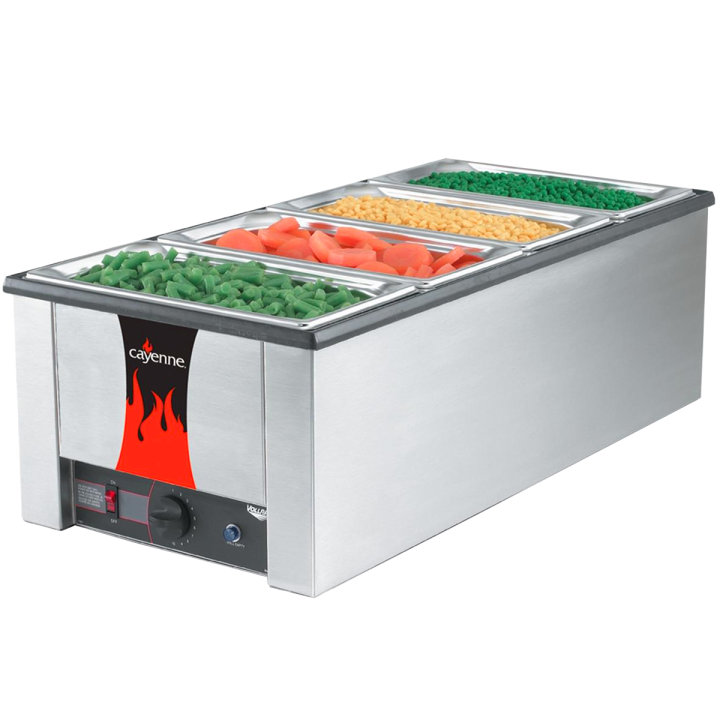

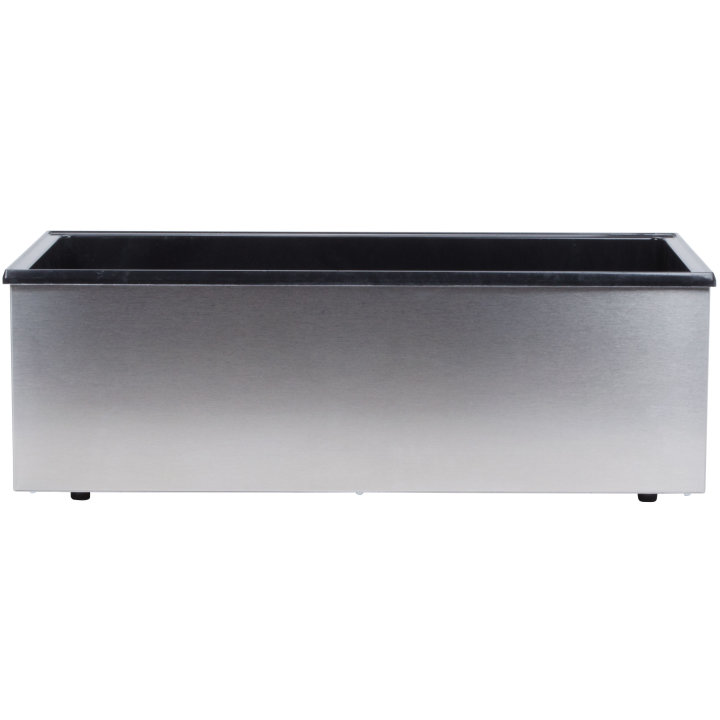

Four-third-size 120-volt Cayenne® model T43R Heat 'N Serve countertop rethermalizer

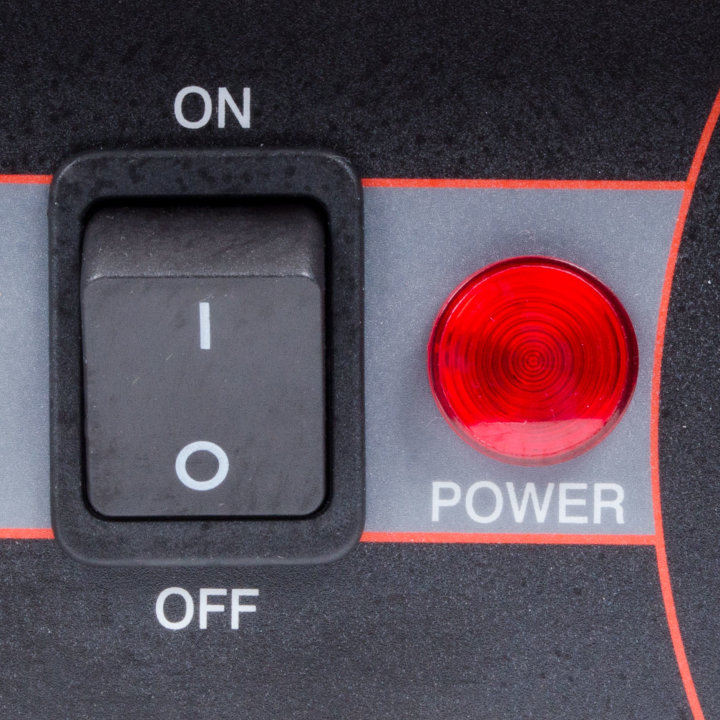

Maximize your serving capacity with the Vollrath® four-third-size Cayenne model T43R Heat 'N Serve rethermalizer. This unit has a 5-20P plug and is intended for use in Canada. The oversized well is made of thermoset fiber-reinforced self-insulating resin, increasing energy efficiency. With the direct-contact heating system, this rethermalizer uses up to 25 percent less energy and quickly heats your food. A capillary tube thermostat ensures temperature accuracy, and the recessed controls and switches prevent accidental adjustment. The low-water light and power indicator light keep you informed, and the dual 800-watt elements have a nonstick surface to prevent scale buildup, reduce cleaning time, and extend the life of this unit. The bottom-exit power cord provides flexibility in countertop placement, increasing the versatility of this compact, powerful rethermalizer.
Easily rethermalize multiple foods at once
Durable stainless steel exterior makes cleaning easy and efficient
Wide no-drip lip keeps countertops dry and returns condensation to well
Adapter bars (Item 75012 sold separately) recommended to reduce evaporation and conserve energy
Adapter plate (Item 19188 sold separately) with three 8 3/8-inch-diameter holes for 7 1/4-quart round insets
800-watt elements allow for fast heating and recovery times
28 3/4” x 13 3/4” well fits four third-size food pans up to 6 inches deep, creating a serving capacity that is 33 percent greater than full-size warmers
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | T43R |
| UPC | 029419429073 |

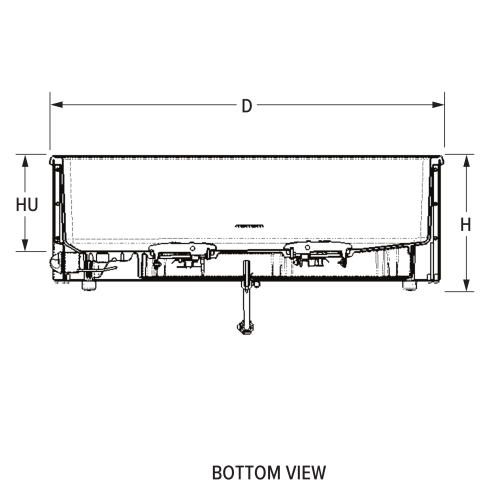

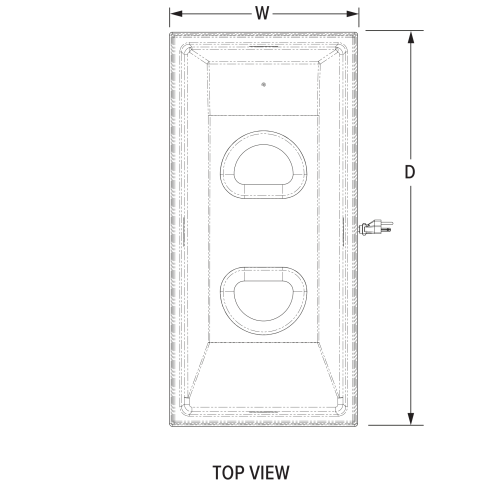

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 13.75 x 28.75 x 9.75 |
| (W) Width (IN) | 13.75 |
| (D) Depth (IN) | 28.75 |
| (H) Height (IN) | 9.75 |
| Usable Height (IN) | 6.875 |
| (W) Width (CM) | 34.9 |
| (D) Depth (CM) | 73 |
| (H) Height (CM) | 24.8 |
| Usable Height (CM) | 17.5 |
| Size | Third |
Electrical
| Name | Value |
|---|---|
| Amps | 13.3 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 183 |
| Plug | NEMA 5-20P |
| Voltage | 120 |
| Watts | 1600 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 17.5 |
| Case Height | 10.25 |
| Case Length | 32.5 |
| Case Lot Cube (ft.) | 3.38 |
| Case Lot Weight (lbs.) | 32.42 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| HI LIMIT ASSEMBLY | 44407-2 | $21.80 |
| TIMER/CONTROL KNOB (F/17170) | 17388-1 | $7.00 |
| THERMOSTAT HIGH LIMIT | 17950-1 | $5.20 |
| SILICONE D-HEATER GASKET | 178681-1 | $17.90 |
| POWER CORD 120V NEMA 5-20P 72" | 17860-1 | $40.60 |
| POWER SWITCH SPST 125V NON-ILL | 2515840-1 | $16.10 |
| SWITCH 20A ROCKER - DPST | 2325401-1 | $20.10 |
| SCREW THREAD ROLLING 10-32 | 17014-3 | $0.80 |
| HIGH LIMIT THERMOSTAT 125C | 25438-1 | $23.70 |
| HIGH LIMIT SWITCH | 17504-1 | $11.50 |
| .625" BULLET FOOT | 23754-1 | $3.30 |
| HIGH LIMIT SWITCH BRACKET | 44459-2 | $2.20 |
| POP RIVET .125 DIA | 23686-3 | $1.70 |
| HEATER CAST 800W 120V | 44287-1 | $125.80 |
| REG THERMOSTAT FSTB 390MM 121C | 355162-1 | $35.90 |
| 90 DEG STRAIN RELIEF | 17872-3 | $5.80 |
| THERMOSTAT SHORT CAPIL. EGO | 17074-1 | $103.40 |
| NUT KEPS #6-32 | 17019-3 | $0.80 |
| PILOT LIGHT - BLUE 125V | 1755901-1 | $6.70 |
| LEG - PHENOLIC BLACK | 17416-1 | $13.00 |
| PILOT LIGHT - RED 125V | 17559-1 | $6.50 |
Product Downloads
CAD / REVIT
