72033

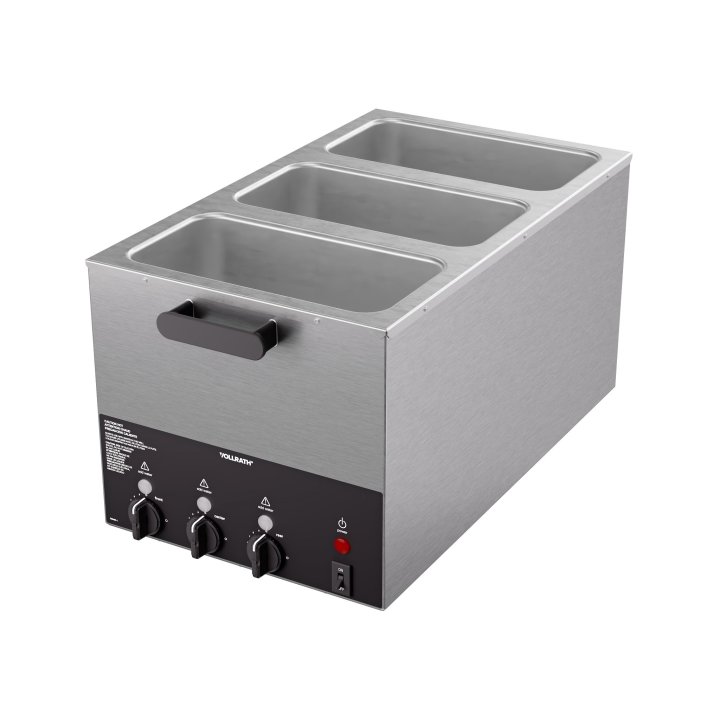

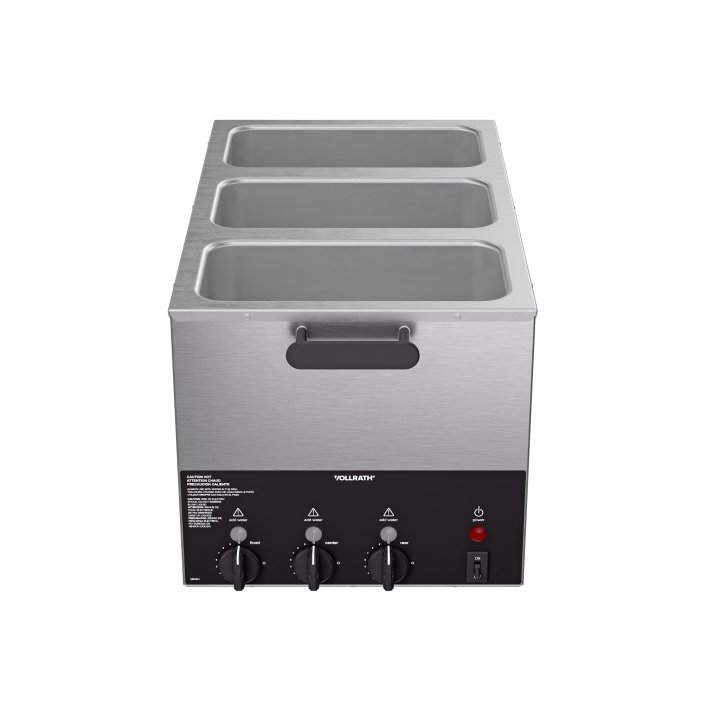

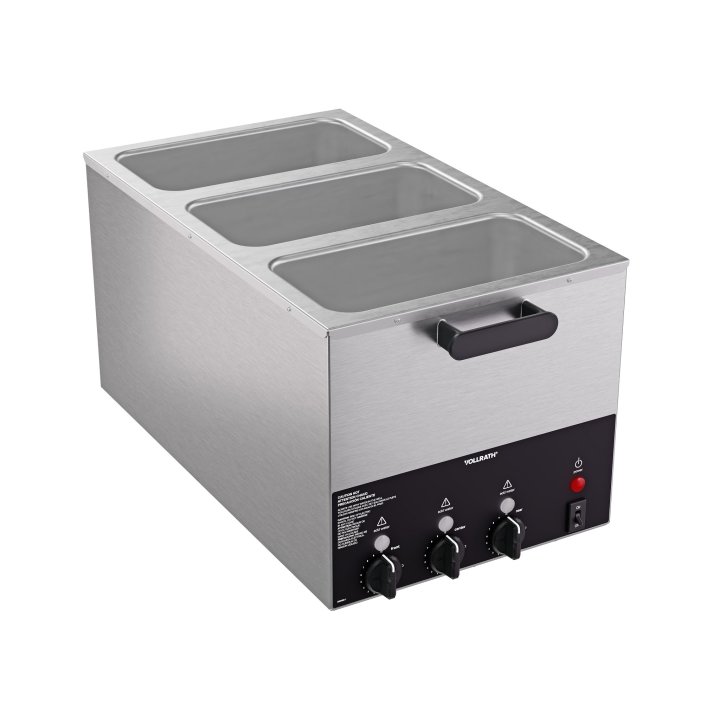

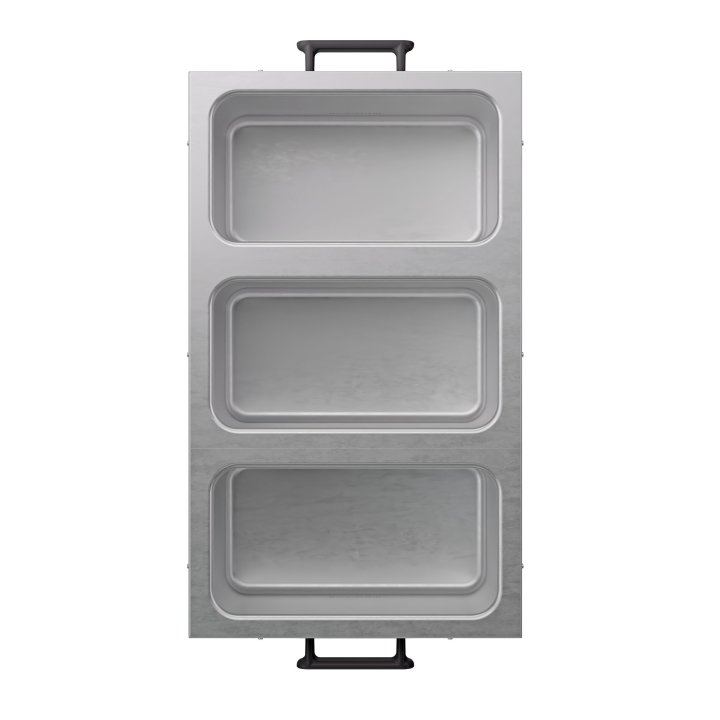

120-volt 3-well rethermalizer
With three independently controlled third-size wells, this powerful and flexible rethermalizer quickly heats a variety of cold prepared foods and holds each item at proper serving temperatures to maximize food quality and safety and minimize food waste, which saves money.
Certified to NSF4
This symbol represents products that are certified to meet specific environmental and public health standards. The UL EPH Mark is recognized and accepted as a trusted source for assessing the sanitary design, construction and performance of commercial food equipment. If it shows the word “Classified” above the UL mark, then the product also complies with ANSI/NSF regulations.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
120-volt 3-well rethermalizer
With three independently controlled third-size wells, this powerful and flexible rethermalizer quickly heats a variety of cold prepared foods and holds each item at proper serving temperatures to maximize food quality and safety and minimize food waste, which saves money. Serving as an extra hand in your commercial kitchen, it can rethermalize or hold three different menu items at different temperature settings, all in the footprint of one unit. Each versatile well holds third- or sixth-size pans up to 6 inches deep for maximum flexibility. Impressive heating and simple controls make it ideal for any professional foodservice operation, providing an easy, energy-efficient way to rethermalize soups, sides, sauces, pasta, beef, poultry and more without the guesswork.
Three independently controlled third-size wells in one compact unit
Rethermalizes and holds up to three different menu items
Easy-access front dials with 10 temperature settings
Temperatures range from 104-212°F (40-100°C)
Each efficient thermostat heats only when needed
Separate add-water indicator for each well
Meets NSF 4 performance requirements for hot food holding
Durable, easy-to-clean stainless exterior and wells
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | 33W-120 |
| UPC | 198594187877 |

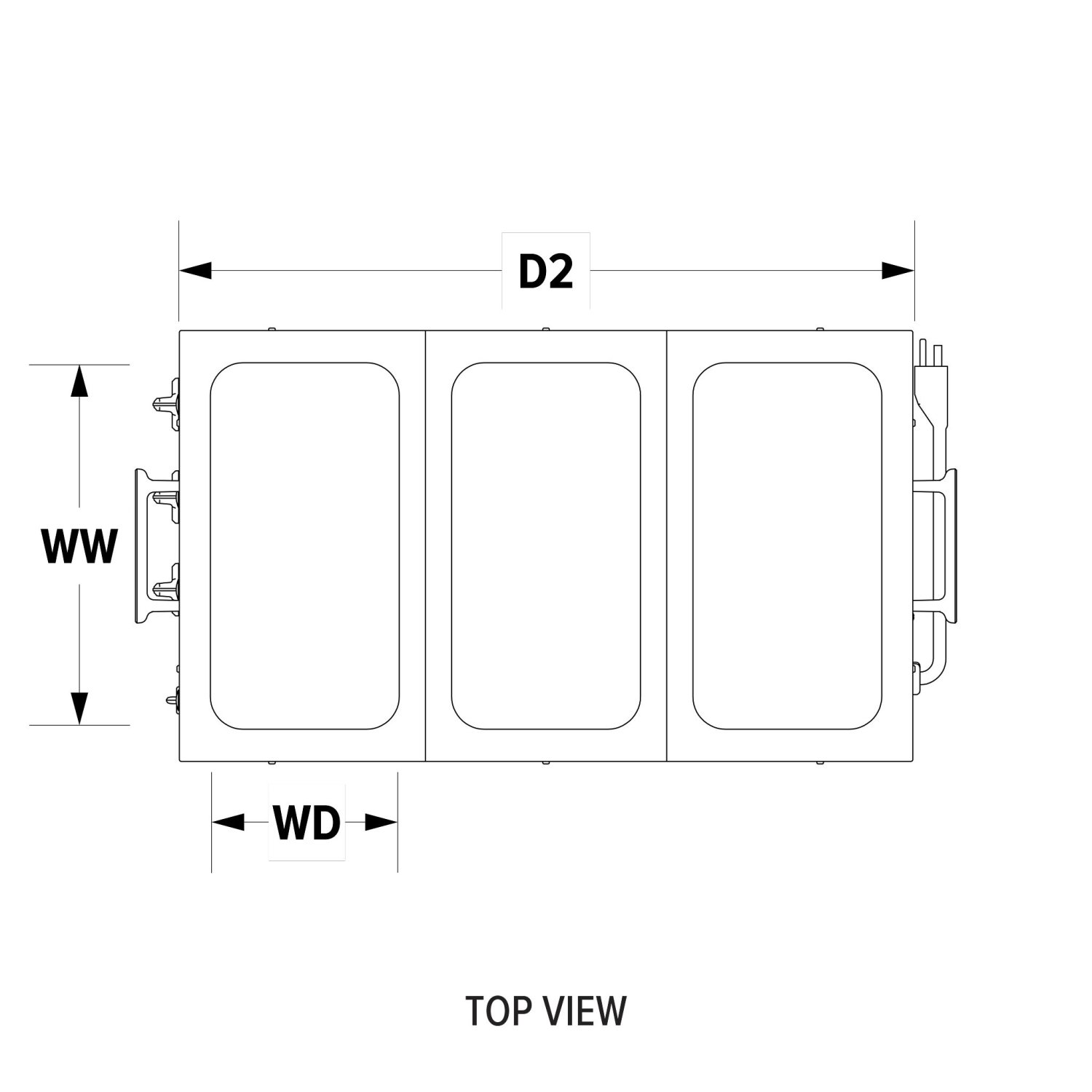

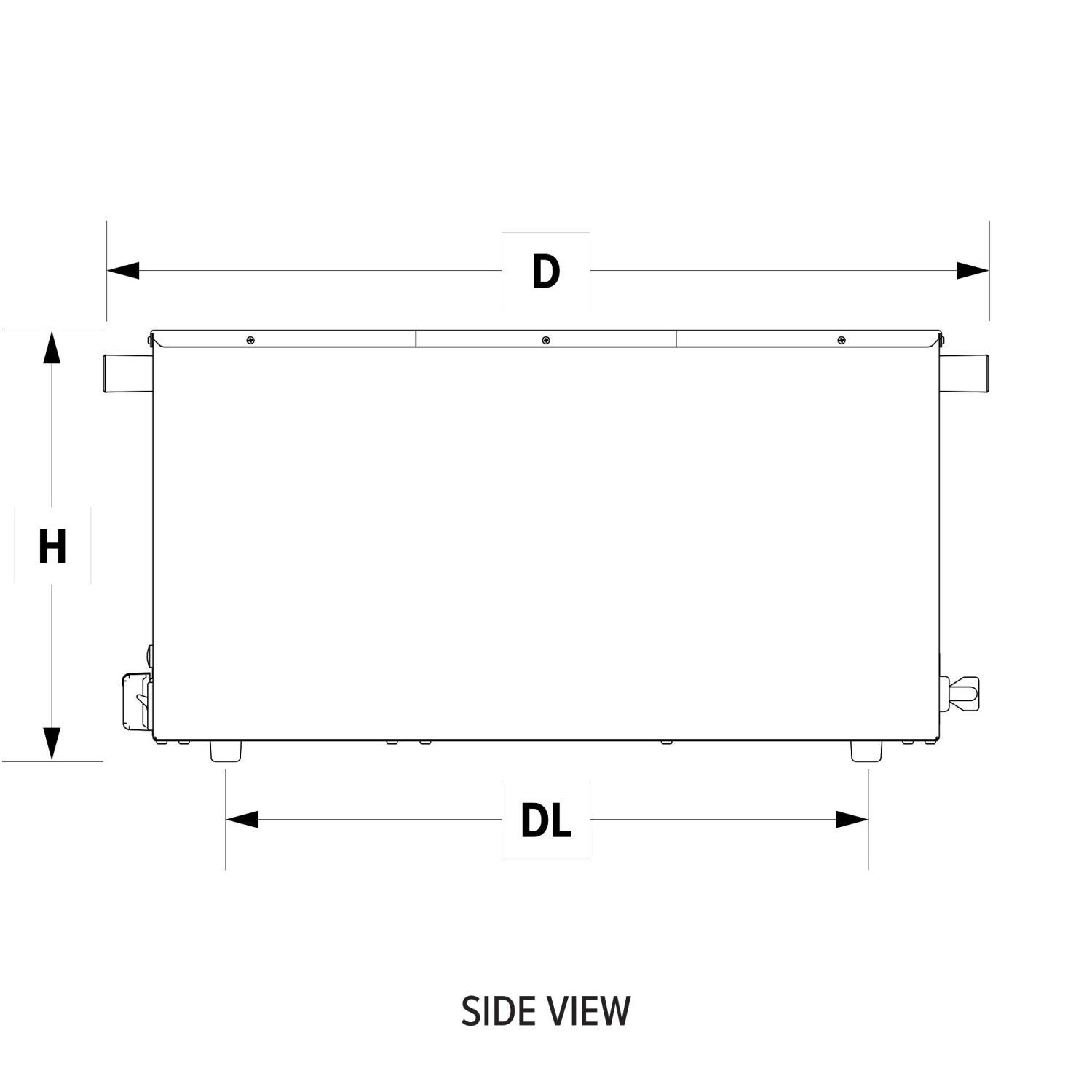

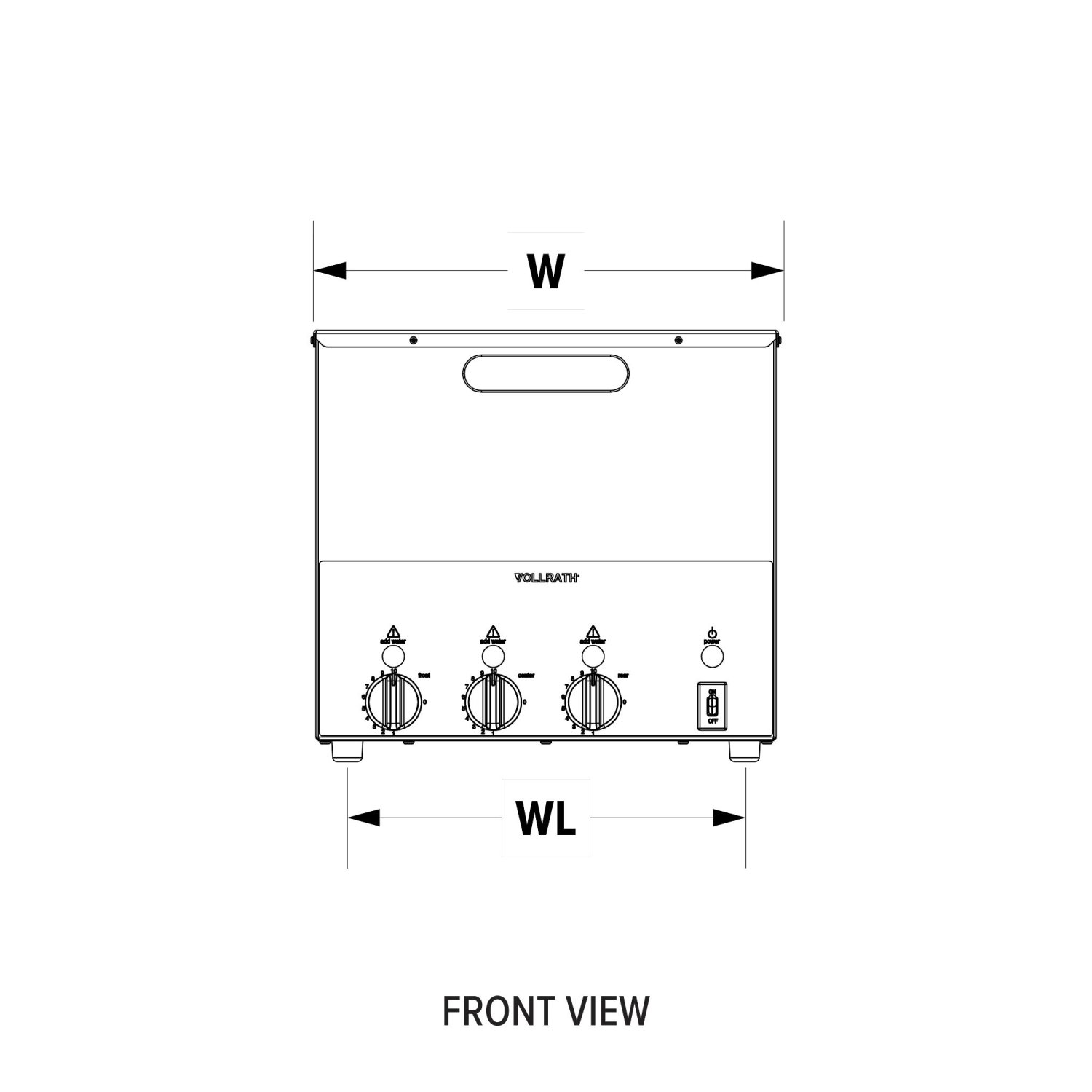

Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 14 |
| (WW) Well Width (IN) | 11.9 |
| (D) Depth (IN) | 26.6 |
| (D2) Secondary Depth (IN) | 26.6 |
| (WD) Well Depth (IN) | 6.1 |
| (H) Height (IN) | 13 |
| (WL) Width between legs | 12.8 |
| (DL) Depth between legs | 20.1 |
| (W) Width (CM) | 35.5 |
| (WW) Well Width (CM) | 30.2 |
| (D) Depth (CM) | 67.6 |
| (D2) Secondary Depth (CM) | 67.6 |
| (WD) Well Depth (CM) | 15.5 |
| (H) Height (CM) | 32.9 |
| (WL) Width between legs (CM) | 32.6 |
| (DL) Depth between legs (CM) | 51.1 |
Electrical
| Name | Value |
|---|---|
| Amps | 10.0 |
| Hz | 50/60 |
| Plug | 5-15P |
| Voltage | 120 |
| Watts | 1200 |
| Watts per Well | 400 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 45 |
| Weight (KG) | 20.41 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 18.25 |
| Case Height | 15.63 |
| Case Length | 30.0 |
| Case Lot Cube (ft.) | 4.95 |
| Case Lot Weight (lbs.) | 45.0 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| 14 Ga Straight Strain Relief | B400320 | $8.00 |
| NUT W/WASHER #10-24 ZINC PLT | 21574-3 | $0.70 |
| POWER SWITCH SPST 125V NON-ILL | 2515840-1 | $16.10 |
| RELAY POWER | 25357-1 | $21.20 |
| NUT KEPS #6-32 | 17019-3 | $0.80 |
| Control Knob | 351788-06-1 | $7.60 |
| NIGHT COVER HANDLE | 351802-02-1 | $6.40 |
| CORDSET 14AWG SJTOW | 17847-1 | $42.10 |
| .625" BULLET FOOT | 23754-1 | $3.30 |
| PILOT LIGHT - RED 125V | 17559-1 | $6.50 |
| 3-WELL HEAT SINK | 356482-2 | $15.00 |
| 3-WELL ELEMENT COVER | 356483-2 | $86.00 |
| 3-WELL WIRING HARNESS | 356522-1 | $290.00 |
| INSULATION - 12.0" | 356488-2 | $6.00 |
| 3-WELL BOTTOM PANEL SPARE | 356491-2 | $136.00 |
| 3-WELL T-STAT BRACKET SPARE | 356492-2 | $74.00 |
| 3-WELL OVERLAY | 356480-1 | $25.00 |
| #10 ID X 5/16 OD X 5/8 SPACER | 356530-1 | $5.00 |
| REG THERMOSTAT FSTB 870MM 121C | 356531-1 | $25.00 |
| INSULATION - 23.5" | 356484-2 | $8.00 |
| 3-WELL RETHERM OPS MANUAL | 356528-1 | $3.00 |
| 3-WELL HEAT SHIELD | 356529-2 | $45.00 |
| THERMOSTAT HIGH LIMIT | 17950-1 | $5.20 |
| HEATING ELEMENT - 120V, 400W | 356486-1 | $45.00 |
| PILOT LIGHT - BLUE 125V | 1755901-1 | $6.70 |
| REG THERMOSTAT FSTB 390MM 121C | 355162-1 | $35.90 |
