HFM-26

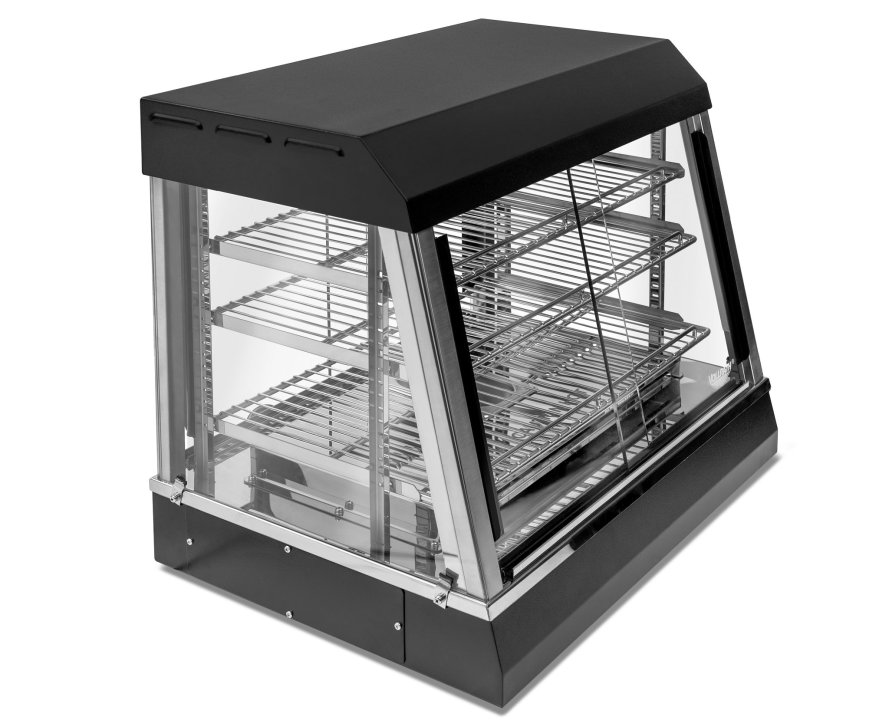

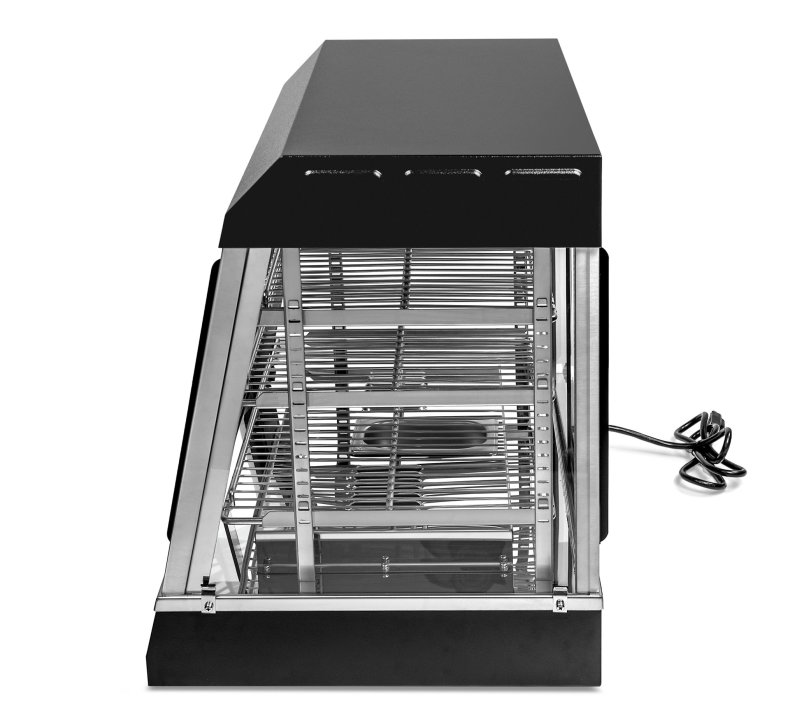

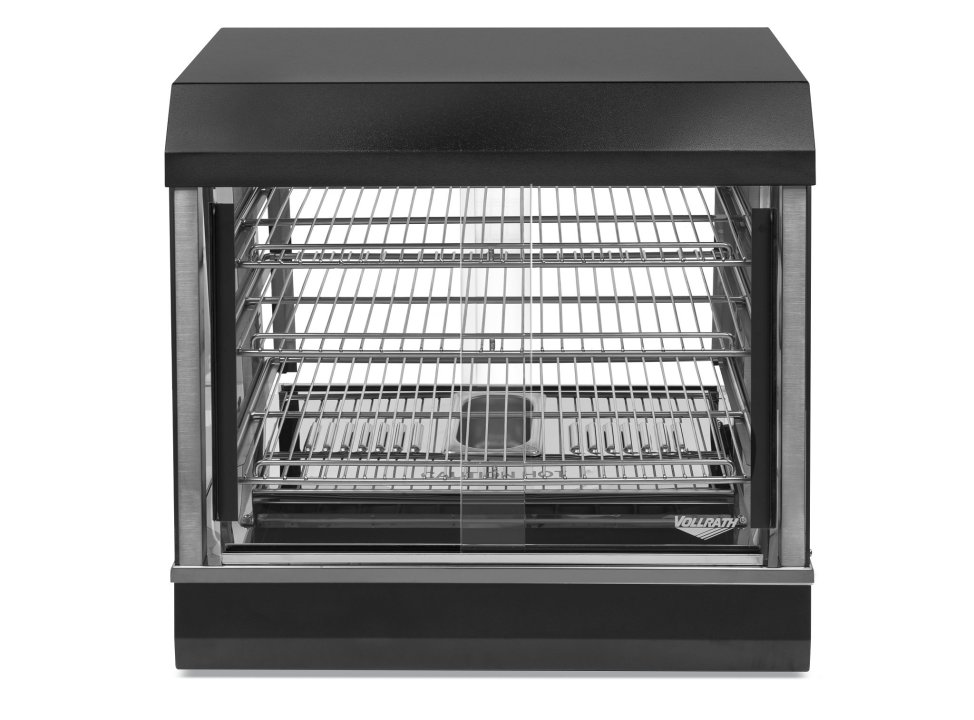

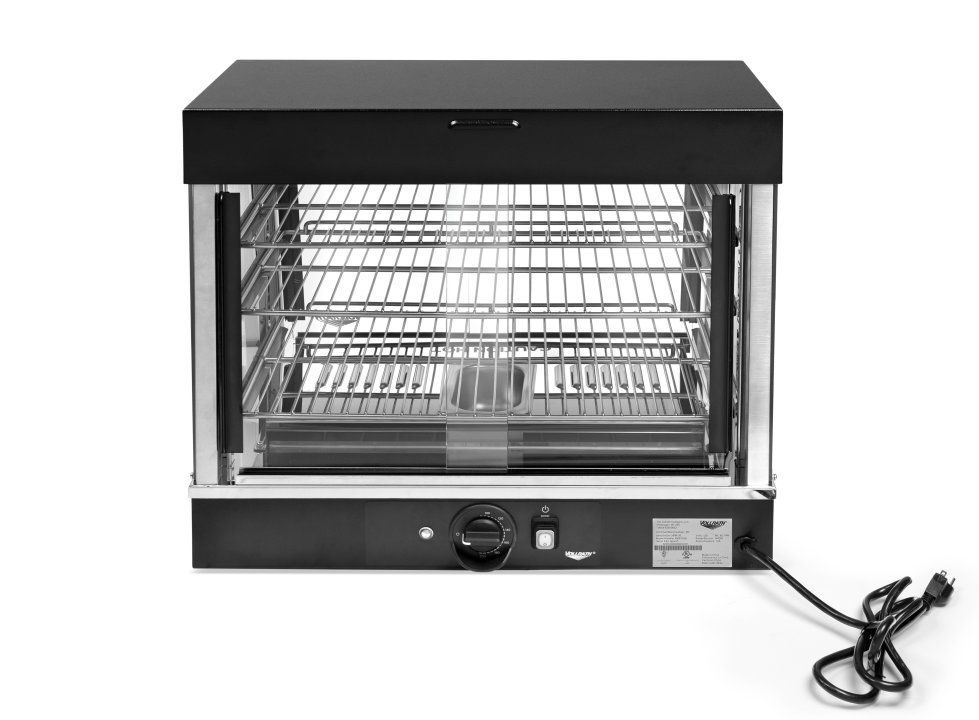

26-inch-wide 120-volt angled-front heated display case with front and rear access in black
-
Classified by UL to NSF/ANSI 4
This symbol represents products that are certified to meet specific environmental and public health standards. The UL EPH Mark is recognized and accepted as a trusted source for assessing the sanitary design, construction and performance of commercial food equipment. If it shows the word “Classified” above the UL mark, then the product also complies with ANSI/NSF regulations.
-
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
Angled-front heated display case keeps hot food looking and tasting its best. Precise temperature and humidity controls help ensure food safety and freshness, with front and rear sliding doors for grab-and-go customer convenience and easy restocking. Three adjustable shelves provide a variety of display options, with internal lighting to boost visibility. With a classic black finish, this case is perfect for convenience stores, cafeterias, concession stands and more.
- Compact 26-in-wide design fits virtually anywhere
- Thermostatic controls maintain heat at 95°F to 200°F
- Specially designed baffle evenly distributes temperature
- System monitors and controls humidity to keep food fresh
- Front and rear sliding, lockable doors enable easy access
- Adjustable stainless steel shelving is built to last
- LED lighting can be used while unit heat is on or off
Product Specifications
Model Information
Name | Value |
---|---|
Model | FMA7026 |
UPC | 029419514618 |
Unit Dimensions
Name | Value |
---|---|
Overall Dimensions (IN) | 26 x 20.125 x 23.75 |
(W) Width (IN) | 26 |
(D) Depth (IN) | 20.125 |
(D2) Secondary Depth (IN) | 15.062 |
(H) Height (IN) | 23.75 |
(H2) Secondary Height (IN) | 15.125 |
(DB) Depth of Body (IN) | 19.25 |
(HB) Height of Body (IN) | 23 |
Top Shelf Depth (IN) | 11.875 |
Middle Shelf Depth (IN) | 12.75 |
Bottom Shelf Depth (IN) | 13.625 |
Overall Dimensions (CM) | 66 x 51.1 x 60.3 |
(W) Width (CM) | 66 |
(D) Depth (CM) | 51.1 |
(D2) Secondary Depth (CM) | 38.2 |
(H) Height (CM) | 60.3 |
(H2) Secondary Height (CM) | 38.4 |
(DB) Depth of Body (CM) | 48.8 |
(HB) Height of Body (CM) | 58.4 |
Top Shelf Depth (CM) | 30.2 |
Middle Shelf Depth (CM) | 32.4 |
Bottom Shelf Depth (CM) | 34.6 |
Electrical
Name | Value |
---|---|
Amps | 12 |
Plug | NEMA 5-15P |
Voltage | 120 |
Watts | 1440 |
Construction
Name | Value |
---|---|
Color | Black |
Product Function | Heated food display cases |
Case Lot Measurement
Name | Value |
---|---|
Case Lot | 1 |
Case Width | 40 |
Case Height | 32 |
Case Length | 55 |
Case Lot Cube (ft.) | 23.27 |
Case Lot Weight (lbs.) | 156.0 |
Product Accessories
Product Parts
Name | Part # | Price |
---|---|---|
Heavy Duty 4" Leg | 2351601-1 | $24.10 |
Kit, Foot, 1.00" OD, 20Mm LG | 351775-1 | $6.70 |
Control Knob | 351788-06-1 | $6.00 |
RECT. POWER SWITCH - 120V | 352773-1 | $9.00 |
FMA SIDE GLASS CLIPS | 353115-1 | $5.00 |
FMA DOOR TRACK, BK HFM-26 | 353118-1 | $6.90 |
FMA SIDE GLASS | 353130-1 | $14.30 |
FMA TOP COVER, HFM-26 | 353141-1 | $75.50 |
FMA VERTICAL SHELF SUPPORT | 353147-1 | $6.90 |
FMA GLASS, HFM-26 | 353155-1 | $16.90 |
DOOR TRIM SEAL | 353161-1 | $4.10 |
FMA HORIZONTAL SUPPORT, L | 353162-1 | $7.00 |
FMA HORIZONTAL SUPPORT, R | 353163-1 | $7.00 |
FMA SHELF LARGE, HFM-26 | 353167-1 | $38.60 |
FMA SHELF MEDIUM, HFM-26 | 353168-1 | $36.00 |
FMA SHELF SMALL, HFM-26 | 353169-1 | $34.00 |
PILOT LIGHT, 110V, WHITE | 353176-1 | $5.00 |
FMA REGULATING THERMOSTAT | 353177-1 | $8.90 |
FMA ELEMENT, HFM-26 | 353181-1 | $48.00 |
FMA GLASS, LOGO, HFM-26 | 353197-1 | $16.90 |
HOT HOLDING THERMOMETER | 353200-1 | $18.05 |
LED METAL STRIP | 353209-1 | $5.00 |
LED ASSEMBLY 315MM | 353219-1 | $9.50 |
LED POWER SUPPLY 12V 1.25A | 353905-1 | $13.70 |
HFM POWERCORD RELIEF KIT | 353906-1 | $11.70 |
HFM BEZEL W/OVERLAY KIT | 353907-1 | $5.80 |
Product Downloads
CAD / REVIT
