40904

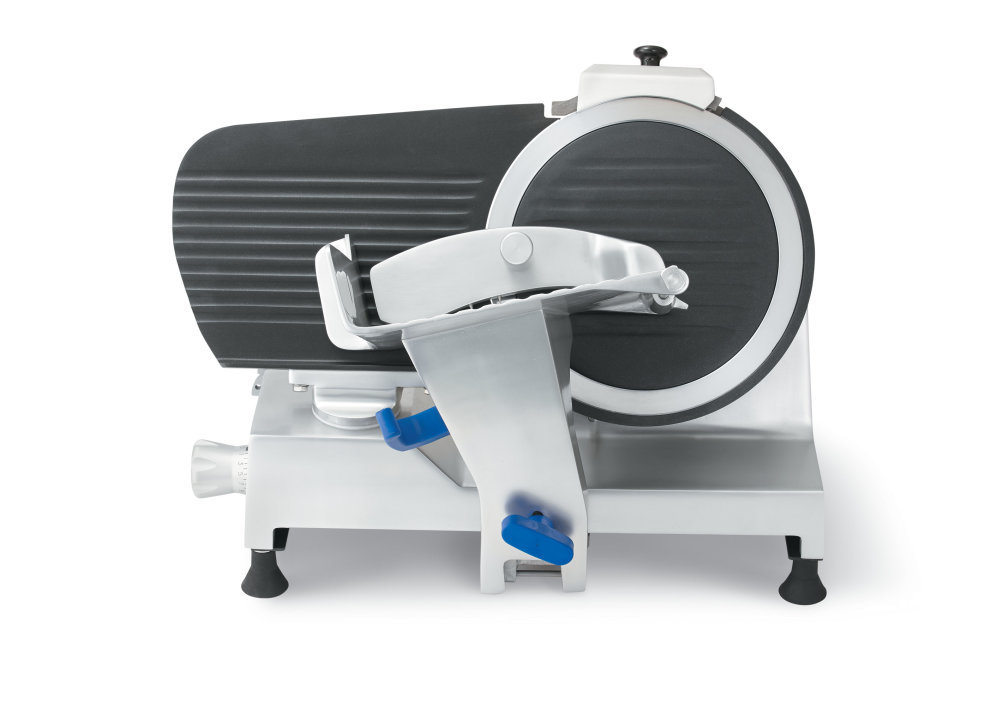

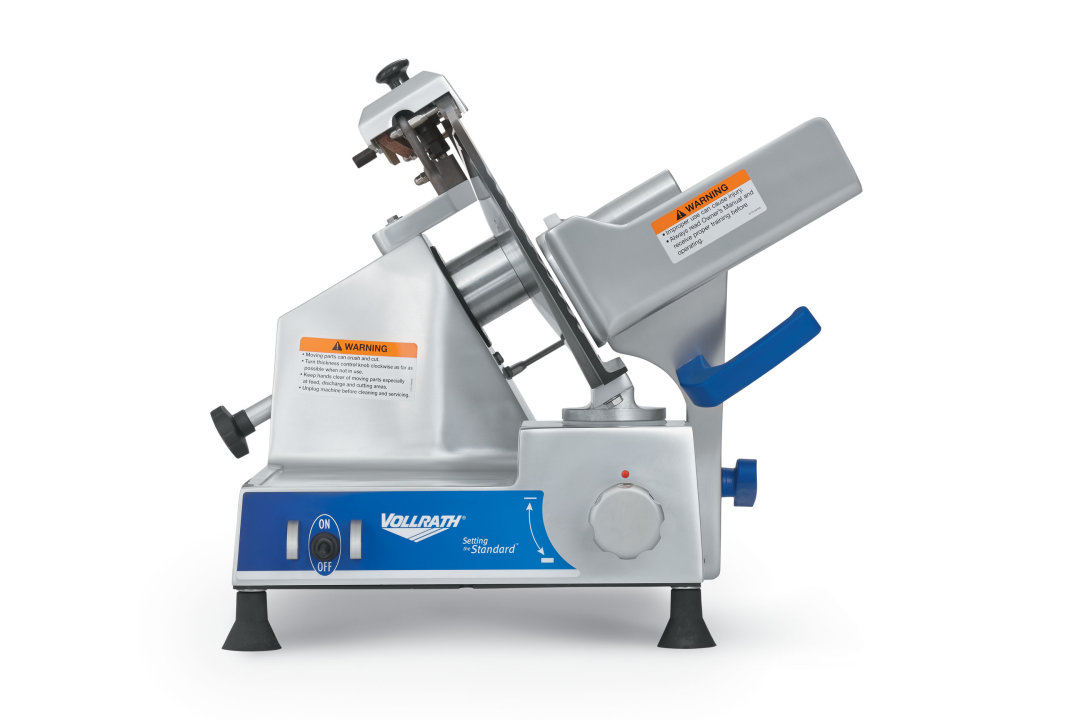

Discontinued12" (30.5 cm) heavy-duty slicer with non-stick finish and Safe Blade Removal system
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.
MSRP
$0.00
List Price

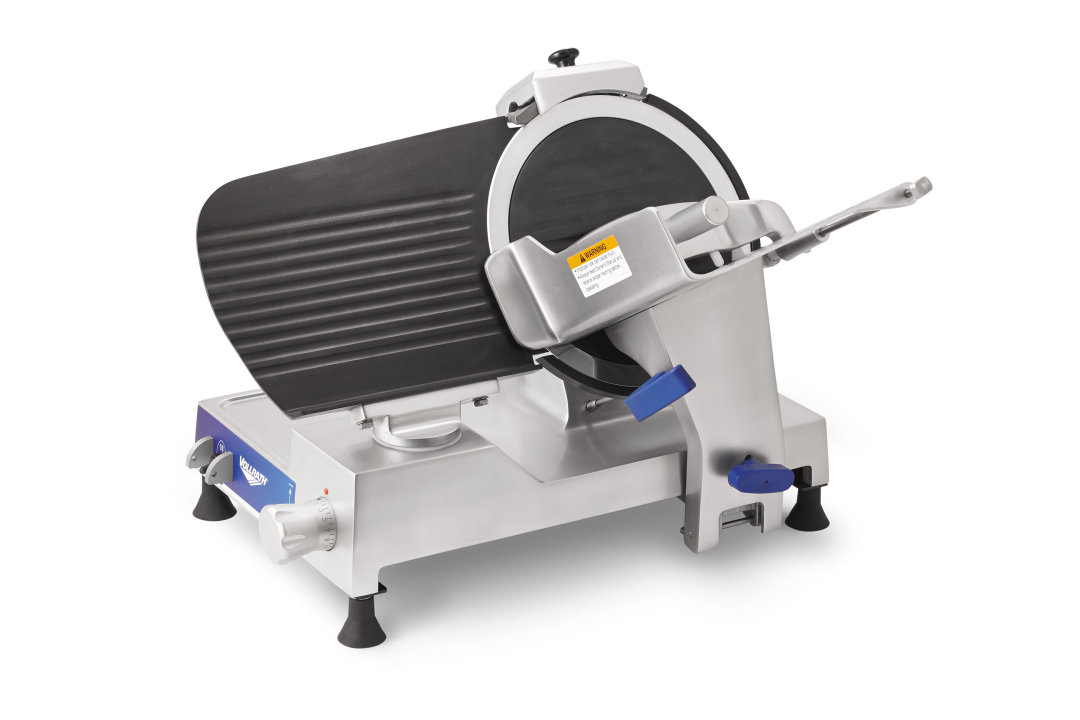

12" (30.5 cm) heavy-duty slicer with non-stick finish and Safe Blade Removal system
Belt Driven: 40903. Large receiving tray. Powerful 1/2 hp motor
Belt Driven: 40904. Same features as the 40903, but includes the Safe Blade Removal system.
Gear Driven: 40906. Direct drive gear transmission for powerful cutting applications such as cheese
Recessed drip edge
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | SLR7712/N |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 20.5 x 23.75 x 19 |
| (W) Width (IN) | 20.5 |
| (D) Depth (IN) | 23.75 |
| (H) Height (IN) | 19 |
| (W) Width (CM) | 52.1 |
| (D) Depth (CM) | 60.3 |
| (H) Height (CM) | 48.3 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Lot Cube (ft.) | 10.21 |
| Case Lot Weight (lbs.) | 77.65 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| MEAT TRAY CARRIAGE ROLLER WHEE | XSLM1102 | $63.80 |
| SHAFT GAUGE PLATE MOVEMENT | XSLS0051 | $284.70 |
| BLADE MTG W/PULLEY | XSLA1041 | $892.20 |
| REGULATOR CAM SLR7012/7014/741 | XSLS0010 | $46.20 |
| DRIVE BELT SLR7009/7010/7012/7 | XSLA0048 | $101.40 |
| MEAT TRAY HANDLE(BLUE) SLR701 | XSLS0043 | $115.40 |
| QUICK RELEASE BLADE REMOVAL P | XSLS1249 | $592.70 |
| MEAT TRAY CARRIAGE ASSEMBLY CO | XSLS0002 | $1,147.70 |
| POWER CORD SLICER(ITALIAN) | XSLS1270 | $120.70 |
| SUPPORT GAUGE PLATE 300 | XSLS0027 | $350.60 |
| RESET SWITCH SLR7012/7312/SLM7 | XSLS1235 | $121.50 |
| SPRING SLIDING BAR RIGHT SLR70 | XSLS0003 | $15.40 |
| SHARPENING ASSY COMPLETE(SMALL | XSLM0047 | $682.70 |
| MOTOR SLR7012 (#51) (COMPL W/ | XSLS1207 | $1,708.70 |
| FOOD PUSHER ASSY | XSLA0006 | $545.40 |
| TIE ROD BLADE COVER MTG | XSLS0026 | $89.20 |
| PLATFORM SUPPORT ROD SLR7012/7 | XSLS0038 | $30.20 |
| BOTTOM COVER SLR7012 (#114) | XSLS1206 | $173.90 |
| HANDLE FOOD PUSHER | XSLG1229 | $50.90 |
| MEAT TRAY LOCKING KNOB(BLUE) S | XSLS0042 | $61.90 |
| SET SCREW M10 X 20 CUP POINT | XSLS0131 | $7.10 |
| SWITCH SIDE GUARD | XSLS0100 | $50.60 |
| DEBURRING STONE(40X8) SLM0012 | XSLM1004 | $17.00 |
| BLADE GUARD | XSLS0058 | $30.30 |
| RUBBER FOOT SLR(7012/7312/7412 | XSLS0115 | $27.30 |
| HOUSING WITH KNOB : SHARPENER | XSLA0038 | $167.00 |
| SBR BLADE (#63) (SLR7712/7512D | XSLG1210 | $896.80 |
| SHARPENING STONE SLM0012/SLR75 | XSLM1009 | $17.90 |
| OIL SEAL(TC65X100X10) SLR7512/ | XSLG1234 | $66.20 |
| QUICK RELEASE LOCK NUT SLM7012 | XSLG1235 | $186.40 |
| MEAT TRAY SUPPORT STUD SLICER( | XSLM0041 | $28.90 |
| CAPACITOR 16UF SLR7512 (#130 | XSLG1241 | $133.40 |
| SHARPENER BASE | XSLS0028 | $55.90 |
| SHARPENER SUPPORT | XSLS0059 | $60.80 |
| SHAFT FOOD PUSHER | XSLS0134 | $51.90 |
| SPRING GAUGE PLATE SUPPORT | XSLS0048 | $8.80 |
| WASHER RUBBER SLIDING BAR SLR7 | XSLS0006 | $5.00 |
| SHARPENING ASSY COVER KNOB SL | XSLA1028 | $11.50 |
| GAUGE PLATE 300 NSF8 | XSLS0032 | $714.50 |
| BLADE COVER RET.STUDY ASSM 300 | XSLS0121 | $791.50 |
| ON/OFF TOGGLE SWITCH SLR7612/7 | XSLT1233 | $184.40 |
| ADAPTER BLADE COVER | XSLA1250 | $32.80 |
| BLADE RING GUARD ASSY | XSLS0031 | $462.10 |
