3/16-inch straight InstaSlice™
Save time and energy with the InstaSlice fruit and vegetable slicer by Vollrath.

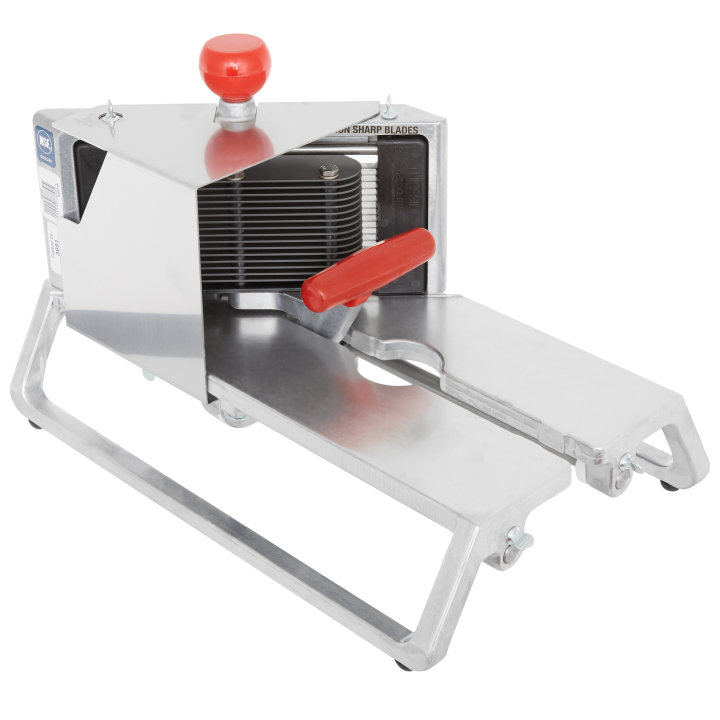

3/16-inch straight InstaSlice™ fruit and vegetable slicer
Save time and energy with the InstaSlice fruit and vegetable slicer by Vollrath. This sturdy slicer cuts tomatoes, mushrooms and other fruits and vegetables accurately with one stroke, without causing bruising or waste. The hardcoat pusher head fingers resist corrosion, even when regularly exposed to acidic foods like tomatoes, and the 3/16-inch slicing blade simply pops in and out for easy changing and cleaning. Its speed makes this unit perfect for any prep kitchen.
Cuts a variety of fruits and vegetables with ease
Large slicing area accommodates tomatoes up to 3.5-inches in diameter
Corrosion-resistant blades don't need to be adjusted and provide years of service
Detachable table stop prevents the unit from moving during use
Sled-leg aluminum base and stainless steel rods are strong, sturdy and reliable
Strong blades slice without prescoring the skin
Blades pop in and out for easy cleaning
Additional scalloped-blade sets are sold separately for added versatility
2-year limited warranty — does not include blades
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419778584 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 10.5 x 16 x 10.75 |
| (W) Width (IN) | 10.5 |
| Product Overall Width - Open (IN) | 10.5 |
| Product Overall Width - Closed (IN) | 16 |
| (D) Depth (IN) | 16 |
| Product Overall Depth - Open (IN) | 17.5 |
| Product Overall Depth - Closed (IN) | 10.5 |
| (H) Height (IN) | 10.75 |
| Product Overall Height - Open (IN) | 10.75 |
| Product Overall Height - Closed (IN) | 10.75 |
| Cut Size (IN) | 0.1875 |
| (W) Width (CM) | 26.7 |
| Product Overall Width - Open (CM) | 26.7 |
| Product Overall Width - Closed (CM) | 26.7 |
| (D) Depth (CM) | 40.6 |
| Product Overall Depth - Open (CM) | 44.5 |
| Product Overall Depth - Closed (CM) | 40.6 |
| (H) Height (CM) | 27.3 |
| Product Overall Height - Open (CM) | 27.3 |
| Product Overall Height - Closed (CM) | 27.3 |
| Cut Size (CM) | 0.5 |
| Size | 0.1875 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 12.5 |
| Case Height | 12.598432 |
| Case Length | 21.75 |
| Case Lot Cube (ft.) | 1.97 |
| Case Lot Weight (lbs.) | 17.92 |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| PUSHERHEAD ASSY BOLT | 379069 | $5.40 |
| LABEL CAUTION | 2802857 | $0.70 |
| BASE INSTASLICE | 379079 | $487.70 |
| GUIDE ROD SHORT | 379077 | $54.80 |
| SAFETY GUARD INSTA SLICE | 379065 | $50.80 |
| 1/4" PUSHER HEAD ASSEMBLY | 379071 | $415.00 |
| THUMBSCREW 1/4" 20 X 1/2" | 369211 | $7.30 |
| GUIDE ROD LONG | 379075 | $54.30 |
| TABLE STOP | 379076 | $27.70 |
| WASHER RUBBER 1/2 ID | 2241002 | $4.70 |
| BUMPER (FOOT) BLACK | 2319 | $4.30 |
| WASHER 1/2 1.D. | 379049 | $8.40 |
| Nylon stopper | 353 | $1.70 |
| HAND KNOB, BLACK | 0304 | $20.00 |
| NUT HEX NYLOC 5/16-18 | 855319 | $0.80 |
| BRIDGE CASTING INSTASLCE | 379064 | $117.50 |
| 3/16" PUSHER HEAD ASSY | 379072 | $423.90 |
| HANDLE ASSEMBLY | 379074 | $112.10 |
| 7/32" PUSHER HEAD ASSEMBLY | 379070 | $431.30 |
| BOLT SHOULDER INSTASLICE | 379073 | $25.80 |
| CAUTION LABEL | 355305 | $0.70 |
| RUBBER FEET SCREW ON | 855522 | $4.20 |
Product Downloads
Download Sell Sheet
CAD / REVIT
