CM4-24035

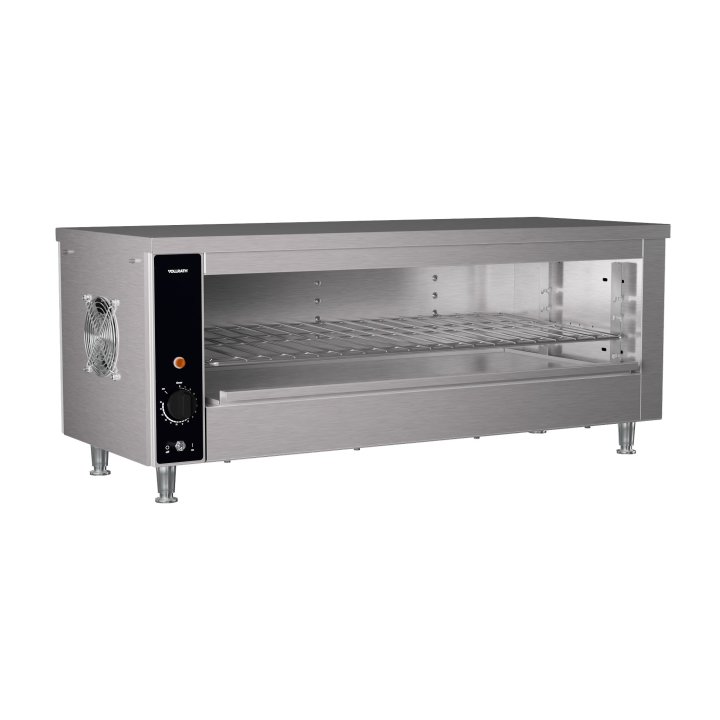

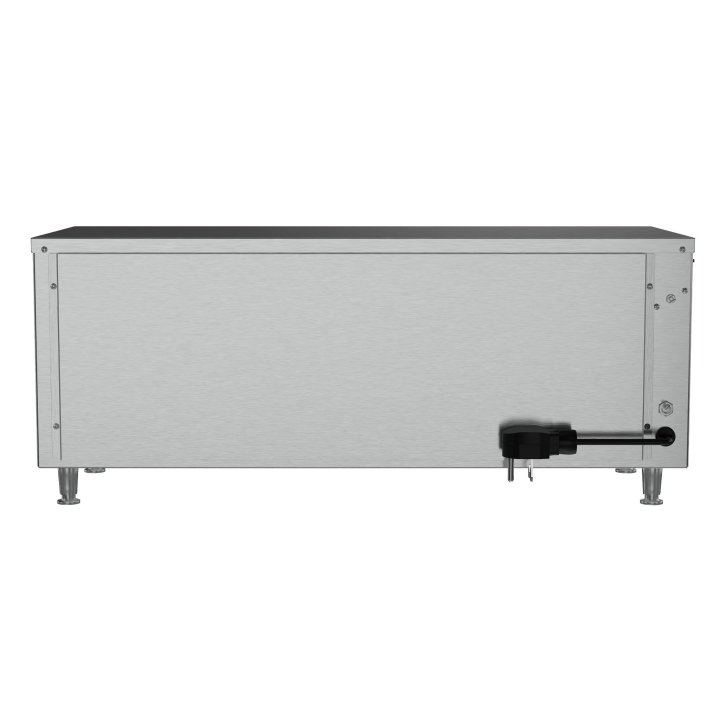

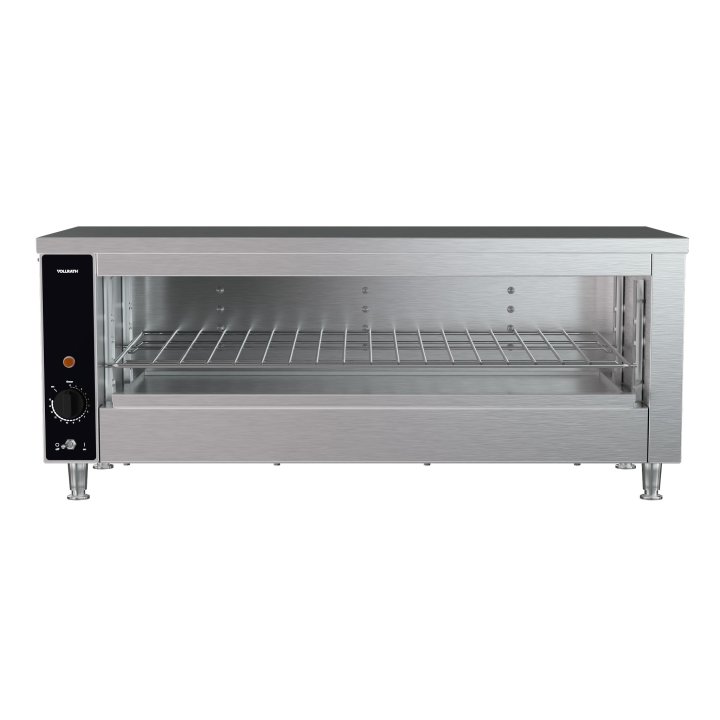

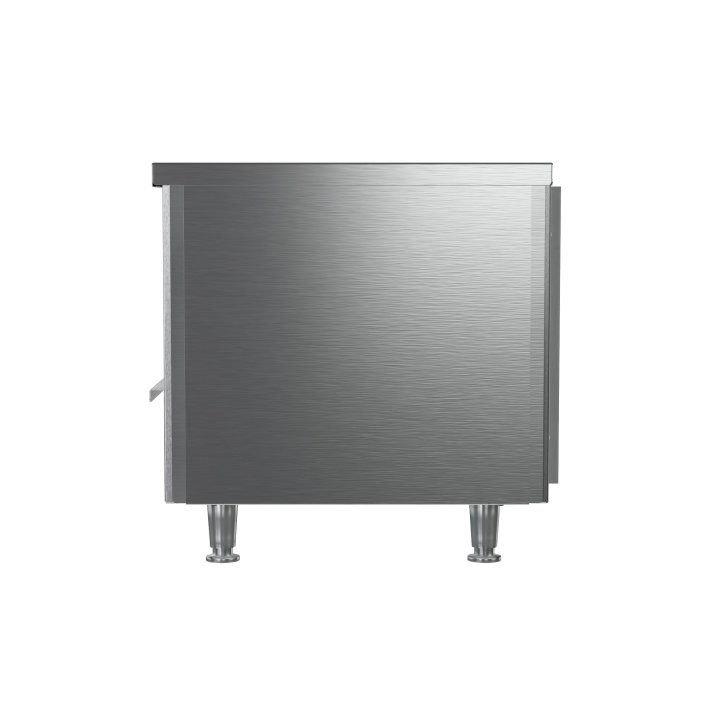

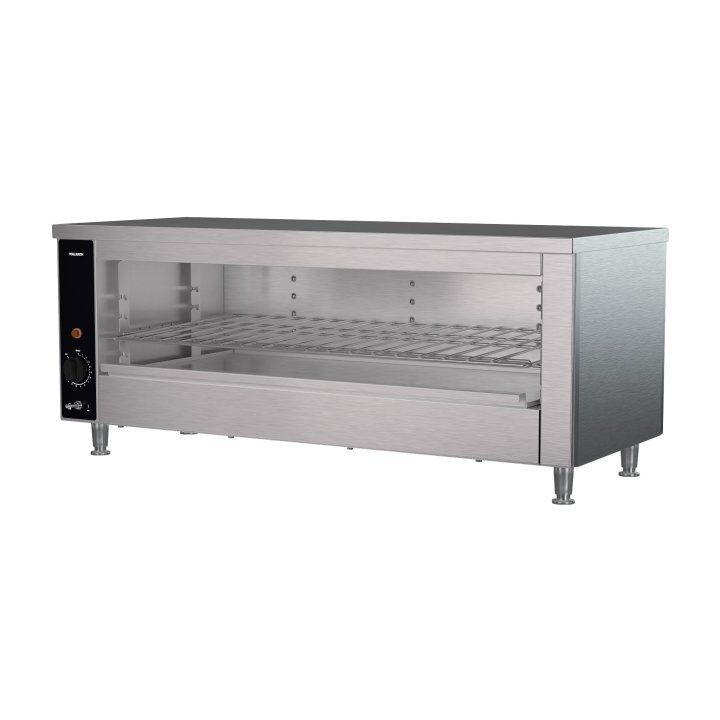

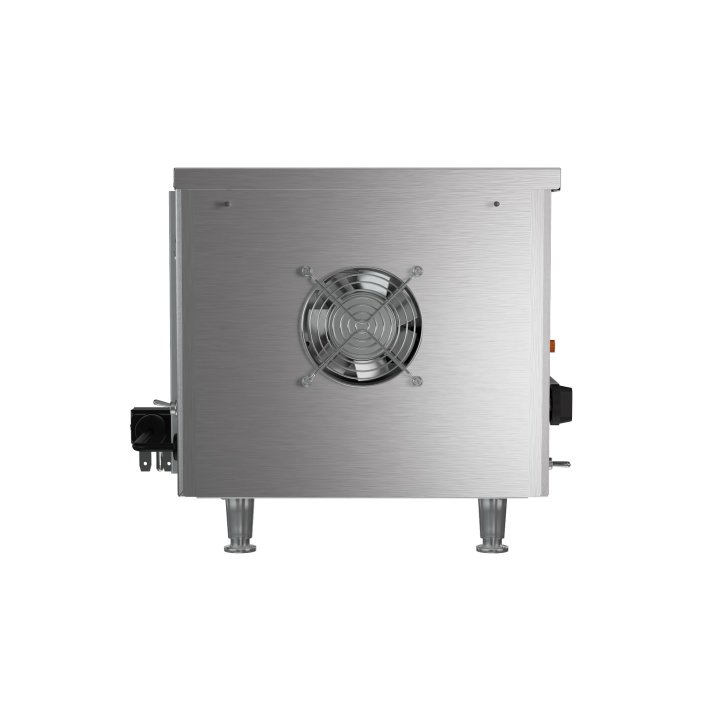

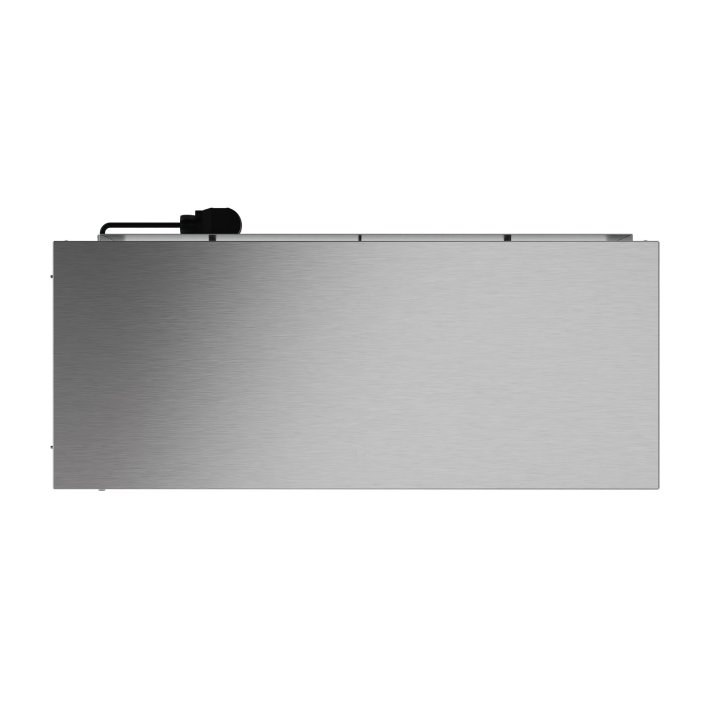

35-inch 240-volt cheese melter
The 35-inch cheese melter by Vollrath is ideal for any high-volume restaurant or bar.
35-inch 240-volt cheese melter
The 35-inch cheese melter by Vollrath is ideal for any high-volume restaurant or bar. The energy-efficient quartz heating elements are fast and powerful, while the standby mode saves energy when the unit is not in use. Five shelf heights fit a variety of foods as well as control the distance between the plate and the heating elements. The wide opening allows you to prepare multiple dishes at once, and the 15-minute timer helps you keep track of warming times for precise results.
Finish or melt cheese on top of a variety of items like garlic bread, sandwiches or nachos
Durable stainless steel exterior is built to last
Heavy-duty, metal-sheathed heating elements can stand up to high-volume use
Standby mode reduces energy use up to 75 percent
27 ½-inch-wide opening easily fits multiple plates at one time
Shelf can be placed in any of 5 positions to adapt to the needs of different dishes
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | JW30 |
| UPC | 671080720395 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 35.125 x 14.375 x 14.75 |
| (W) Width (IN) | 35.125 |
| (D) Depth (IN) | 14.375 |
| (H) Height (IN) | 14.75 |
| (WL) Width between legs | 32.0625 |
| (DL) Depth between legs | 9.5 |
| (WC) Cooking Chamber Width (IN) | 28.8125 |
| (DC) Cooking Chamber Depth (IN) | 13.5 |
| (HC) Cooking Chamber Height (IN) | 7.1875 |
| (WB) Width of Body (IN) | 35.125 |
| (DB) Depth of Body (IN) | 14.375 |
| Overall Dimensions (CM) | 89.2 x 36.6 x 37.3 |
| (W) Width (CM) | 89.2 |
| (D) Depth (CM) | 36.6 |
| (H) Height (CM) | 37.3 |
| (WL) Width between legs (CM) | 81.4 |
| (DL) Depth between legs (CM) | 24.1 |
| (WC) Cooking Chamber Width (CM) | 73.2 |
| (DC) Cooking Chamber Depth (CM) | 34.3 |
| (HC) Cooking Chamber Height (CM) | 18.3 |
| (WB) Width of Body (CM) | 89.2 |
| (DB) Depth of Body (CM) | 36.6 |
Electrical
| Name | Value |
|---|---|
| Amps | 15.3 |
| Cord Length (IN) | 60 |
| Cord Length (CM) | 150 |
| Hz | 60 |
| Plug | NEMA 6-30P |
| Voltage | 240 |
| Watts | 3660 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 20 |
| Case Height | 15.75 |
| Case Length | 38.5 |
| Case Lot Cube (ft.) | 7.02 |
| Case Lot Weight (lbs.) | 76.65 |
Product Accessories
| Name | Item # |
|---|---|
| Wall Mount Bracket for Cheese Melters | 351035 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| CORD FAN HP-75.24-A | B401060 | $14.50 |
| LEG 2 1/2" METAL PLATED | B400303 | $35.00 |
| SWITCH FAN CERAMIC | B401107 | $49.70 |
| CORD POWER 12/3 60" 6-30P | B401051 | $69.70 |
| TOGGLE SWITCH 3/4HP 120-240VAC | 17925-1 | $46.80 |
| TERMINAL BLOCK 5 POSITION | B401033 | $18.80 |
| GUARD FAN | B401220 | $10.40 |
| SWITCH TOGGLE ON/ON 15A | B401116 | $83.90 |
| KNOB CONTROL | B401185 | $13.90 |
| RESET SWITCH | B401100 | $49.70 |
| PILOT LIGHT - AMBER 250V | 23066-3 | $16.10 |
| METAL ELEMENT 120V 900W | B403007 | $151.30 |
| CATCH PAN | B300538 | $128.20 |
| TERMINAL BLOCK 2 POSITION | B401034 | $6.80 |
| WIRE RACK | B400384 | $131.60 |
| MOTOR FAN | B401211 | $97.80 |
| STRGHT 12 GA STRAIN RLF BSHNG | B400321 | $0.80 |
| CM4 RIGHT SIDE PANEL | B300530 | $47.60 |
| CM4 LEFT SIDE PANEL | B300531 | $61.40 |
| CORD WARNING LABEL | B401404 | $0.40 |
| JW30 TIMER KIT | B401532 | $195.50 |
| CM4 W/ TIMER CONTROL OVERLAY | B401462 | $30.30 |
| TIMER 15 MIN | 355197-1 | $10.80 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
