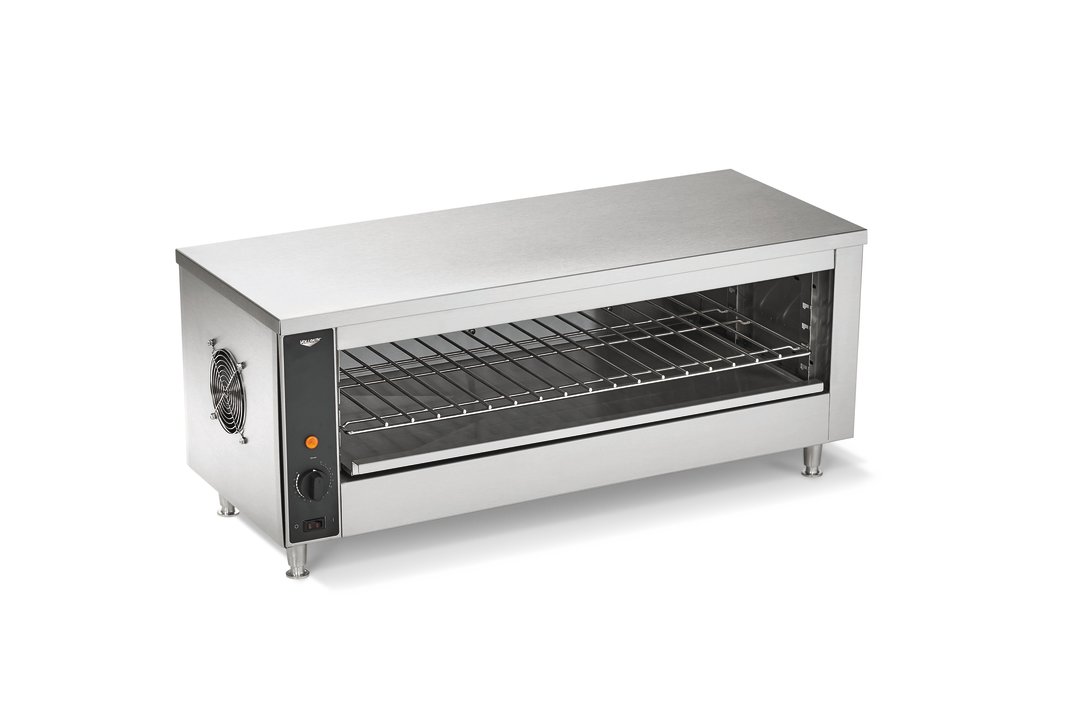

CM4-20835PA
35-inch 208-volt cheese melter with plate activation
$1992.96
MSRP
Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$3,321.60
List Price
List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.

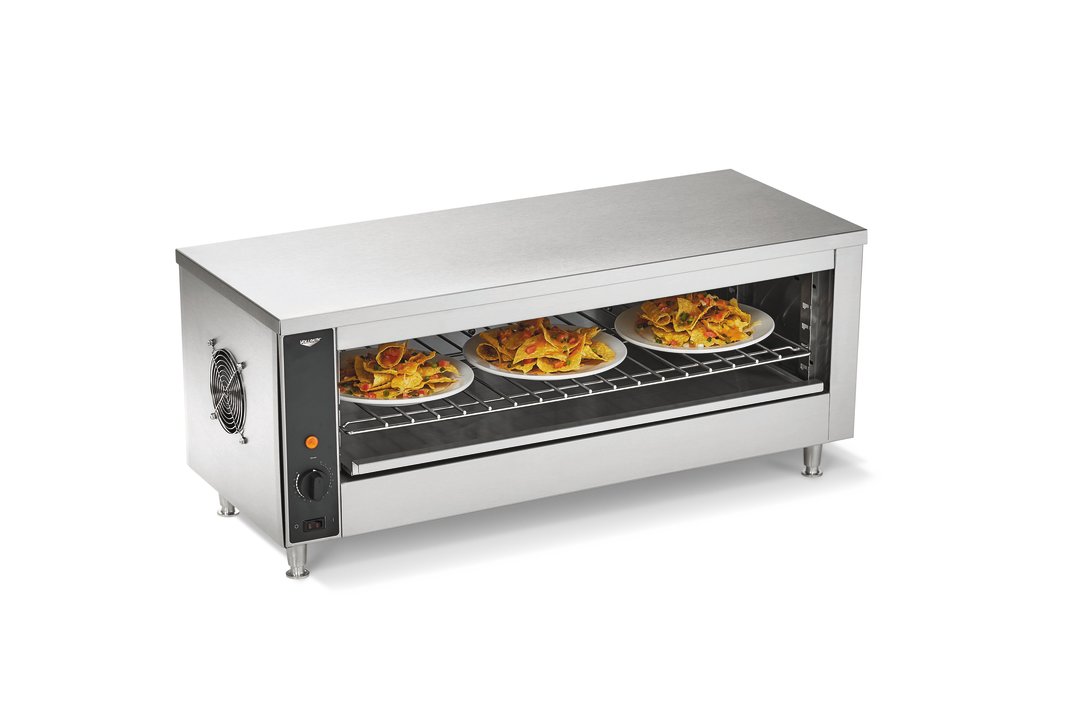

The 35-inch cheese melter by Vollrath is ideal for any high-volume restaurant or bar. The energy-efficient quartz heating elements are fast and powerful, while the standby mode saves energy when the unit is not in use. With plate activation, this cheese melter automatically turns off standby mode and returns to full power once it senses the weight of the plate. Five shelf heights fit a variety of foods, as well as control the distance between the plate and the heating elements, and the wide opening allows you to prepare multiple dishes at once.
- Finish or melt cheese on top of a variety of items like garlic bread, sandwiches or nachos
- Durable stainless steel exterior is built to last
- Heavy-duty, metal-sheathed heating elements can stand up to high-volume use
- Standby mode reduces energy use up to 75 percent
- 27 ½-inch-wide opening easily fits multiple plates at one time
- Shelf can be placed in any of 5 positions to adapt to the needs of different dishes
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | JW30PA |
| UPC | 671080720388 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 35.125 x 14.375 x 14.75 |
| (W) Width (IN) | 35.125 |
| (D) Depth (IN) | 14.375 |
| (H) Height (IN) | 14.75 |
| (WL) Width between legs | 32.0625 |
| (DL) Depth between legs | 9.5 |
| (WC) Cooking Chamber Width (IN) | 28.8125 |
| (DC) Cooking Chamber Depth (IN) | 13.5 |
| (HC) Cooking Chamber Height (IN) | 7.1875 |
| (WB) Width of Body (IN) | 35.125 |
| (DB) Depth of Body (IN) | 14.375 |
| Overall Dimensions (CM) | 89.2 x 36.6 x 37.3 |
| (W) Width (CM) | 89.2 |
| (D) Depth (CM) | 36.6 |
| (H) Height (CM) | 37.3 |
| (WL) Width between legs (CM) | 81.4 |
| (DL) Depth between legs (CM) | 24.1 |
| (WC) Cooking Chamber Width (CM) | 73.2 |
| (DC) Cooking Chamber Depth (CM) | 34.3 |
| (HC) Cooking Chamber Height (CM) | 18.3 |
| (WB) Width of Body (CM) | 89.2 |
| (DB) Depth of Body (CM) | 36.6 |
Electrical
| Name | Value |
|---|---|
| Amps | 17.6 |
| Cord Length (IN) | 60 |
| Cord Length (CM) | 150 |
| Hz | 60 |
| Plug | NEMA 6-30P |
| Voltage | 208 |
| Watts | 3660 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 20.5 |
| Case Height | 16 |
| Case Length | 38.5 |
| Case Lot Cube (ft.) | 7.31 |
| Case Lot Weight (lbs.) | 83.85 |
Product Accessories
| Name | Item # |
|---|---|
| Wall Mount Bracket for Cheese Melters | 351035 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| CORD FAN HP-75.24-A | B401060 | $13.80 |
| CORD POWER 12/3 60" 6-30P | B401051 | $66.40 |
| SWITCH MICRO SNAP ACTION | B401129 | $29.70 |
| LEG 2 1/2" METAL PLATED | B400303 | $29.20 |
| METAL ELEMENT 104V 900W | B403006 | $132.90 |
| TOGGLE SWITCH 3/4HP 120-240VAC | 17925-1 | $42.53 |
| TERMINAL BLOCK 5 POSITION | B401033 | $17.90 |
| GUARD FAN | B401220 | $9.90 |
| SPRING | B400265 | $10.10 |
| SWITCH FAN CERAMIC | B401107 | $47.30 |
| CATCH PAN | B300538 | $123.24 |
| TERMINAL BLOCK 2 POSITION | B401034 | $6.50 |
| MOTOR FAN | B401211 | $93.10 |
| CM4 RIGHT SIDE PANEL | B300530 | $45.76 |
| CM4 LEFT SIDE PANEL | B300531 | $59.07 |
| CORD WARNING LABEL | B401404 | $0.42 |
| RESET SWITCH | B401100 | $47.30 |
| CM4 ADJUST. SHELF BRACKET | B205139 | $59.59 |
| WIRE RACK | B400384 | $126.50 |
| PILOT LIGHT - AMBER 250V | 23066-3 | $16.10 |
| STRGHT 12 GA STRAIN RLF BSHNG | B400321 | $0.80 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
