40794-C
Discontinued120-volt Cayenne® sandwich press with panini-style, cast-iron plates
The Cayenne sandwich press by Vollrath cooks a variety of food items quickly and evenly.
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

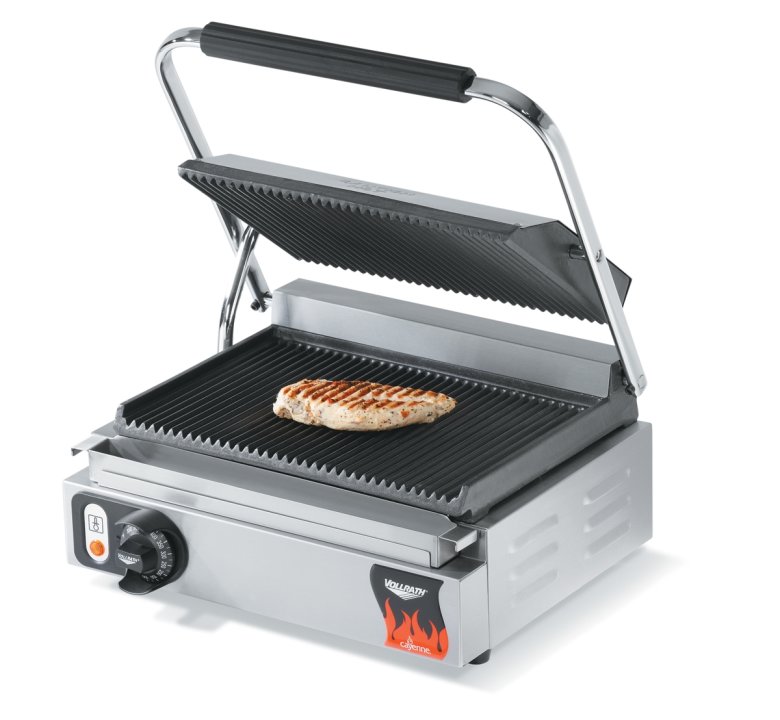

120-volt Cayenne® sandwich press with panini-style, cast-iron plates
The Cayenne sandwich press by Vollrath cooks a variety of food items quickly and evenly. Made of heavy-duty cast iron to maintain heat, both the top and bottom plates have grooves that create mouthwatering grill lines. This sandwich press has a high power output and is built to last. Inset heating element channels create greater heating efficiency, and the stainless steel exterior gives everything a smooth finish.
Excellent choice for sandwiches, paninis, meats, vegetables and more
Ribbed top and bottom plates create panini-style presentation
Adjustable handle changes press height, so you can cook any order evenly
Brush included to make cleaning easy and efficient
120°F to 470°F temperature range
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | TSI7001-C |
| UPC | 029419917655 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 16.125 x 15 x 8.062 |
| (W) Width (IN) | 16.12 |
| (D) Depth (IN) | 15 |
| (D2) Secondary Depth (IN) | 14.5 |
| (H) Height (IN) | 8.06 |
| Overall Dimensions (CM) | 41 x 38.1 x 20.6 |
| (W) Width (CM) | 41 |
| (D) Depth (CM) | 38.1 |
| (D2) Secondary Depth (CM) | 36.8 |
| (H) Height (CM) | 20.6 |
Electrical
| Name | Value |
|---|---|
| Amps | 15 |
| Cord Length (IN) | 48 |
| Cord Length (CM) | 120 |
| Hz | 60 |
| Plug | NEMA 5-20P |
| Voltage | 120 |
| Watts | 1800 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 17.5 |
| Case Height | 10.5 |
| Case Length | 20.5 |
| Case Lot Cube (ft.) | 2.18 |
| Case Lot Weight (lbs.) | 46.0 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| THERMOSTAT TSI; TSA(ALL) (#43 | XTSA0007 | $299.40 |
| CONTROL PANEL FASCIA - BLACK | XAA0009 | $31.70 |
| BOTTOM ELEMENT(NEW TYPE) TSI70 | XTSI2035 | $111.70 |
| BRASS CLAMPING SADDLE TSI7001 | XTSI2023 | $22.30 |
| HANDLE SPRING TSI7001/TSI8002 | XTSI2018 | $37.60 |
| RUBBER FOOT TSI7001(#3)TSI8002 | XTSI2004 | $4.40 |
| VOLLRATH CONTROL KNOB TSI7001/ | XTSI2015 | $20.40 |
| STEEL HANDLE TSI7001 (#16) | XTSI2016 | $106.20 |
| HINGE AXLE FRONT TSI7001 (#19 | XTSI2019 | $40.60 |
| TOP ELEMENT(NEW TYPE) TSI7001 | XTSI2030 | $124.10 |
| WIRE BRUSH TSI7009/TSI8012 (# | XTSI0031 | $42.00 |
| HINGE AXLE REAR(WITH BOLTS) T | XTSI2021 | $115.60 |
| DRIP TRAY TSI7001 (#8 9) | XTSI2005 | $58.90 |
| BOTTOM PLATE TSI7001 (#6) | XTSI2007 | $545.90 |
| POWERCORD 120V (NEMA5-15P) | XAA0005 | $54.80 |
| PLASTIC HANDLE GRIP TSI7001 (# | XTSI2017 | $44.90 |
| WIRING TUBE TSI7001/8002 | XTSI2036 | $131.70 |
| CABLE RESTRAINT (FMA SKA FFA) | XAA0012 | $11.70 |
| PILOT LIGHT 110V (YELLOW) | XAA0011 | $13.10 |
| TOP PLATE TSI7001 (#5) | XTSI2006 | $447.00 |
| CONNECTOR BLOCK TSA(ALL) SAA(A | XTSA0005 | $23.70 |
