Discontinued36-inch 6-burner Cayenne® countertop gas hot plate
The Vollrath® Cayenne gas hot plate is powerful, compact and convenient.
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

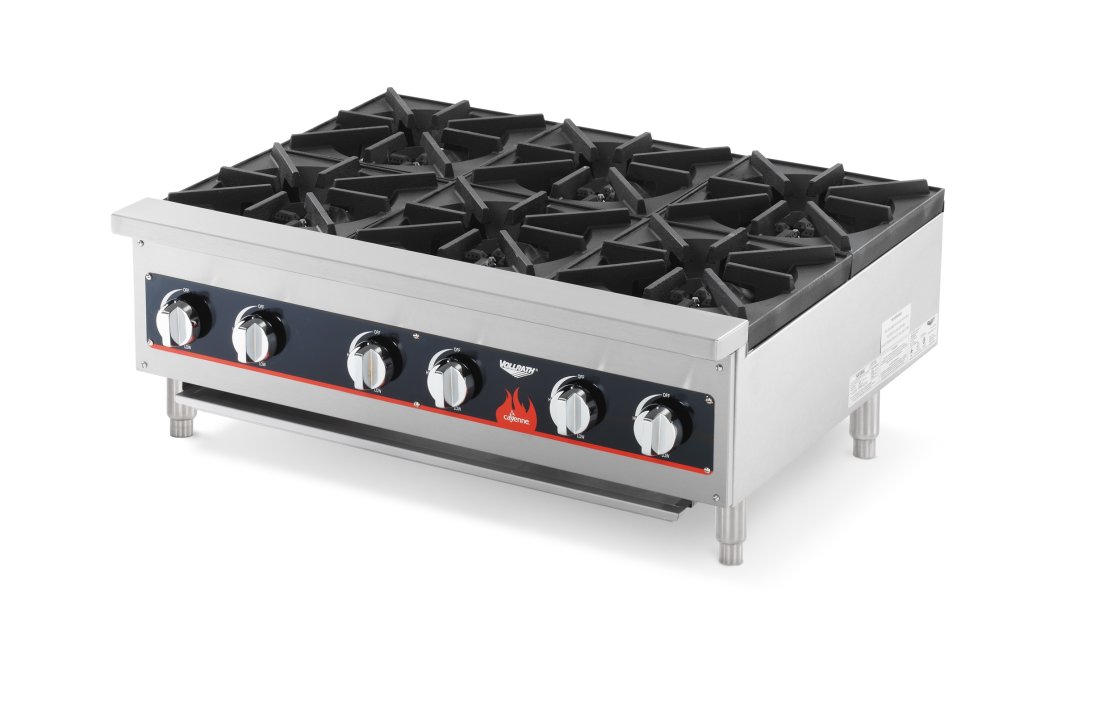

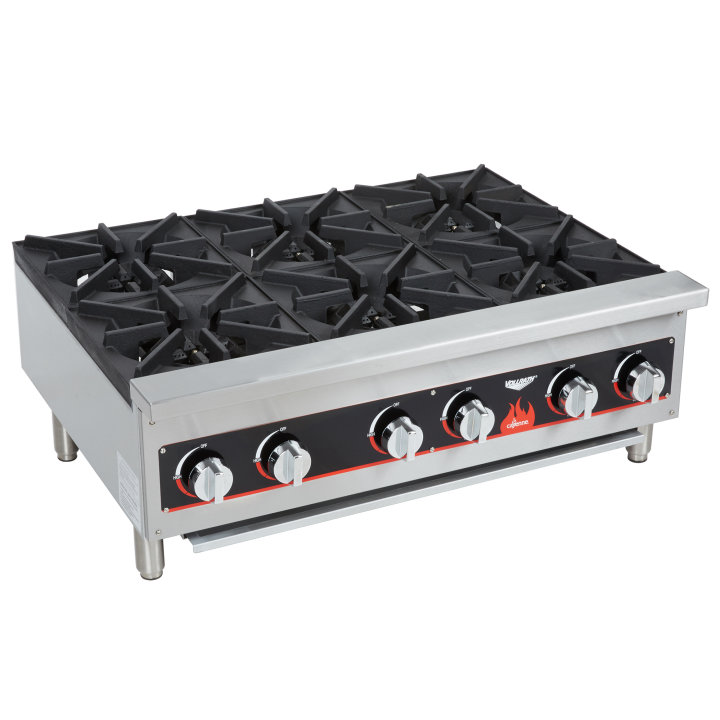

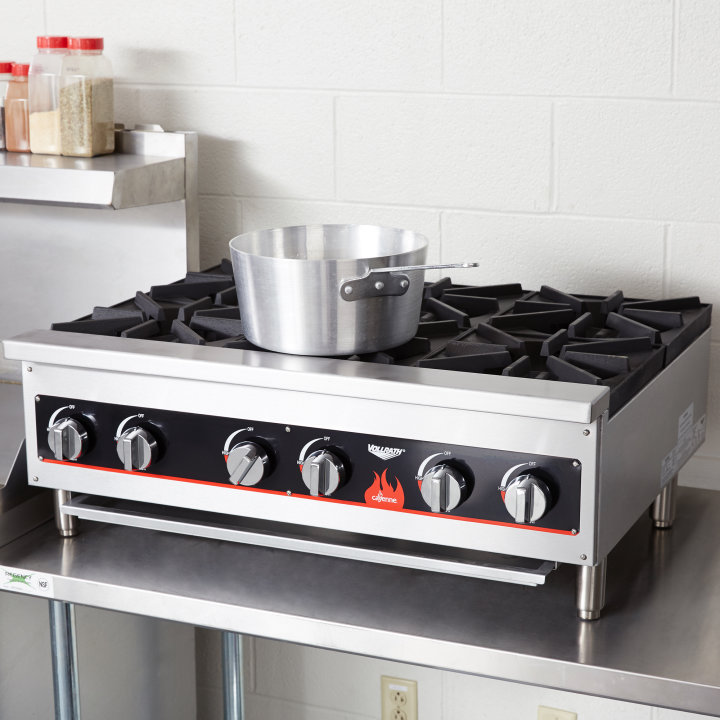

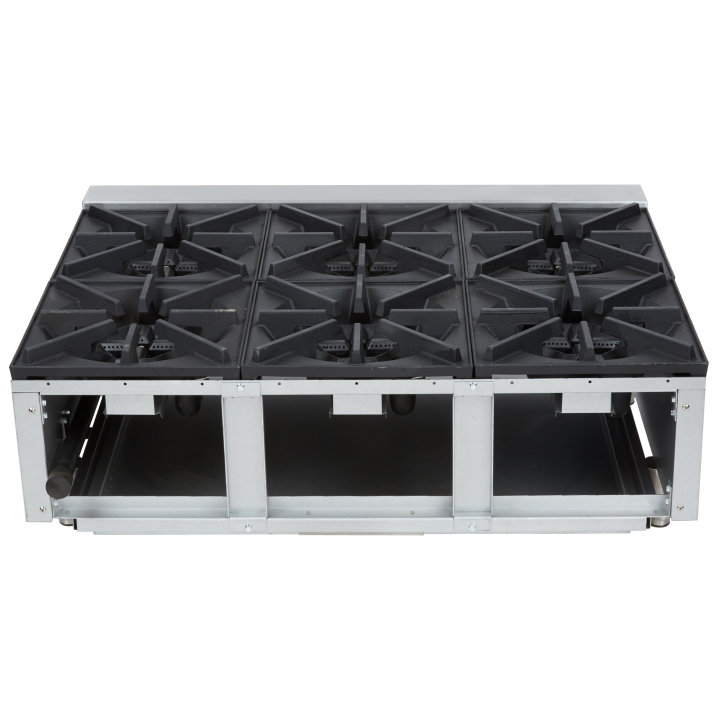

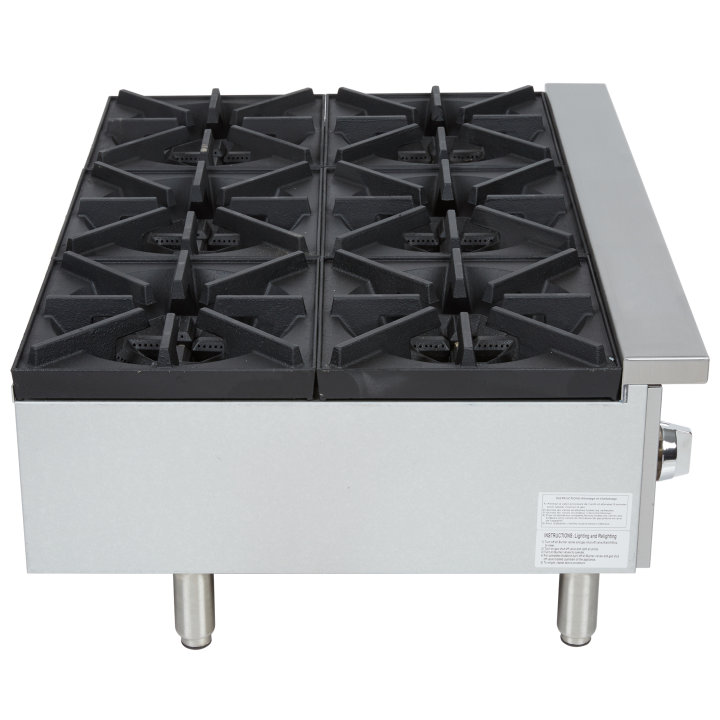

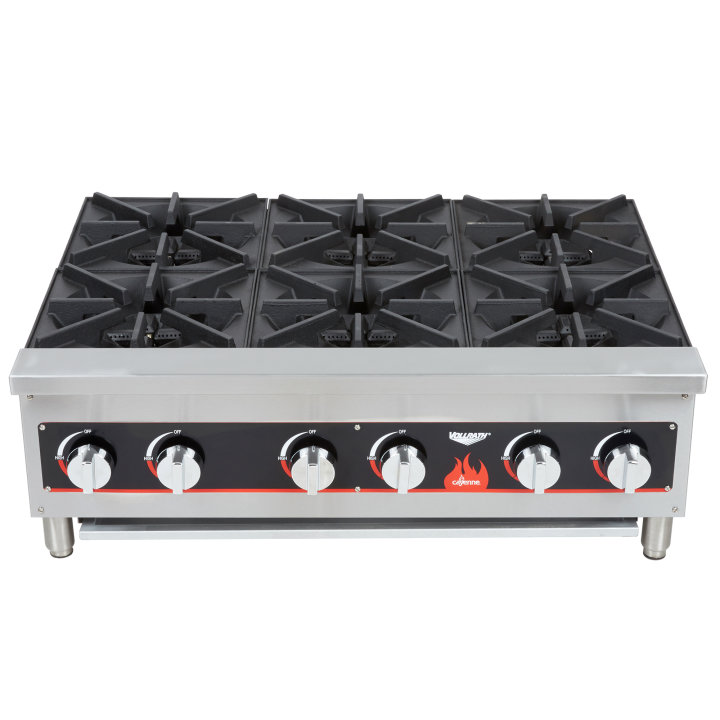

36-inch 6-burner Cayenne® countertop gas hot plate

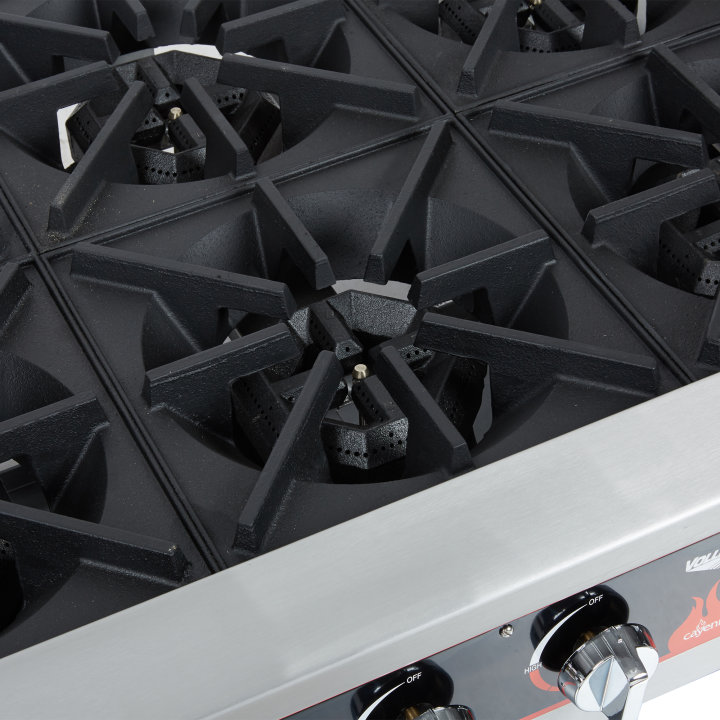

The Vollrath® Cayenne gas hot plate is powerful, compact and convenient. The body of this unit is constructed of durable stainless and aluminized steel. It features four burners with separate grates for easier cleaning. Each burner has an independent control knob, allowing you to cook multiple foods at one time. The metal knobs are made to resist cracking, protecting the interior gas valves. This powerful unit works quickly, evenly distributing heat for superior cooking. A front opening makes lighting pilot lights easy, and a full-width stainless steel drip pan simplifies the cleaning process. With 26,000-BTU per burner, this hot plate is sure to impress.
Designed for a variety of foods, stews, and sauces
Durable stainless and aluminized steel body is built to last
Bullnose design prevents burns
Strong metal knobs are guaranteed for life
Heavy-duty legs allow leveling adjustments to provide maximum stability
Shipped setup for natural gas — includes kit with regulator for field conversion to propane
26,000-BTU per burner
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | HPA1006 |
| UPC | 029419719419 |
Gas Specifications
| Name | Value |
|---|---|
| Output (BTU) | 156000 |
| Number of Burners | 6 |
| Pilot Type | Standing |

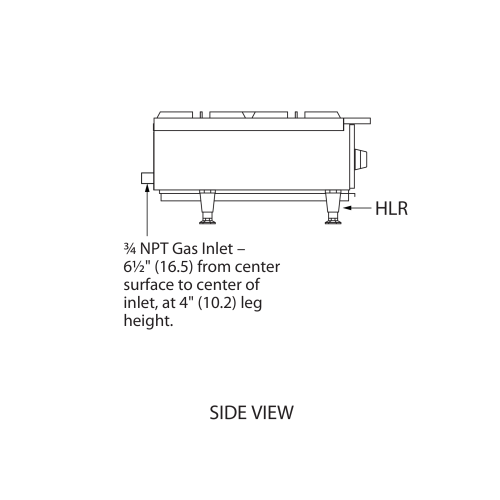

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 35.5 x 27 x 13.375 |
| (W) Width (IN) | 35.5 |
| (D) Depth (IN) | 29.25 |
| (D2) Secondary Depth (IN) | 27 |
| (H) Height (IN) | 13.25 |
| (HLR) Adjustable Legs (IN) | 4 - 5.5 |
| Overall Dimensions (CM) | 90.2 x 68.6 x 34 |
| (W) Width (CM) | 90.2 |
| (D) Depth (CM) | 74.3 |
| (D2) Secondary Depth (CM) | 68.6 |
| (H) Height (CM) | 33.66 |
| (HLR) Adjustable Legs (CM) | 10.2 - 14 |
| Size | 36 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
| Control Type | Manual |
| Number of Controls | 6 |
Additional Specifications
| Name | Value |
|---|---|
| Number of Drip Trays | 1 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 31.5 |
| Case Height | 18.5 |
| Case Length | 36.5 |
| Case Lot Cube (ft.) | 12.31 |
| Case Lot Weight (lbs.) | 228.0 |
Product Accessories
| Name | Item # |
|---|---|
| 36-inch heavy-duty mobile equipment stand | 4087936 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| LEG GAS APPLIANCE | XFTG9012 | $119.70 |
| PILOT W/TUBING (FRONT BURNER) | XHPA0004 | $29.70 |
| PILOT W/TUBING (REAR BURNER) H | XHPA0005 | $67.90 |
| CONTROL SAFETY VALVE FTG/CBL/ | XFTG9002 | $73.50 |
| HPA BURNER (SHORT VENTURE) | XHPA0006 | $292.00 |
| HPA BURNER (LONG VENTURE) | XHPA0007 | $429.80 |
| 3/4" NPT MANUAL BALL VALVE | XCGC0018 | $61.90 |
| CONTROL KNOB - GAS FTG/CB | XFTG9010 | $30.30 |
| JET NAT 2.40 #40 | XFTG9007 | $19.60 |
| PILOT VALVE HPA1002/1004/1006 | XHPA0003 | $48.80 |
| TOP GRATE OVER BURNER FR 40738 | XHPA0009 | $222.50 |
| REGULATOR 4IN WC | 353374-1 | $227.70 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
