HPG6-36

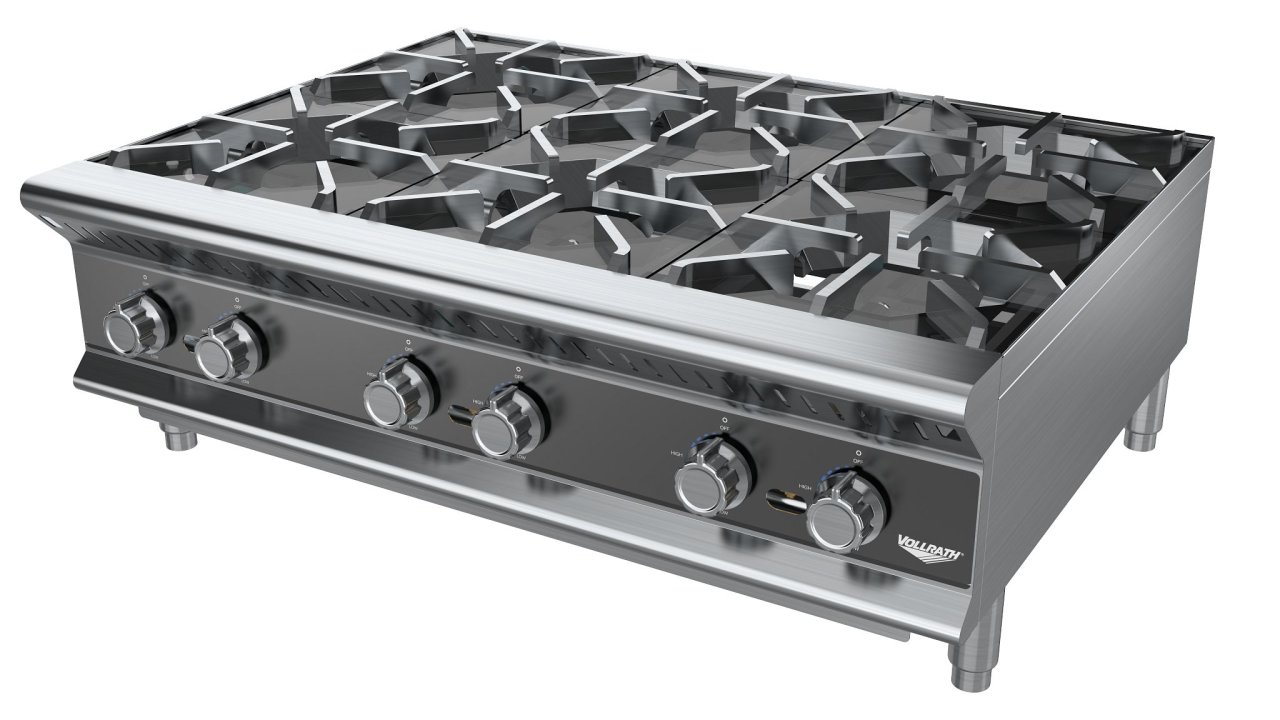

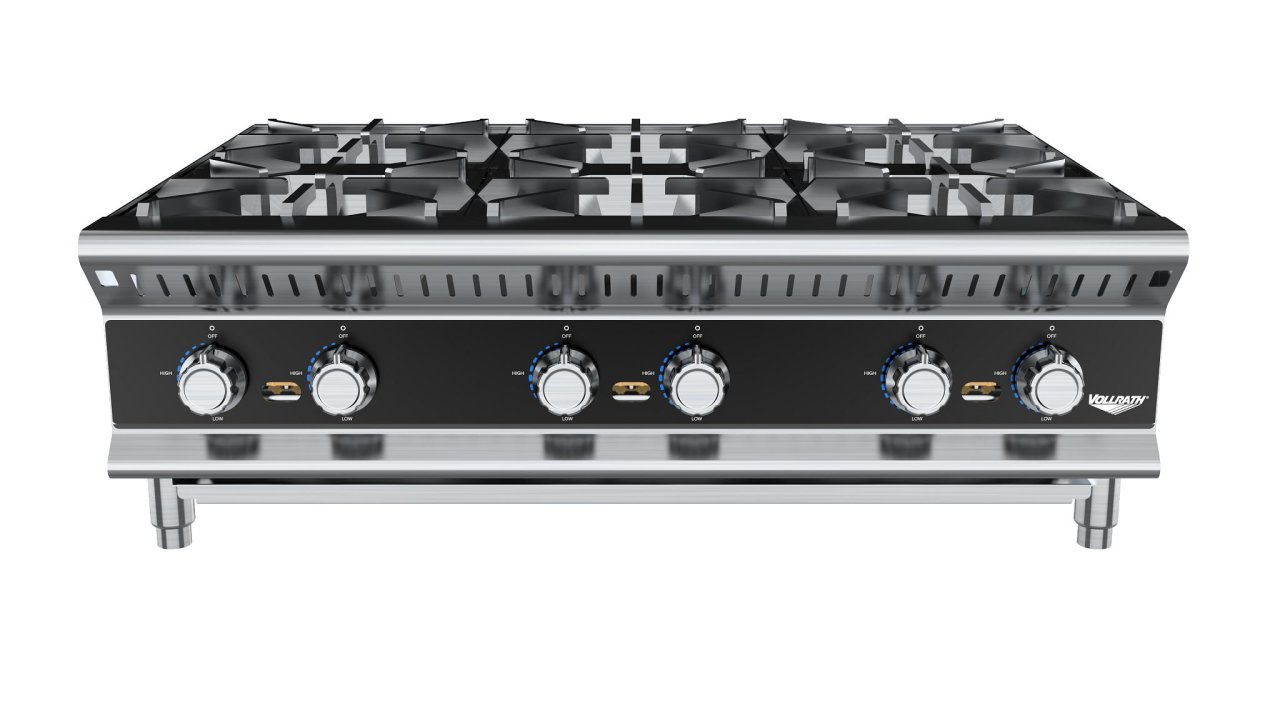

36-inch 6-burner countertop gas hot plate
Vollrath® gas hot plates transform any kitchen space into high-efficiency food prep.
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.
36-inch 6-burner countertop gas hot plate
Vollrath® gas hot plates transform any kitchen space into high-efficiency food prep. Designed for durability and low maintenance, the welded steel construction and individual stainless steel burner grates heat quickly and evenly, while saving valuable countertop space. With 156,000 BTUs of heating power, this gas hot plate is a great choice for any kitchen.
36-inch hot plate’s 6 burners provide maximum versatility
Smooth, welded stainless steel design is built to last
Adjustable flame settings create consistent, even heating
Metal knobs are easy to use and guaranteed for life
Ships natural-gas-ready; includes propane conversion kit
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | HPA1006 |
| UPC | 029419433063 |
Gas Specifications
| Name | Value |
|---|---|
| Output (BTU) | 156000 |
| Number of Burners | 6 |
| Pilot Type | Standing |

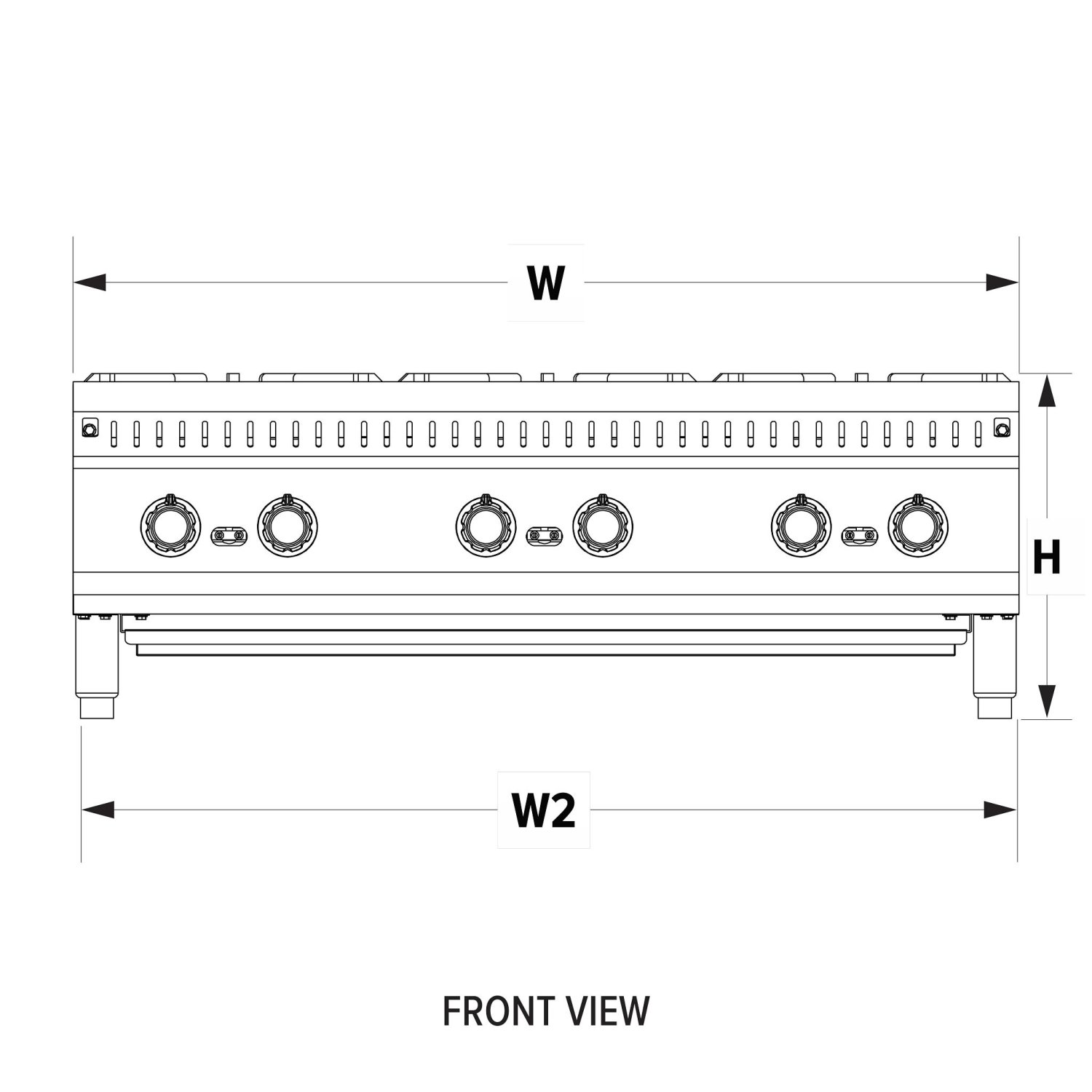

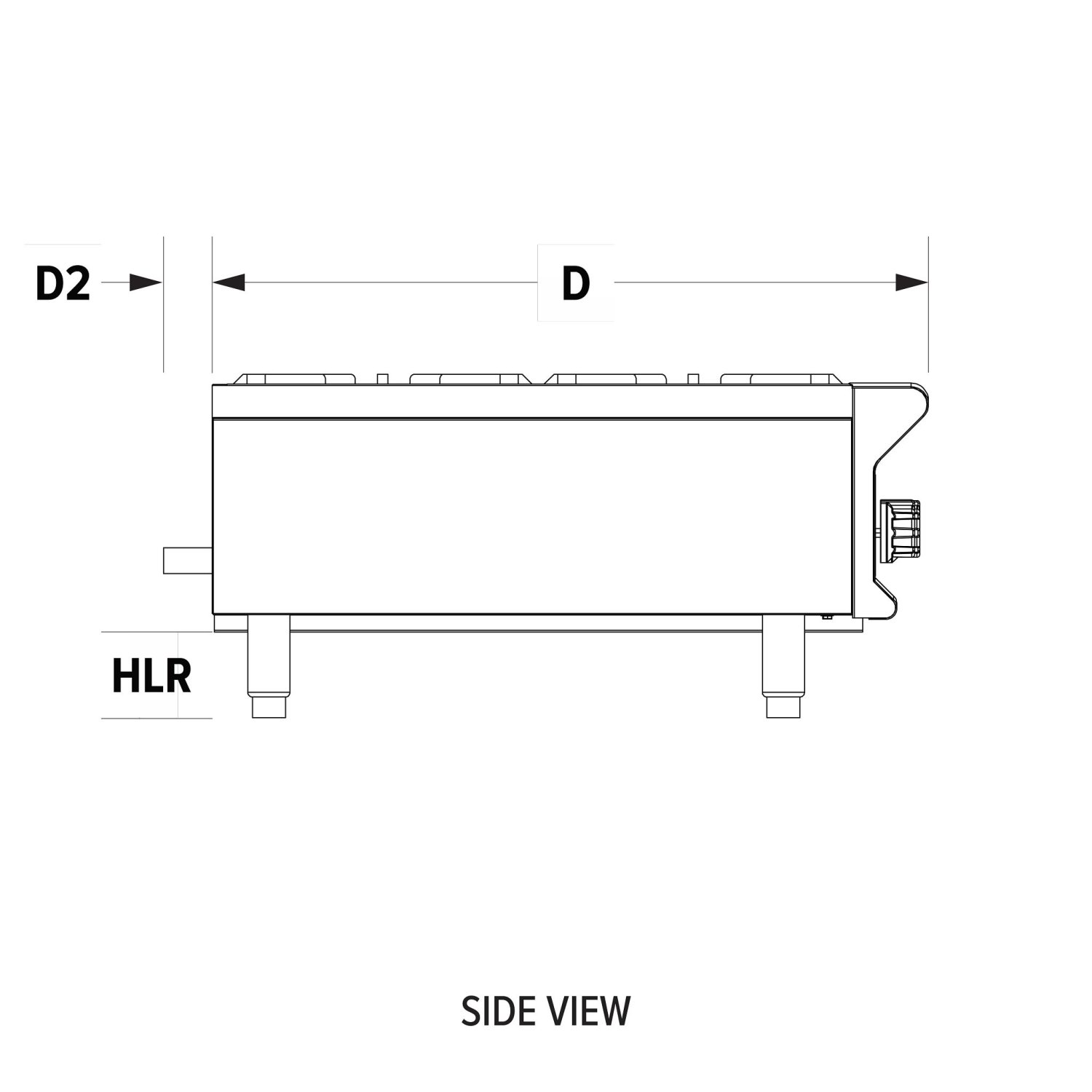

Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 36.1 |
| (D) Depth (IN) | 29.25 |
| (H) Height (IN) | 13.25 |
| (HLR) Adjustable Legs (IN) | 4 - 5.5 |
| (WCS) Cooking Surface Width (IN) | 36 |

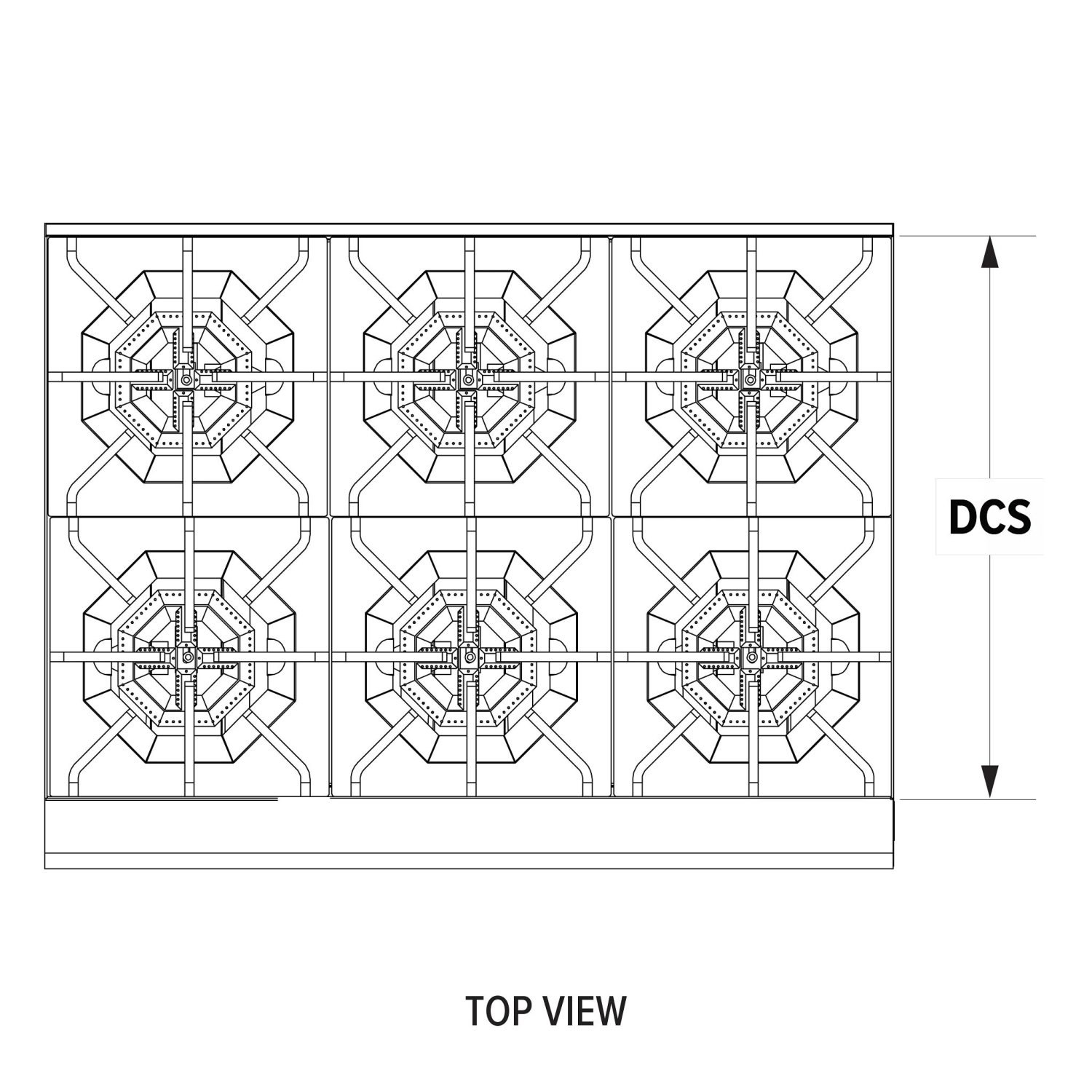

| (DCS) Cooking Surface Depth (IN) | 23.74 |
| (HB) Height of Body (IN) | 9.25 |
| (W) Width (CM) | 91.4 |
| (D) Depth (CM) | 74.3 |
| (H) Height (CM) | 33.66 |
| (HLR) Adjustable Legs (CM) | 10.2 - 14 |
| (WCS) Cooking Surface Width (CM) | 91.44 |
| (DCS) Cooking Surface Depth (CM) | 60.3 |
| (HB) Height of Body (CM) | 23.5 |
| Size | 36 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
| Control Type | Manual |
| Number of Controls | 6 |
Additional Specifications
| Name | Value |
|---|---|
| Number of Drip Trays | 1 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Lot Weight (lbs.) | 188.4952 |
Product Accessories
| Name | Item # |
|---|---|
| 36-inch heavy-duty mobile equipment stand | 4087936 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| HOT PLATE TOP GRATE | 353362-1 | $165.50 |
| 36" HOT PLATE MANIFOLD | 353382-1 | $346.50 |
| HOT PLT PILOT/BRN ASSY - FRONT | 353370-1 | $253.10 |
| DRIP TRAY - 36IN HP-MDCB | 353381-1 | $242.50 |
| DRIP TRAY SUPPORTS - HP | 353366-1 | $53.90 |
| GRATE SUPPORT - HOT PLATE | 353364-1 | $47.60 |
| REGULATOR 4IN WC | 353374-1 | $227.70 |
| HOT PLT PILOT/BRN ASSY - REAR | 353371-1 | $313.40 |
| CONTROL KNOB LG INSERT | 353373-1 | $11.30 |
| MANUAL CONTROL VALVE | 353367-1 | $75.90 |
| LEG, GAS APPLIANCE | 353376-1 | $43.10 |
| HPG6-36 FRONT PANEL ASSY | 354217-1 | $365.80 |
| HP/T-STAT GD ORIFICE - LP | 353369-1 | $6.30 |
| BURNER SUPPORT - HOT PLATE | 353363-1 | $56.40 |
| FASCIA - OVERLAY 36IN HOT PLAT | 353380-1 | $69.30 |
| HOT PLATE ORIFICE - NAT GAS | 353368-1 | $6.20 |
Product Downloads
CAD / REVIT
