60039
120-volt sous vide immersion circulator package
The Vollrath® sous vide immersion circulator package easily and safely prepares a variety of food products.

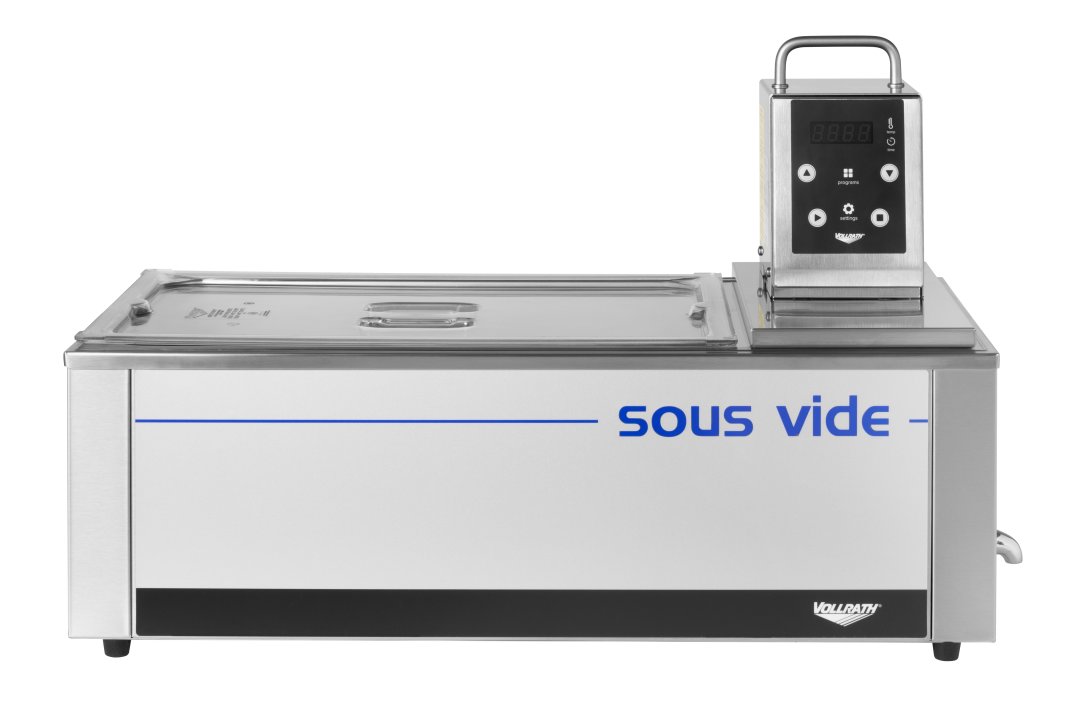

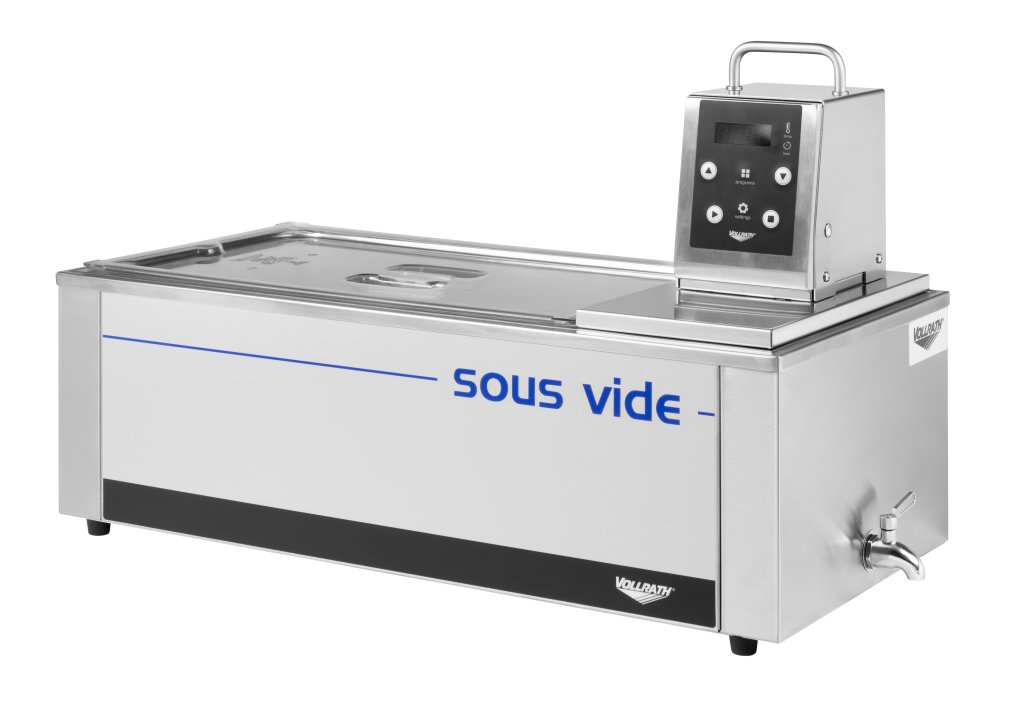

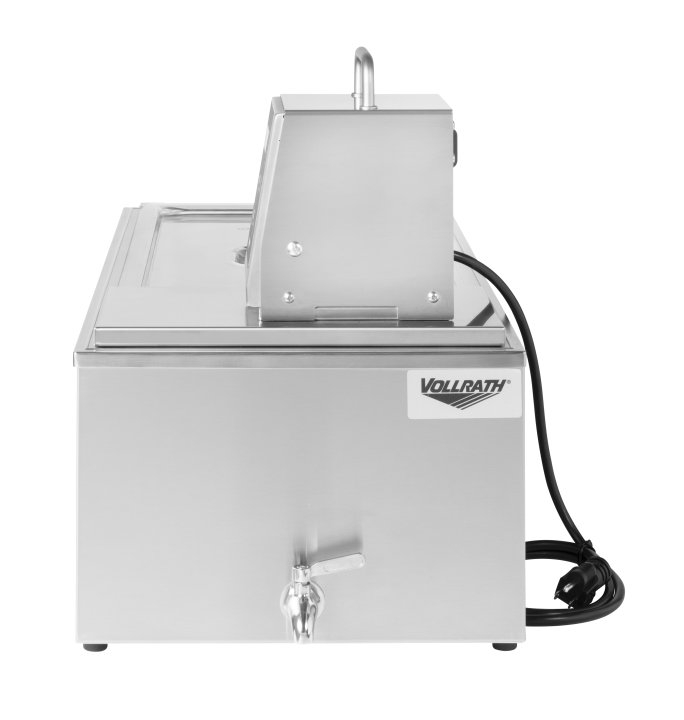

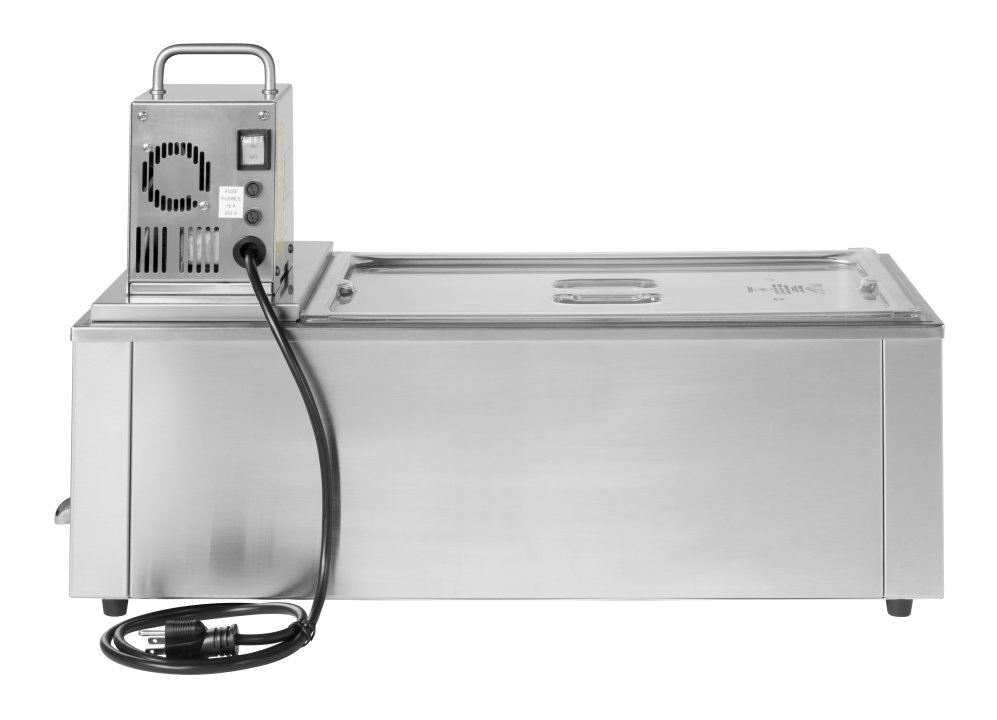

120-volt sous vide immersion circulator package with immersion circulator head, bath and cover
The Vollrath® sous vide immersion circulator package easily and safely prepares a variety of food products. This package comes with an immersion circulator head, bath and cover, providing everything you need for operation. The spacious tank allows you to prepare multiple food items at one time. This immersion circulator works with the Vollrath in-chamber and out-of-chamber vacuum pack machines for your convenience. The two pump speed settings increase the versatility of this compact unit. The digital display shows temperature readings with 0.1-degree accuracy, and the digital controls allow you to program up to three cooking settings at a time for repeatable results. Sous vide cooking can be left unattended and reduces food waste thanks to a long forgiveness window, making this a low-risk, relatively inexpensive product to add to your kitchen.
Temperature setting resolution of 0.1ºF or 0.1ºC for precise results
Maximum temperature is 203°F (95°C)
Increased wattage for a start-up time that is up to 25% faster than our previous unit
Now includes five user-definable programs that set temperature and cook times for repeatable results, no matter which member of the kitchen staff is operating the unit
Audible timer indicates when unit is up to temperature and when cooking cycle is complete
LED display is easy to read
60039 includes a convenient factory fitted drain valve for easy cleaning
Stainless steel housing for durability
Circulator head now includes carry handle for easy transport and placement
Now includes low water switch – that protects the equipment by shutting off the unit when water level is too low
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419255412 |
Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 31.62 |
| (W2) Secondary Width (IN) | 2.6 |
| (D) Depth (IN) | 13.9 |
| (H) Height (IN) | 18.3 |
| (H2) Secondary Height (IN) | 8.7 |
| (WC) Cooking Chamber Width (IN) | 20.8 |
| (DC) Cooking Chamber Depth (IN) | 12.7 |
| (WB) Width of Body (IN) | 28.9 |
| (HB) Height of Body (IN) | 9.6 |
| (W) Width (CM) | 80.3 |
| (W2) Secondary Width (CM) | 6.7 |
| (D) Depth (CM) | 35.4 |
| (H) Height (CM) | 46.6 |
| (H2) Secondary Height (CM) | 22.2 |
| (WC) Cooking Chamber Width (CM) | 52.8 |
| (DC) Cooking Chamber Depth (CM) | 32.3 |
| (WB) Width of Body (CM) | 73.3 |
| (HB) Height of Body (CM) | 24.4 |
Electrical
| Name | Value |
|---|---|
| Amps | 12 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 1500 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 49 |
| Weight (KG) | 22.2 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 19 |
| Case Height | 14.5 |
| Case Length | 34 |
Product Accessories
| Name | Item # |
|---|---|
| Sous vide water tank | 60040 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| S/S FAUCET - NPT THREADS | 21696-1 | $45.90 |
| POWER CORD, 120V | XSVM00015 | $64.90 |
| THERMOATATIC TEMP PROBE | XSVM00010 | $108.60 |
| POWER SWITCH | XSVM00012 | $18.70 |
| COOLING FAN | XSVM00008 | $108.60 |
| 16A FUSE | XSVM00011 | $12.30 |
| KIT - HEATER AND HIGH LIMIT, 1 | XSVM00005 | $325.30 |
| KIT - CIRCULATOR MOTOR, 120V | XSVM00001 | $990.80 |
| PROTECTIVE BASKET | XSVM00013 | $283.70 |
| POWER BOARD, 120V | XSVM00003 | $813.70 |
| FLOAT SWITCH | XSVM00014 | $361.20 |
| DIGITAL DISPLAY BOARD | XSVM00002 | $188.80 |
| CIRCULATOR IMPELLER | XSVM00006 | $15.40 |
| SAFETY TEMP PROBE | XSVM00009 | $113.30 |
| BATH SUPPORT PLATE | XSVM00004 | $104.70 |
| SOUS VIDE CONTROL HEAD W/PLATE | 353226-2 | $3,023.50 |
| .625" BULLET FOOT | 23754-1 | $3.30 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
