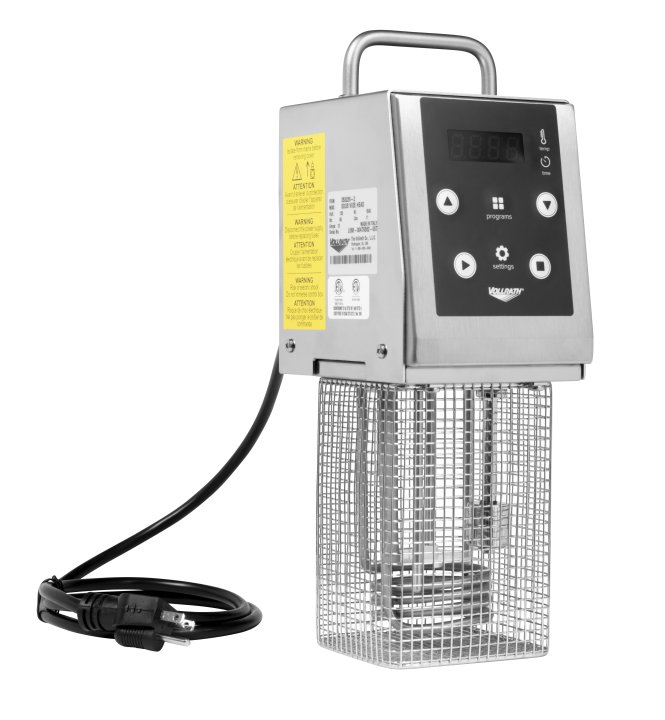

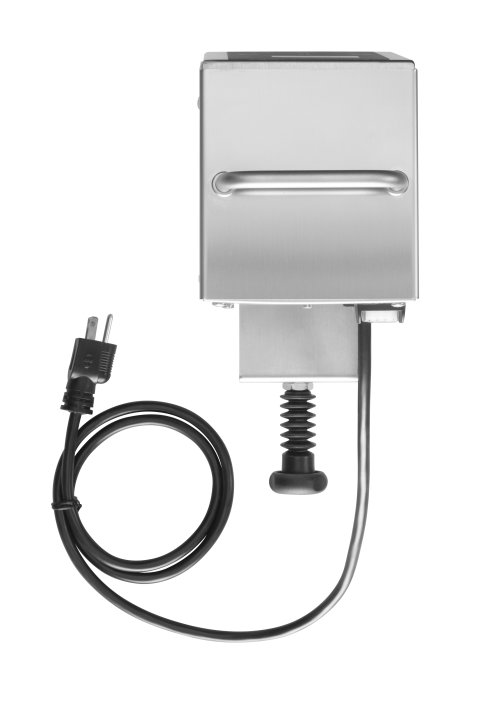

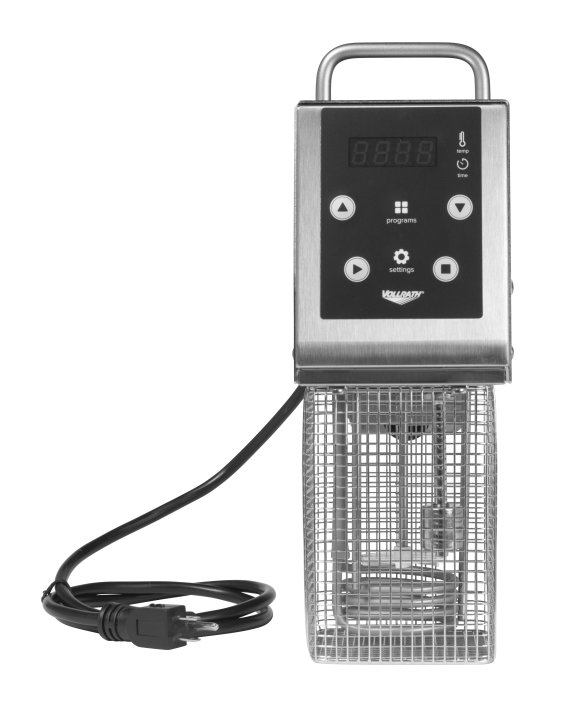

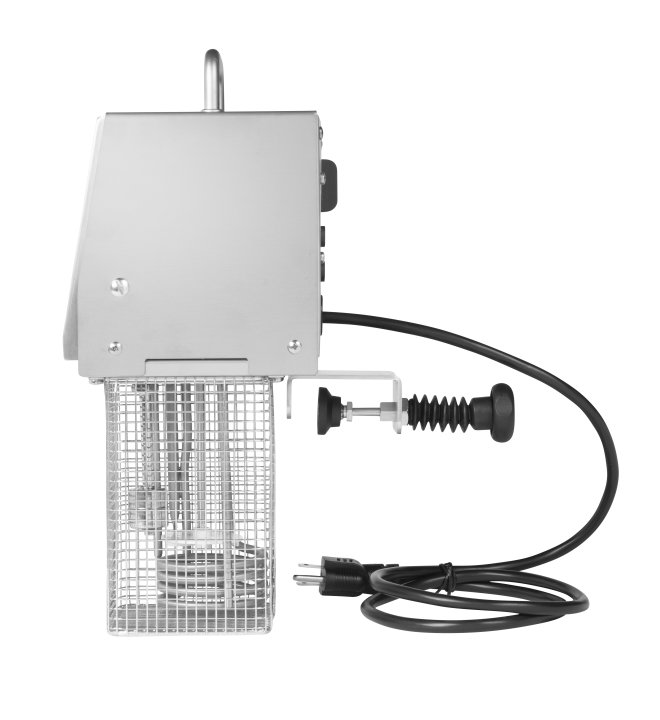

120-volt sous vide immersion circulator head
The Vollrath® sous vide immersion circulator head easily and safely prepares a variety of food products.
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.
This immersion circulator is a beast!! Chefs will tell you that immersion circulators are some of the most finicky pieces of equipment in a kitchen. They are constantly in need of repair. Not the Vollrath circulator; we use it, abuse it and take it on the road with us. It just keeps on trucking day after day.
Erling Wu-Bower Executive Chef/Co-Owner - Pacific Standard Time
120-volt sous vide immersion circulator head
The Vollrath® sous vide immersion circulator head easily and safely prepares a variety of food products. The digital controls allow you to program up to five cooking settings at a time for repeatable results. The digital display shows temperature readings with 0.1-degree accuracy and an audible timer indicates when the unit is up to temperature as well as when the cooking cycle is completed. Products being cooked with the sous vide method can be left unattended and reduces food waste thanks to a long forgiveness window. The increased wattage makes start-up times up to 25 percent faster than our previous units.
Temperature setting resolution of 0.1ºF or 0.1ºC for precise results
Maximum temperature is 203°F (95°C)
Increased wattage for a start-up time that is up to 25% faster than our previous unit
Now includes five user-definable programs that set temperature and cook times for repeatable results, no matter which member of the kitchen staff is operating the unit
Audible timer indicates when unit is up to temperature and when cooking cycle is complete
LED display is easy to read
Stainless steel housing for durability
Circulator head now includes carry handle for easy transport and placement
Now includes low water switch – that protects the equipment by shutting off the unit when water level is too low
Celsius or Fahrenheit temperature readouts for precise cooking.
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419255405 |

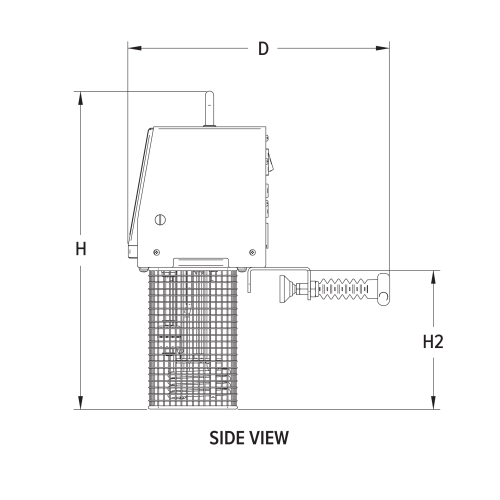

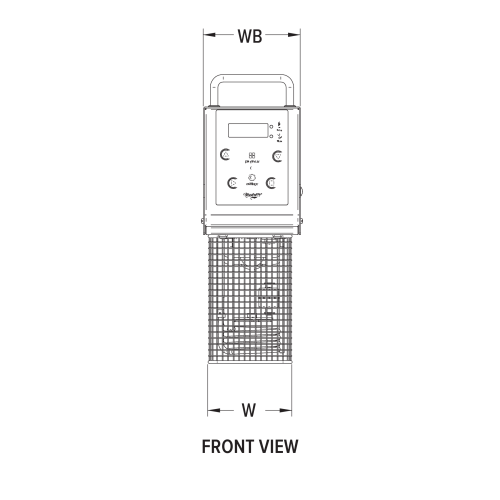

Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 4.4 |
| (D) Depth (IN) | 12.3 |
| (H) Height (IN) | 15 |
| (H2) Secondary Height (IN) | 6.6 |
| (WB) Width of Body (IN) | 5 |
| (W) Width (CM) | 11.1 |
| (D) Depth (CM) | 31.4 |
| (H) Height (CM) | 38.2 |
| (H2) Secondary Height (CM) | 16.7 |
| (WB) Width of Body (CM) | 12.8 |
Electrical
| Name | Value |
|---|---|
| Amps | 12 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 1500 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 11 |
| Weight (KG) | 5 |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Construction Material 2 | Electrical Components |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 13.25 |
| Case Height | 9.5 |
| Case Length | 18 |
Product Accessories
| Name | Item # |
|---|---|
| Sous vide water tank | 60040 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| POWER CORD, 120V | XSVM00015 | $64.90 |
| THERMOATATIC TEMP PROBE | XSVM00010 | $108.60 |
| POWER SWITCH | XSVM00012 | $18.70 |
| COOLING FAN | XSVM00008 | $108.60 |
| 16A FUSE | XSVM00011 | $12.30 |
| KIT - HEATER AND HIGH LIMIT, 1 | XSVM00005 | $325.30 |
| KIT - CIRCULATOR MOTOR, 120V | XSVM00001 | $990.80 |
| PROTECTIVE BASKET | XSVM00013 | $283.70 |
| POWER BOARD, 120V | XSVM00003 | $813.70 |
| KIT - ADJUSTABLE CLAMP | XSVM00007 | $298.00 |
| FLOAT SWITCH | XSVM00014 | $361.20 |
| DIGITAL DISPLAY BOARD | XSVM00002 | $188.80 |
| CIRCULATOR IMPELLER | XSVM00006 | $15.40 |
| SAFETY TEMP PROBE | XSVM00009 | $113.30 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
