40861

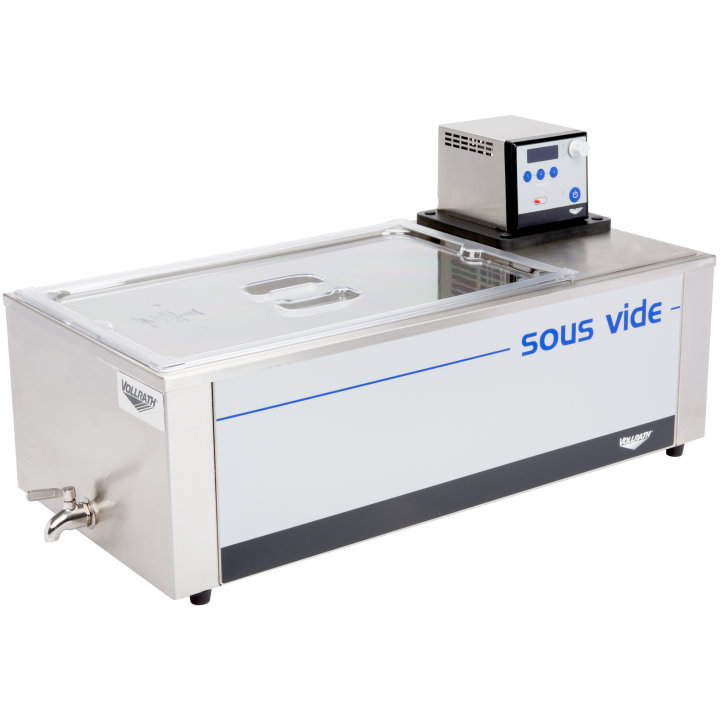

Discontinued120-volt sous vide immersion circulator package with immersion circulator head, bath and cover
The Vollrath® sous vide immersion circulator package easily and safely prepares a variety of food products.
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

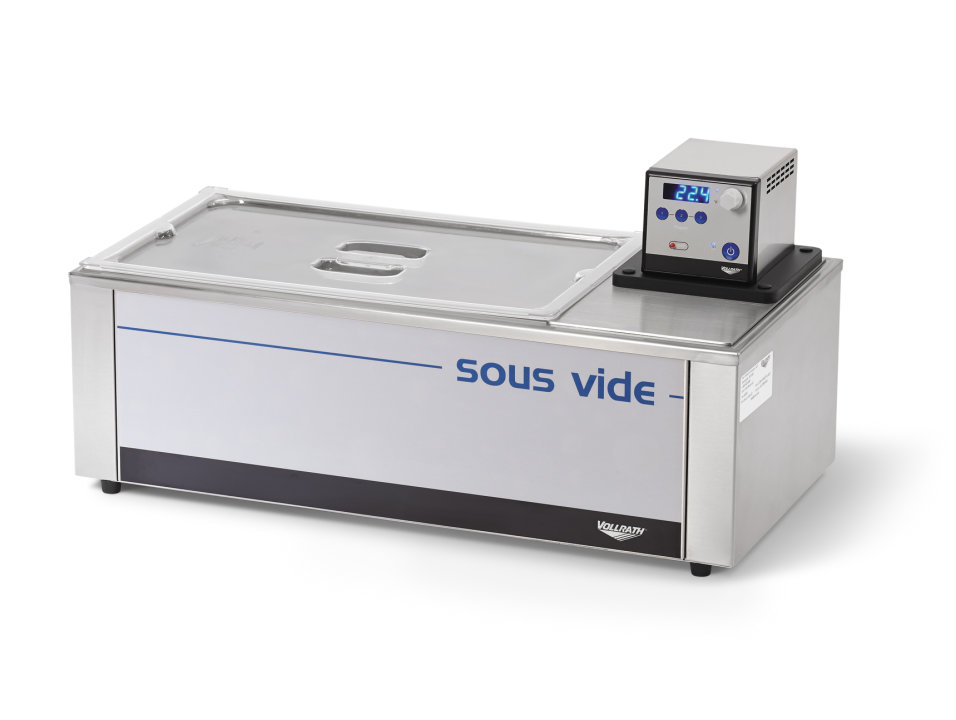

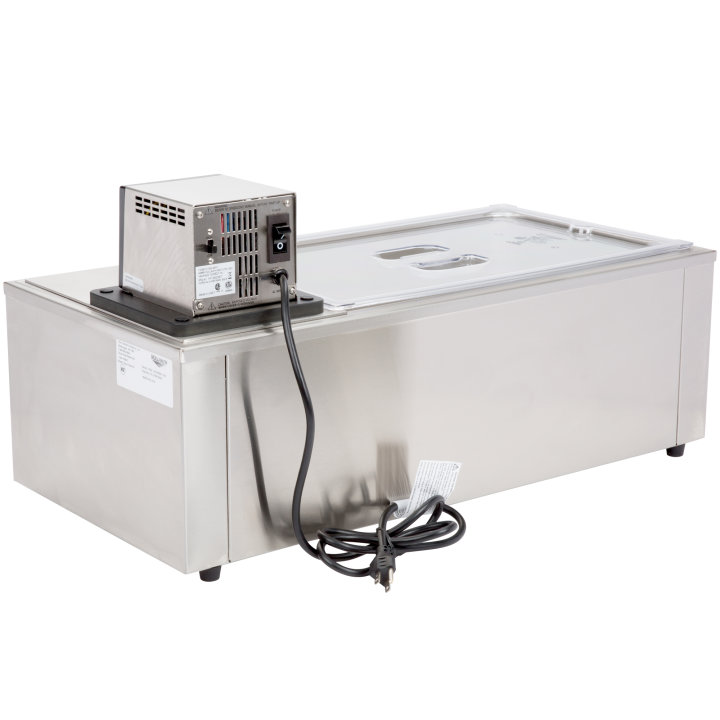

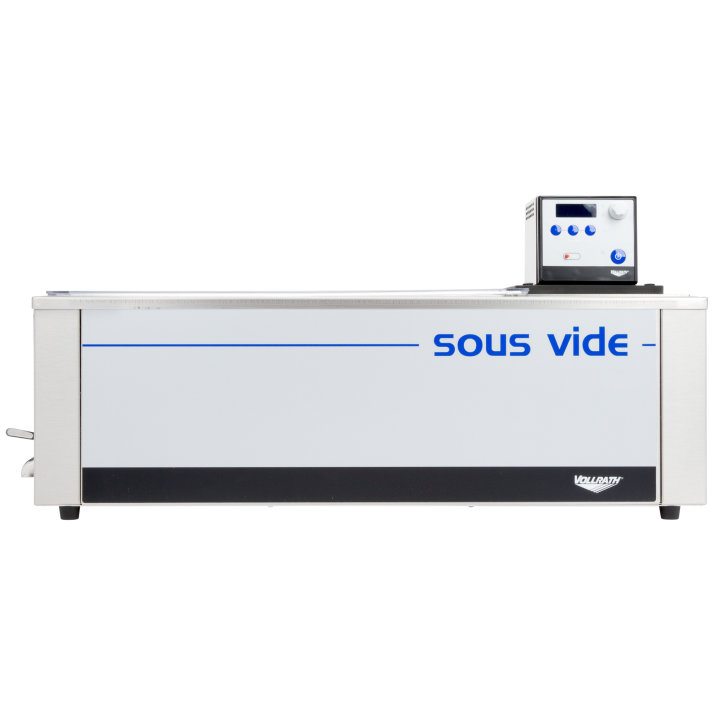

120-volt sous vide immersion circulator package with immersion circulator head, bath and cover
The Vollrath® sous vide immersion circulator package easily and safely prepares a variety of food products. This package comes with an immersion circulator head, bath and cover, providing everything you need for operation. The spacious tank allows you to prepare multiple food items at one time. This immersion circulator works with the Vollrath in-chamber and out-of-chamber vacuum pack machines for your convenience. The two pump speed settings increase the versatility of this compact unit. The digital display shows temperature readings with 0.1-degree accuracy, and the digital controls allow you to program up to three cooking settings at a time for repeatable results. Sous vide cooking can be left unattended and reduces food waste thanks to a long forgiveness window, making this a low-risk, relatively inexpensive product to add to your kitchen.
Easily cook a variety of foods including meats, eggs and vegetables
Cooks unattended, saving you time and effort
Cooks and holds food at safe temperatures

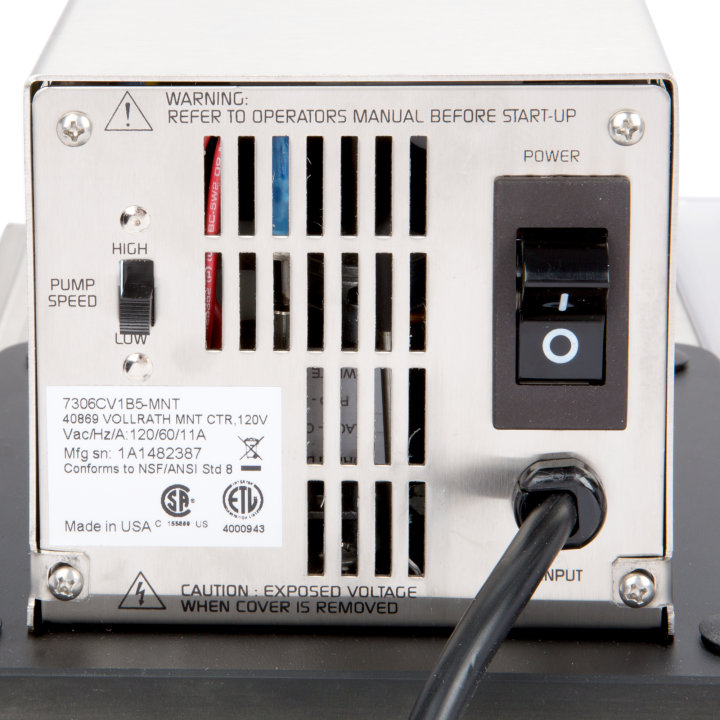

Two pump speeds increase versatility
Digital control head allows you to program up to three cooking settings at one time for repeatable results
Immersion circulator head, bath and cover included in package
Digital display provides readings within 0.1-degree accuracy
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419946006 |

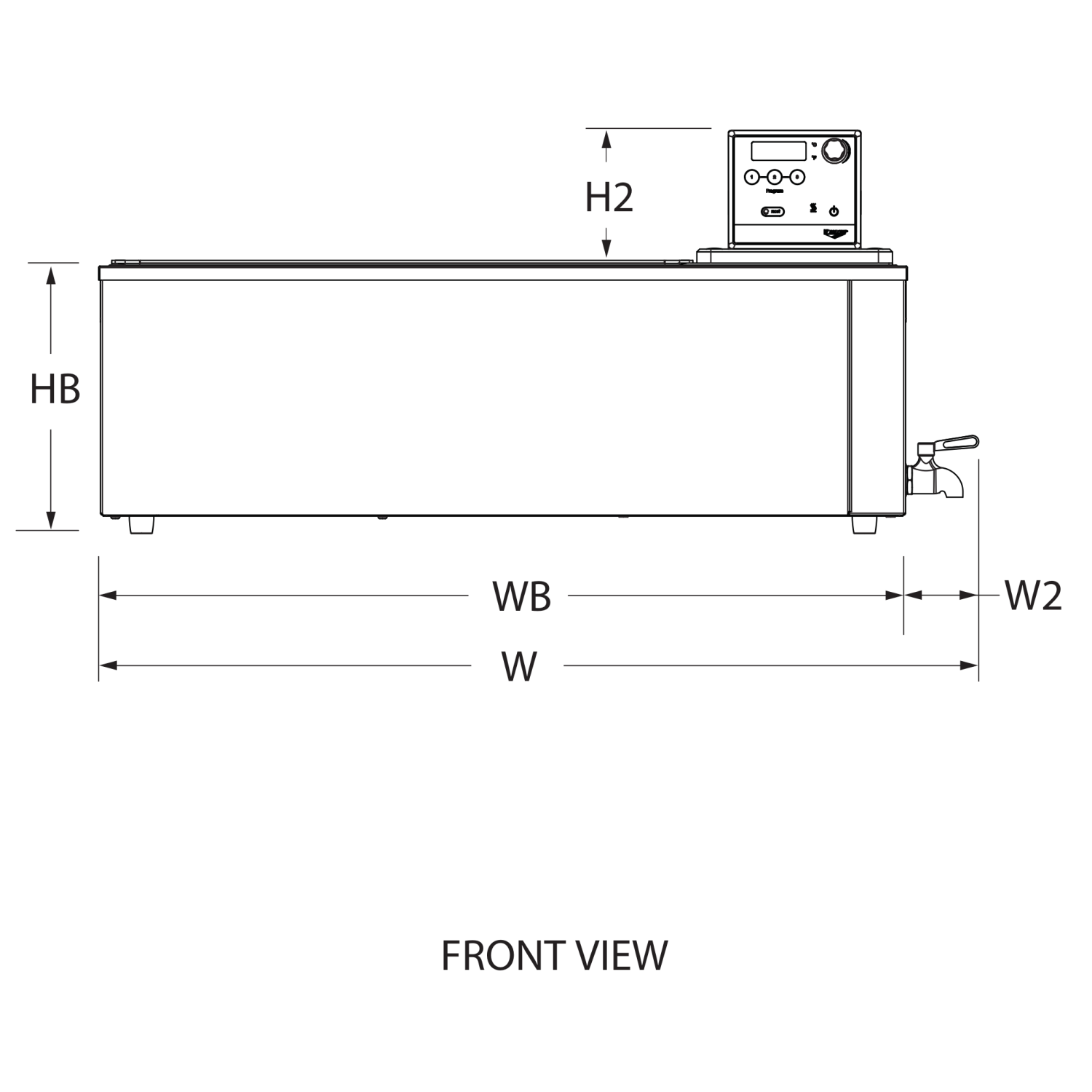

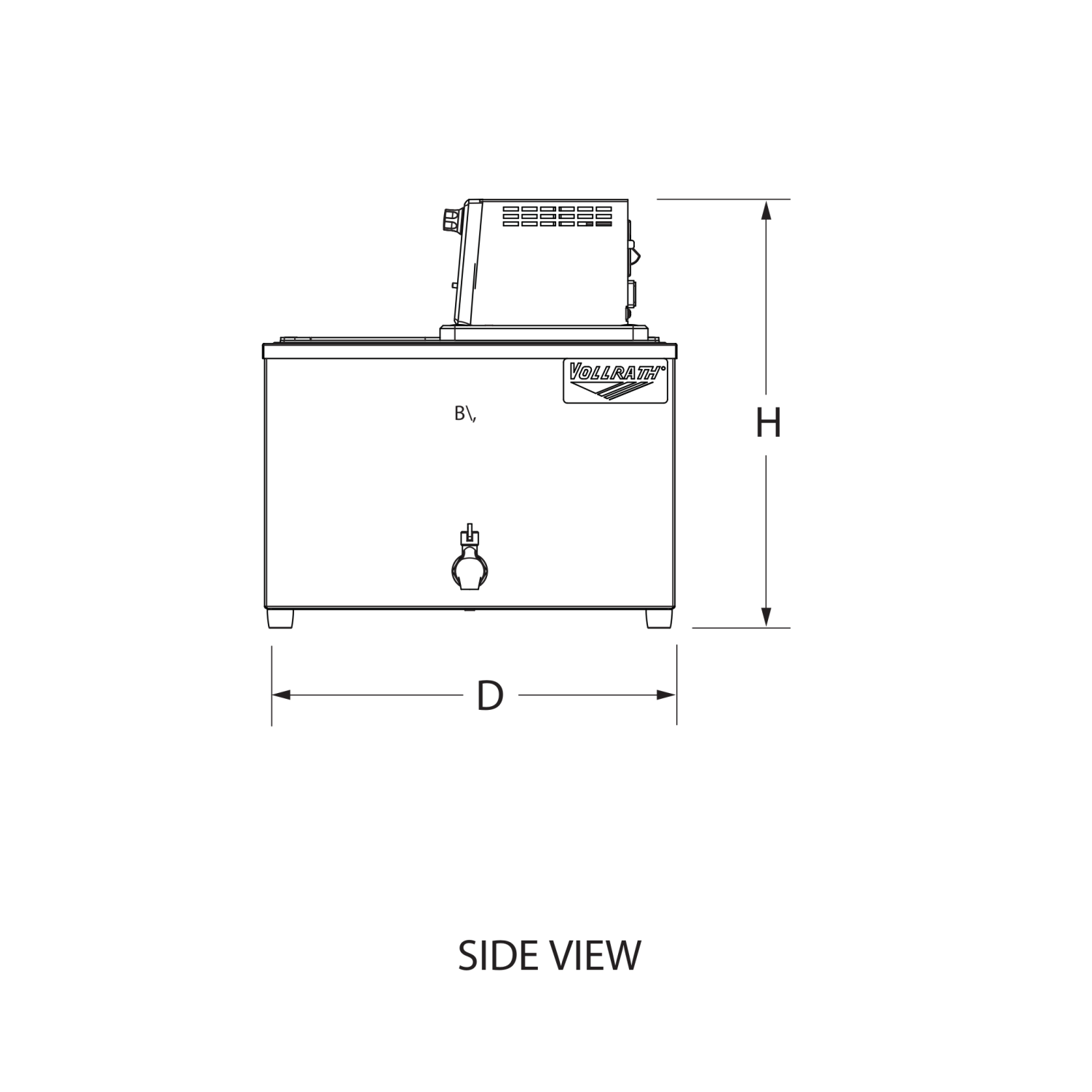

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 31.625 x 14 x 14.56 |
| (W) Width (IN) | 31.62 |
| (W2) Secondary Width (IN) | 2.625 |
| (D) Depth (IN) | 14 |
| (H) Height (IN) | 14.56 |
| (H2) Secondary Height (IN) | 4.937 |

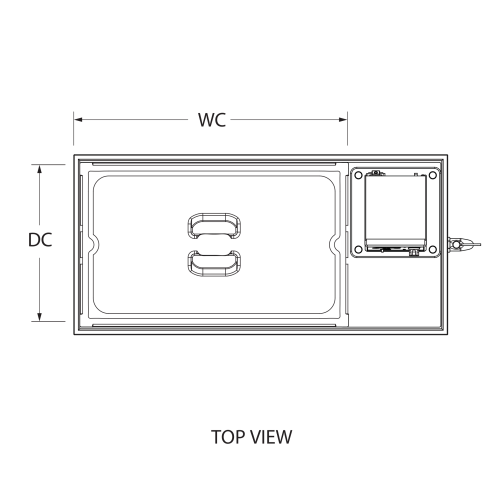

| (WC) Cooking Chamber Width (IN) | 20.75 |
| (DC) Cooking Chamber Depth (IN) | 12.75 |
| (WB) Width of Body (IN) | 31.625 |
| (HB) Height of Body (IN) | 9.625 |
| Overall Dimensions (CM) | 80.3 x 35.6 x 37 |
| (W) Width (CM) | 80.3 |
| (W2) Secondary Width (CM) | 6.7 |
| (D) Depth (CM) | 35.6 |
| (H) Height (CM) | 37 |
| (H2) Secondary Height (CM) | 12.5 |
| (WC) Cooking Chamber Width (CM) | 52.7 |
| (DC) Cooking Chamber Depth (CM) | 32.4 |
| (WB) Width of Body (CM) | 80.3 |
| (HB) Height of Body (CM) | 24.4 |
Electrical
| Name | Value |
|---|---|
| Amps | 11 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 180 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 1100 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 19 |
| Case Height | 14 |
| Case Length | 34 |
| Case Lot Cube (ft.) | 5.23 |
| Case Lot Weight (lbs.) | 49.65 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| 120V PCB DISPLAY | 26068-1 | $2,852.30 |
| FAN BLADE AND MOUNT KIT | 26065-1 | $50.90 |
| CLAMP KIT BELLOWS KNOB | 26073-1 | $402.40 |
| 120V PUMP KIT MOTOR CONNECTOR | 351543-1 | $832.30 |
| .625" BULLET FOOT | 23754-1 | $3.30 |
| CLAMP-HOSE 7/8" OD TUBING | 26883-3 | $2.40 |
| S/S FAUCET - NPT THREADS | 21696-1 | $45.90 |
| 120V HEATER AND PACKAGING KIT | 26069-1 | $475.50 |
| CIRCUIT BREAKER KIT | 26063-1 | $241.30 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
