CF4-3600
208-280-Volt 15 lb. medium-duty countertop fryer with drain
The Vollrath® medium-duty fryer takes durability and performance to a new level.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

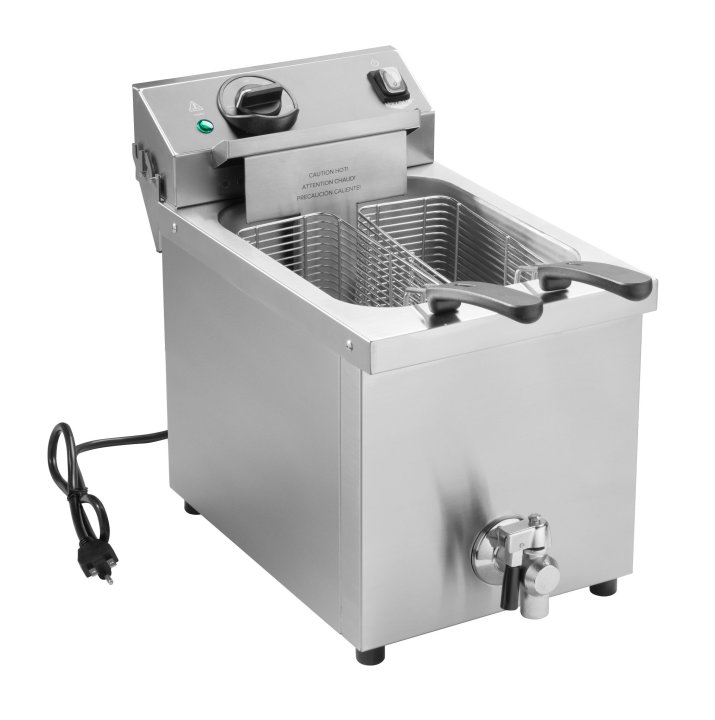

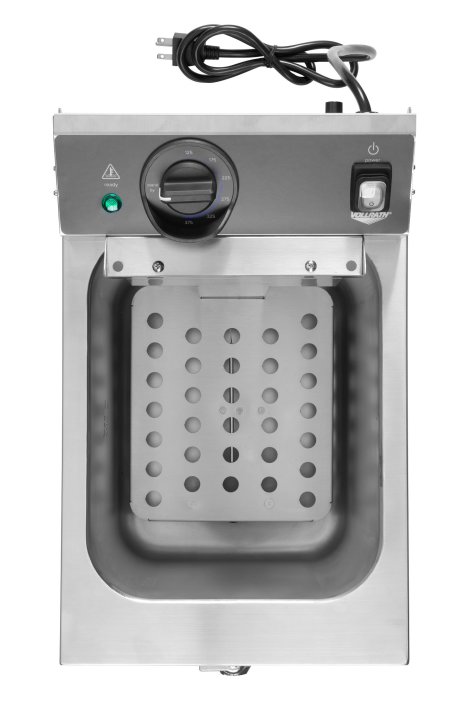

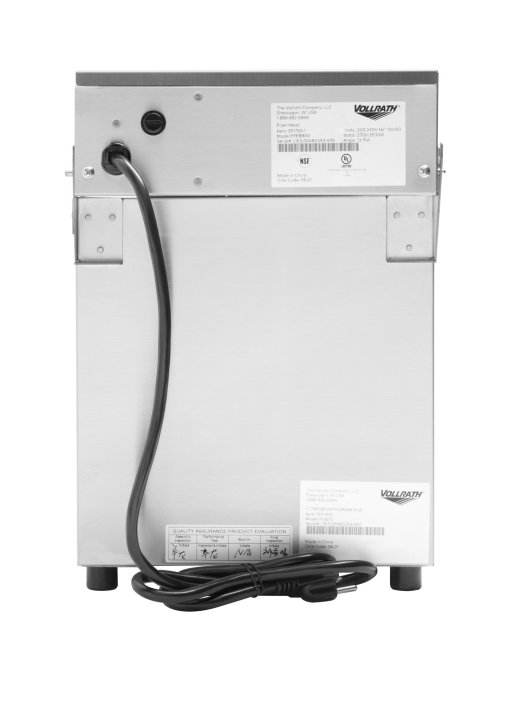

208-280-Volt 15 lb. medium-duty countertop fryer with drain
The Vollrath® medium-duty fryer takes durability and performance to a new level. Fully welded oil tanks with drainage valves are even easier to empty and clean, and increased power is ideal for frying frozen products and more, with excellent recovery time between batches. Medium-duty single fryer ships with night cover and 2 stainless steel wire baskets with cool-touch handles.
Medium-duty single fryer delivers 2700 - 3600 watts of power
New components deliver quality, safety and durability
Lighted power switch and oil-ready indicators
Thermostatically controlled to 375°F; auto shutoff at 500°F
3-position fryer head enables easy pan removal and cleaning
Optional accessories sold separately include large basket
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | FFA8115 |
| UPC | 671080969411 |
Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 11.3 |
| (D) Depth (IN) | 20.875 |
| (H) Height (IN) | 16 |
| (DB) Depth of Body (IN) | 14.75 |
| (HB) Height of Body (IN) | 17.375 |
| (W) Width (CM) | 28.7 |
| (D) Depth (CM) | 53.02 |
| (H) Height (CM) | 40.8 |
| (DB) Depth of Body (CM) | 37.5 |
| (HB) Height of Body (CM) | 43.5 |
Electrical
| Name | Value |
|---|---|
| Amps | 13 - 15 |
| Cord Length (IN) | 48 |
| Cord Length (CM) | 121.9 |
| Plug | NEMA 6-15P |
| Voltage | 208-240 |
| Watts | 2700 - 3600 |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Construction Material 2 | Electrical Components |
| Material Type | Metals |
| Number of Wells | 1 |
| Product Function | Fryer |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| Kit, Foot, 1.00" OD, 20Mm LG | 351775-1 | $10.40 |
| 240V HEATING ELEMENT KIT | 351813-02-1 | $70.10 |
| RUBBER GASKET | 351788-09-1 | $1.60 |
| INTERLOCK SWITCH KIT | 351814-1 | $18.50 |
| 240V RELAY KIT | 351815-02-1 | $84.90 |
| DRAIN VALVE KIT | 351808-1 | $52.90 |
| FRYER HEAD OVERLAY | 351788-01-1 | $16.50 |
| 15LB BODY ASSM | 351816-03-1 | $554.70 |
| FRYER INTERLOCK MAGNET | 351792-04-1 | $12.20 |
| FRYER HEAD 208-240V | 351790-1 | $460.80 |
| REGULATING THERMOSTAT | 351788-12-1 | $13.30 |
| HI-LIMIT THERMOSTAT COVER | 351788-03-1 | $10.80 |
| 240V PILOT LIGHT | 351788-18-1 | $31.60 |
| RECTANGULAR POWER SWITCH 240V | 352740-1 | $11.10 |
| Control Knob | 351788-06-1 | $7.60 |
| HI-LIMIT THERMOSTAT | 351788-02-1 | $13.30 |
| Kit, Foot, 1.00" OD, 20Mm LG | 351775-1 | $10.40 |
| 6-15 POWER CORD STRT STRN RELF | 354201-1 | $53.60 |
| FRYER BEZEL & OVERLAY | 354203-1 | $53.10 |
Product Downloads
CAD / REVIT
