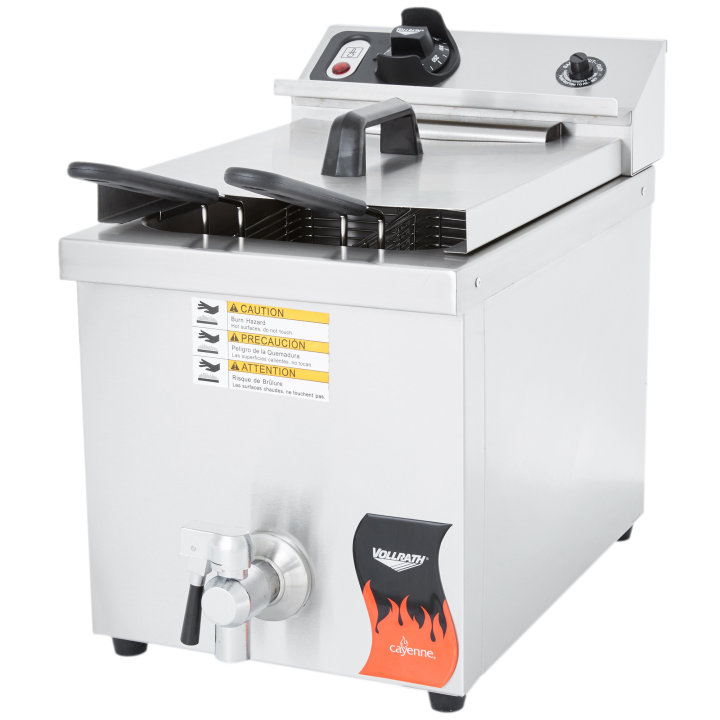

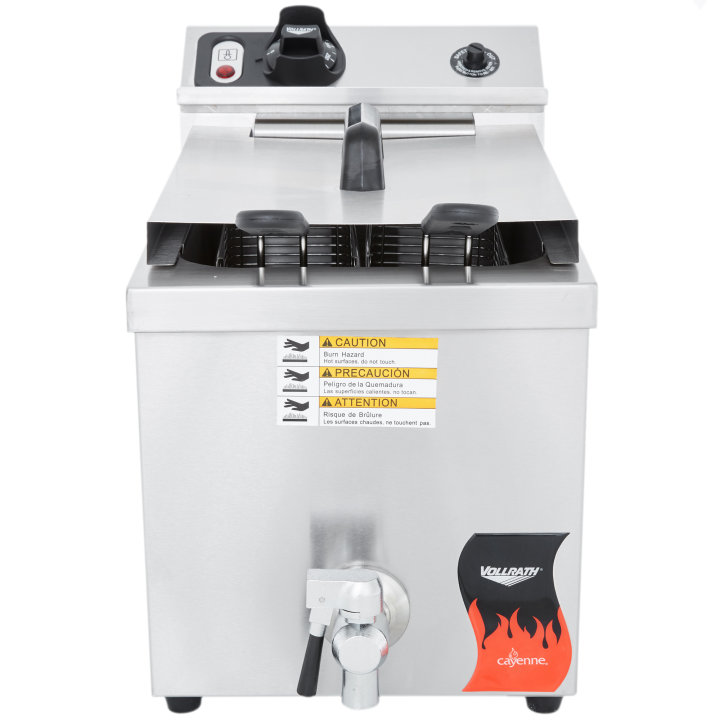

Discontinued208- to 240-volt 15-lb medium duty Cayenne® countertop deep fryer
The Vollrath® 15-lb Cayenne countertop deep fryer efficiently prepares a variety of fried foods while saving precious counter space.

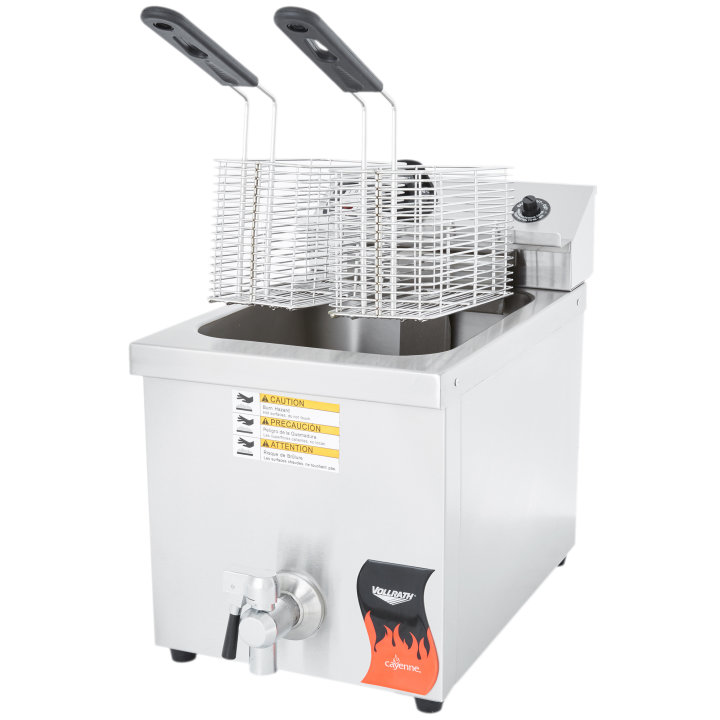

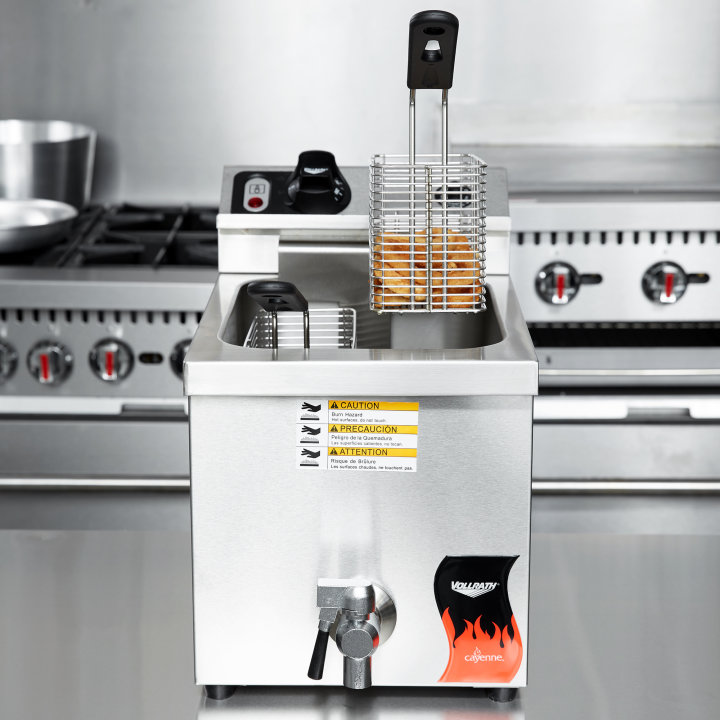

208- to 240-volt 15-lb medium duty Cayenne® countertop deep fryer
The Vollrath® 15-lb Cayenne countertop deep fryer efficiently prepares a variety of fried foods while saving precious counter space. This fryer is thermostatically controlled to 374°F and has quick heating and recovery times, making this unit suitable even for frozen foods. A designated cold zone keeps oil fresh longer, improving quality and taste. Two nickel-plated steel fryer baskets have Kool-Touch® handles for your safety and comfort. Nonskid rubber feet prevent the unit from moving during use and maintain stability. Thanks to its compact size, this unit fits nicely on any countertop.
Quickly fry chicken, french fries, seafood, and more
Fully welded oil tank and front-mounted drainage valve make cleaning easy and efficient

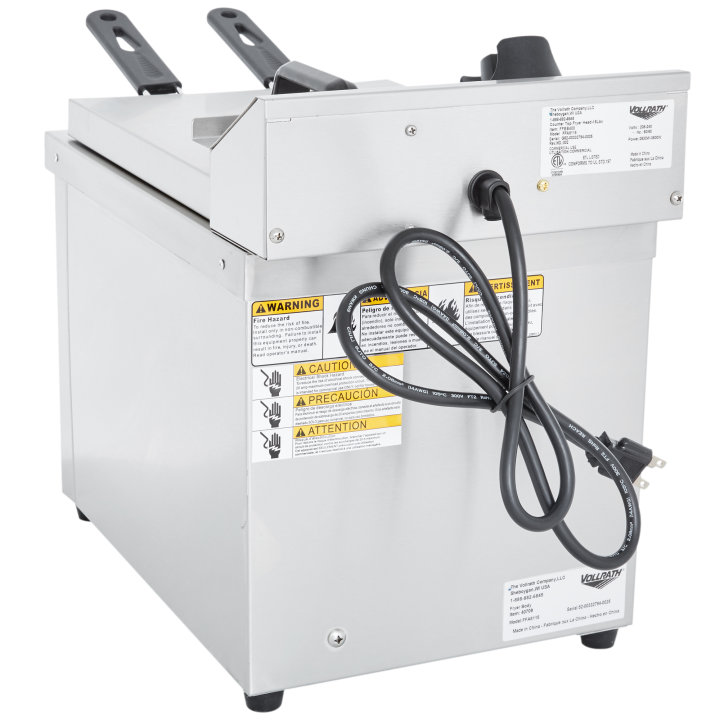

Double-well unit features two separate power cords and requires two receptacles
Microswitch safely shuts off unit when element box is removed
Automatic shutoff feature at 446°F maintains safety of operation
Thermostatic controls maintain a temperature of 374°F for more accurate heating
Two 4- x 10- x 4-inch fryer baskets fit a variety of products
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | FFA8115 |
| UPC | 029419718894 |

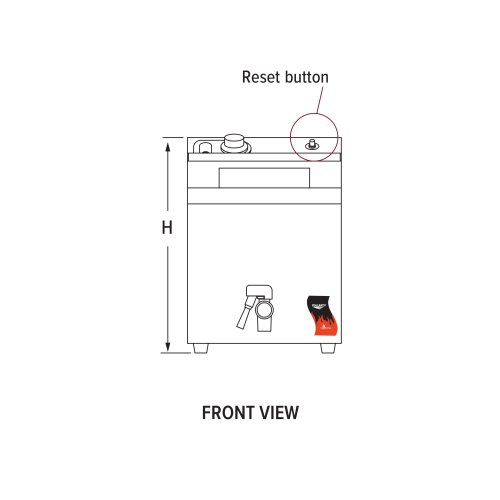

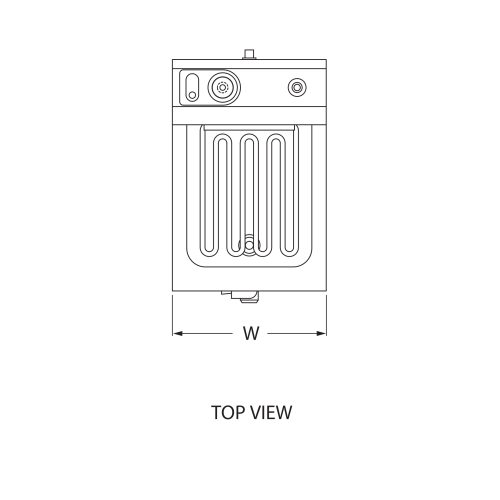

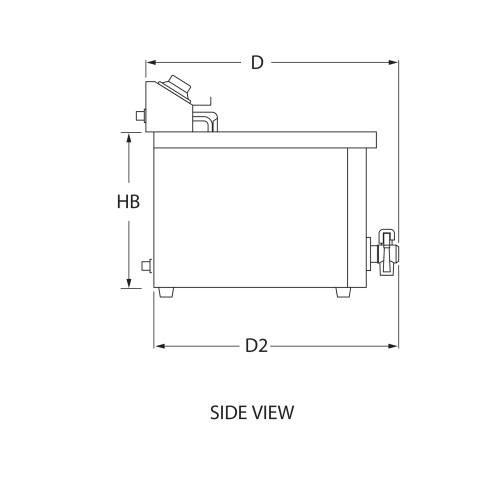

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 11.5 x 19.75 x 16 |
| (W) Width (IN) | 11.5 |
| (D) Depth (IN) | 19.75 |
| (D2) Secondary Depth (IN) | 18.5 |
| (H) Height (IN) | 16 |
| (HB) Height of Body (IN) | 11.5 |
| Overall Dimensions (CM) | 29.2 x 50.2 x 40.6 |
| (W) Width (CM) | 29.2 |
| (D) Depth (CM) | 50.2 |
| (D2) Secondary Depth (CM) | 47 |
| (H) Height (CM) | 40.6 |
| (HB) Height of Body (CM) | 29.2 |
| Size | 15 |
Electrical
| Name | Value |
|---|---|
| Amps | 12.6 - 14.6 per well |
| Cord Length (IN) | 60 |
| Cord Length (CM) | 150 |
| Plug | NEMA 6-15P |
| Voltage | 208-240 |
| Watts | 2630-3500 per well |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 27 |
| Weight (KG) | 12.25 |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Construction Material 2 | Electrical Components |
| Countertop or Drop-In | Countertop |
| Number of Wells | 1 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 14 |
| Case Height | 20 |
| Case Length | 22 |
| Case Lot Cube (ft.) | 3.47 |
| Case Lot Weight (lbs.) | 25.0 |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| MICRO SWITCH FFA5110/8115/8130 | XFFA5010 | $36.30 |
| POWERCORD 220V (NEMA6-15P) | XAA0006 | $45.60 |
| CONTROL PANEL FASCIA - BLACK | XAA0009 | $31.70 |
| PARTICLE SIEVE | XFFA0014 | $30.80 |
| NIGHT COVER FFA80115/FFA8130 | XFFA8027 | $141.50 |
| THERMOSTAT | XFFA8103 | $134.10 |
| ELEMENT FFA8115/FFA8130 (#1) 3 | XFFA8001 | $188.70 |
| PILOT LIGHT 220V (RED) | XAA0002 | $18.10 |
| VOLLRATH CONTROL KNOB FFA7110/ | XFFA0004 | $18.70 |
| RELAY DPST 200-240V COIL | XFFA0005 | $65.50 |
| SAFETY CUT OUT PLASTIC CAP FF | XFFA0013 | $8.10 |
| FAUCET FIBRE WASHER FFA8115/FF | XFFA8013 | $7.20 |
| DRAIN VALVE FFA8115/FFA8130 (# | XFFA8002 | $205.60 |
| DRAIN VALVE HANDLE FFA8115/FFA | XFFA8102 | $67.30 |
| CABLE RESTRAINT (FMA SKA FFA) | XAA0012 | $11.70 |
| SAFETY THERMOSTAT FFA8115/FFA8 | XFFA8008 | $61.40 |
| C/T FRYER PART- ELEMENT BOX CO | FFEB400 | $637.10 |
| FAUCET O RING FFA8115/FFA8130 | XFFA8015 | $10.80 |
